SANWA SUPPLY
Ultra-thin mini USB cable (mini-B type) KU-SLAMB525BKK
Ultra-thin mini USB cable (mini-B type) KU-SLAMB525BKK
GTIN（JAN）：4969887766835
SKU：KU-SLAMB525BKK
Regular price
¥900 JPY
Regular price
Sale price
¥900 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Easy-to-handle Mini USB 2.0 Ultra-thin Cable, 2.5mm Thickness]
●This cable connects a computer with a USB port to peripheral devices with a USB (mini USB B connector 5pin) interface (digital cameras, PSPs, USB hubs, hard drives, card readers, MP3 players, digital camcorders, etc.).
It can also connect PictBridge-compatible digital cameras and printers.
*Because it uses a thin cable, it cannot be extended.
*Special software may be required to connect a digital camera/digital camcorder to a computer.
*"PictBridge" is a communication standard for directly connecting a digital camera and printer to print.
It unifies the direct printing method that each manufacturer has implemented independently, ensuring compatibility of direct printing between different manufacturers and models. With a PictBridge-compatible digital camera and printer, direct printing is possible regardless of the manufacturer.
●This is an ultra-thin cable that is easy to handle, using a thin cable with an outer diameter of 2.5mm and a compact connector.
●This is a high-quality cable compatible with USB 2.0's "HI-SPEED" mode. It can connect both USB 2.0 and 1.1 devices.
It meets all the electrical characteristic values such as characteristic impedance, signal attenuation, propagation delay, and skew specified by USB 2.0.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●It uses a gold-plated connector shell that is resistant to rust and less prone to signal degradation due to aging.
●It uses gold-plated pins (contacts) that are resistant to rust and less prone to signal degradation due to aging.
■Color: Black
■Cable length: Approx. 2.5m (between SR)
■Cable diameter: Approx. 2.5mm

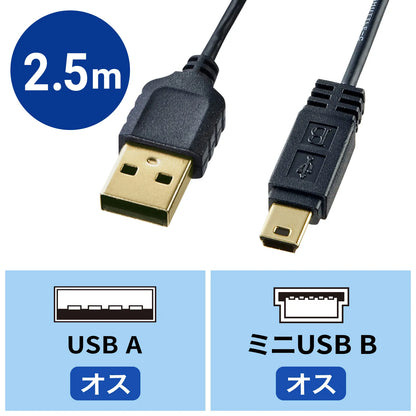

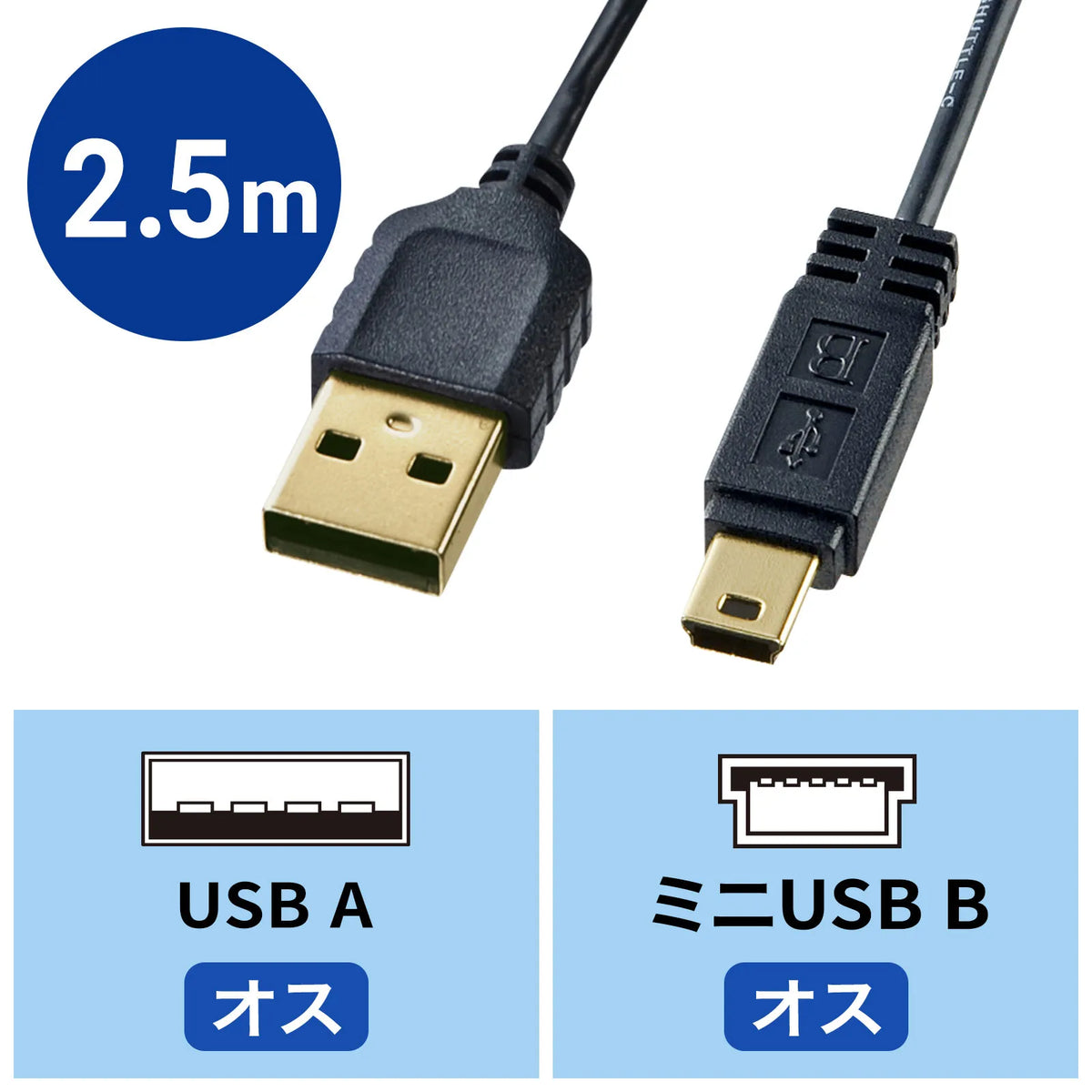

■Connector shape: USB A connector male - USB mini B connector (5pin) male
■Weight: Approx. 36g
■Wire material standard: UL2725
■Standard: USB2.0/USB1.1
■Minimum bending radius: 6D, 15mm OD2.5mm (outer diameter)
≪Custom order lot size from 300 pieces≫
*Custom orders are possible for orders of more than 300 pieces. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
●This cable connects a computer with a USB port to peripheral devices with a USB (mini USB B connector 5pin) interface (digital cameras, PSPs, USB hubs, hard drives, card readers, MP3 players, digital camcorders, etc.).
It can also connect PictBridge-compatible digital cameras and printers.
*Because it uses a thin cable, it cannot be extended.
*Special software may be required to connect a digital camera/digital camcorder to a computer.
*"PictBridge" is a communication standard for directly connecting a digital camera and printer to print.
It unifies the direct printing method that each manufacturer has implemented independently, ensuring compatibility of direct printing between different manufacturers and models. With a PictBridge-compatible digital camera and printer, direct printing is possible regardless of the manufacturer.
●This is an ultra-thin cable that is easy to handle, using a thin cable with an outer diameter of 2.5mm and a compact connector.
●This is a high-quality cable compatible with USB 2.0's "HI-SPEED" mode. It can connect both USB 2.0 and 1.1 devices.
It meets all the electrical characteristic values such as characteristic impedance, signal attenuation, propagation delay, and skew specified by USB 2.0.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●It uses a gold-plated connector shell that is resistant to rust and less prone to signal degradation due to aging.
●It uses gold-plated pins (contacts) that are resistant to rust and less prone to signal degradation due to aging.
■Color: Black
■Cable length: Approx. 2.5m (between SR)
■Cable diameter: Approx. 2.5mm
■Connector shape: USB A connector male - USB mini B connector (5pin) male
■Weight: Approx. 36g
■Wire material standard: UL2725
■Standard: USB2.0/USB1.1
■Minimum bending radius: 6D, 15mm OD2.5mm (outer diameter)
≪Custom order lot size from 300 pieces≫
*Custom orders are possible for orders of more than 300 pieces. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
