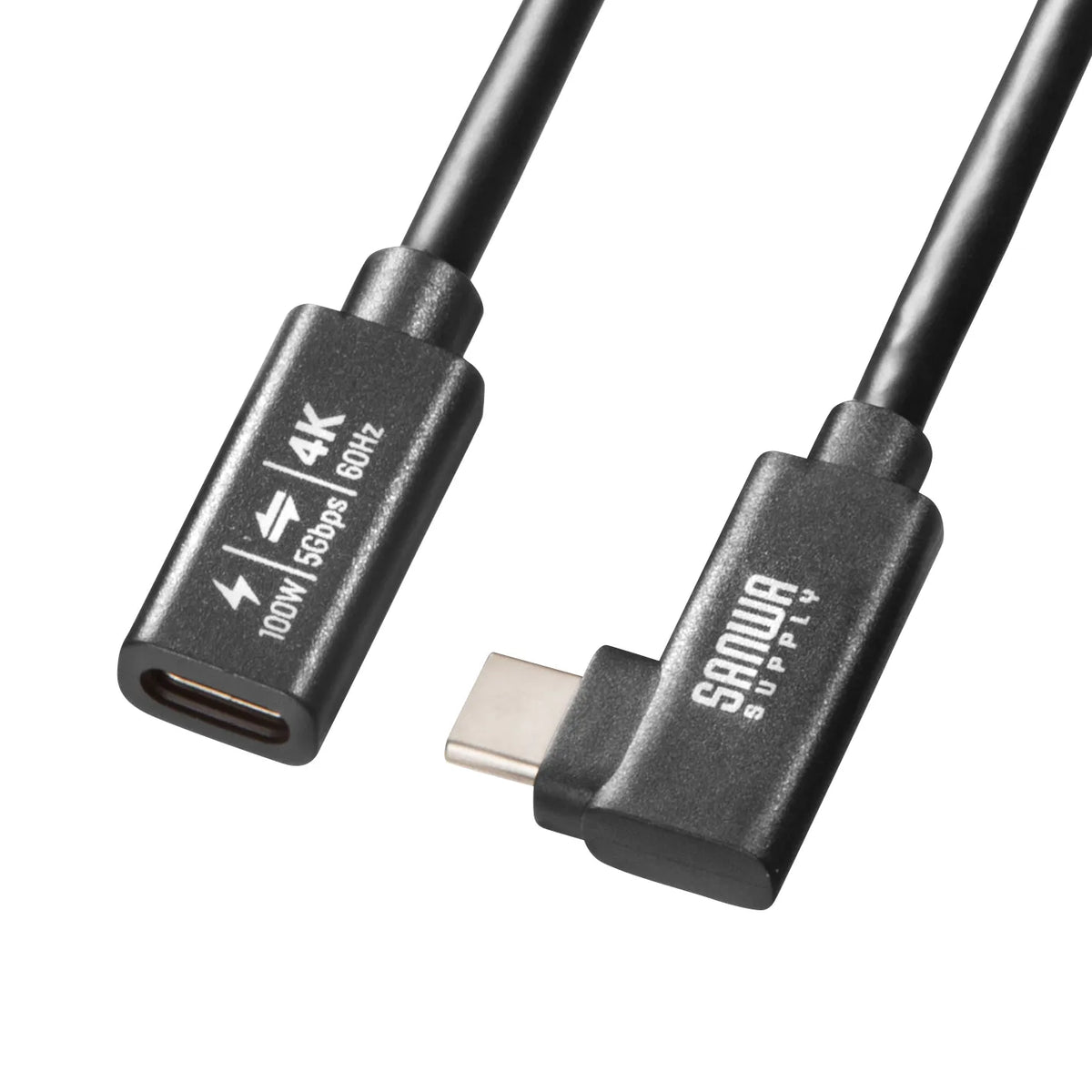

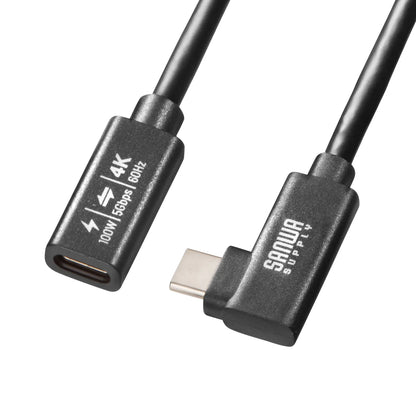

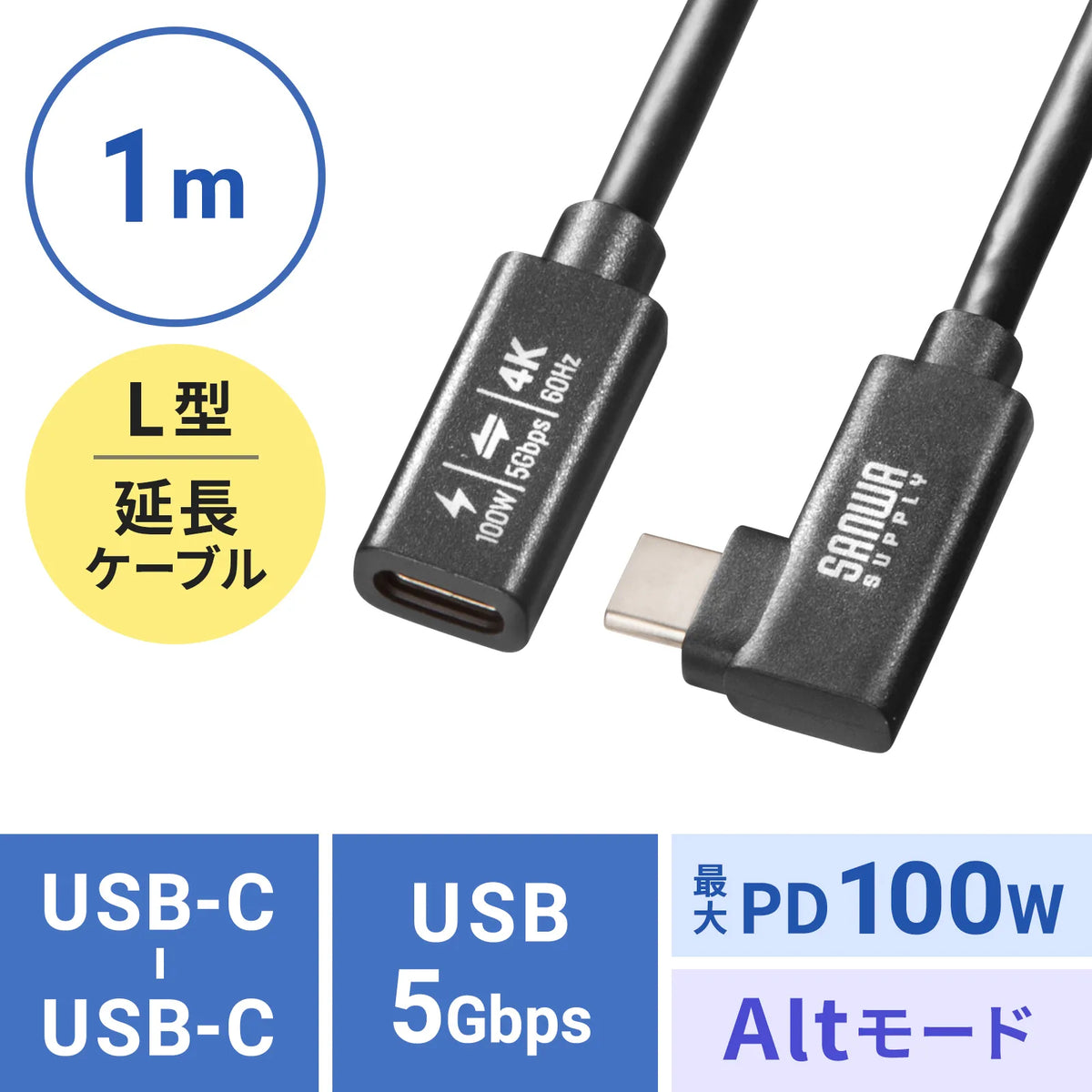

USB 5Gbps Type-C Extension Cable (L-shaped, PD100W, 1m) KU-5GCCP100ENL10

[USB 5Gbps Type-C Extension Cable. Supports DisplayPort Alternate Mode (4K60Hz) and PD100W.]

●This is a USB 5Gbps (USB 3.2 Gen1) compatible Type-C extension cable.
*USB 2.0 Type-C cables and USB 2.0 compatible devices can also be extended.

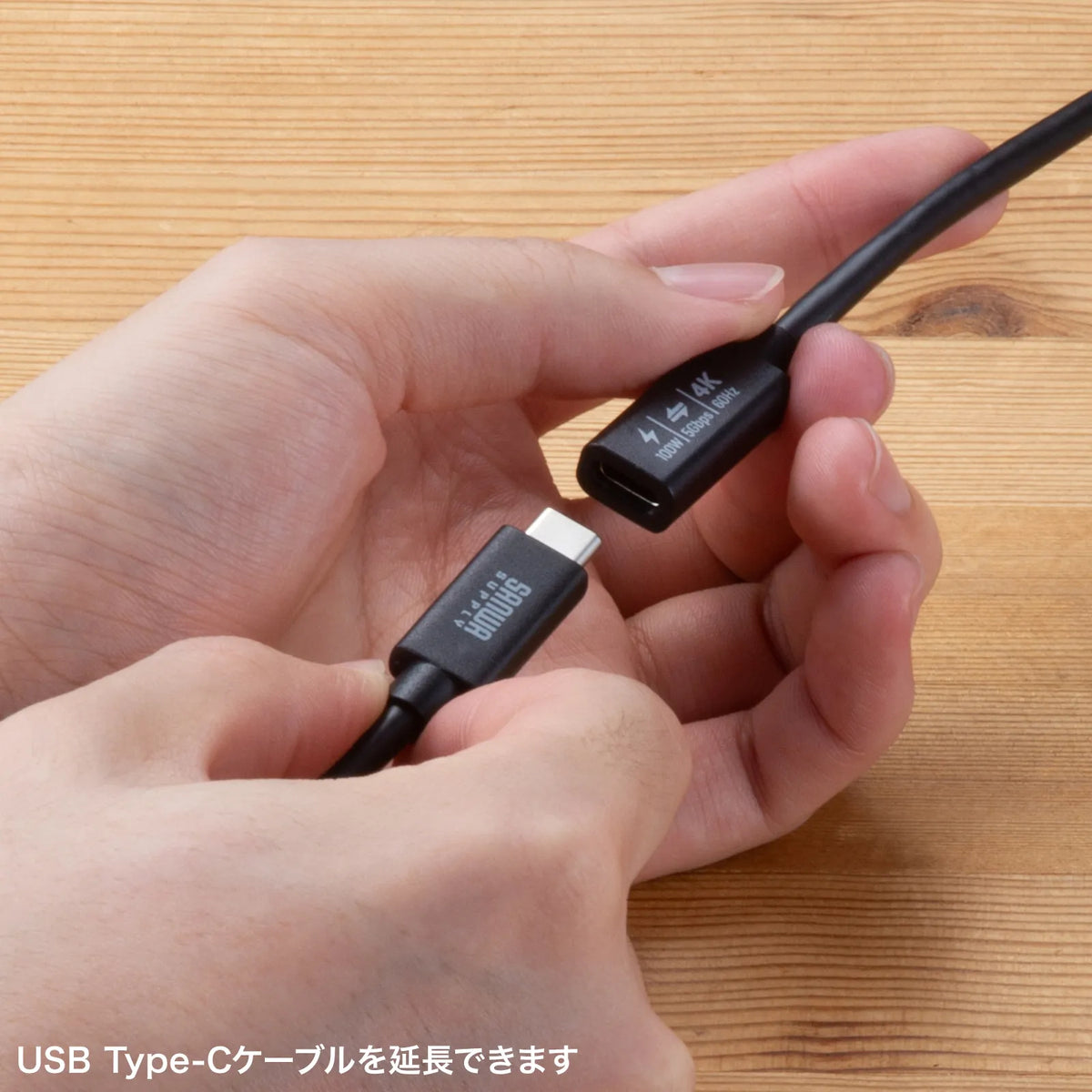

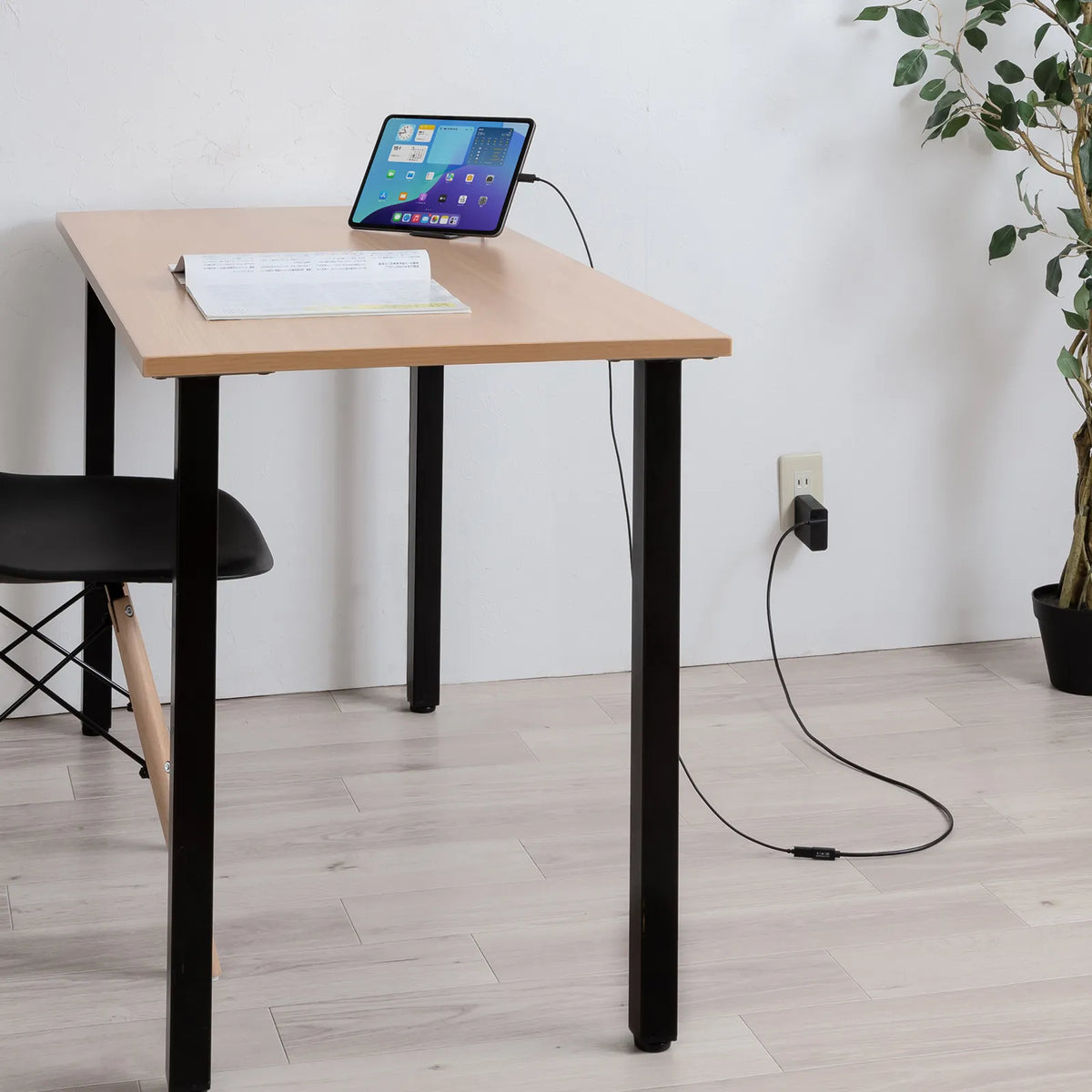

●You can extend the cable of Type-C compatible devices (monitors, docking stations, USB chargers, USB hubs, mice, keyboards, etc.) and connect them.

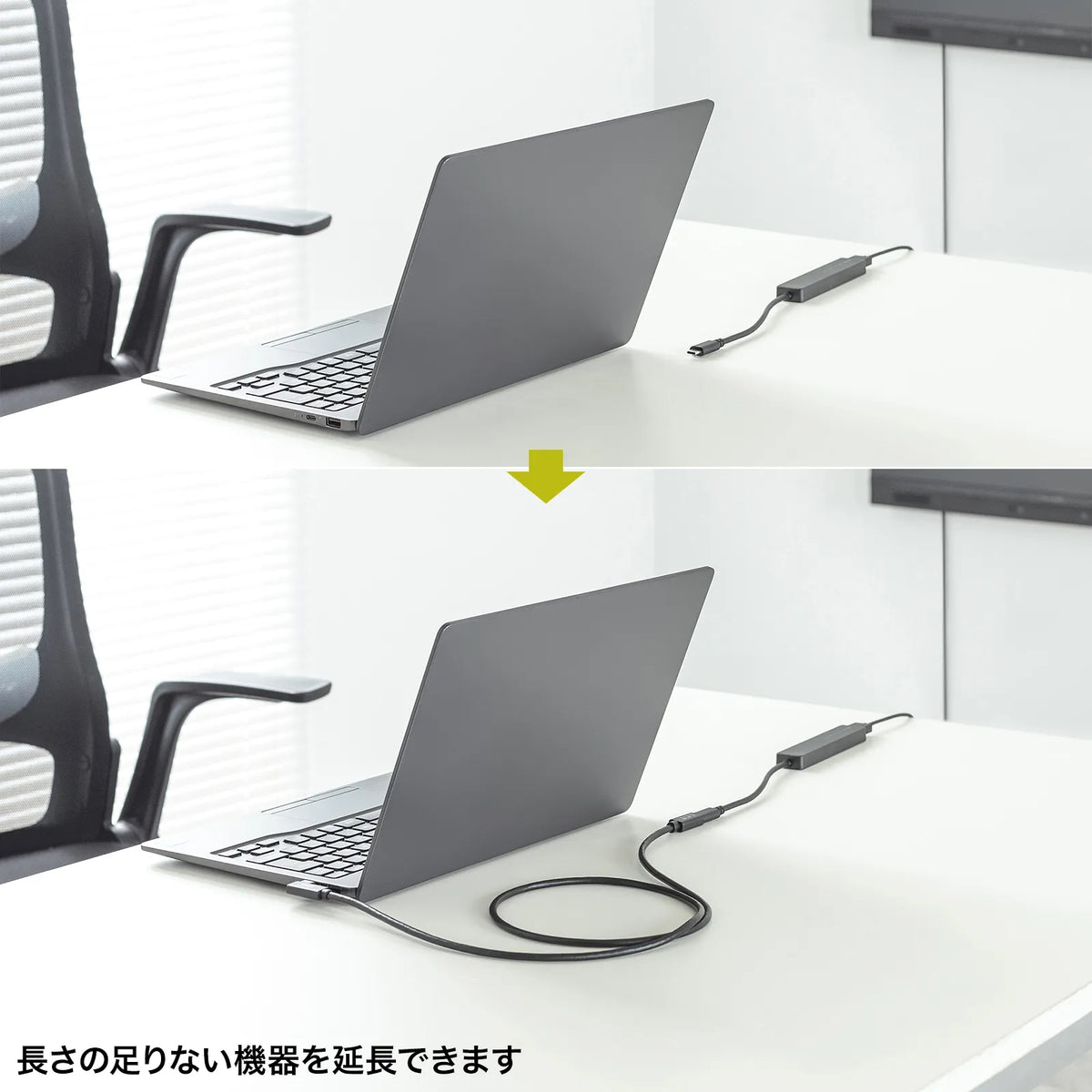

●You can extend the Type-C cable up to a maximum of 2m when combined with the Type-C cable being connected.
*Supports a total of 2 cables, up to a maximum of 2m including this product.
*Devices that operate on bus power, such as external portable disk drives, may not function properly due to insufficient power.

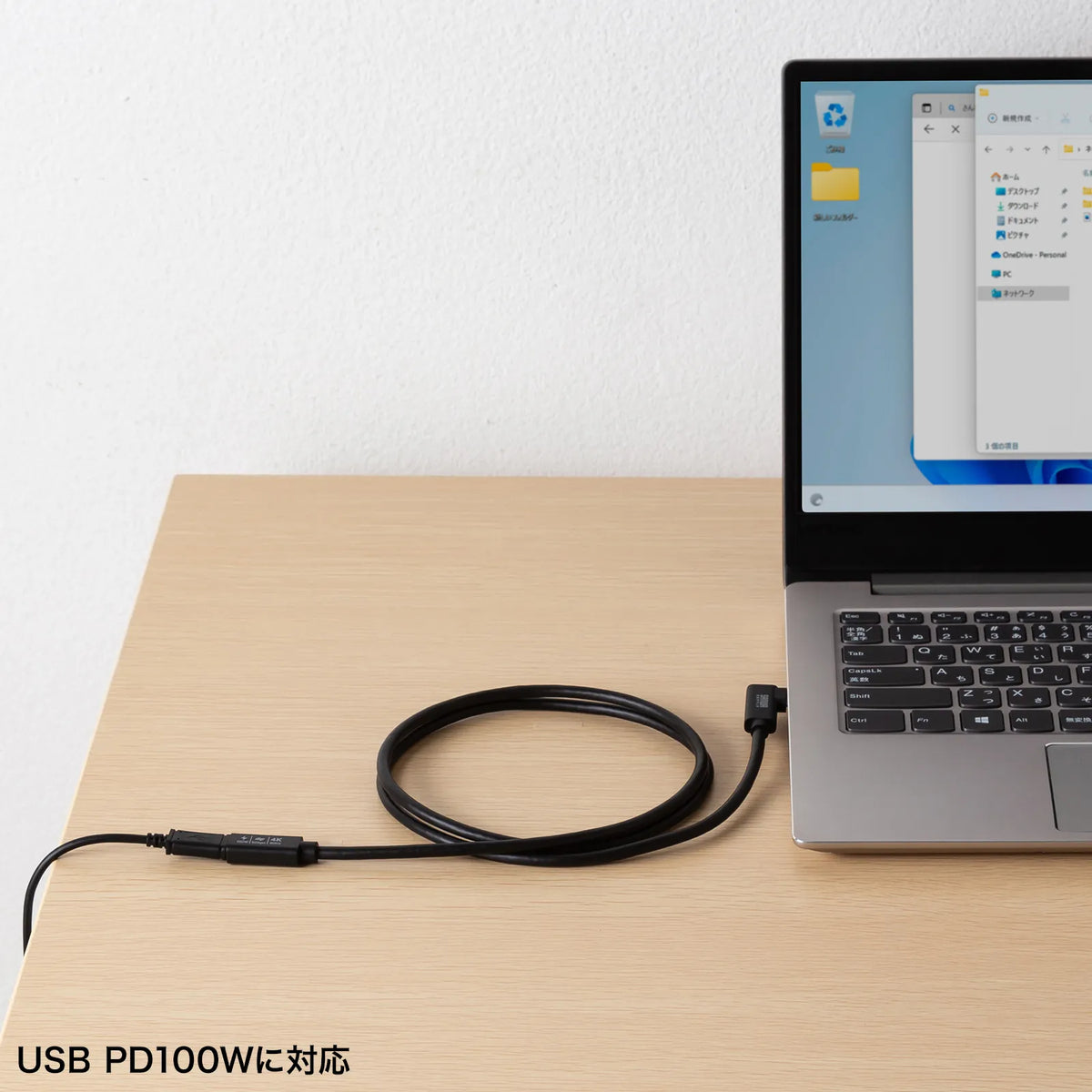

●Supports USB PD100W. In USB PD compatible devices and environments, it is possible to supply a maximum of PD100W (20V/5A) power.

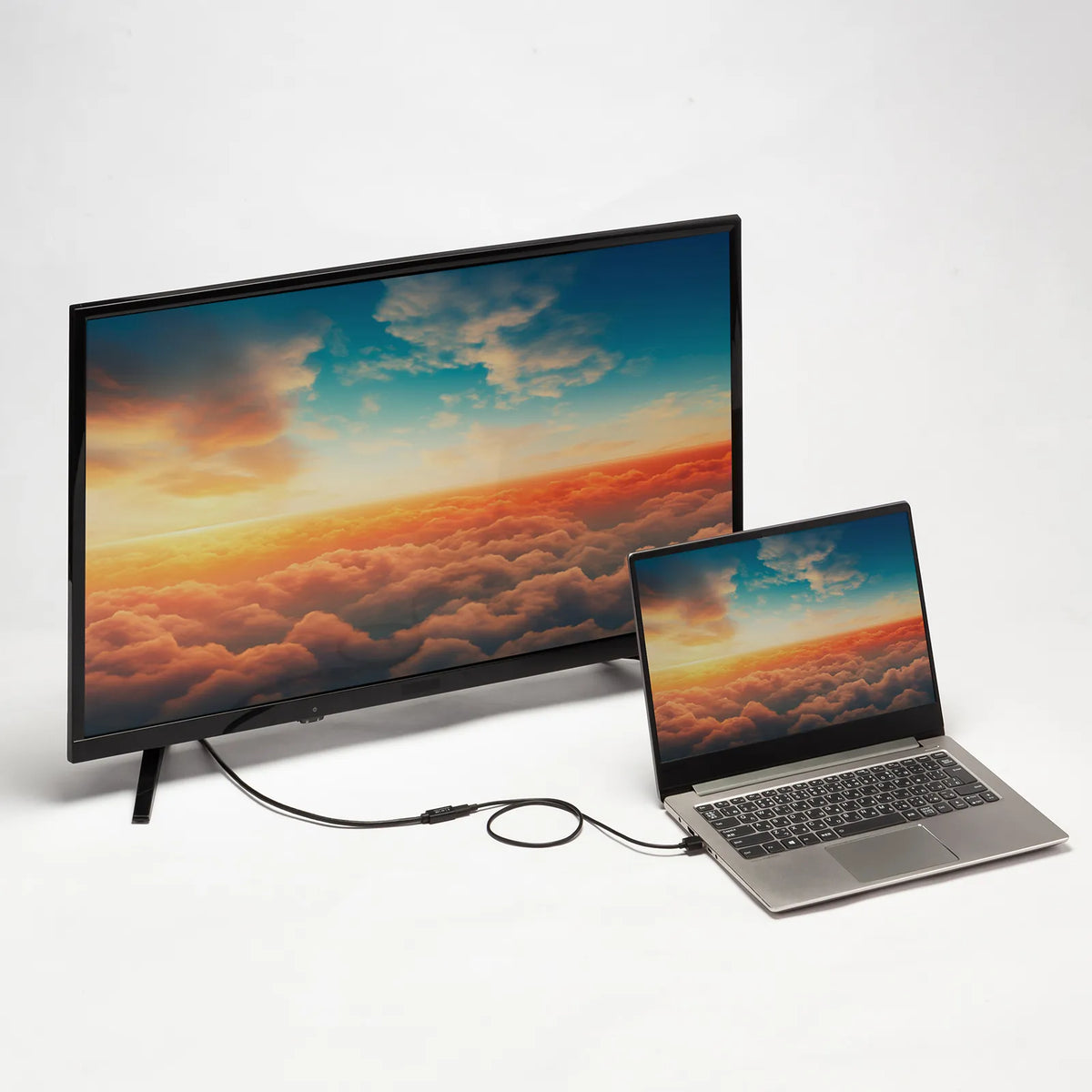

●Supports DisplayPort Alternate Mode, and is compatible with video and audio output up to 4K60Hz.
*Requires that the connected device, cable, and monitor support DisplayPort Alternate Mode.
*May not be recognized by some PCs and USB devices. Reversing the orientation of the cable connector that connects to the female side of this product may improve the situation.
●High-speed data communication is possible at USB 5Gbps (USB3.2 Gen1).

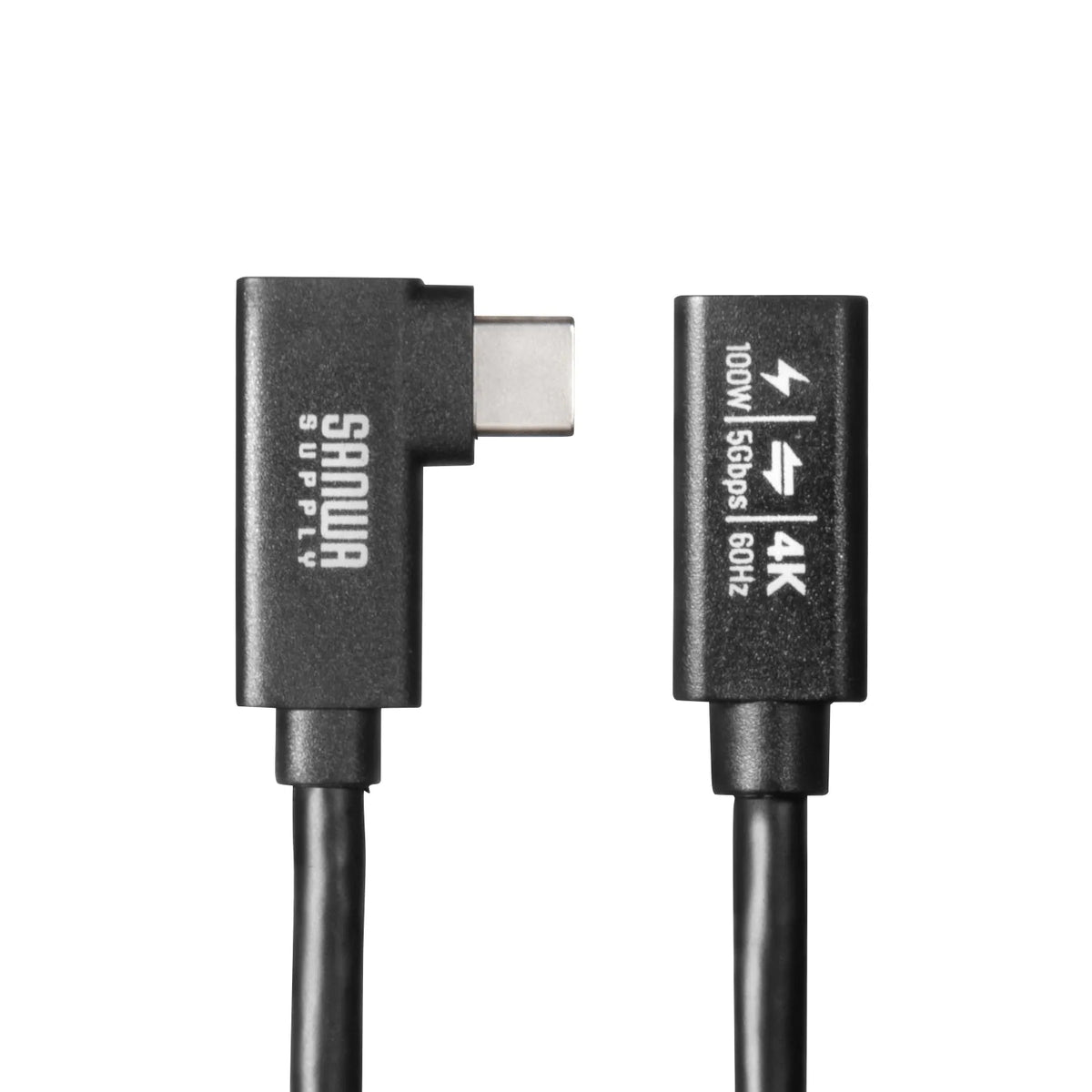

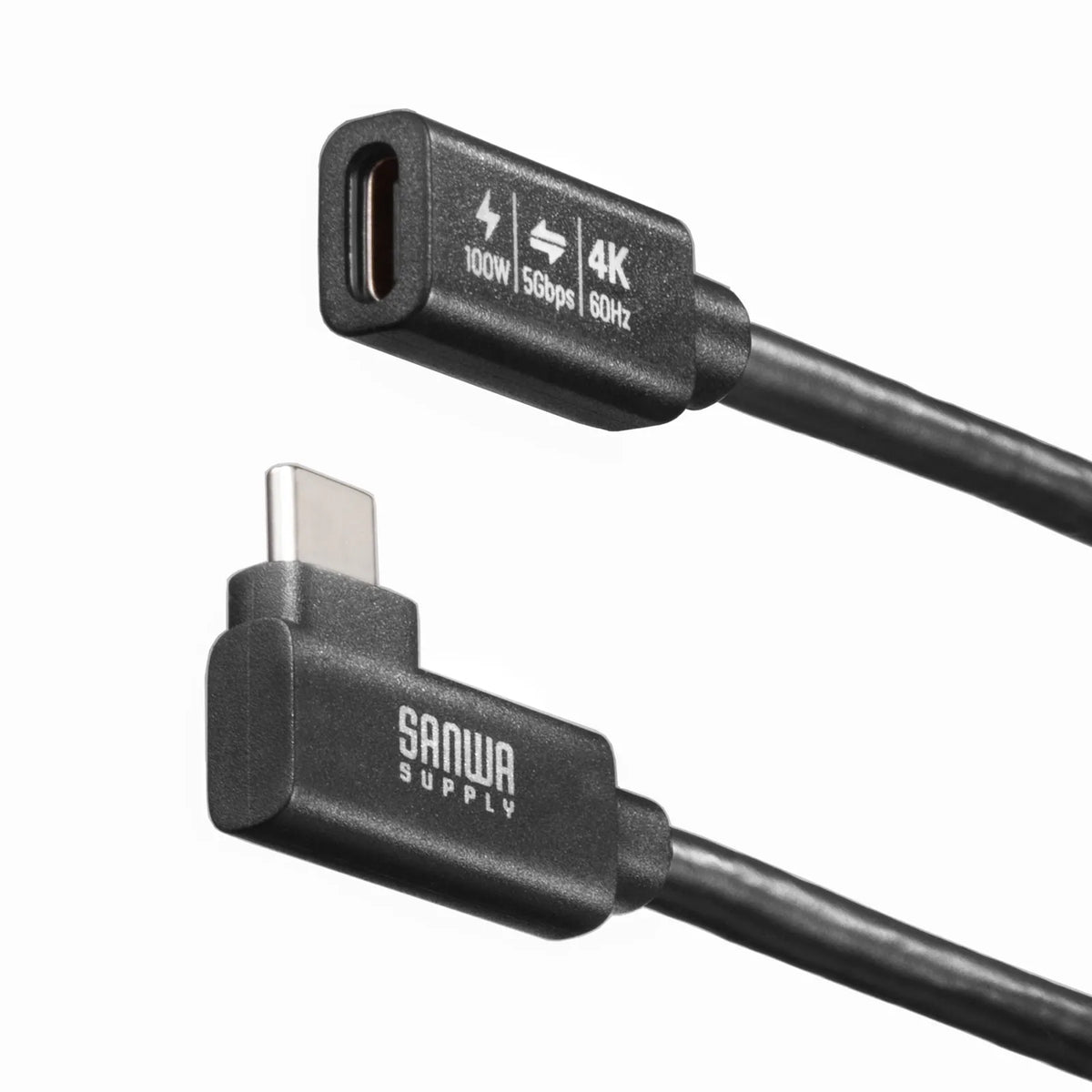

●The L-shaped connector makes wiring neat and less likely to get in the way, and reduces stress on the terminals of the main unit.
●Features a triple-shielded structure that is resistant to noise.
●Uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.

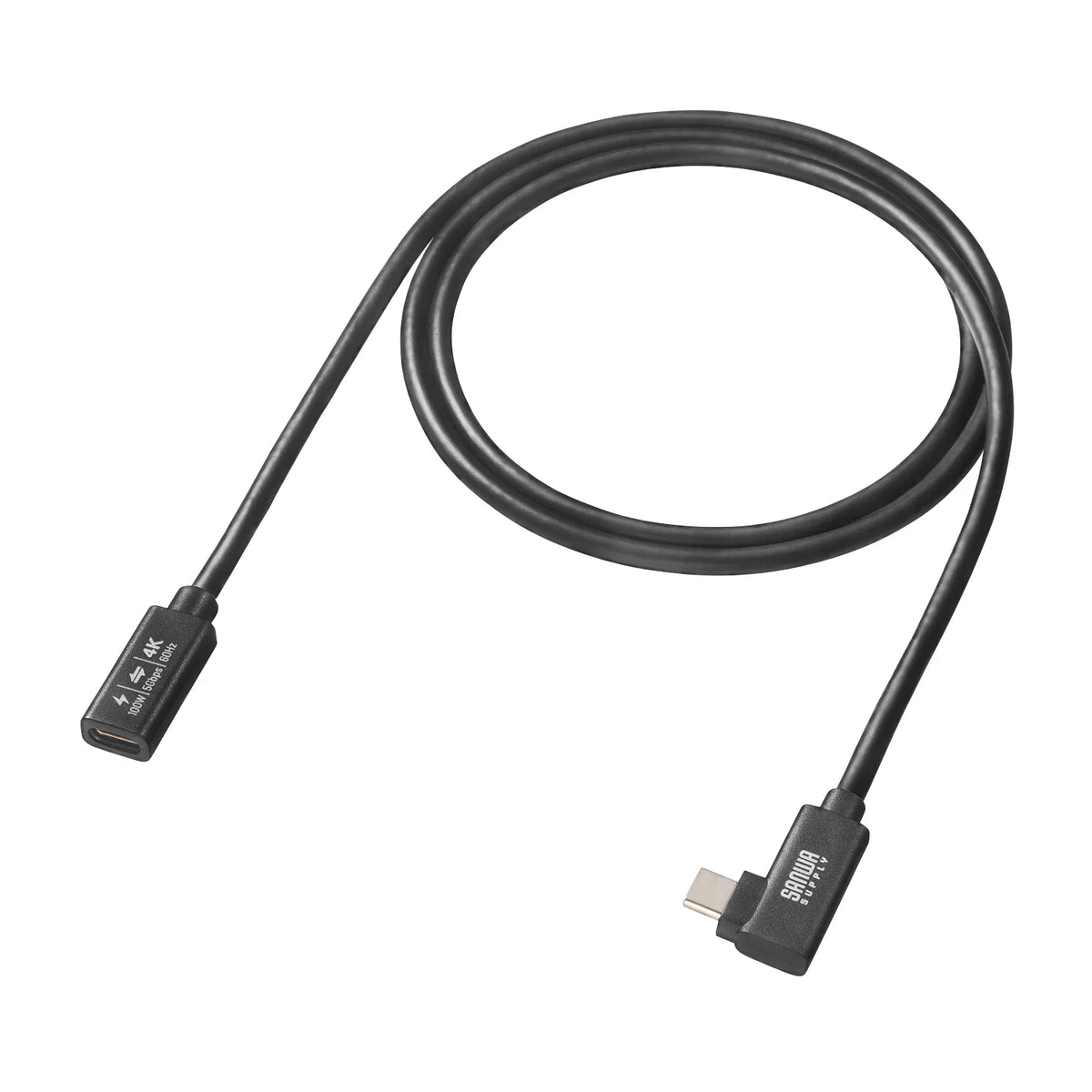

■Cable length: Approx. 1m
■Cable diameter: Approx. 4.8mm

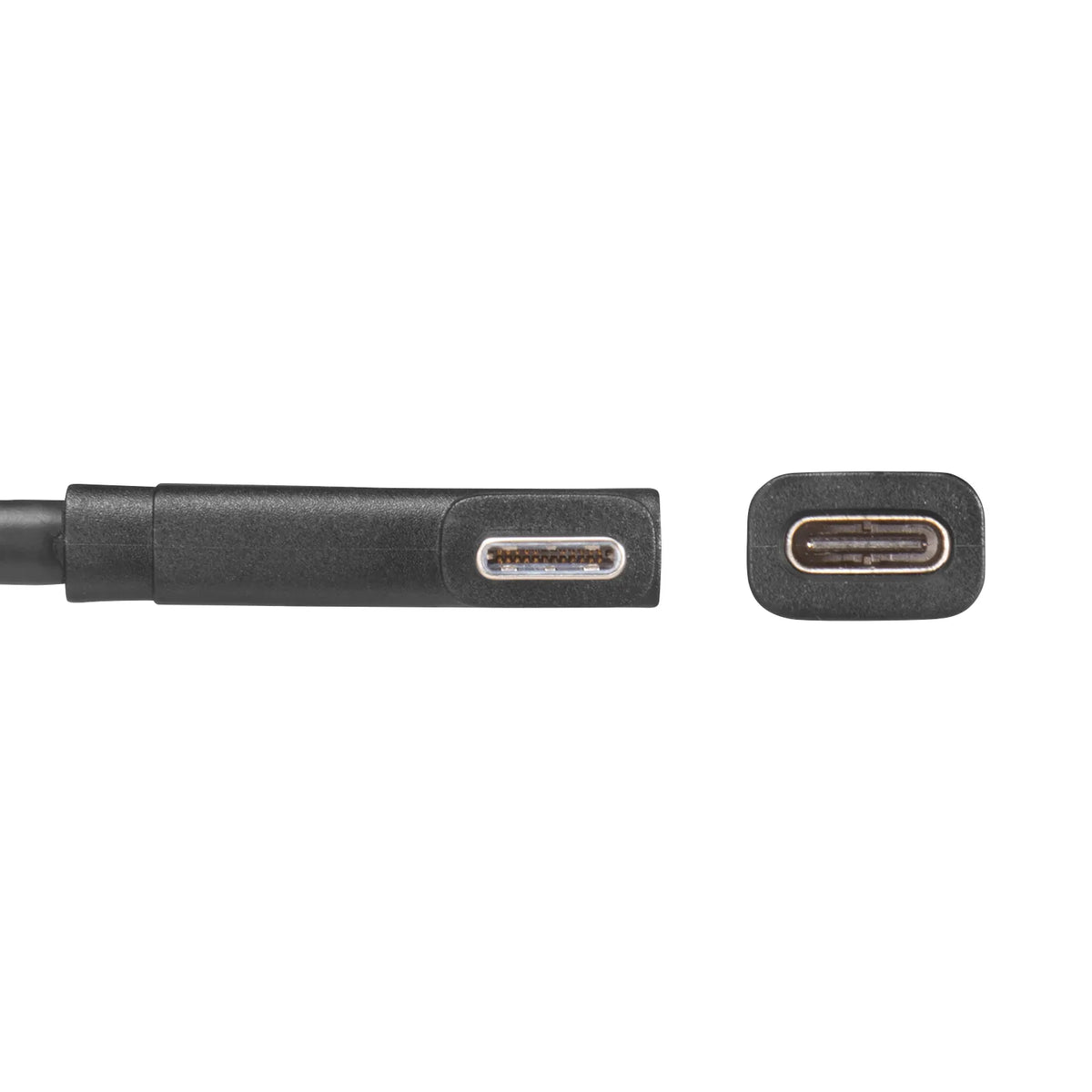

■Connector shape: Type-C connector male - Type-C connector female
■Wire material standard (UL): UL2725
■Standard: USB3.2 Gen1 5Gbps
■Compatible devices:
＜PC＞：PCs from various manufacturers,
*Compatible with models equipped with a USB port (USB Type-C female).

＜Terminal devices＞
Tablets and smartphones from various manufacturers
*Compatible with models equipped with a USB port (USB Type-C female).

＜Peripherals＞Peripherals, hard drives, etc. equipped with a Type-C connector (female).
*Compatibility may vary depending on the usage environment and model.

＜Display＞
Displays from various manufacturers
*Models with a Type-C compatible terminal.

＜USB Charger＞
Charger compatible with USB Type-C connector female output
■Standard (MD): USB4
■Certification: None
■Cable length (MD): 1 to 1.49
■Type: USB3.x extension
■Connector shape (MD): Female
■USB PD (USB Power Delivery) compatible: Yes
■USB PD (USB Power Delivery) specifications: Maximum PD100W (DC20V5A)
Wire material flame retardancy: VW-1
Sheath material: PVC
Minimum bending radius: 36mm
Shielding: Triple shielding
