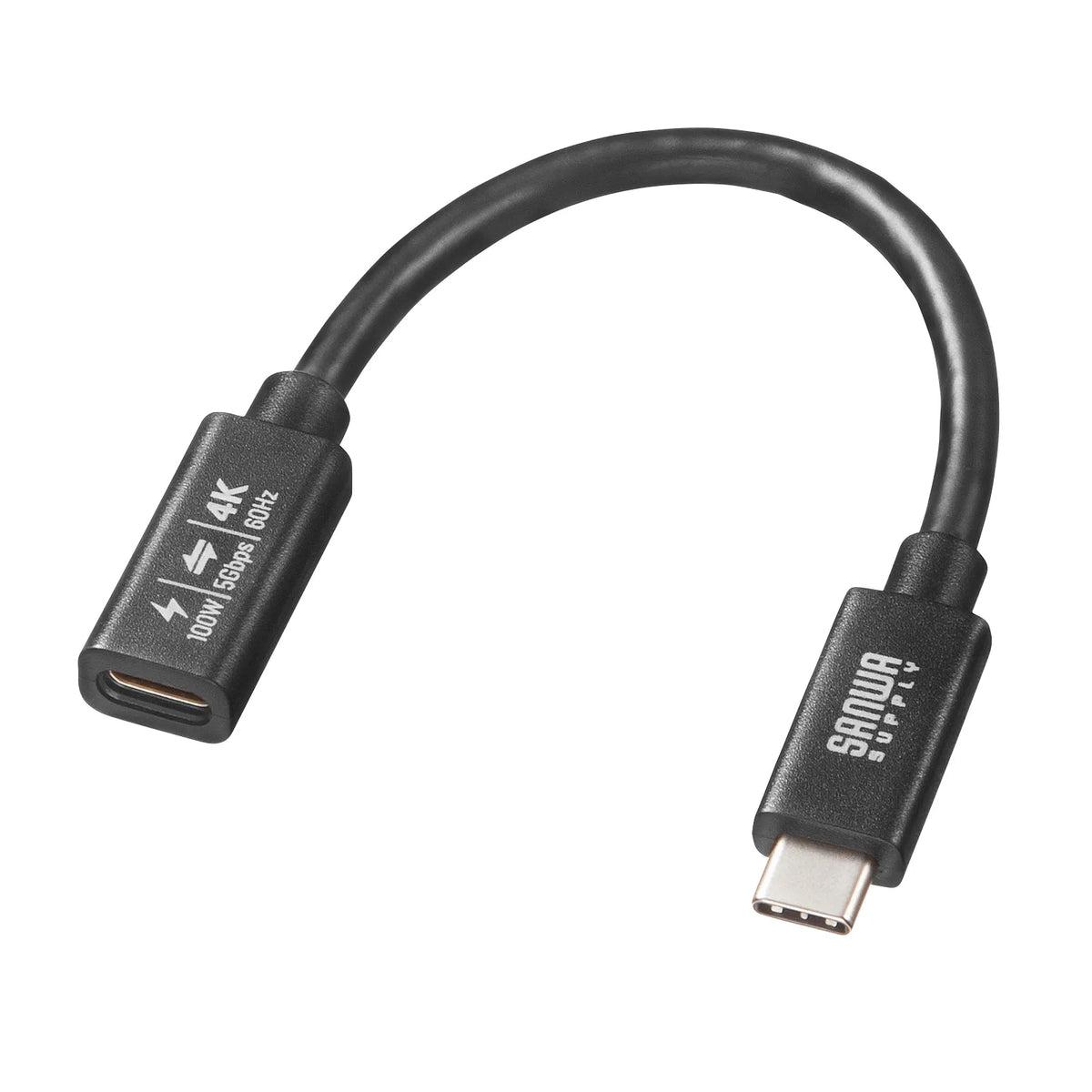

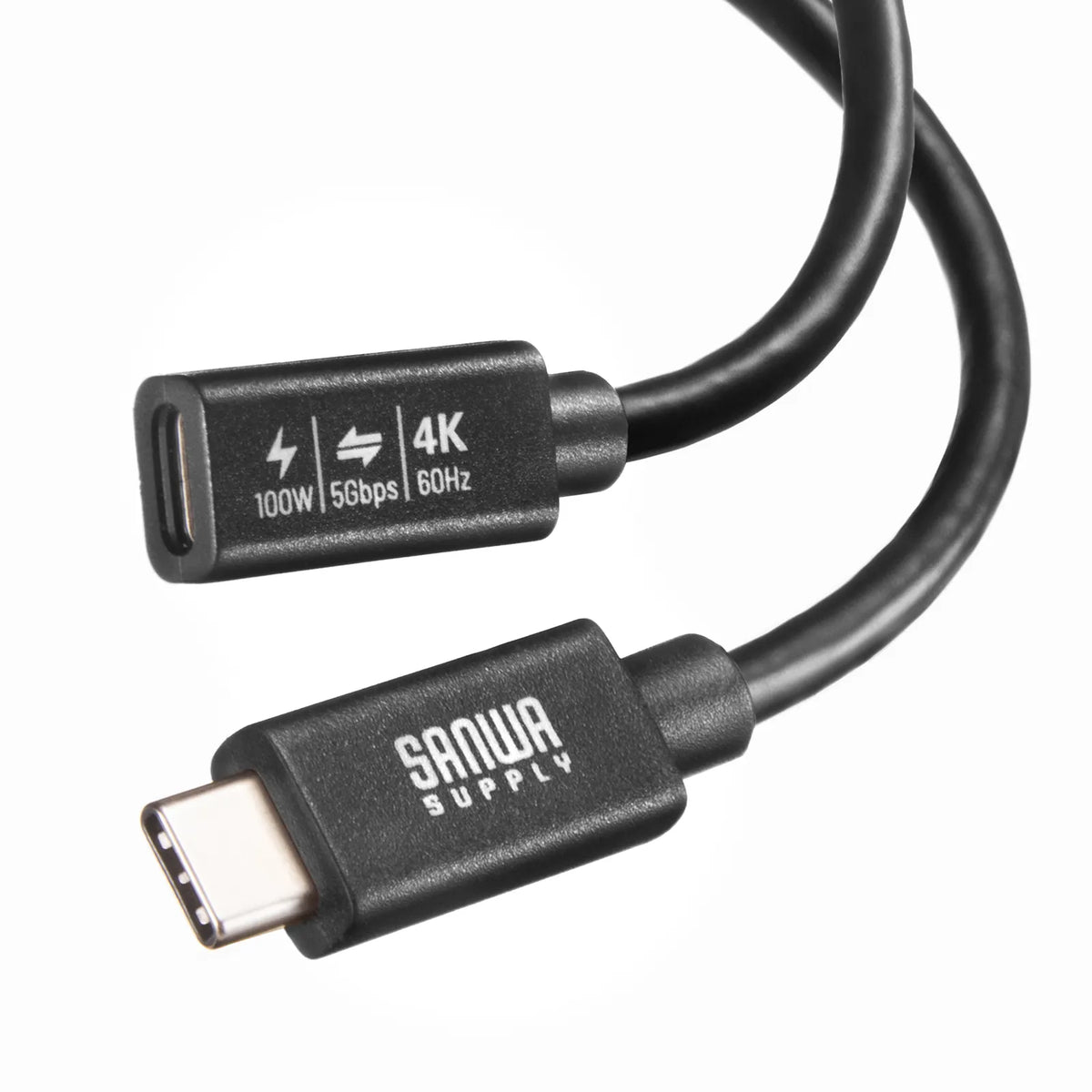

USB 5Gbps Type-C Extension Cable (PD100W, 0.1m) KU-5GCCP100EN01

[USB 5Gbps Type-C Extension Cable. Supports DisplayPort Alternate Mode (4K60Hz) and PD100W.]

●This is a USB 5Gbps (USB 3.2 Gen1) compatible Type-C extension cable.
*USB 2.0 Type-C cables and USB 2.0 compatible devices can also be extended.

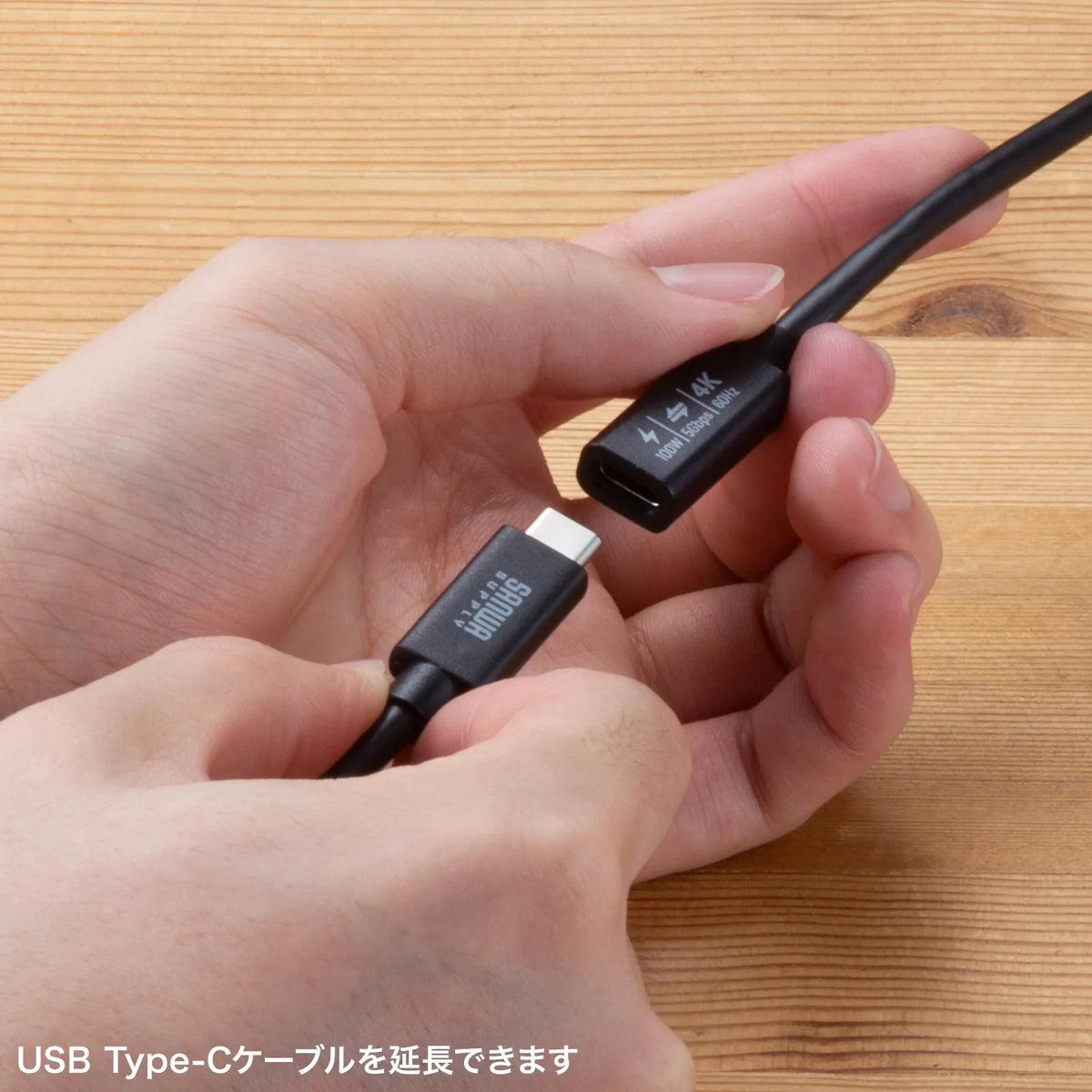

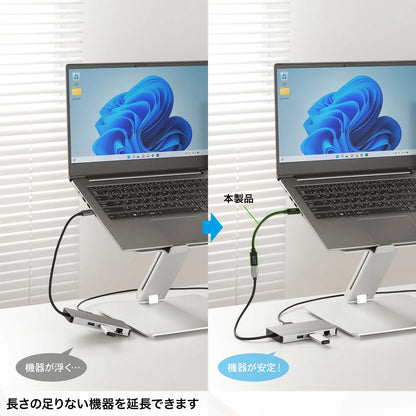

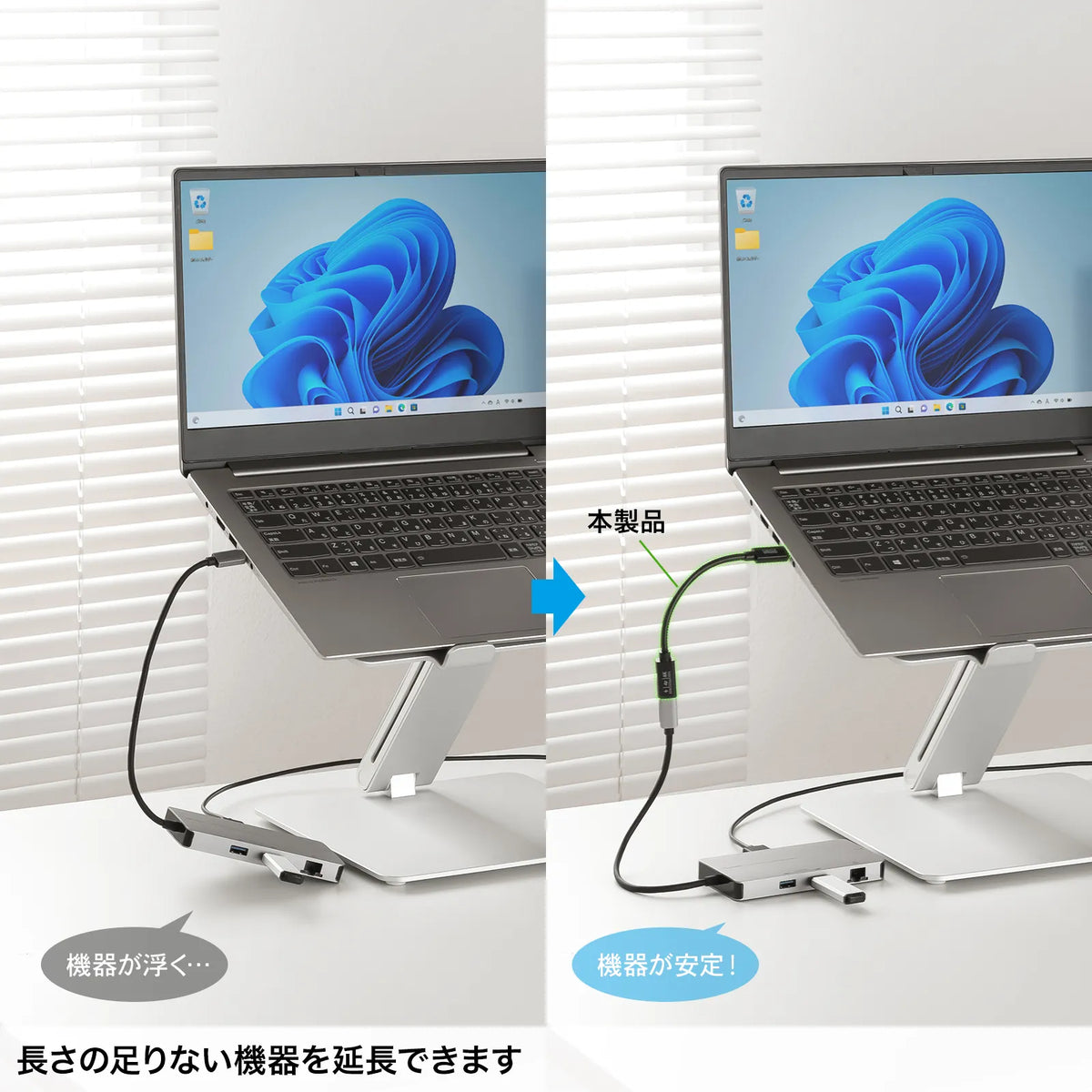

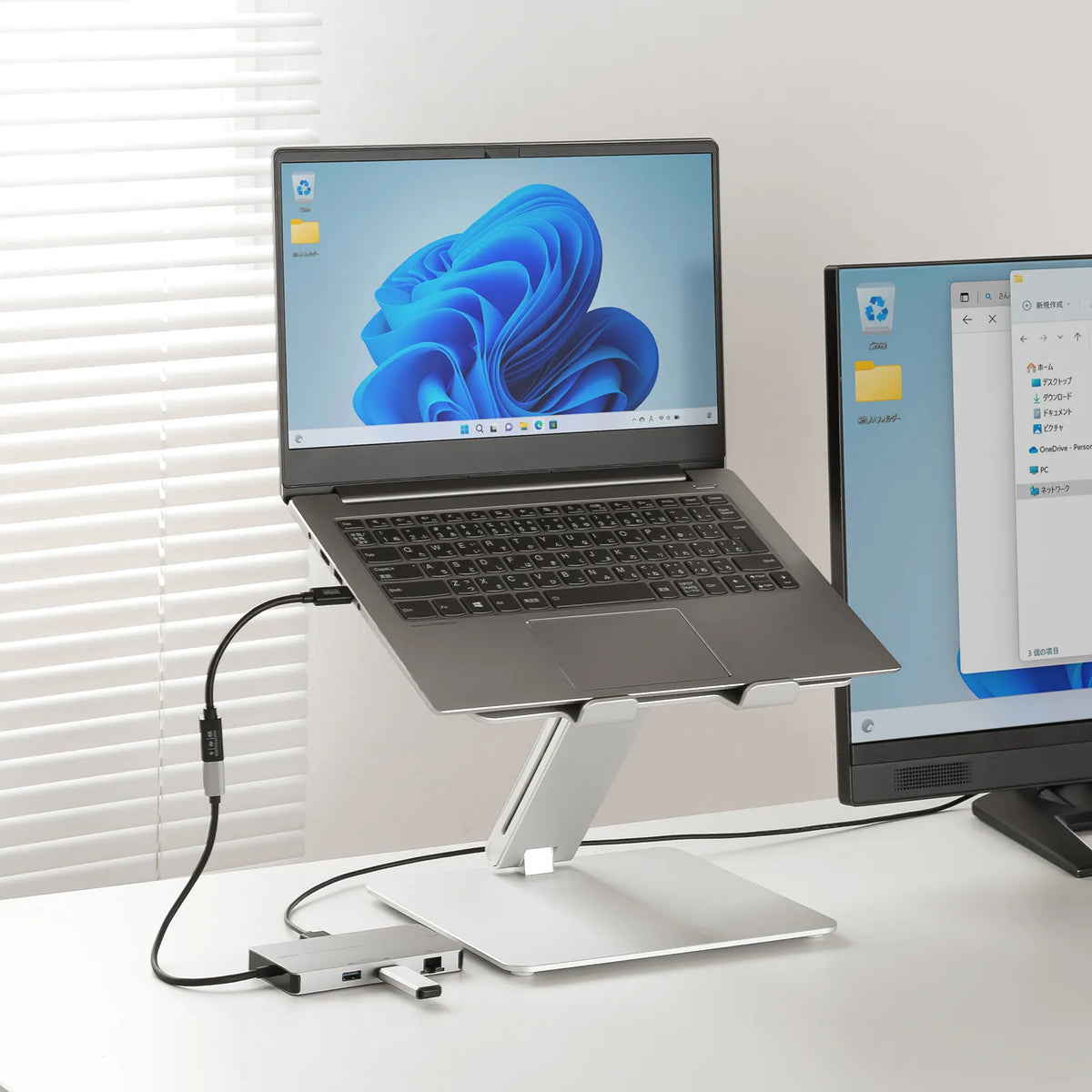

●You can extend the cable of Type-C compatible devices (monitors, docking stations, USB chargers, USB hubs, mice, keyboards, etc.) and connect them.

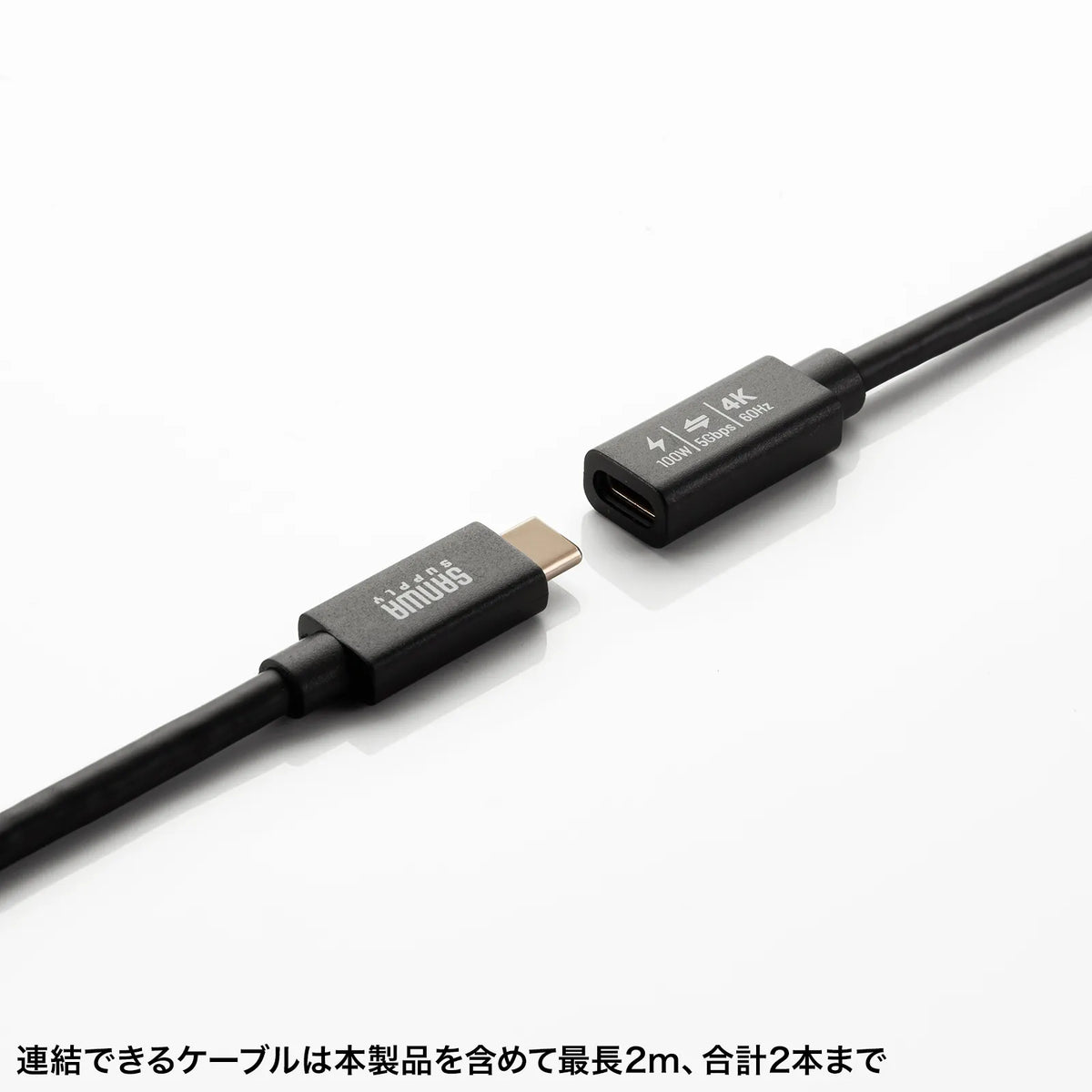

●You can extend the Type-C cable up to a maximum of 2m when combined with the Type-C cable being connected.
*Supports a total of 2 cables, up to a maximum of 2m including this product.
*Devices that operate on bus power, such as external portable disk drives, may not function properly due to insufficient power.

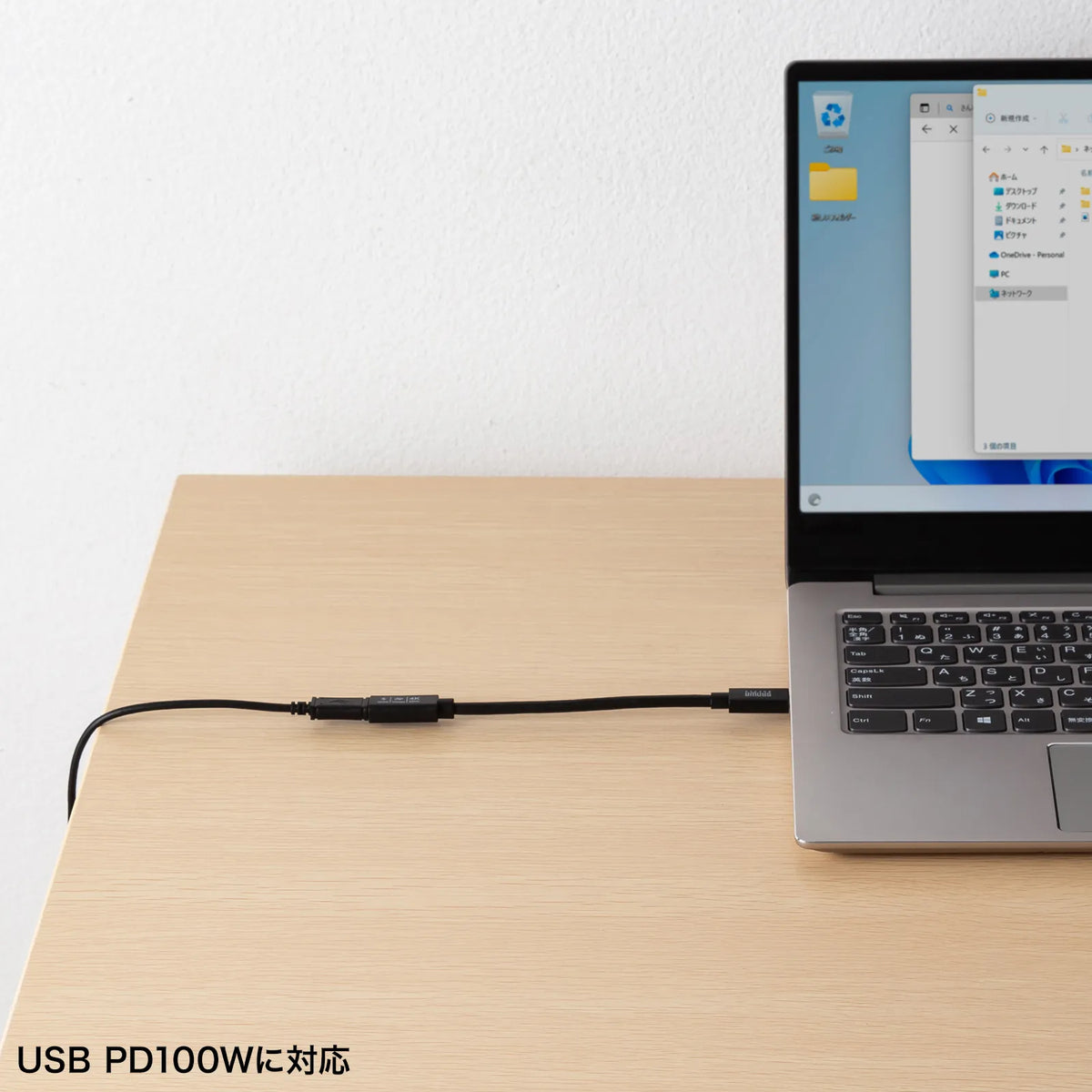

●Supports USB PD100W. In USB PD compatible devices and environments, it is possible to supply a maximum of PD100W (20V/5A) power.

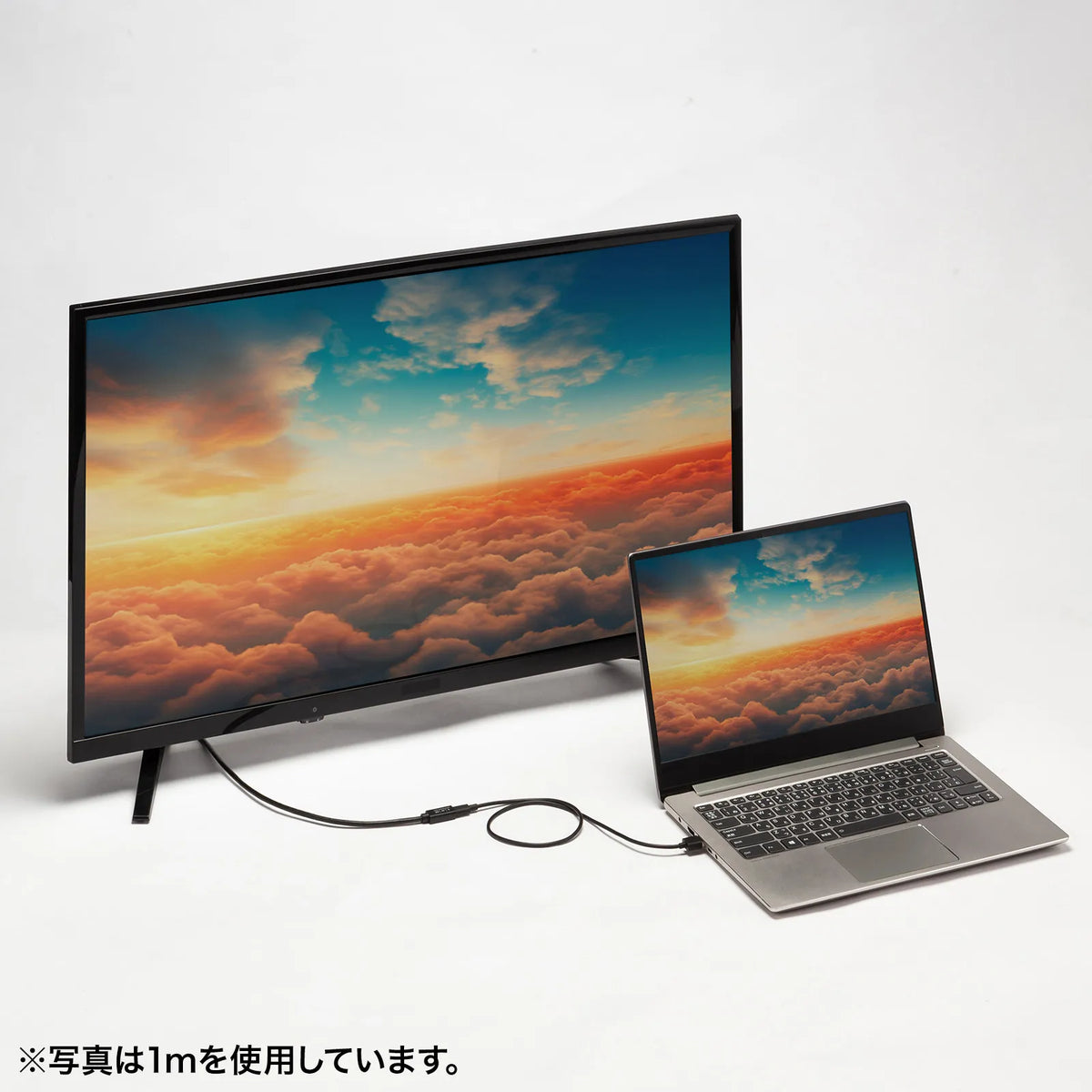

●Supports DisplayPort Alternate Mode, and is compatible with video and audio output up to 4K60Hz.
*Requires that the connected device, cable, and monitor support DisplayPort Alternate Mode.
*May not be recognized by some PCs and USB devices. This may be improved by reversing the orientation of the cable connector that connects to the female side of this product.
●High-speed data communication is possible at USB 5Gbps (USB3.2 Gen1).
●Features a triple-shielded structure that is resistant to noise.
●Uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.

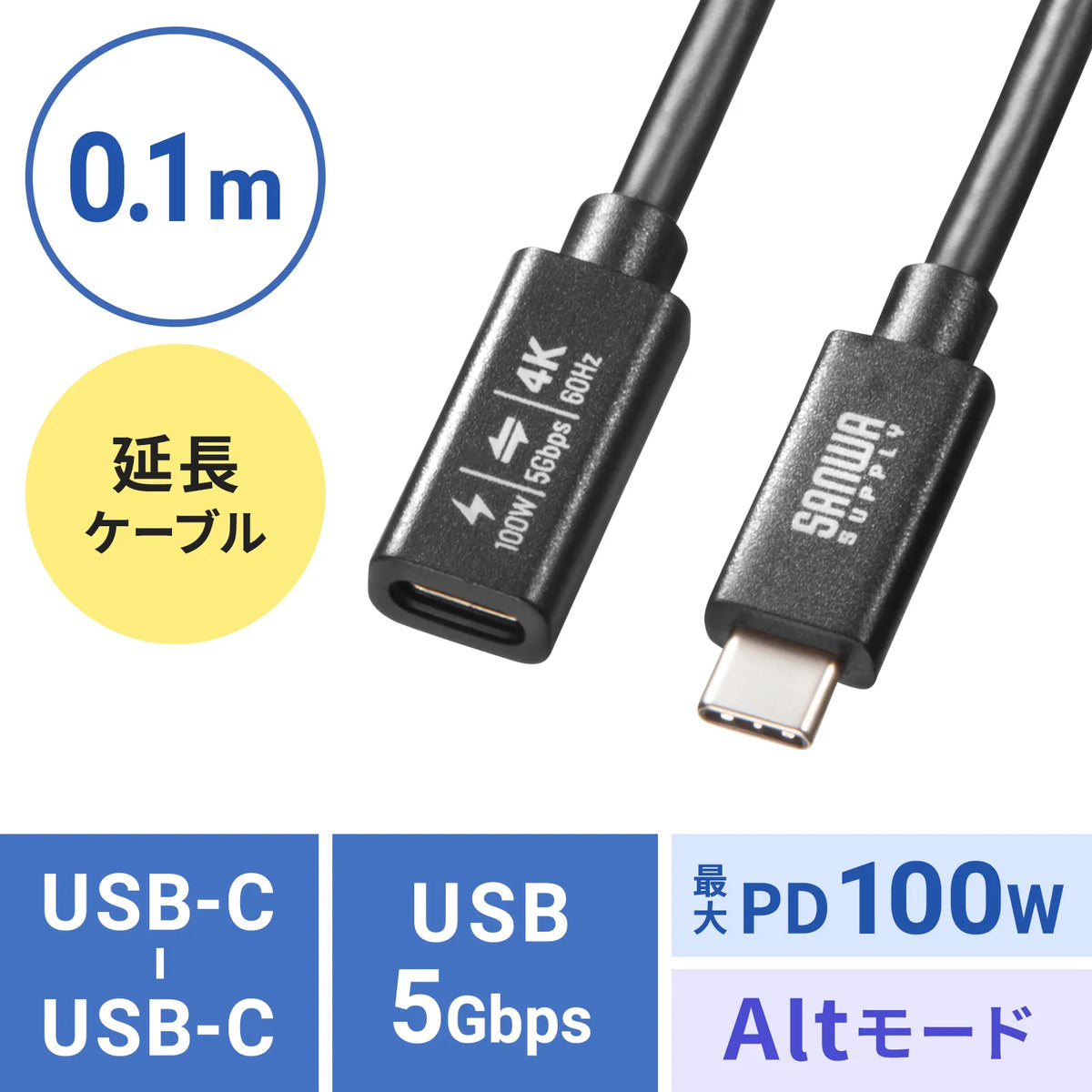

■Cable length: Approx. 0.1m
■Cable diameter: Approx. 4.8mm

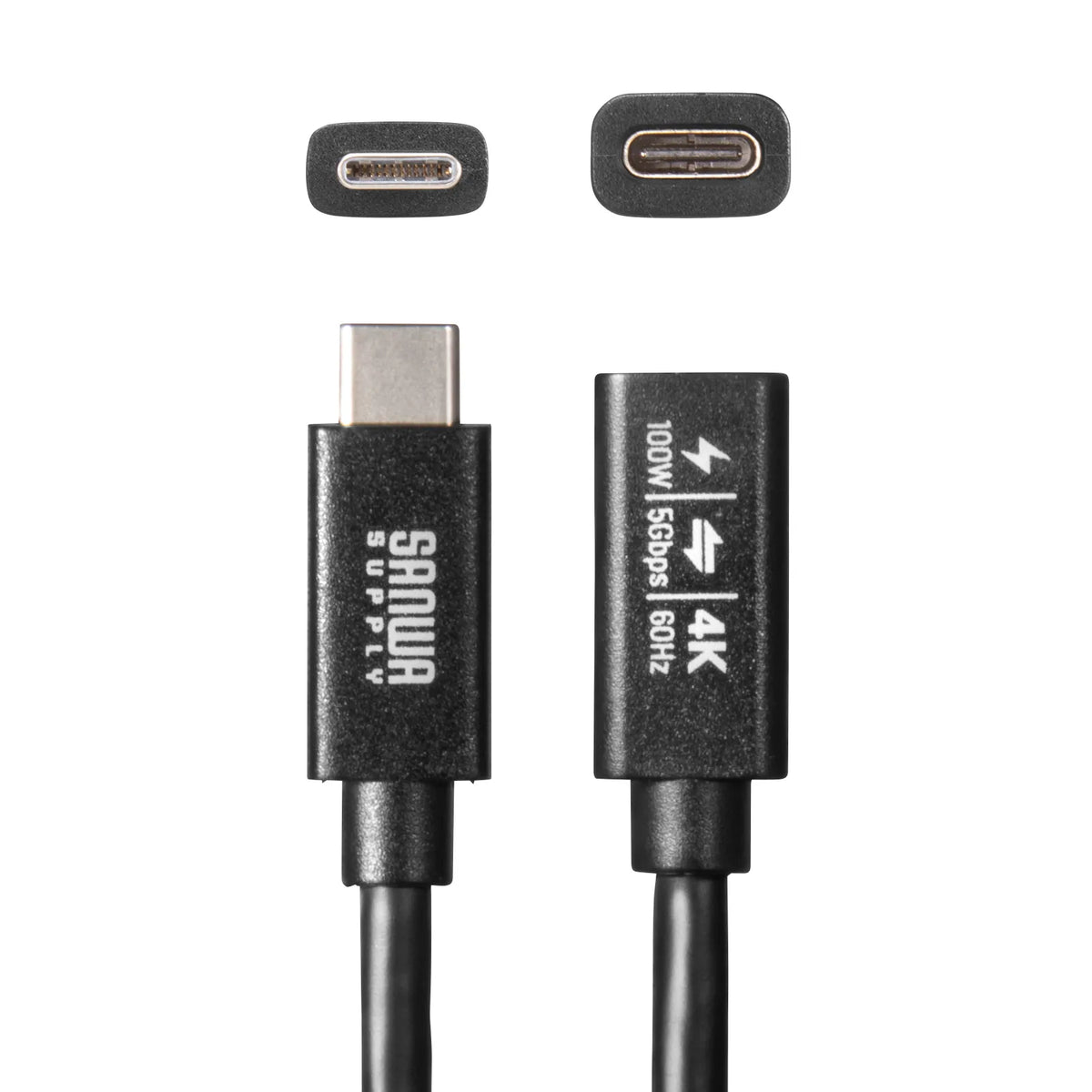

■Connector shape: Type-C connector male - Type-C connector female
■Wire material standard (UL): UL2725
■Standard: USB3.2 Gen1 5Gbps
■Compatible devices:
＜PC＞：PCs from various manufacturers,
*Compatible with models equipped with a USB port (USB Type-C female).

＜Terminal devices＞
Tablets and smartphones from various manufacturers
*Compatible with models equipped with a USB port (USB Type-C female).

＜Peripherals＞Peripherals, hard drives, etc. equipped with a Type-C connector (female).
*Compatibility may vary depending on the usage environment and model.

＜Display＞
Displays from various manufacturers
*Models with a Type-C compatible terminal.

＜USB Charger＞
Charger compatible with USB Type-C connector female output
■Standard (MD): USB4
■Certification: None
■Cable length (MD): 0 to 0.99
■Type: USB3.x extension
■Connector shape (MD): Female
■USB PD (USB Power Delivery) compatible: Yes
■USB PD (USB Power Delivery) specifications: Maximum PD100W (DC20V5A)
Wire material flame retardancy: VW-1
Sheath material: PVC
Minimum bending radius: 36mm
Shielding: Triple shielding
