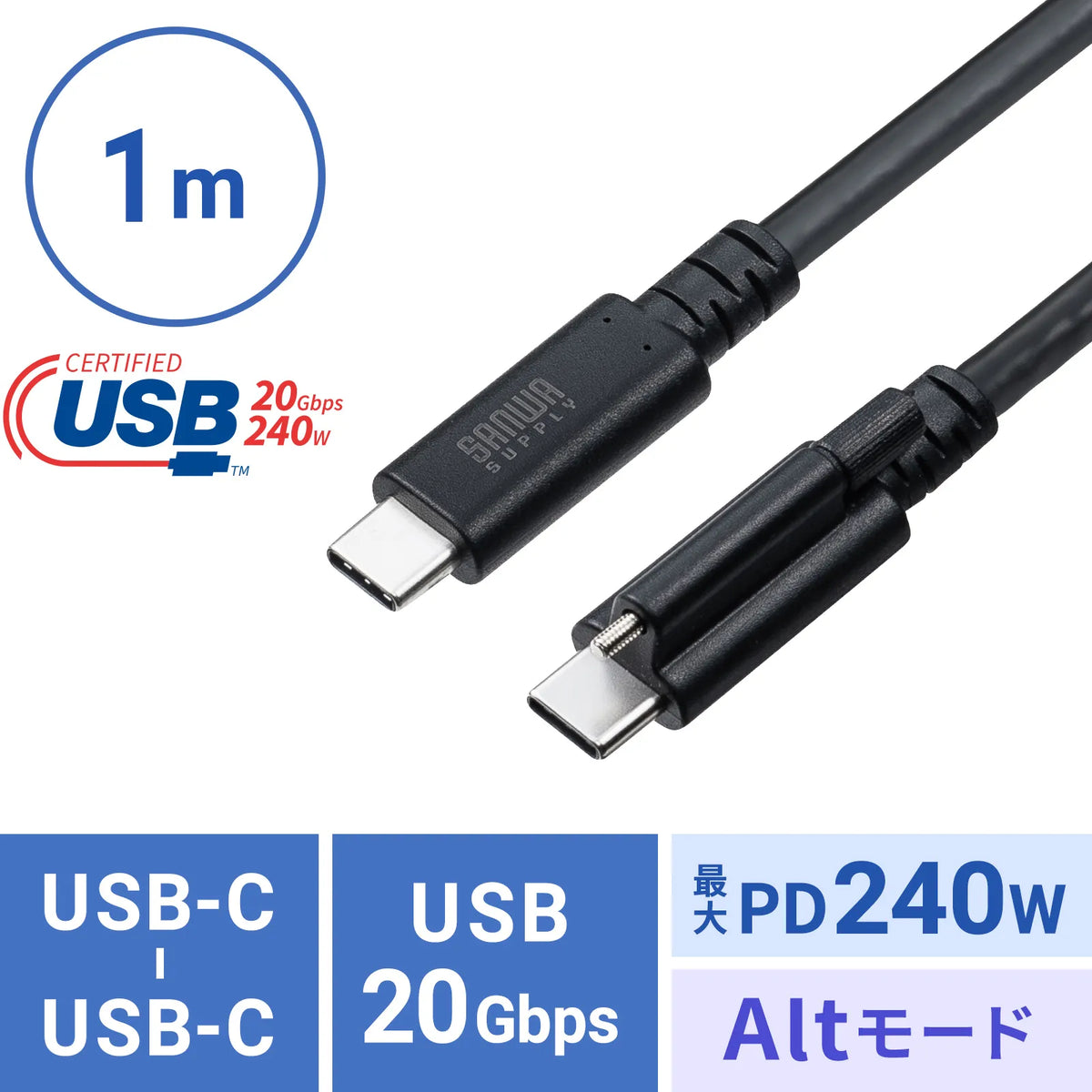

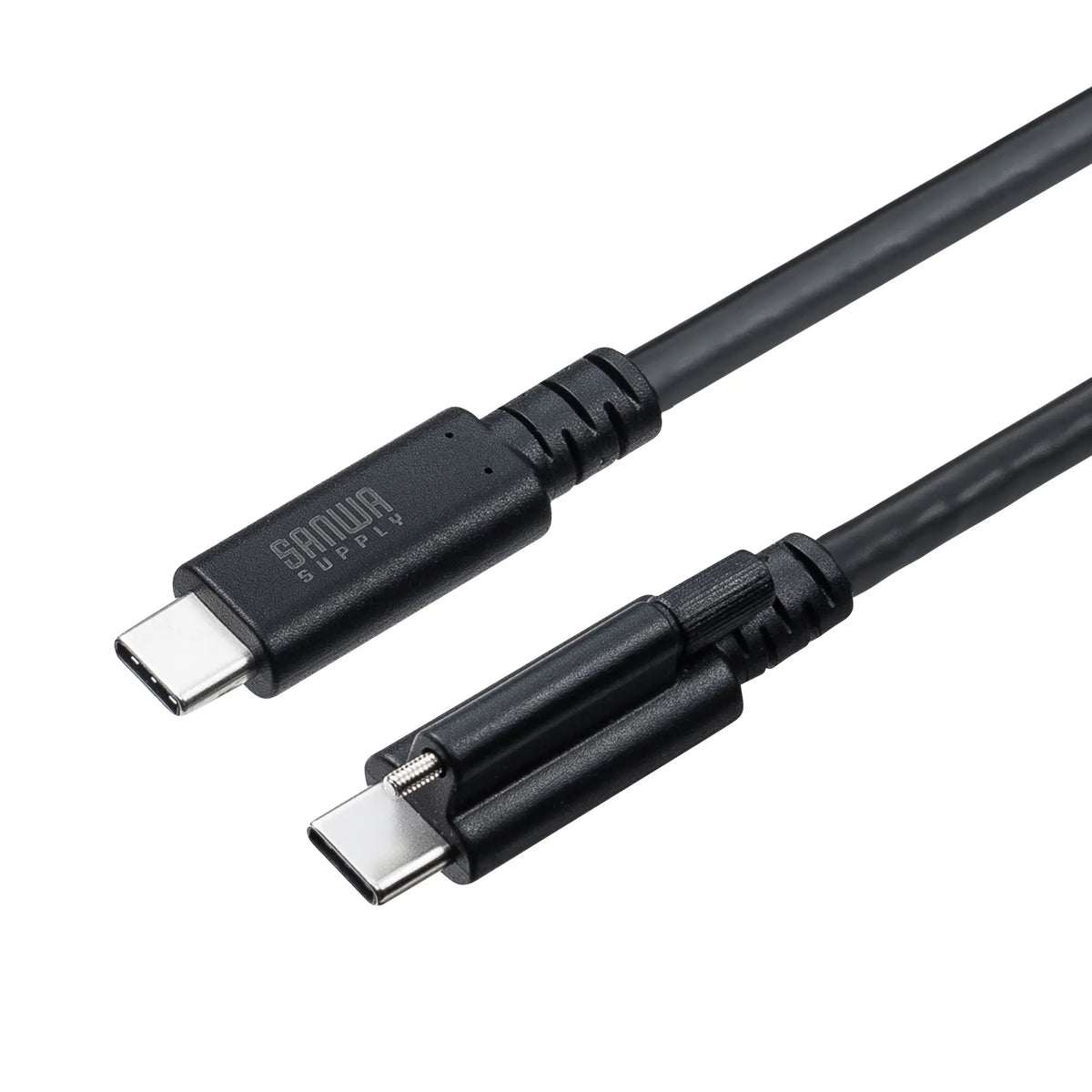

USB 20Gbps Type-C Cable (Single Screw Lock, 240W, 1m) KU-20GCCPESSL10

[Easy to secure with one screw. USB 20Gbps Type-C cable. PD240W・4K60Hz compatible.]

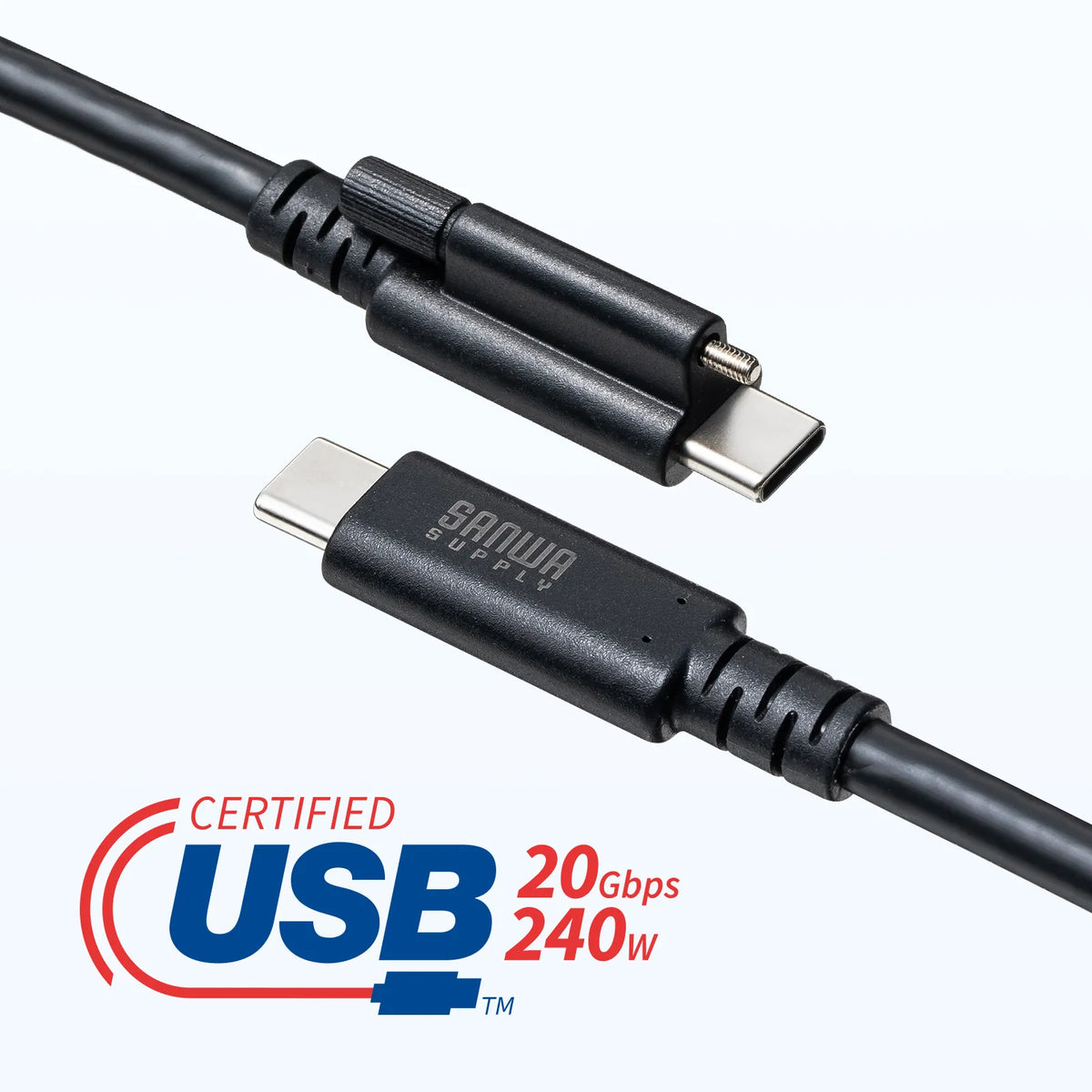

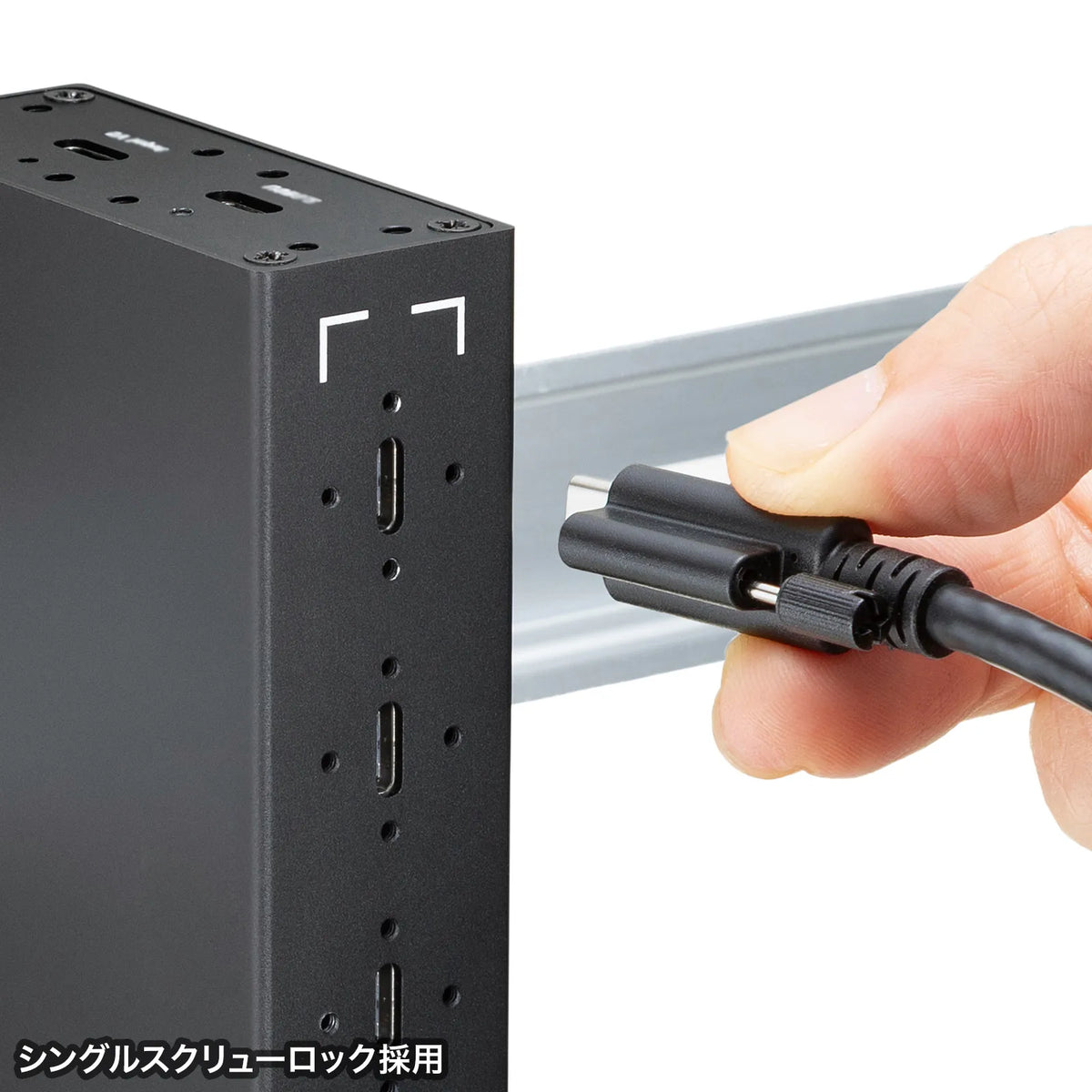

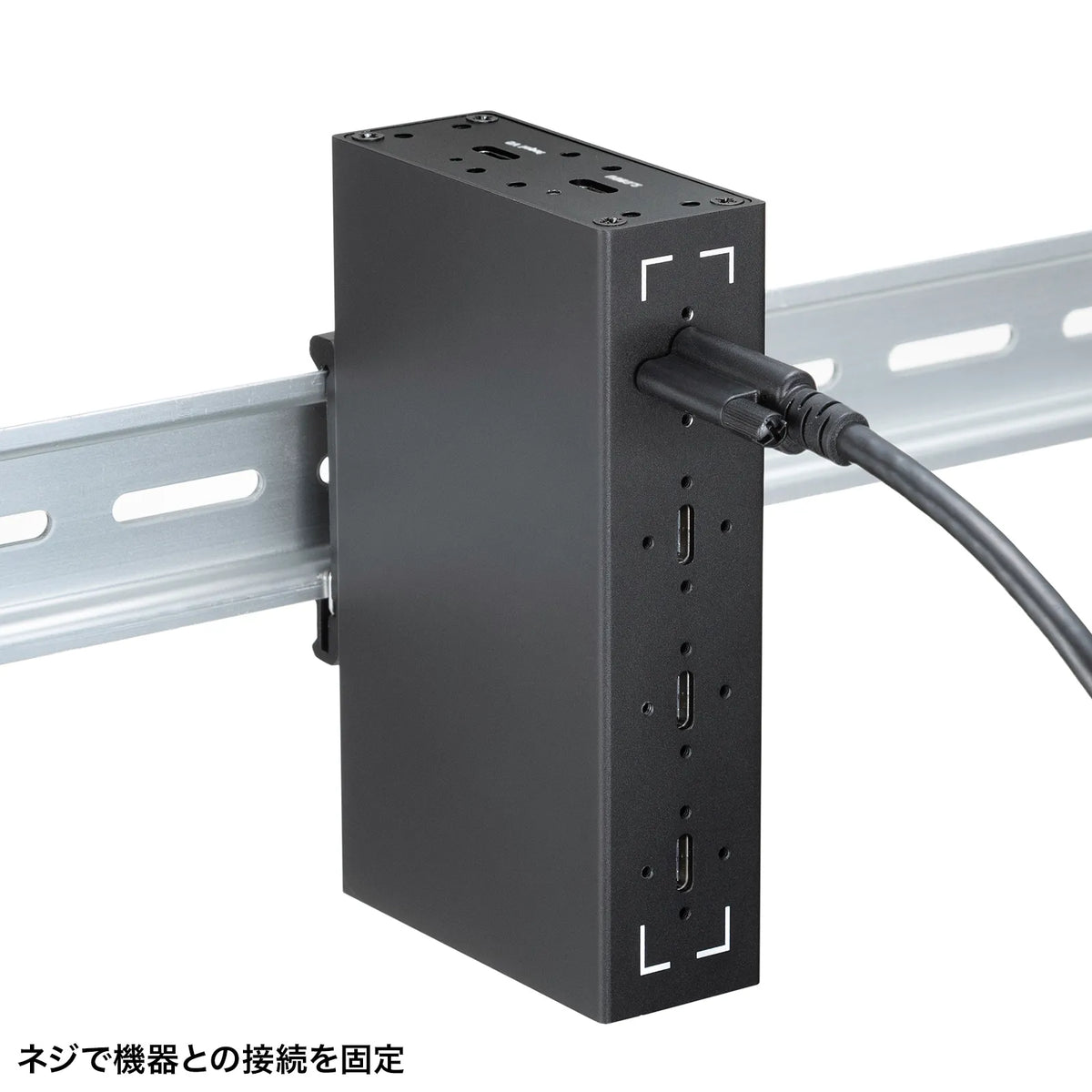

●Features a single screw lock, allowing for easy connection to devices with just one screw.

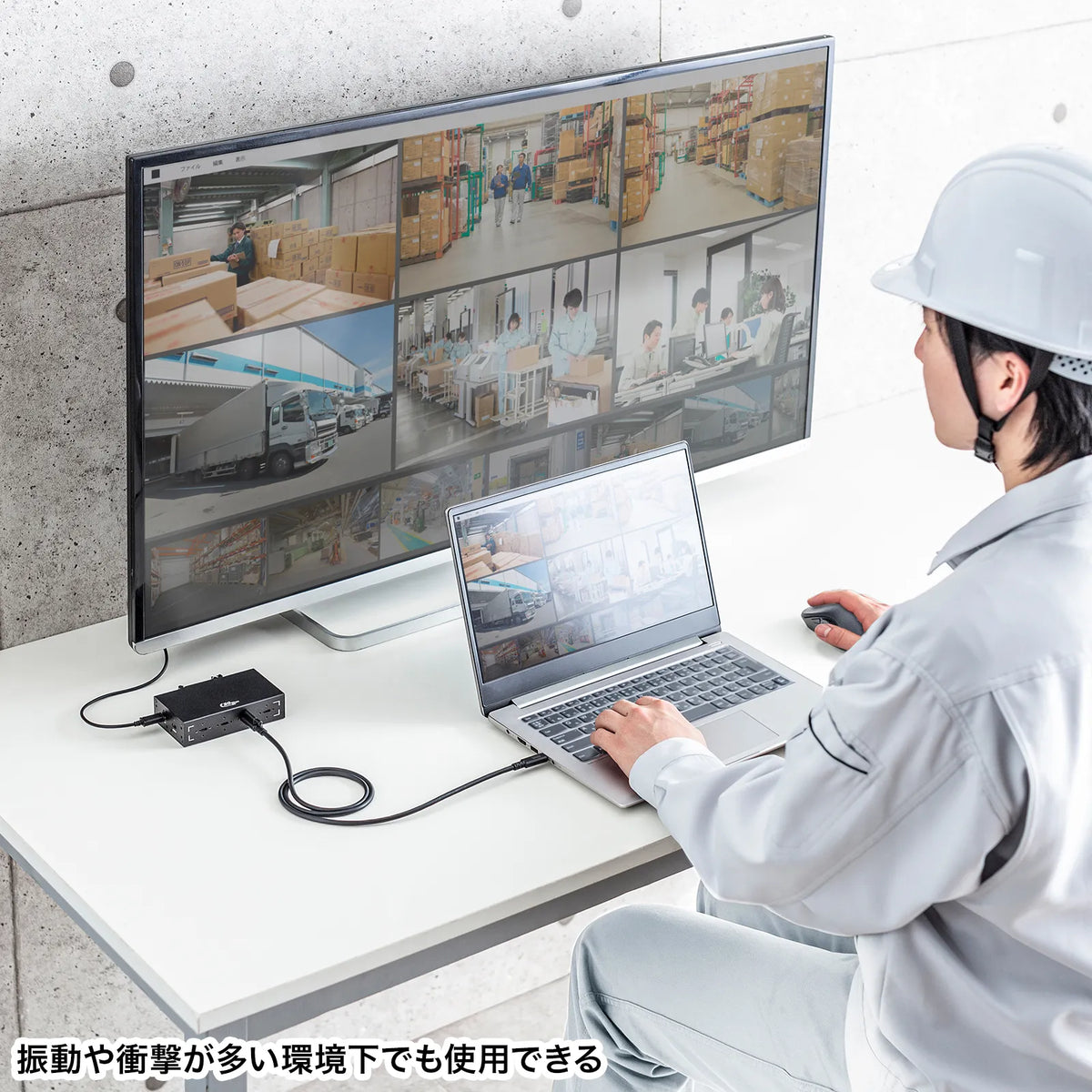

●Suitable for industrial applications and mobile device use, reducing the likelihood of disconnection and minimizing interruptions in data transfer and power supply.

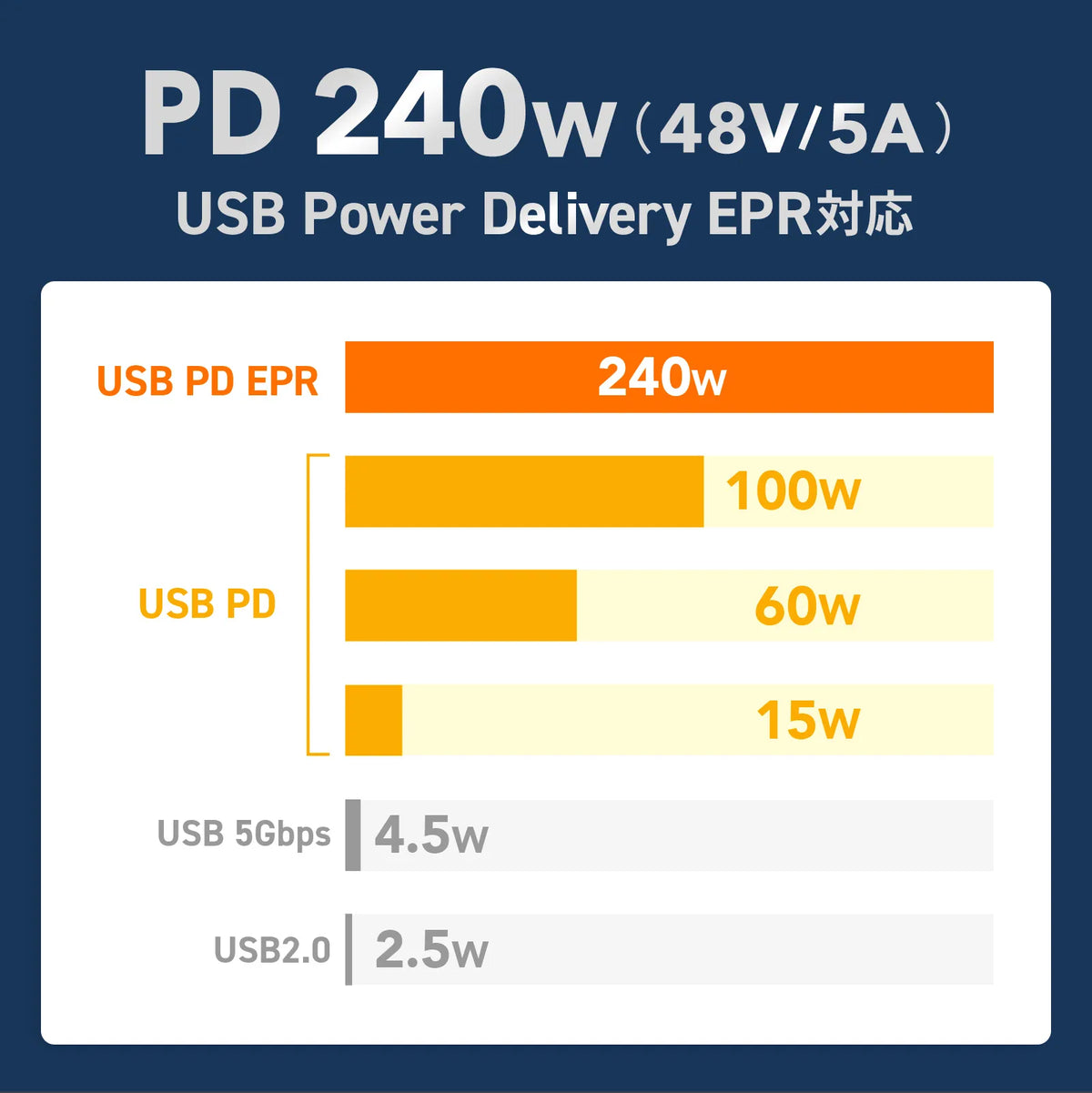

●Supports USB PD240W (USB Power Delivery EPR). In USB PD compatible devices and environments, it can supply power up to DC48V/5A (240W).
*Also supports conventional USB Power Delivery up to 20V/5A (100W).

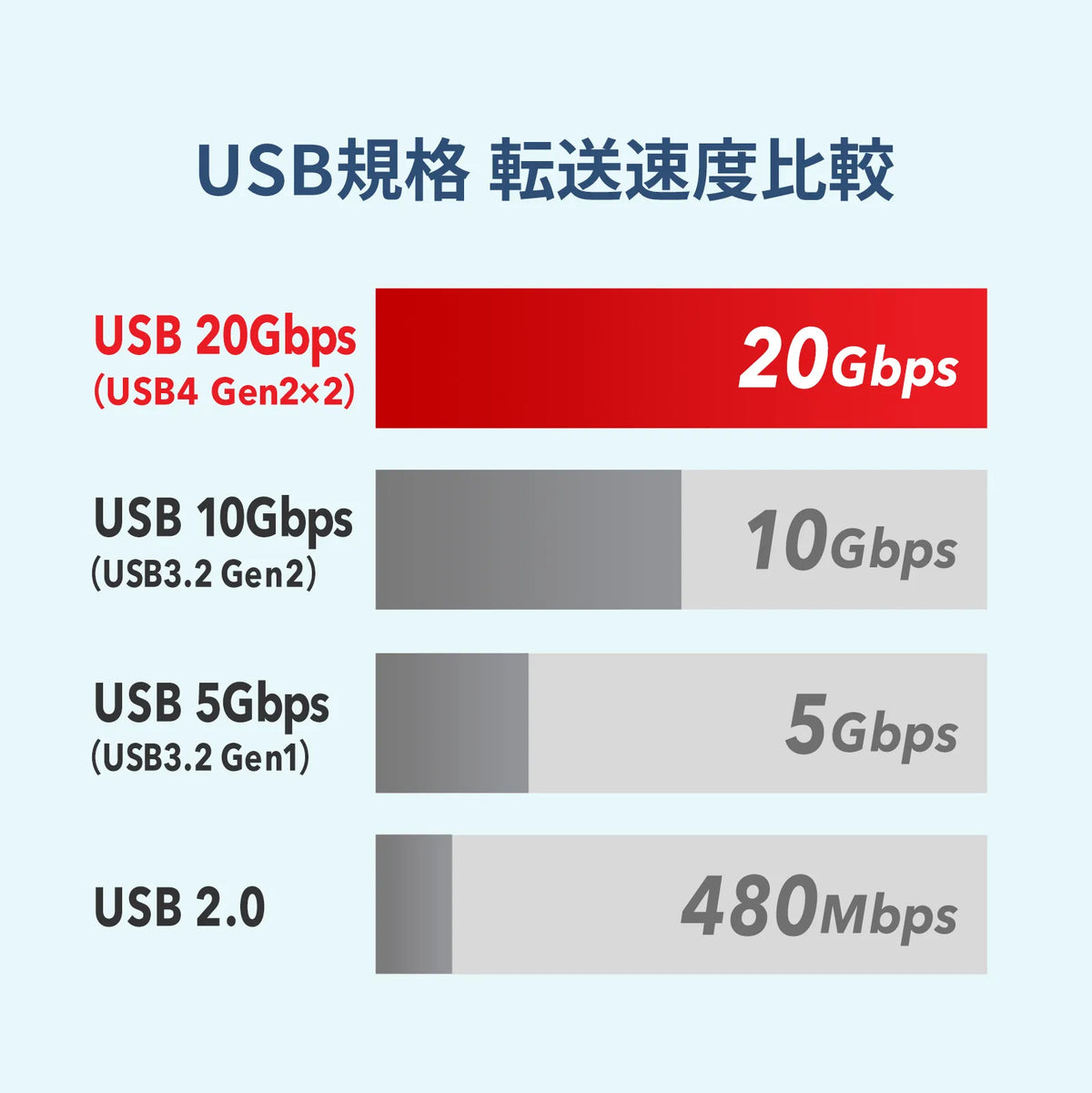

●A high-quality cable compatible with USB 20Gbps (USB4 Gen2x2) "SuperSpeed+USB (transfer speed 20Gbps)".

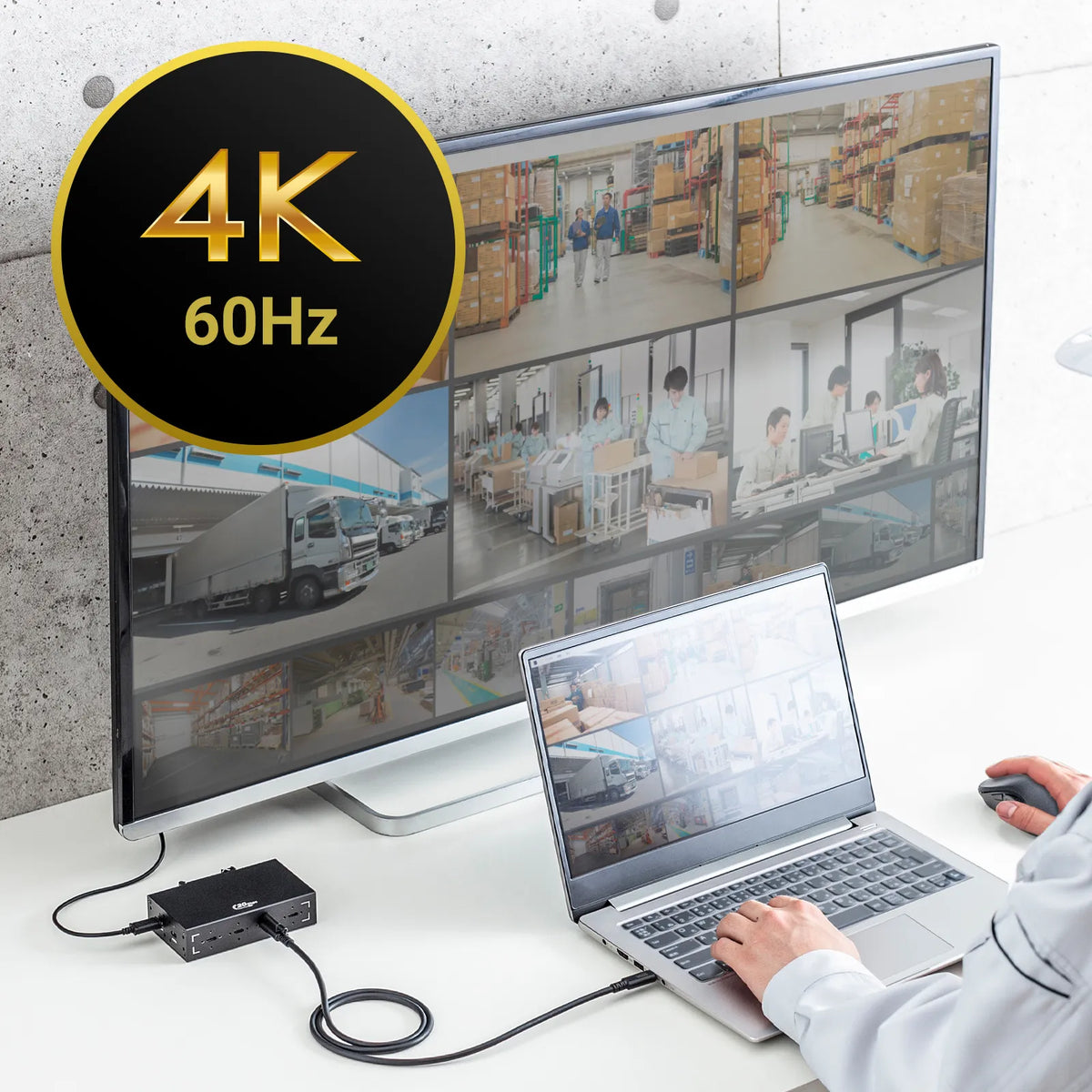

●Can be used to connect devices equipped with Type-C (DisplayPort Alt Mode compatible) to displays with a Type-C (DisplayPort Alt Mode compatible) input terminal. 4K60Hz compatible.

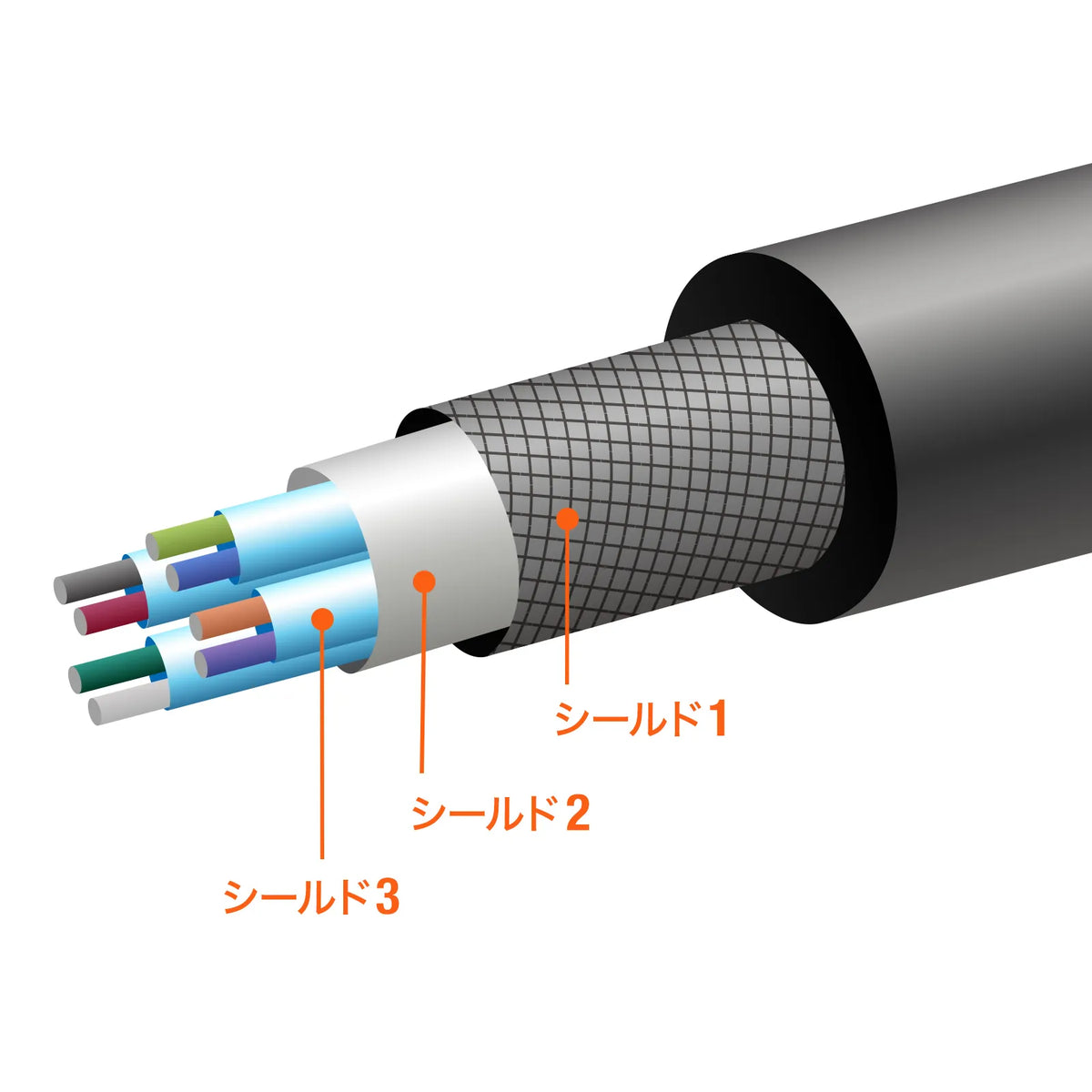

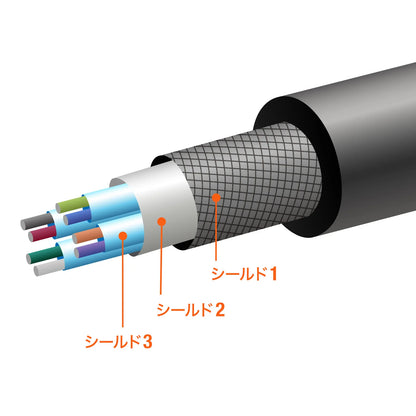

●Triple shielded structure for strong resistance to noise.
●Uses gold-plated pins that are resistant to rust and have minimal signal degradation due to aging.
●This product is certified by USB IF (USB Implementers Forum).

※Screw lock handling instructions
●Installation/removal method: When attaching/removing, turn the screw part without applying excessive force to secure it. When removing, gently loosen the screw before removing it.
●Caution against overtightening: Overtightening the screw will put a load on the connector and connected device, causing damage. Please be mindful of tightening it to an appropriate degree.
●Check device compatibility: Please check that the device you are connecting is screw lock compatible. Forcibly attaching it to a device that is not screw lock compatible may cause damage to the port or cable.

■Cable length: Approx. 1m
■Cable diameter: Approx. 5.0mm
■Connector shape: USB4 Type-C connector male - USB4 Type-C connector male
(USB4 Type-C connector male - USB4 Type-C connector male) *Compatible with USB 3.2 Gen2/Gen1 and USB 3.1 Gen2/Gen1
■Wire material standard (UL): UL2725
■USB PD (USB Power Delivery) compatible: Yes
*Limited to USB PD compatible devices. The power supply will vary depending on the specifications of the PD compatible device and power supply.
■USB PD (USB Power Delivery) specifications: Maximum PD240W (48V/5A)
■Standard: SuperSpeed ​​USB 20Gbps
USB4 Gen2x2, 240W
■Compatible models: : PCs from various manufacturers,
*Compatible with models equipped with a USB port (USB Type-C female).

＜Terminal Devices＞
Tablets and smartphones from various manufacturers
*Compatible with models equipped with a USB port (USB Type-C female).

＜Peripherals＞Peripherals, hard drives, etc., equipped with a Type-C connector (female).
*Compatibility may vary depending on the usage environment and model.

＜Displays＞
Displays from various manufacturers
*Models with Type-C compatible terminals.

＜USB Chargers＞
Chargers compatible with USB Type-C connector female output
■Standard (MD): USB3.0
■Certification: Yes
■Cable length (MD): 1 to 1.49
■Type: USB3.x
■Connector shape (MD): Type-C
Wire material flame retardancy: VW-1
Sheath material: PVC
Minimum bending radius: 40mm
Shielding: Triple shielding
