SANWA SUPPLY

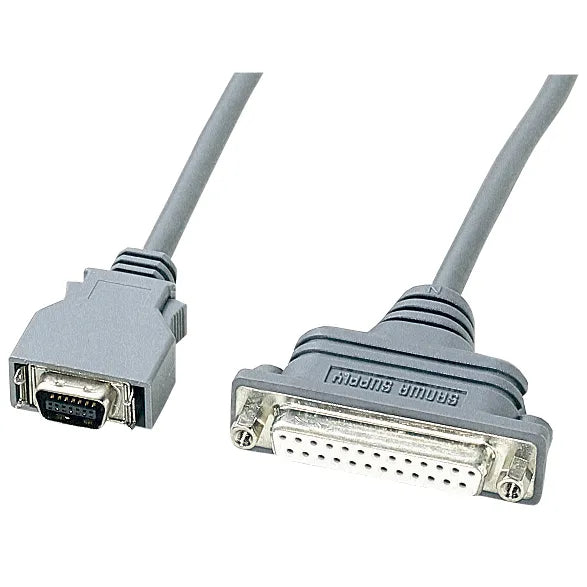

RS-232C cable compatible with NEC PC9821 notebook (for peripheral device conversion, 0.2m) KRS-HA1502FK
RS-232C cable compatible with NEC PC9821 notebook (for peripheral device conversion, 0.2m) KRS-HA1502FK
GTIN（JAN）：4969887513026
SKU：KRS-HA1502FK
Regular price
¥2,323 JPY
Regular price
Sale price
¥2,323 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【RS-232C Cable for NEC PC9821 Notebook (Peripheral Device Conversion)】
●This cable converts a half-14pin RS-232C port to a D-sub 25pin RS232C port. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●The shielded connector has a double-layered structure with a metal cover and a plastic cover inside, ensuring excellent EMI protection.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts excellent vibration and shock resistance.
●Uses gold-plated pins (contacts) that are resistant to rust and minimize signal degradation due to aging.
■Cable length: 0.2m

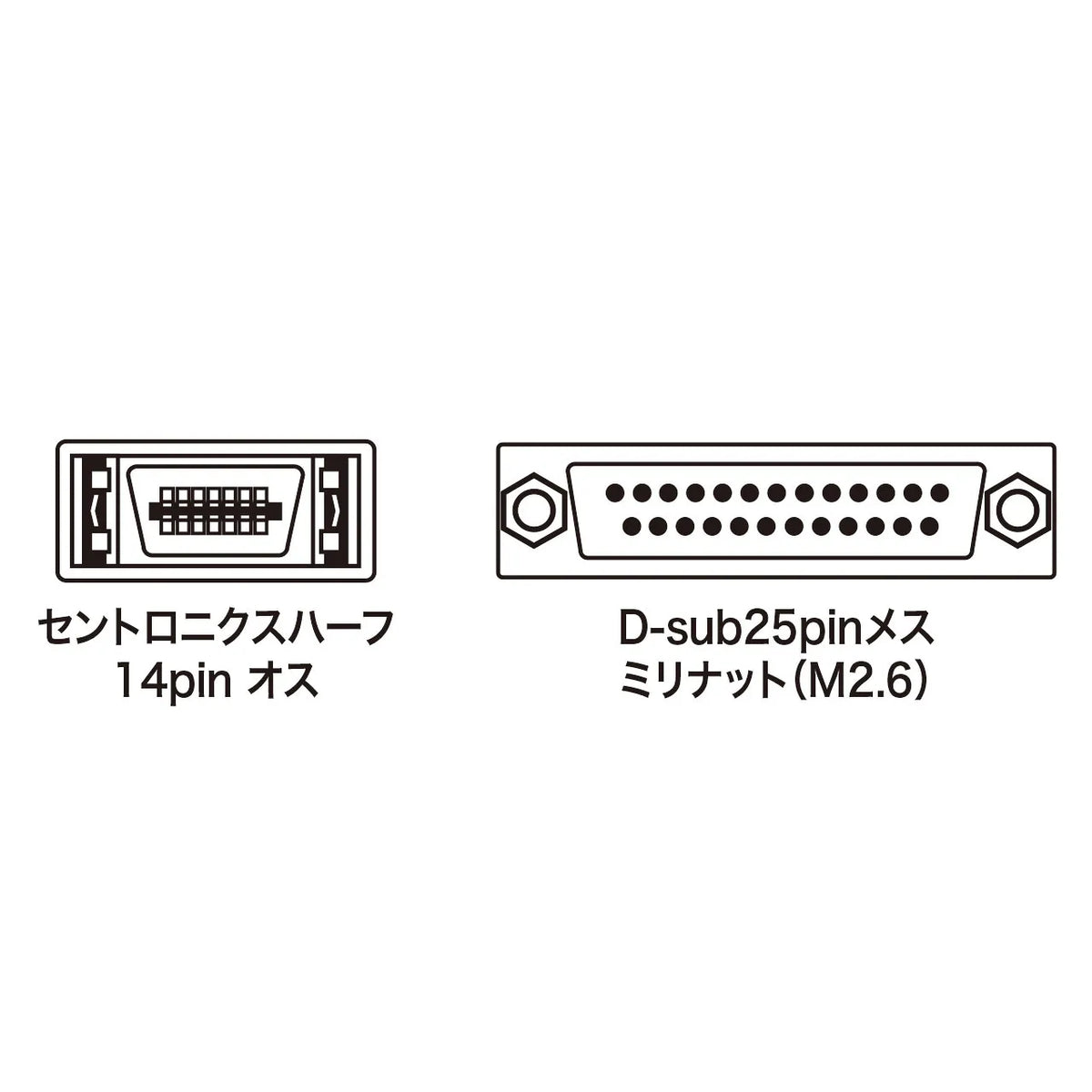

■Connector shape:
Centronics half 14-pin male-D-
sub25-pin female metric nut (M2.6)
■Cable diameter: 6mm
■Cable standard: UL2990

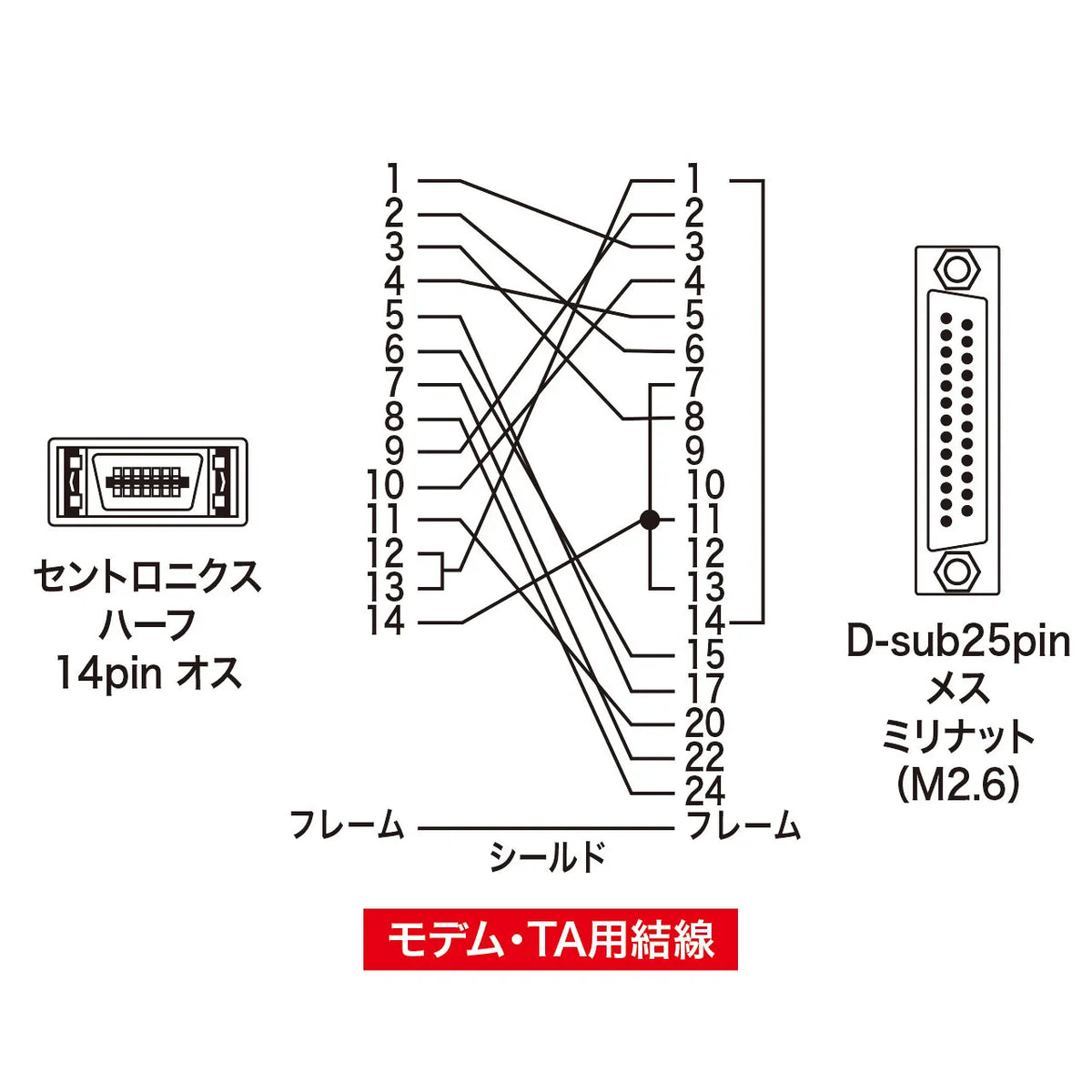

■Wiring: Modem/TA wiring
■Custom orders available
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Please understand. *Click here for custom cable service →
●This cable converts a half-14pin RS-232C port to a D-sub 25pin RS232C port. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●The shielded connector has a double-layered structure with a metal cover and a plastic cover inside, ensuring excellent EMI protection.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts excellent vibration and shock resistance.
●Uses gold-plated pins (contacts) that are resistant to rust and minimize signal degradation due to aging.
■Cable length: 0.2m
■Connector shape:
Centronics half 14-pin male-D-
sub25-pin female metric nut (M2.6)
■Cable diameter: 6mm
■Cable standard: UL2990
■Wiring: Modem/TA wiring
■Custom orders available
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Please understand. *Click here for custom cable service →
