SANWA SUPPLY
RS-232C cable KRS-423XF5N
RS-232C cable KRS-423XF5N
GTIN（JAN）：4969887843741
SKU：KRS-423XF5N
Regular price
¥14,810 JPY
Regular price
Sale price
¥14,810 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【RS-232C Cable 9pin/25pin (Crossover, 5m)】

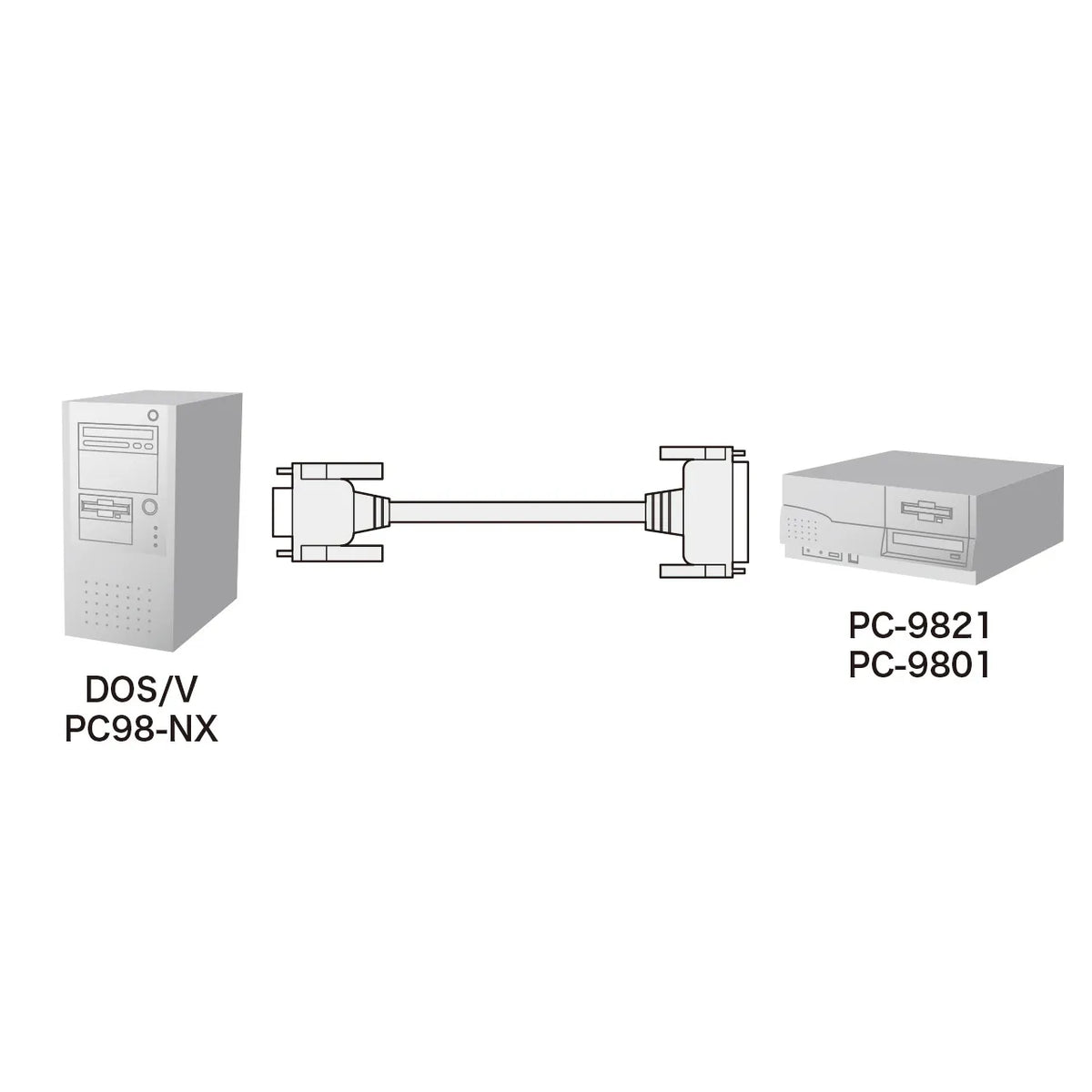

●This is a D-sub 25pin cable for connecting the serial (D-sub 9pin) port of a Windows-based (DOS/V) PC to an RS-232C connector such as the NEC PC-9821 series for data transfer.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also treated with gold plating which is resistant to rust and signal degradation due to aging.
●Simplified simple packaging reduces waste after use and makes unpacking easy.
■Cable length: 5m

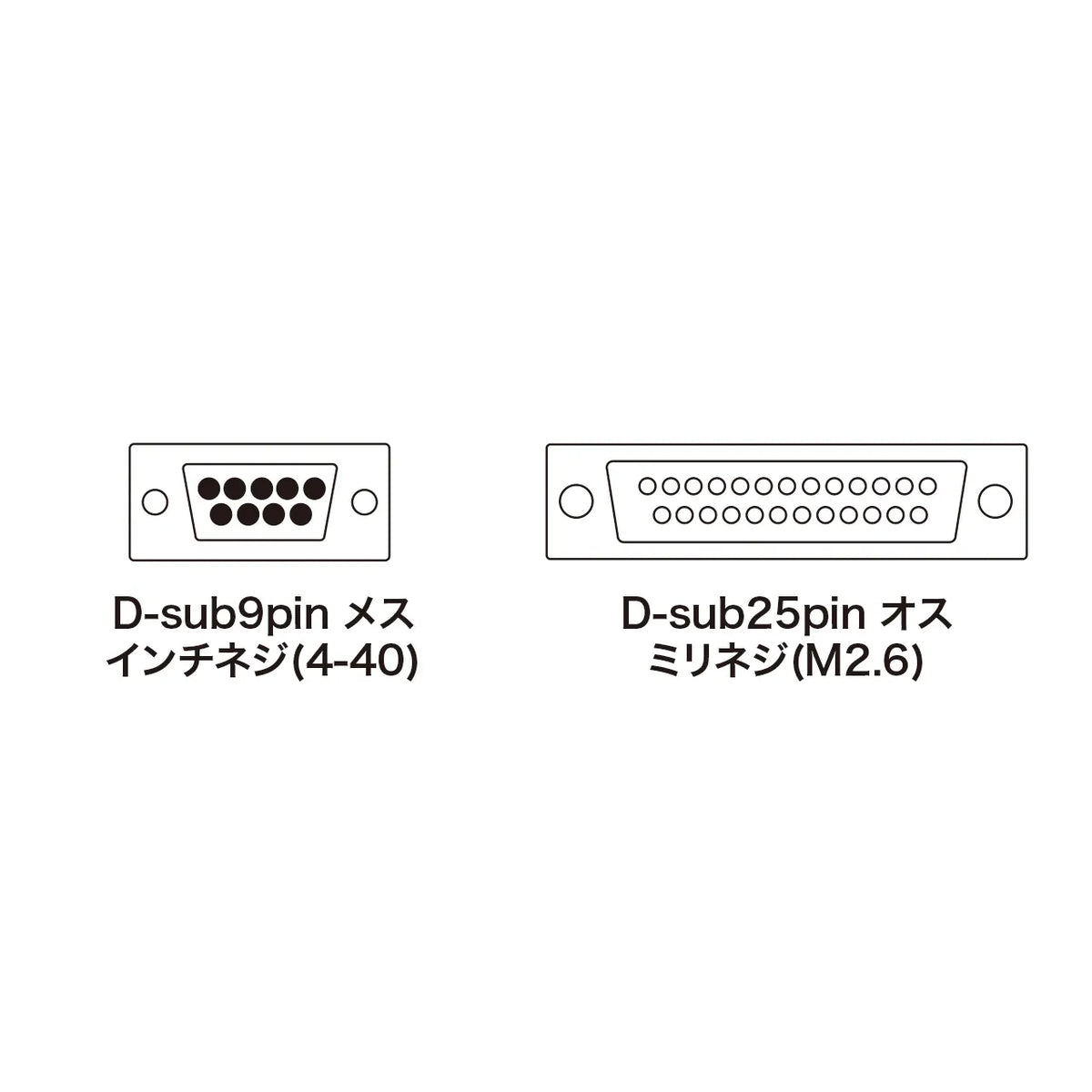

■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 7.4mm
■Cable standard: UL2464

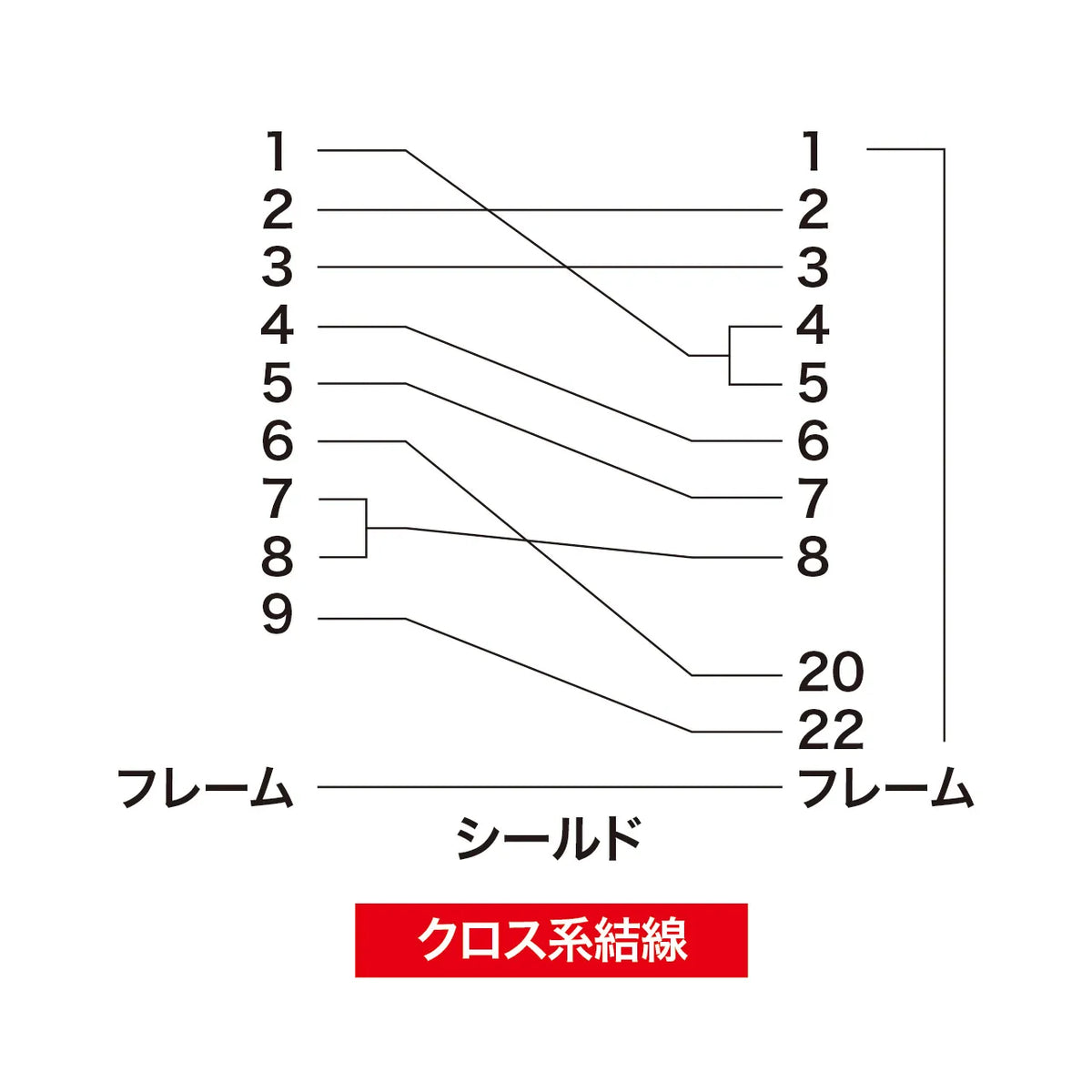

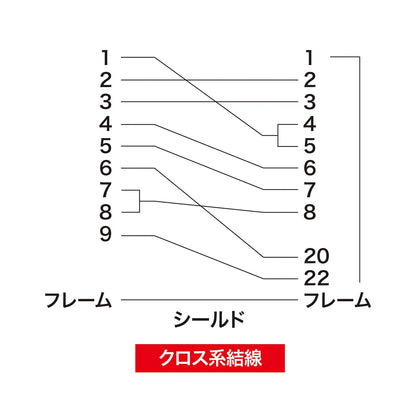

■Wiring: Crossover wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from just one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of small quantities of molded or PC98 color connector cables is not possible. Please understand.
●This is a D-sub 25pin cable for connecting the serial (D-sub 9pin) port of a Windows-based (DOS/V) PC to an RS-232C connector such as the NEC PC-9821 series for data transfer.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also treated with gold plating which is resistant to rust and signal degradation due to aging.
●Simplified simple packaging reduces waste after use and makes unpacking easy.
■Cable length: 5m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 7.4mm
■Cable standard: UL2464
■Wiring: Crossover wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from just one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of small quantities of molded or PC98 color connector cables is not possible. Please understand.
