SANWA SUPPLY

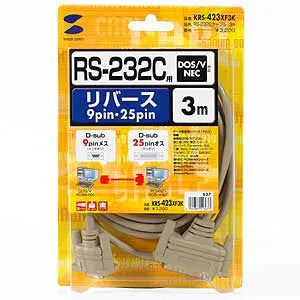

RS-232C cable KRS-423XF3K
RS-232C cable KRS-423XF3K
GTIN（JAN）：4969887513637
SKU：KRS-423XF3K
Regular price
¥2,541 JPY
Regular price
Sale price
¥2,541 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【RS-232C Cable (Crossover)】
●This is a D-sub 25-pin cable for connecting the serial (D-sub 9-pin) port of a Windows-based (DOS/V) PC to an RS-232C connector such as those on the NEC PC-9821 series for data transfer. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts superior vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
■Cable length: 3m
■Connector shape:
D-sub 9-pin female, inch screw (4-40) -
D-sub 25-pin male, metric screw (M2.6)
■Cable diameter: 5.5mm
■Wiring: Crossover wiring
＜Custom orders available＞
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, the connector material will be the one specified by Sanwa Supply. Custom production of cables with molded or PC98 color connectors is not possible in small quantities. Please understand. *Click here for custom cable service →
●This is a D-sub 25-pin cable for connecting the serial (D-sub 9-pin) port of a Windows-based (DOS/V) PC to an RS-232C connector such as those on the NEC PC-9821 series for data transfer. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts superior vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
■Cable length: 3m
■Connector shape:
D-sub 9-pin female, inch screw (4-40) -
D-sub 25-pin male, metric screw (M2.6)
■Cable diameter: 5.5mm
■Wiring: Crossover wiring
＜Custom orders available＞
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, the connector material will be the one specified by Sanwa Supply. Custom production of cables with molded or PC98 color connectors is not possible in small quantities. Please understand. *Click here for custom cable service →
