SANWA SUPPLY

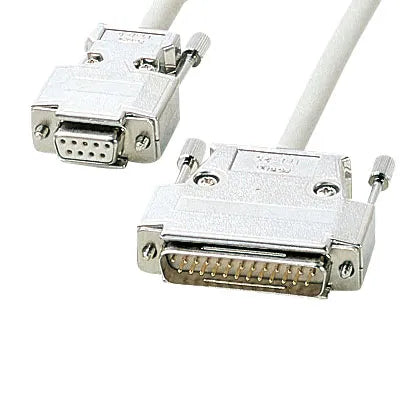

RS-232C cable KRS-3110FN
RS-232C cable KRS-3110FN
GTIN（JAN）：4969887843703
SKU：KRS-3110FN
Regular price
¥20,183 JPY
Regular price
Sale price
¥20,183 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【RS-232C Cable 9pin/25pin (for Modem/TA, 10m)】

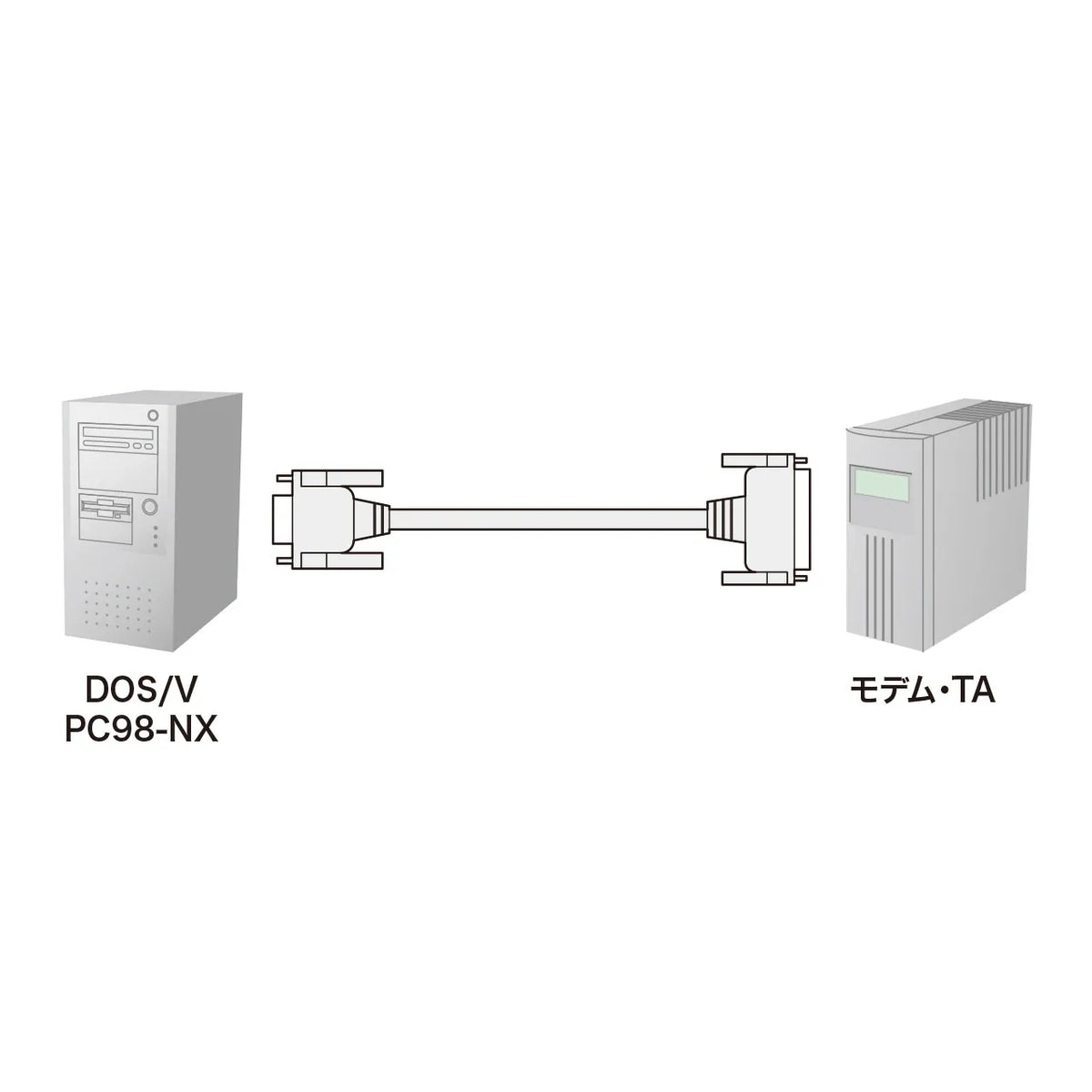

●This cable is used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
Compatible with modems from Omron, Aiwa, etc.
Complies with Toshiba's genuine PWS5452.
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also gold-plated to resist rust and signal degradation due to aging.
●Equipped with a ferrite core that functions as a noise filter to effectively absorb noise transmitted from the cable.
●Simplified packaging reduces waste after use and makes unpacking easy.
＜Caution＞
※Cable length affects TA connection, so please use a cable of 2m or less.
■Cable length: 10m

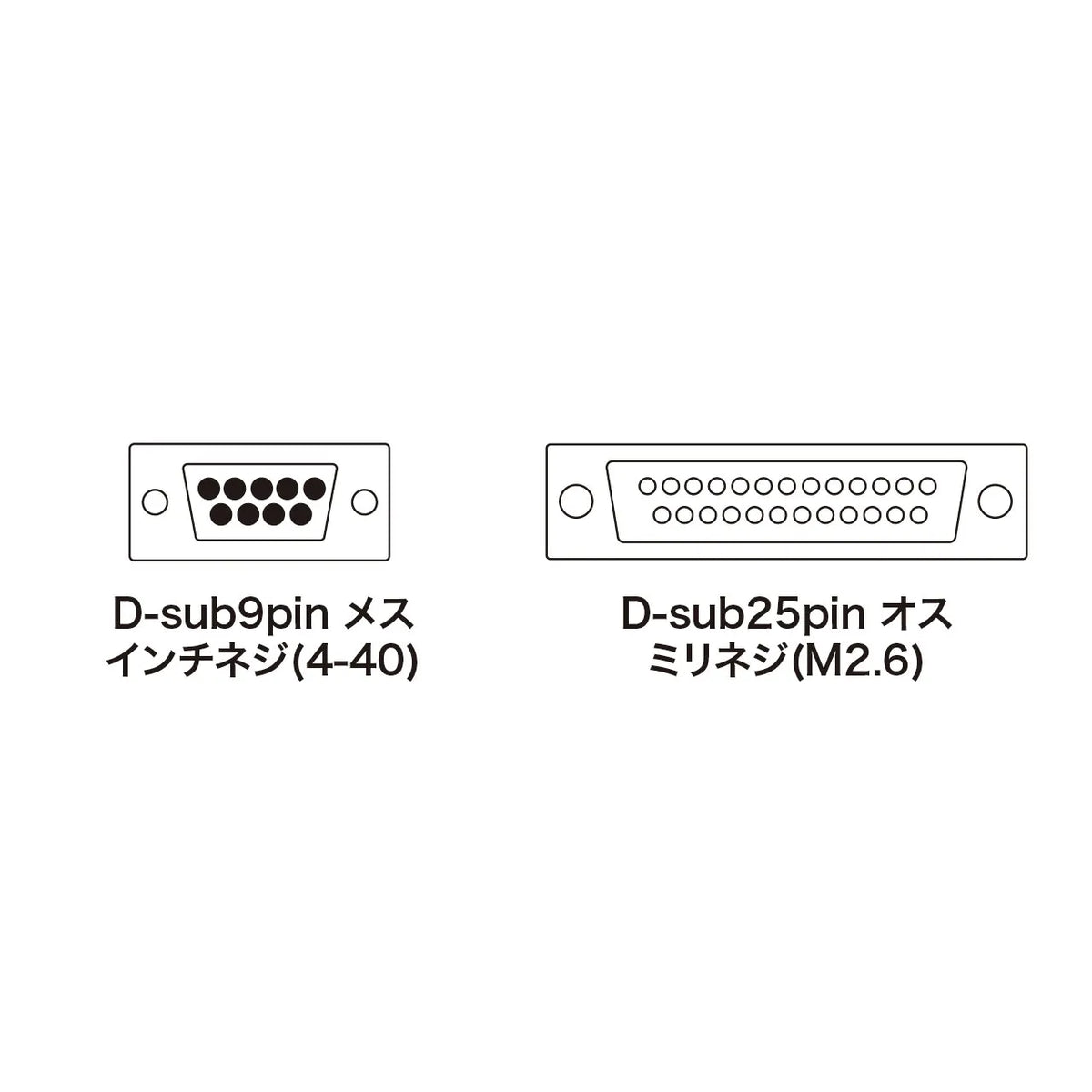

■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 7.4mm
■Cable standard: UL2464

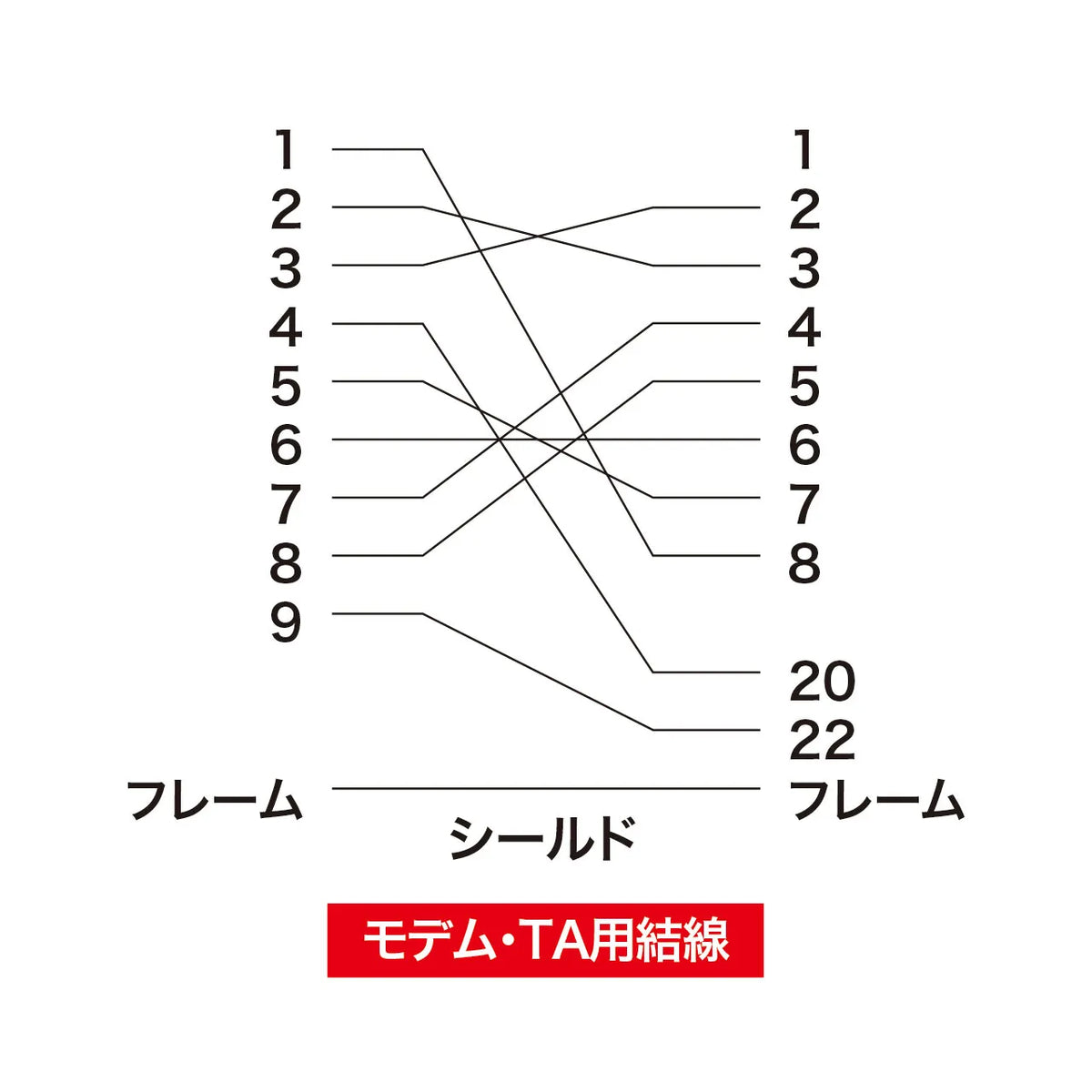

■Wiring: Modem-TA wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from one unit.
※For custom orders from one unit, the connector material will be the one specified by Sanwa Supply. We cannot accept custom orders for small quantities of molded or PC98-colored connector cables. Thank you for your understanding.
●This cable is used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
Compatible with modems from Omron, Aiwa, etc.
Complies with Toshiba's genuine PWS5452.
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also gold-plated to resist rust and signal degradation due to aging.
●Equipped with a ferrite core that functions as a noise filter to effectively absorb noise transmitted from the cable.
●Simplified packaging reduces waste after use and makes unpacking easy.
＜Caution＞
※Cable length affects TA connection, so please use a cable of 2m or less.
■Cable length: 10m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 7.4mm
■Cable standard: UL2464
■Wiring: Modem-TA wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from one unit.
※For custom orders from one unit, the connector material will be the one specified by Sanwa Supply. We cannot accept custom orders for small quantities of molded or PC98-colored connector cables. Thank you for your understanding.
