SANWA SUPPLY
RS-232C cable KRS-3102FK2
RS-232C cable KRS-3102FK2
GTIN（JAN）：4969887848333
SKU：KRS-3102FK2
Regular price
¥2,105 JPY
Regular price
Sale price
¥2,105 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

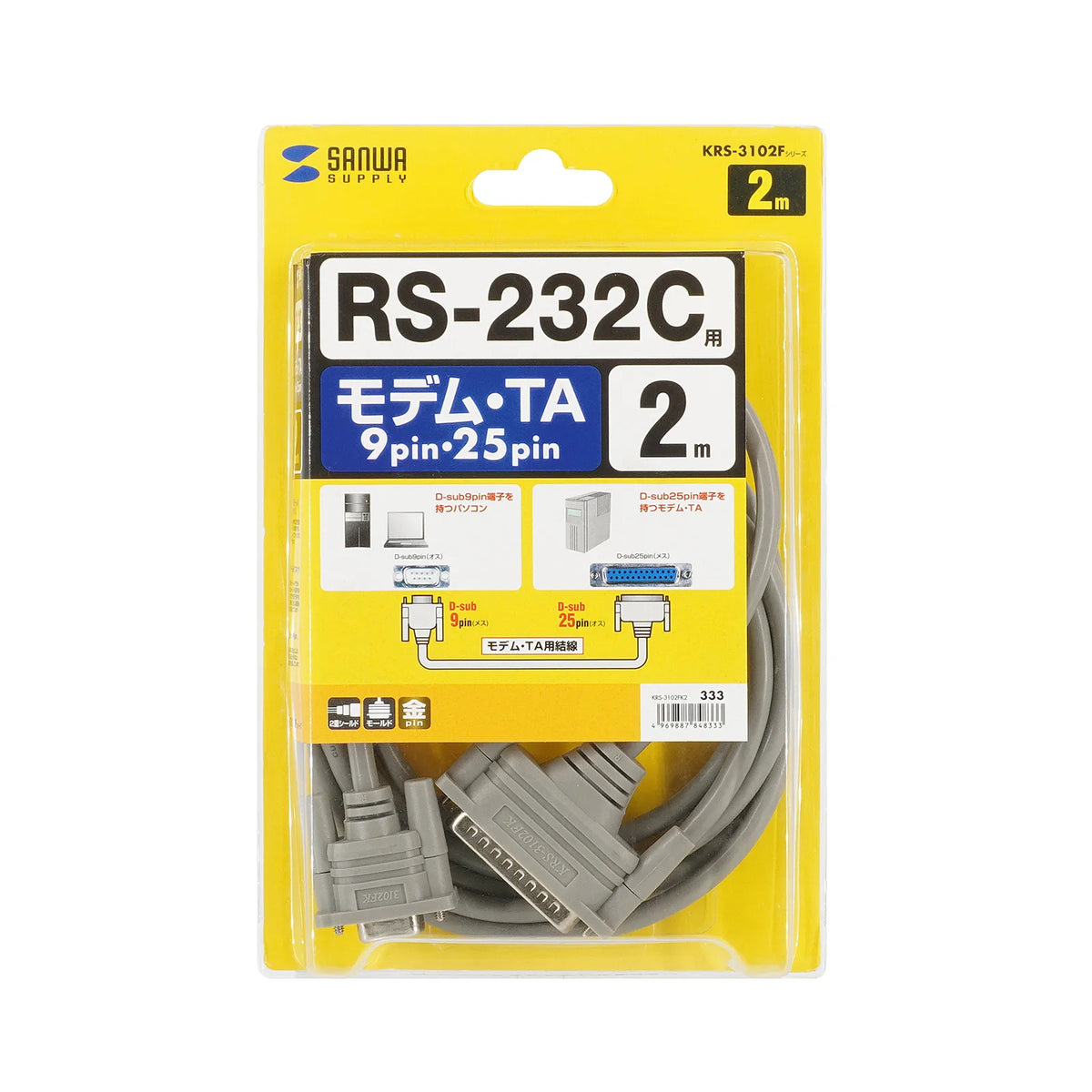

【RS-232C Cable (for TA/Modem, 2m)】
●This RS-232C cable connects a PC with a D-sub 9-pin serial port to a modem with a D-sub 25-pin connector.
●Used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
※Cable length affects TA connection, so please use a cable of 2m or less.
●This double-shielded cable features a high-density braided copper shield with a sealed aluminum shield inside, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and full shielding, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them resistant to rust and minimizing signal degradation over time.
■Cable length: 2m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 6mm
■Wiring: Modem-TA wiring
■Cable standard: Non-UL standard
≪Custom orders possible≫
Custom production such as length changes is possible from one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Thank you for your understanding.
●This RS-232C cable connects a PC with a D-sub 9-pin serial port to a modem with a D-sub 25-pin connector.
●Used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
※Cable length affects TA connection, so please use a cable of 2m or less.
●This double-shielded cable features a high-density braided copper shield with a sealed aluminum shield inside, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and full shielding, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them resistant to rust and minimizing signal degradation over time.
■Cable length: 2m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 6mm
■Wiring: Modem-TA wiring
■Cable standard: Non-UL standard
≪Custom orders possible≫
Custom production such as length changes is possible from one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Thank you for your understanding.
