SANWA SUPPLY

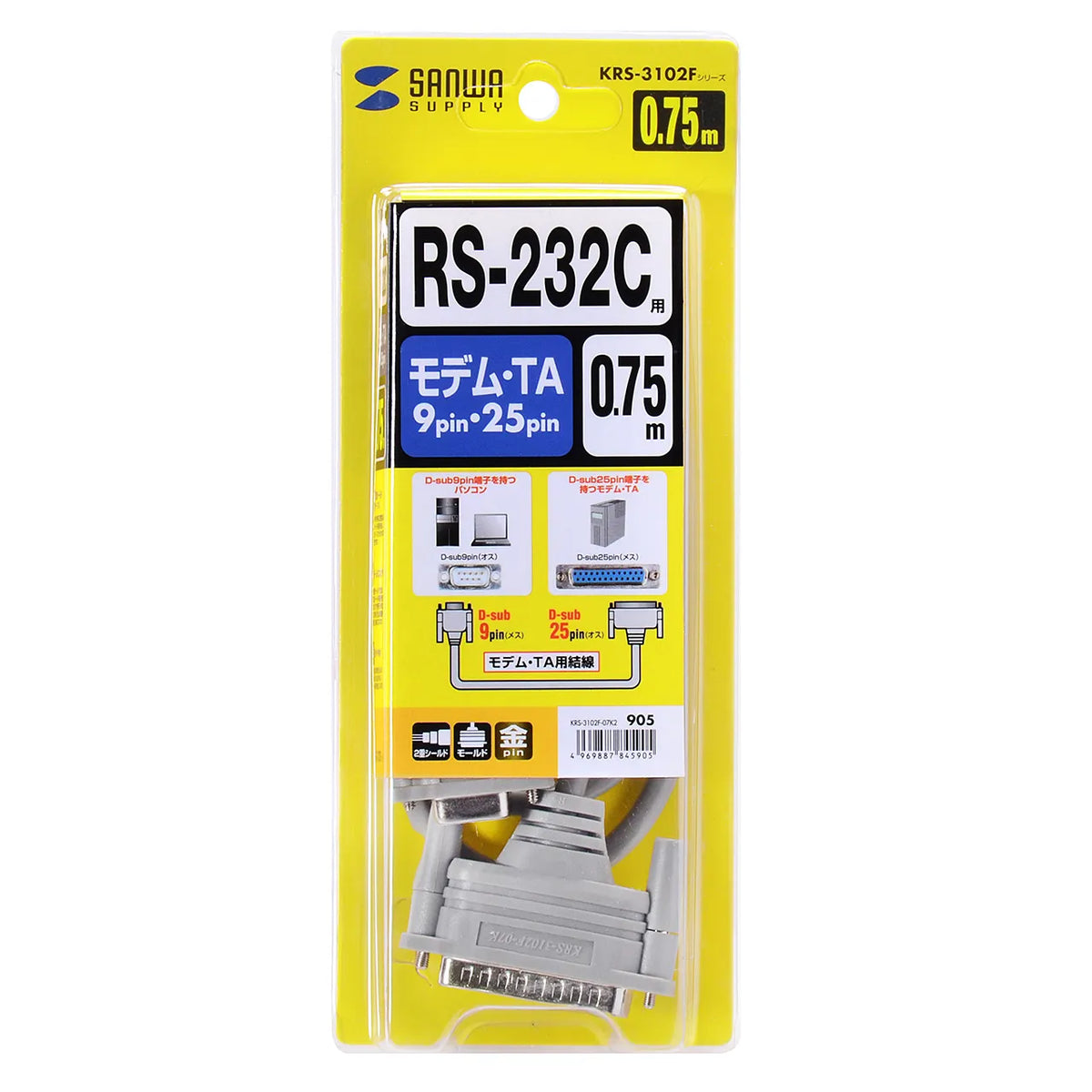

RS-232C cable KRS-3102F-07K2
RS-232C cable KRS-3102F-07K2
GTIN（JAN）：4969887845905
SKU：KRS-3102F-07K2
Regular price
¥1,307 JPY
Regular price
Sale price
¥1,307 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【RS-232C Cable 9Pin-25Pin for Modem 0.75m】
●This RS-232C cable connects a PC with a D-sub 9-pin serial port to a D-sub 25-pin modem, etc.
●Used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
*Cable length affects TA connection, so please use a cable of 2m or less.
●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them resistant to rust and minimizing signal degradation over time.
■Cable length: 0.75m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 6mm
■Wiring: Modem-TA wiring
■Cable standard: Non-UL standard
≪Custom orders possible≫
Custom production such as length changes is possible from one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of small quantities of molded or PC99 color connector cables is not possible. Thank you for your understanding.
●This RS-232C cable connects a PC with a D-sub 9-pin serial port to a D-sub 25-pin modem, etc.
●Used to connect a Windows-based (DOS/V) PC to a modem or other peripheral device (DCE), or to connect a terminal adapter (TA).
*Cable length affects TA connection, so please use a cable of 2m or less.
●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them resistant to rust and minimizing signal degradation over time.
■Cable length: 0.75m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 6mm
■Wiring: Modem-TA wiring
■Cable standard: Non-UL standard
≪Custom orders possible≫
Custom production such as length changes is possible from one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of small quantities of molded or PC99 color connector cables is not possible. Thank you for your understanding.
