SANWA SUPPLY
RS-232C cable KRS-005-15N
RS-232C cable KRS-005-15N
GTIN（JAN）：4969887843635
SKU：KRS-005-15N
Regular price
¥38,188 JPY
Regular price
Sale price
¥38,188 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

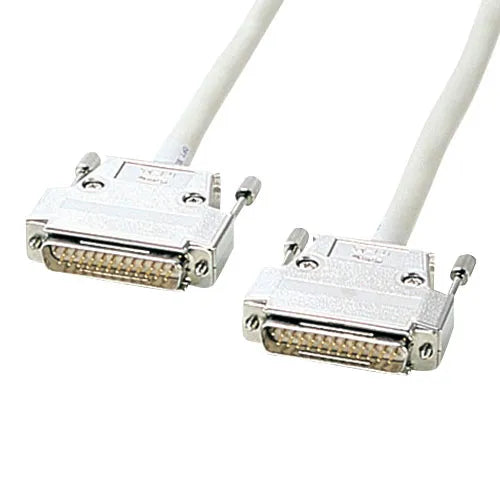

[RS-232C Cable D-sub25pin 15m (Straight Full Connection)]

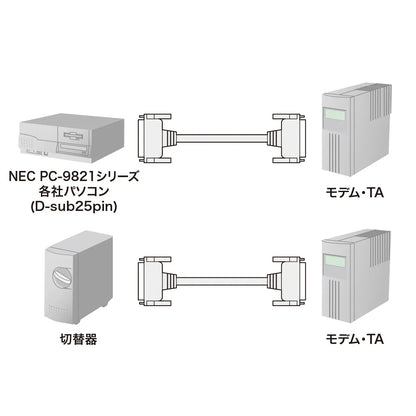

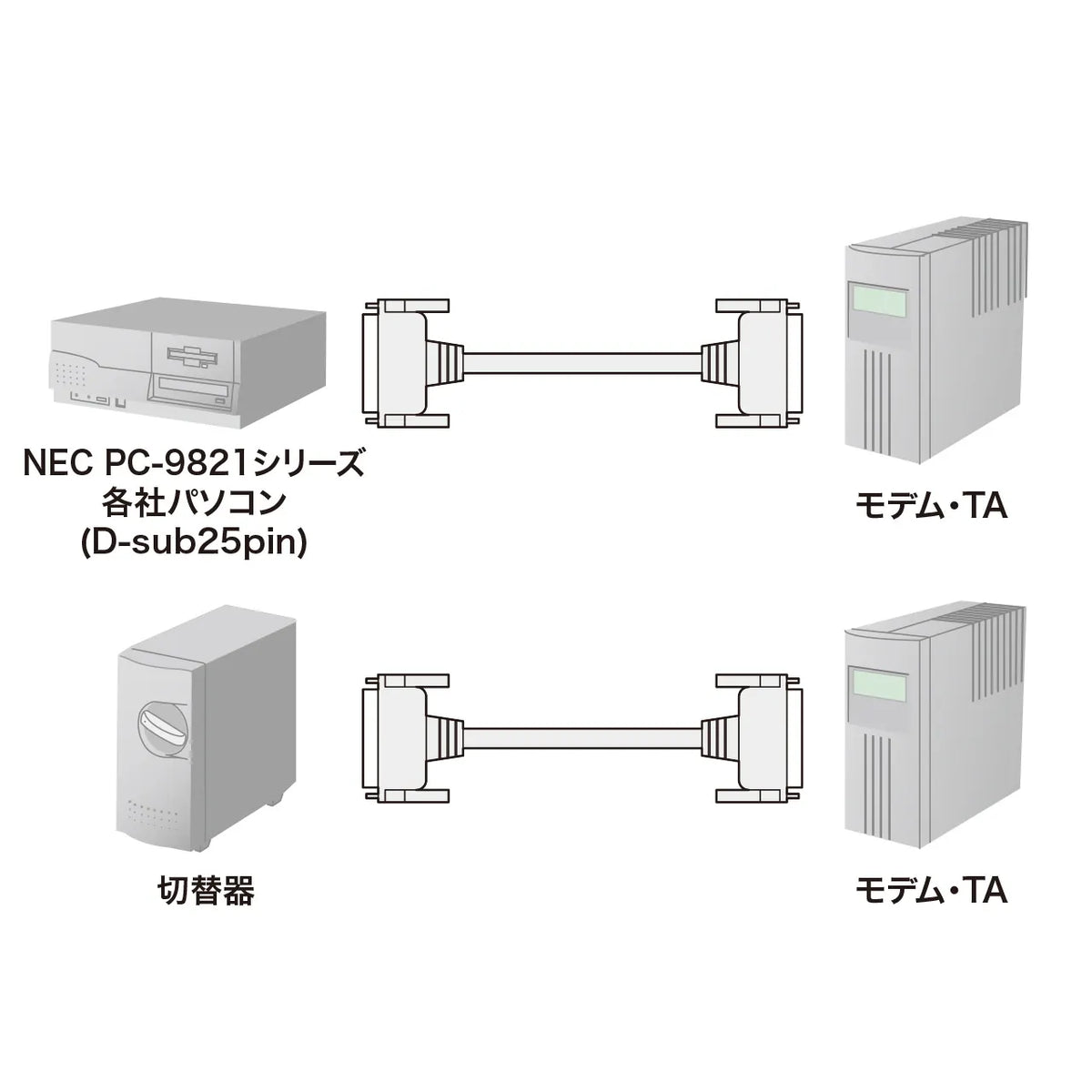

●This cable connects a Windows-based (DOS/V) PC to peripheral devices such as modems and TAs (DCE) or switches (such as SW-CP21R). (Full pin connection specification)
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also treated with gold plating which is resistant to rust and signal degradation due to aging.
●Simplified simple packaging reduces waste after use and makes unpacking easy.
＜Caution＞
*For connection with terminal adapters (TA), KRS-101-07K2/101K/101K2 is compatible. (Please use a cable of 2m or less for connection with TA)
■Cable length: 15m

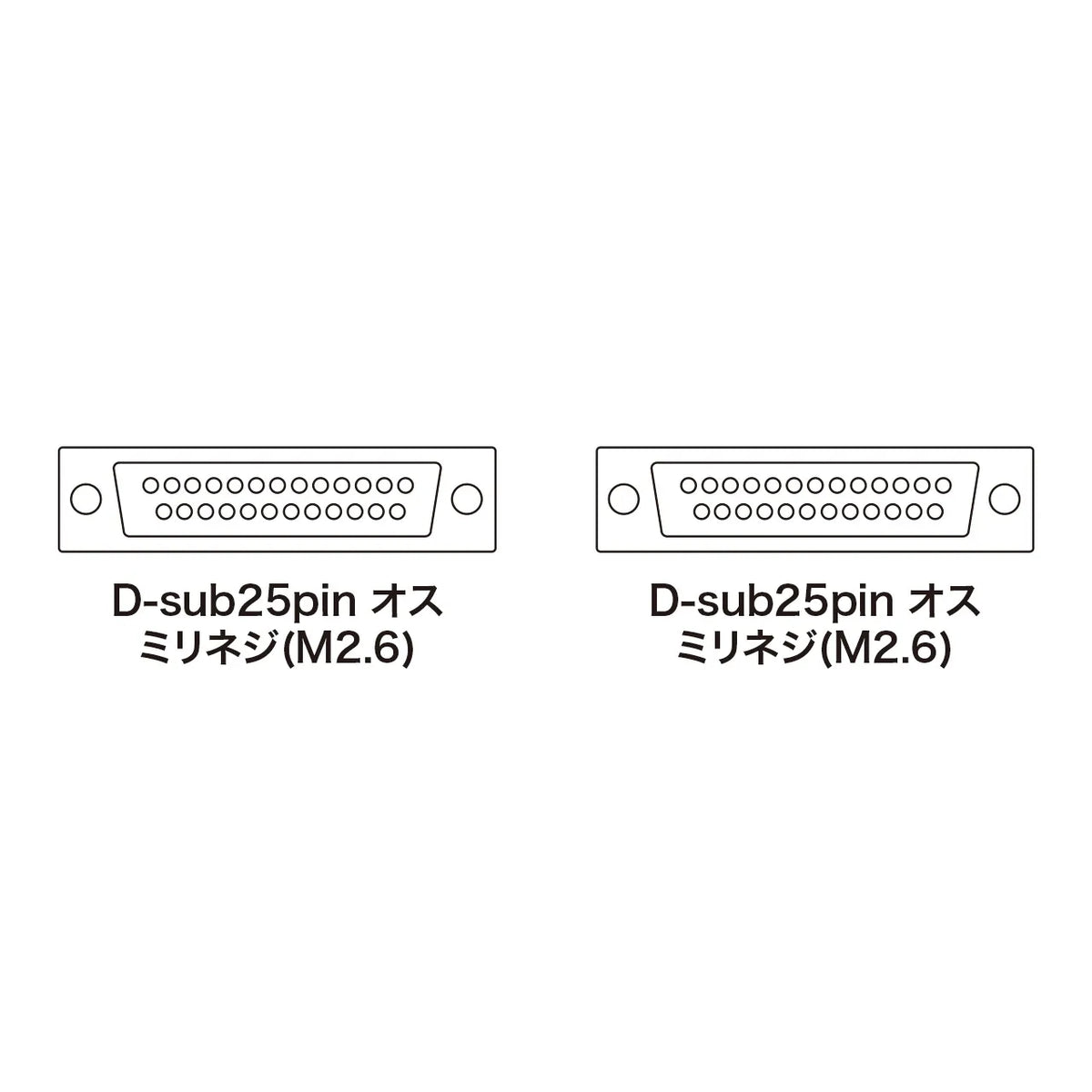

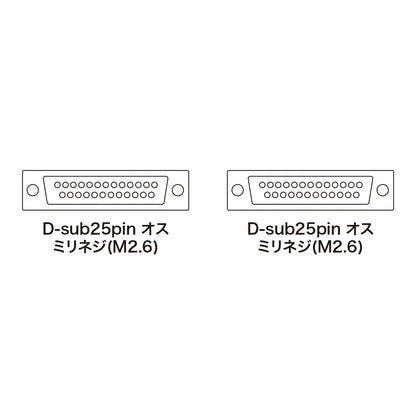

■Connector shape:
D-sub25pin male metric screw (M2.6) -
D-sub25pin male metric screw (M2.6)
■Cable diameter: 9.8mm
■Cable standard: UL2464

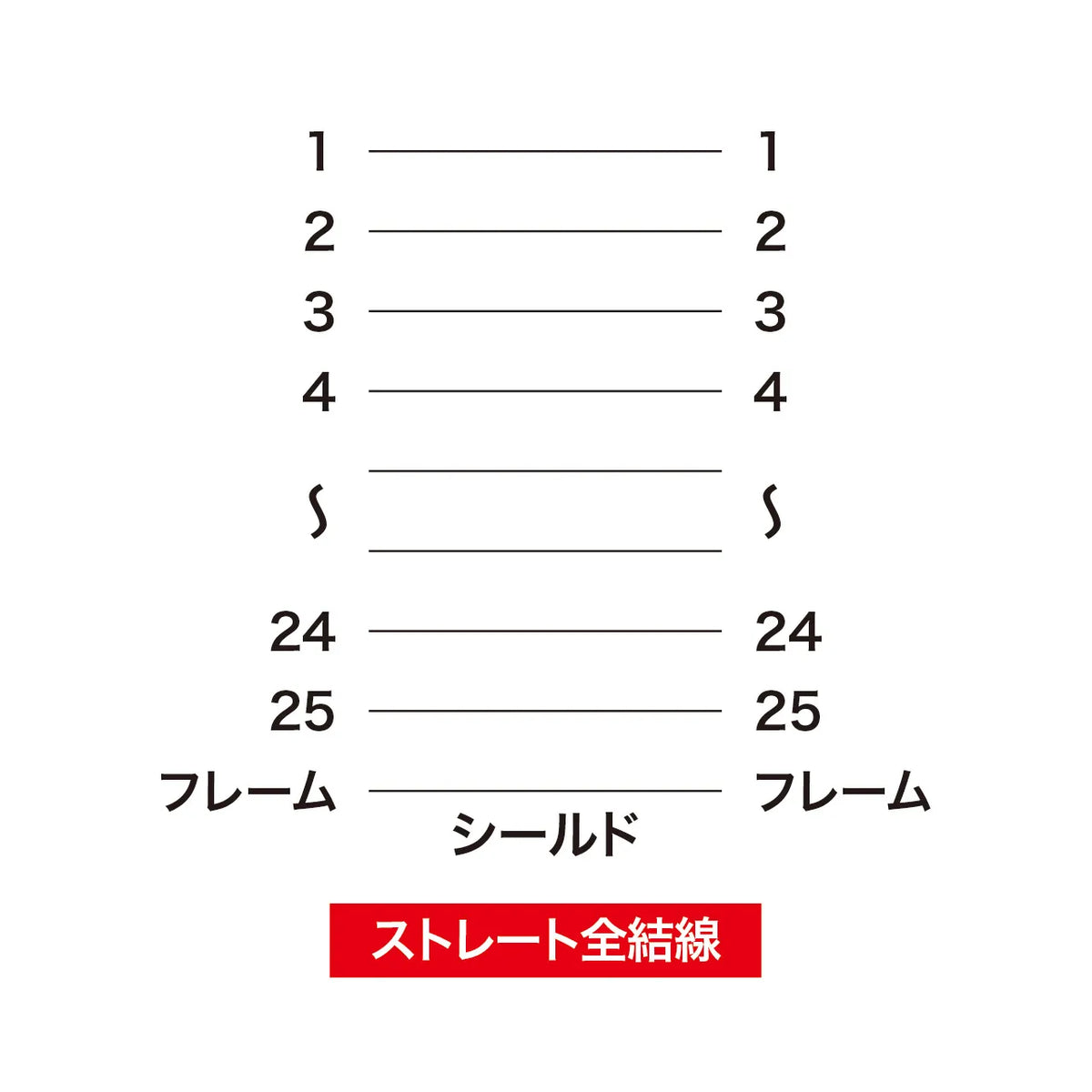

■Wiring: Straight through wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from one unit.
*For custom orders from one unit, the connector material will be the one specified by Sanwa Supply. We cannot accept custom orders for small quantities of molded or PC98-colored connector cables. Thank you for your understanding.
●This cable connects a Windows-based (DOS/V) PC to peripheral devices such as modems and TAs (DCE) or switches (such as SW-CP21R). (Full pin connection specification)
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI). The cable shell is removable, allowing for changes to the internal wiring specifications.
※The Centronics connector is a metal-shielded connector.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also treated with gold plating which is resistant to rust and signal degradation due to aging.
●Simplified simple packaging reduces waste after use and makes unpacking easy.
＜Caution＞
*For connection with terminal adapters (TA), KRS-101-07K2/101K/101K2 is compatible. (Please use a cable of 2m or less for connection with TA)
■Cable length: 15m
■Connector shape:
D-sub25pin male metric screw (M2.6) -
D-sub25pin male metric screw (M2.6)
■Cable diameter: 9.8mm
■Cable standard: UL2464
■Wiring: Straight through wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from one unit.
*For custom orders from one unit, the connector material will be the one specified by Sanwa Supply. We cannot accept custom orders for small quantities of molded or PC98-colored connector cables. Thank you for your understanding.
