SANWA SUPPLY

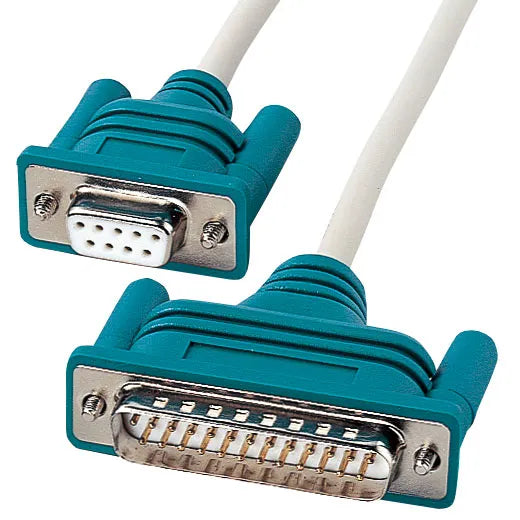

RS-232C Cable (Crossover, 2m) KR-XD2
RS-232C Cable (Crossover, 2m) KR-XD2
GTIN（JAN）：4969887553275
SKU：KR-XD2
Regular price
¥1,815 JPY
Regular price
Sale price
¥1,815 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[RS-232C Cable Compatible with PC99 Standard]

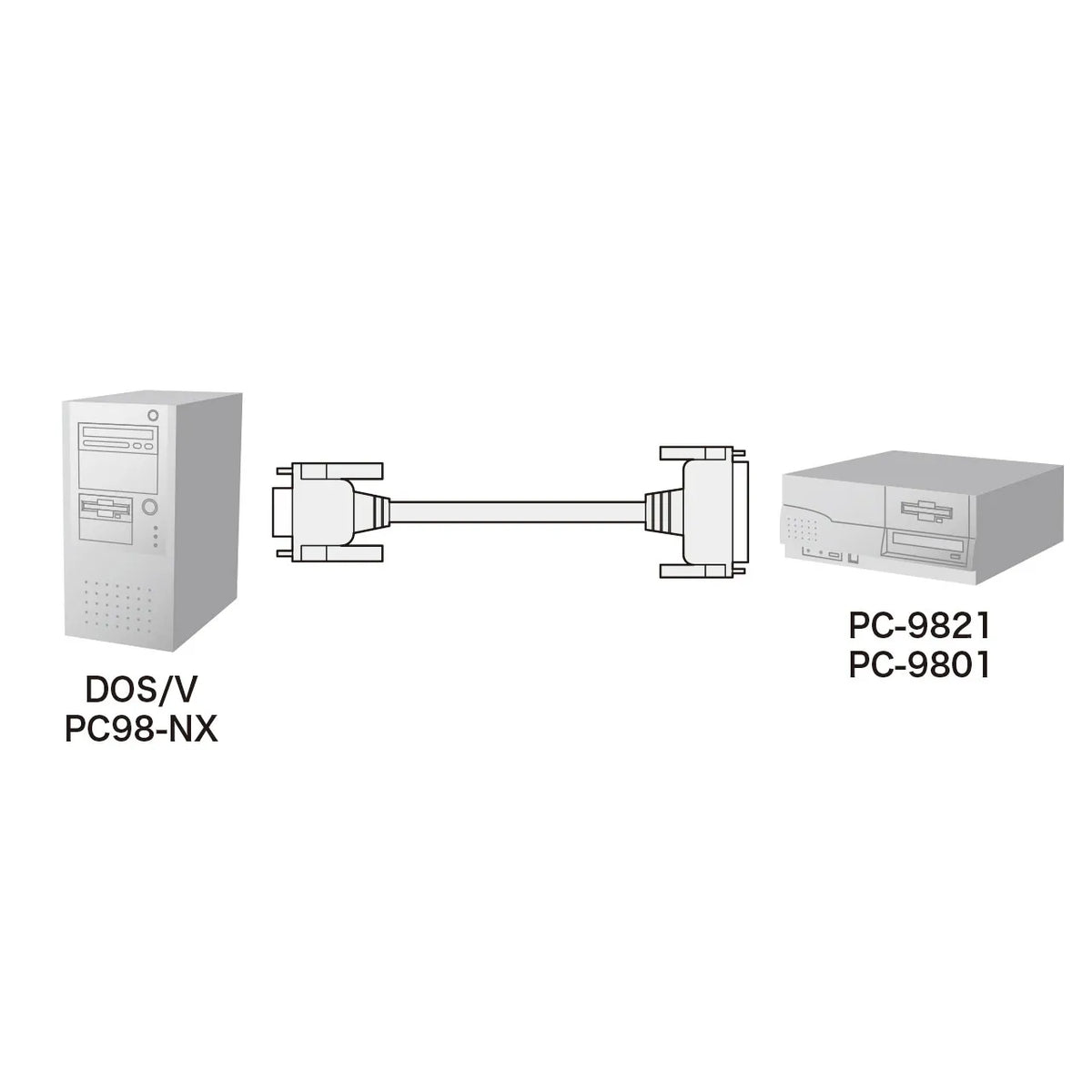

●This is a D-sub 25-pin cable for connecting the serial (D-sub 9-pin) port of a DOS/V PC to an RS-232C connector such as those on the NEC PC-9821 series for data transfer. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector is solidified with resin molding inside and further shielded on all sides, preventing external interference and providing excellent noise protection. It also boasts superior vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
■Cable length: 2m

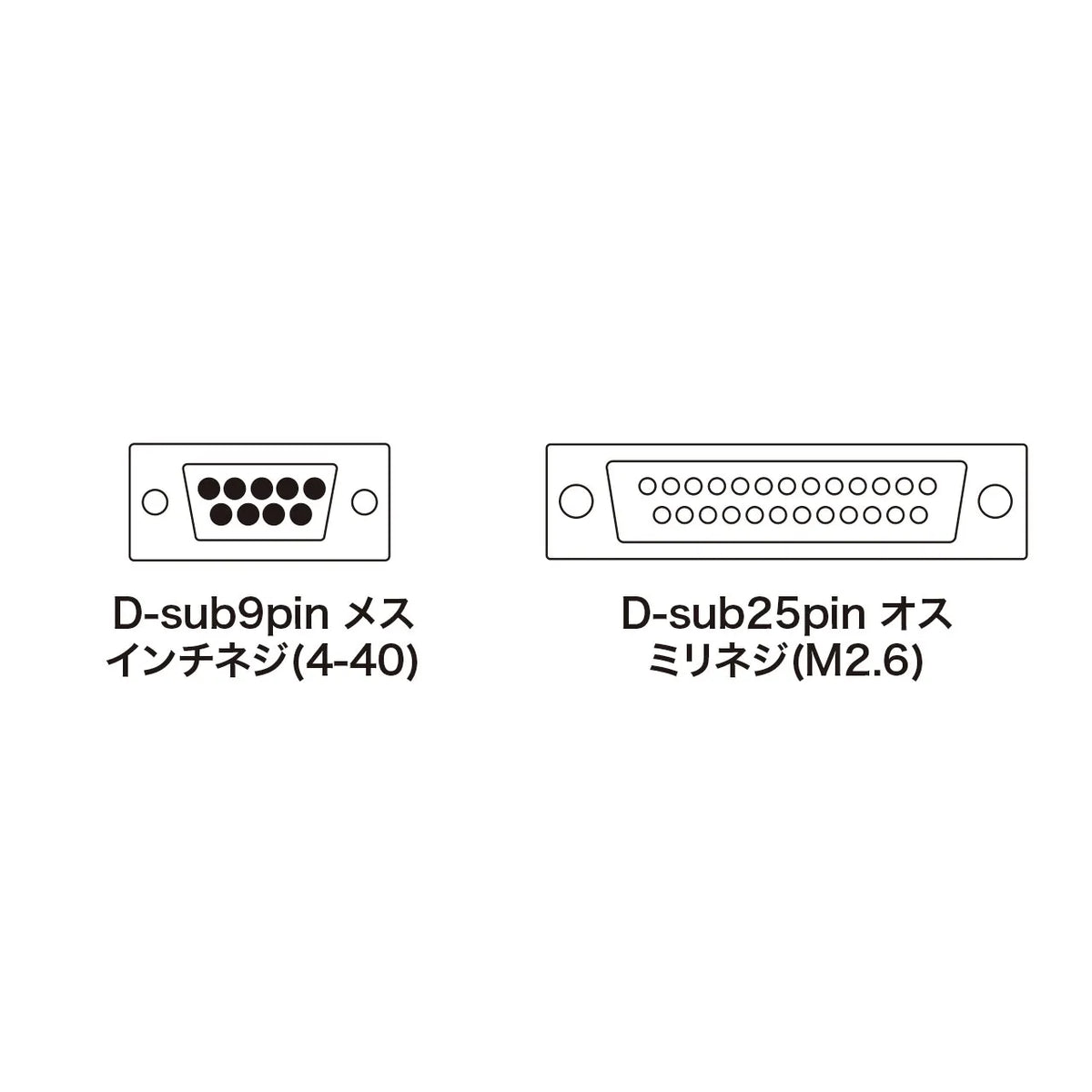

■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 5.5mm

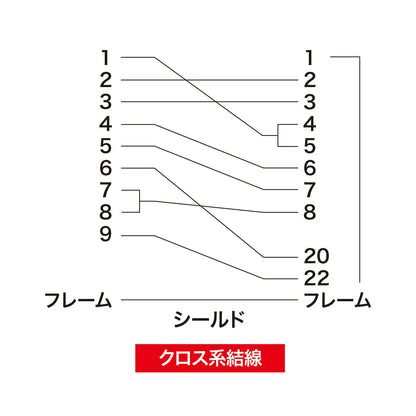

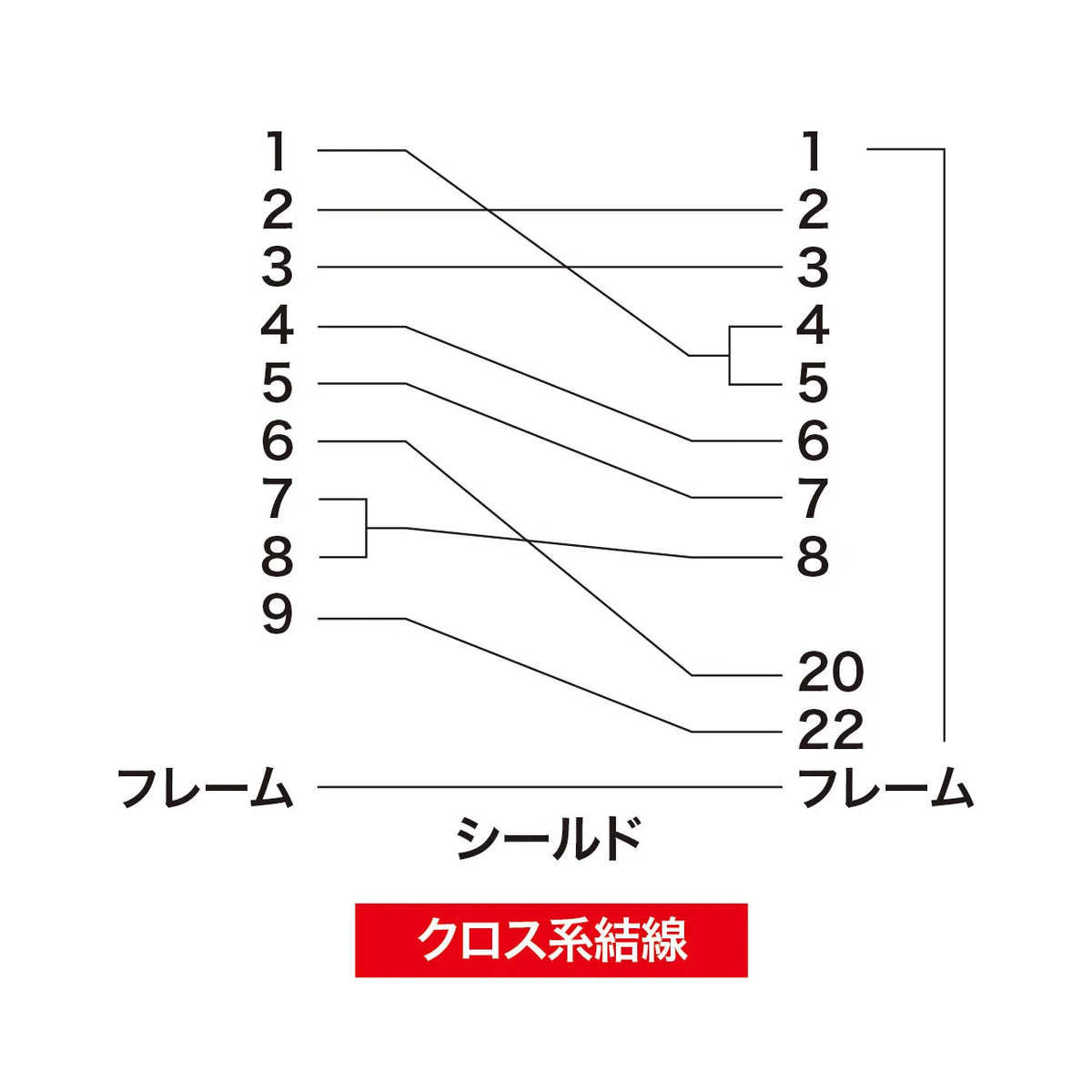

■Wiring: Crossover wiring
＜Custom order lot of 300 pieces to＞
*Custom orders are possible for quantities greater than 300 pieces. Minimum order quantities may vary, so please check in advance. For pricing, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 piece is possible if Sanwa Supply specifies the materials and parts such as connectors and wires. (Custom production in small quantities is not possible with molded connectors or PC99 color specifications.) *Click here for custom cable service →
●This is a D-sub 25-pin cable for connecting the serial (D-sub 9-pin) port of a DOS/V PC to an RS-232C connector such as those on the NEC PC-9821 series for data transfer. ●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector is solidified with resin molding inside and further shielded on all sides, preventing external interference and providing excellent noise protection. It also boasts superior vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
■Cable length: 2m
■Connector shape:
D-sub 9-pin female inch screw (4-40) -
D-sub 25-pin male metric screw (M2.6)
■Cable diameter: 5.5mm
■Wiring: Crossover wiring
＜Custom order lot of 300 pieces to＞
*Custom orders are possible for quantities greater than 300 pieces. Minimum order quantities may vary, so please check in advance. For pricing, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 piece is possible if Sanwa Supply specifies the materials and parts such as connectors and wires. (Custom production in small quantities is not possible with molded connectors or PC99 color specifications.) *Click here for custom cable service →
