SANWA SUPPLY

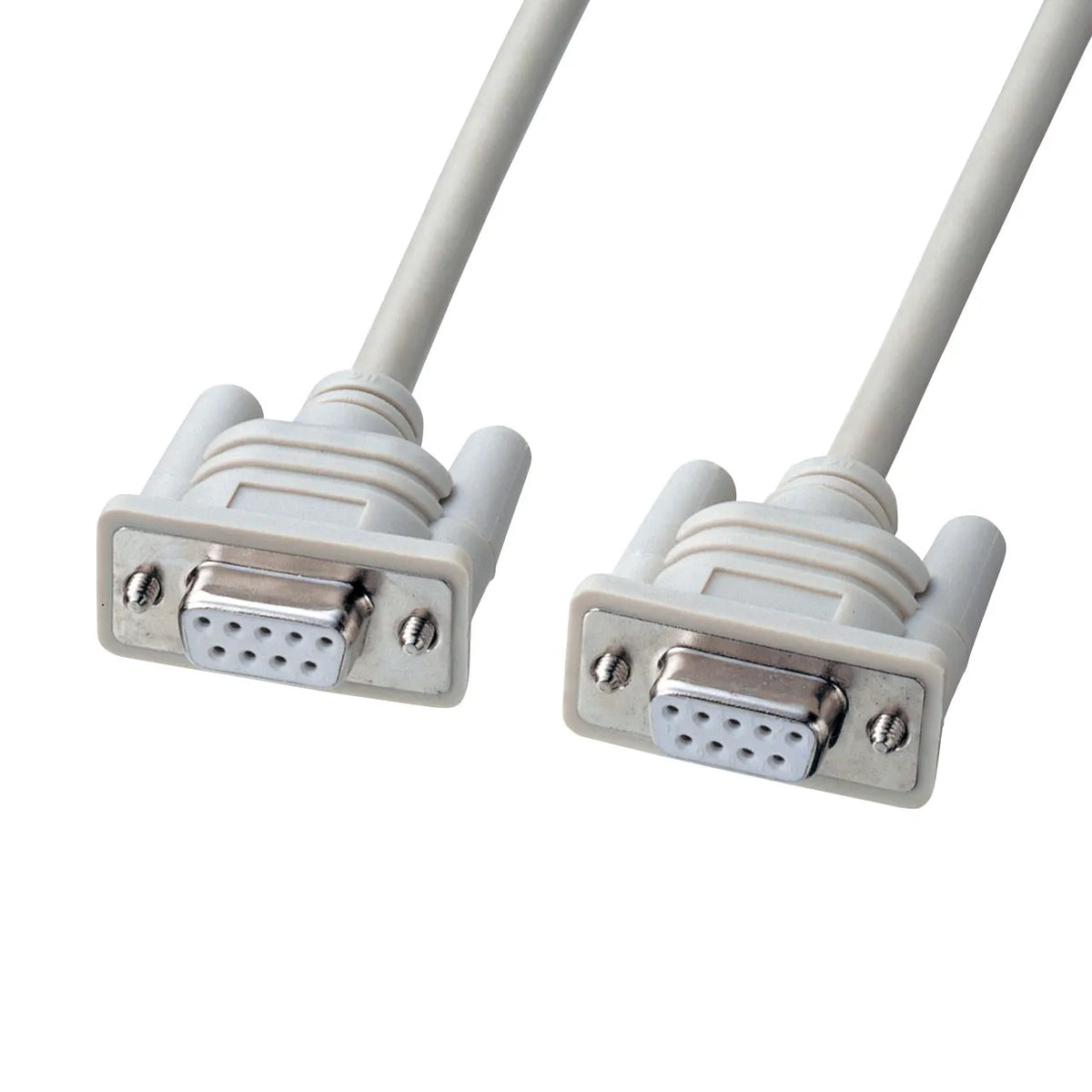

Eco RS-232C Cable (2m) KR-ECLK2
Eco RS-232C Cable (2m) KR-ECLK2
GTIN（JAN）：4969887659991
SKU：KR-ECLK2
Regular price
¥1,597 JPY
Regular price
Sale price
¥1,597 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【Eco RS-232C Cable that's kind to the Earth!】
●This is a serial cross cable for Interlink.

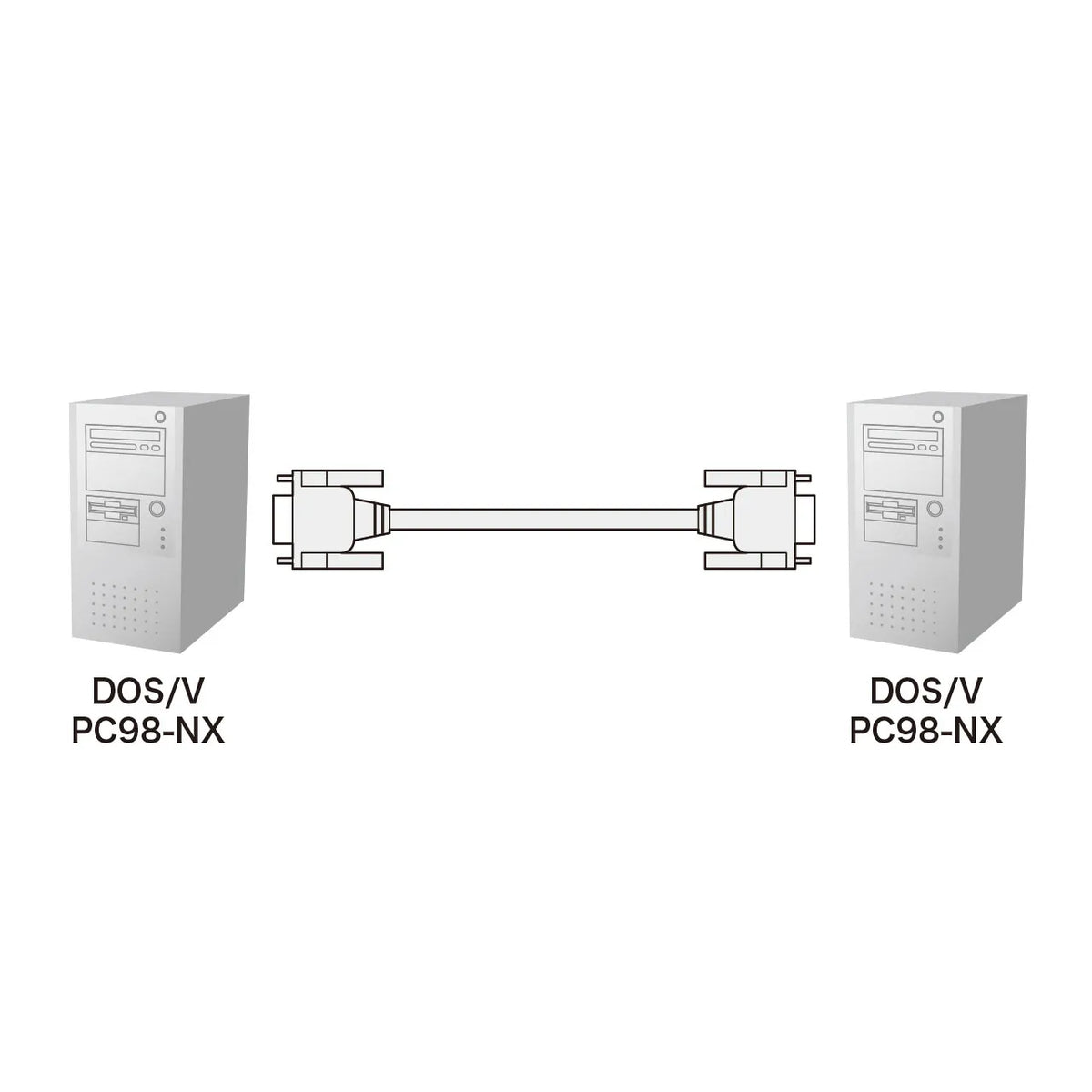

●This cable connects serial ports (D-Sub9pin) of DOS/V PCs for data transfer. It is compatible with Windows' "Cable Connection" and PC DOS 6.1 and later's "Interlink".
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
●It uses non-PVC cable (cable wire) and non-PVC connector (resin molded part of connector cover) that do not generate harmful substances when incinerated.

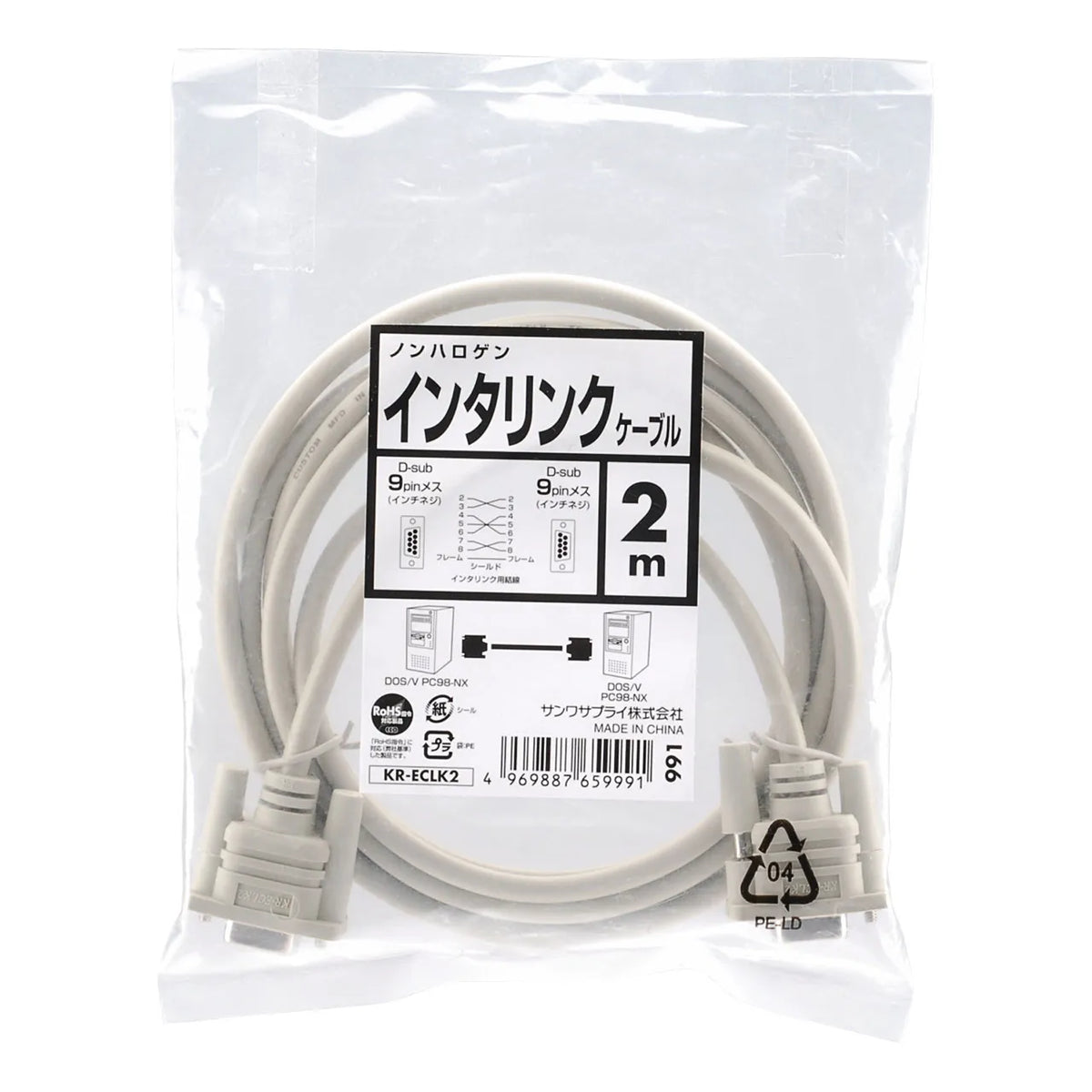

●Simplified, simple packaging reduces waste after use and makes unpacking easy.
■Cable length: 2m

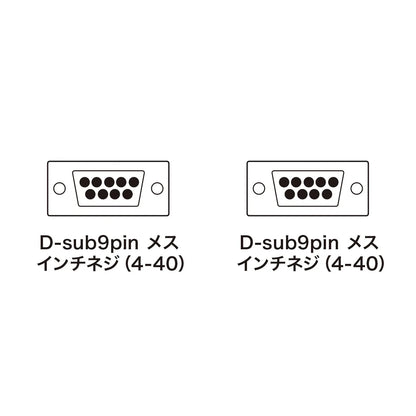

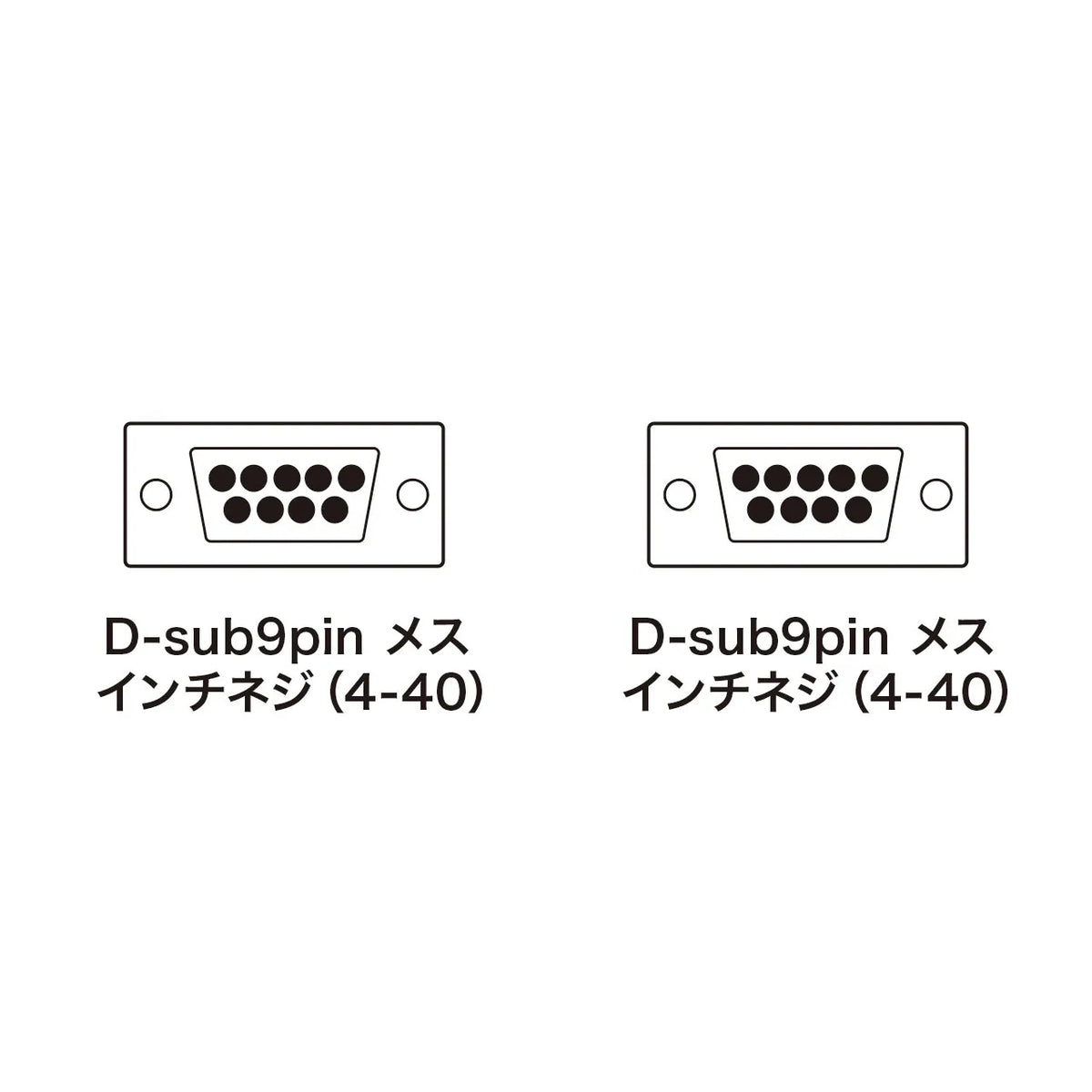

■Connector:
D-sub9pin female inch screw (4-40) -
D-sub9pin female inch screw (4-40)
■Connector size: Approx. W33.7xD31xH16mm
■Cable diameter: 5.5mm
■Wire standard: Non-UL standard

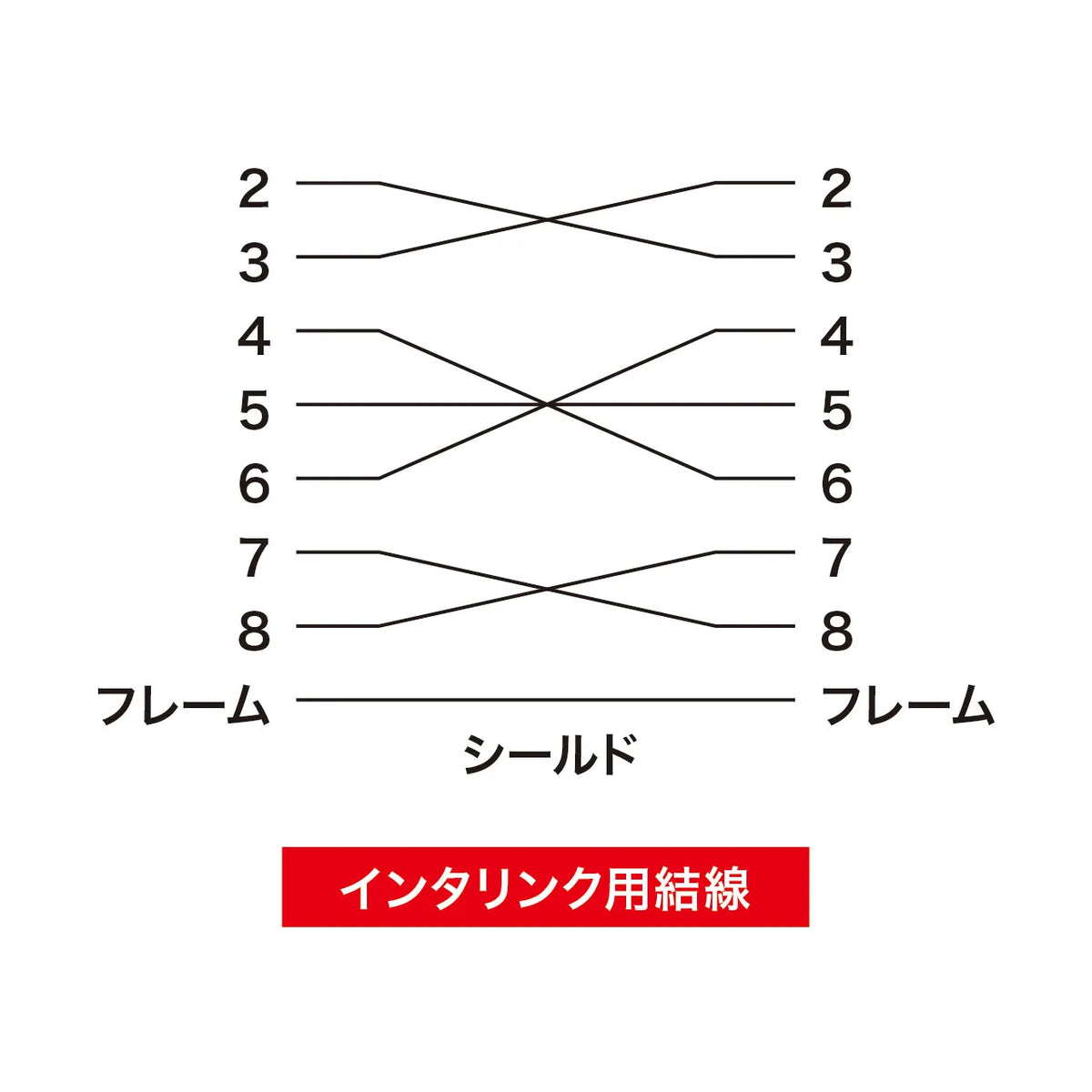

■Wiring: Cross-connection for interlink
≪Custom order lot 300 pieces to≫
*Custom orders are possible for quantities greater than 300 pieces. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 piece is possible if materials and parts such as connectors and wires are those specified by Sanwa Supply. (We cannot accept small-batch custom orders for molded connectors or PC99 color specifications.)
●This is a serial cross cable for Interlink.
●This cable connects serial ports (D-Sub9pin) of DOS/V PCs for data transfer. It is compatible with Windows' "Cable Connection" and PC DOS 6.1 and later's "Interlink".
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
●It uses non-PVC cable (cable wire) and non-PVC connector (resin molded part of connector cover) that do not generate harmful substances when incinerated.
●Simplified, simple packaging reduces waste after use and makes unpacking easy.
■Cable length: 2m
■Connector:
D-sub9pin female inch screw (4-40) -
D-sub9pin female inch screw (4-40)
■Connector size: Approx. W33.7xD31xH16mm
■Cable diameter: 5.5mm
■Wire standard: Non-UL standard
■Wiring: Cross-connection for interlink
≪Custom order lot 300 pieces to≫
*Custom orders are possible for quantities greater than 300 pieces. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 piece is possible if materials and parts such as connectors and wires are those specified by Sanwa Supply. (We cannot accept small-batch custom orders for molded connectors or PC99 color specifications.)
