SANWA SUPPLY

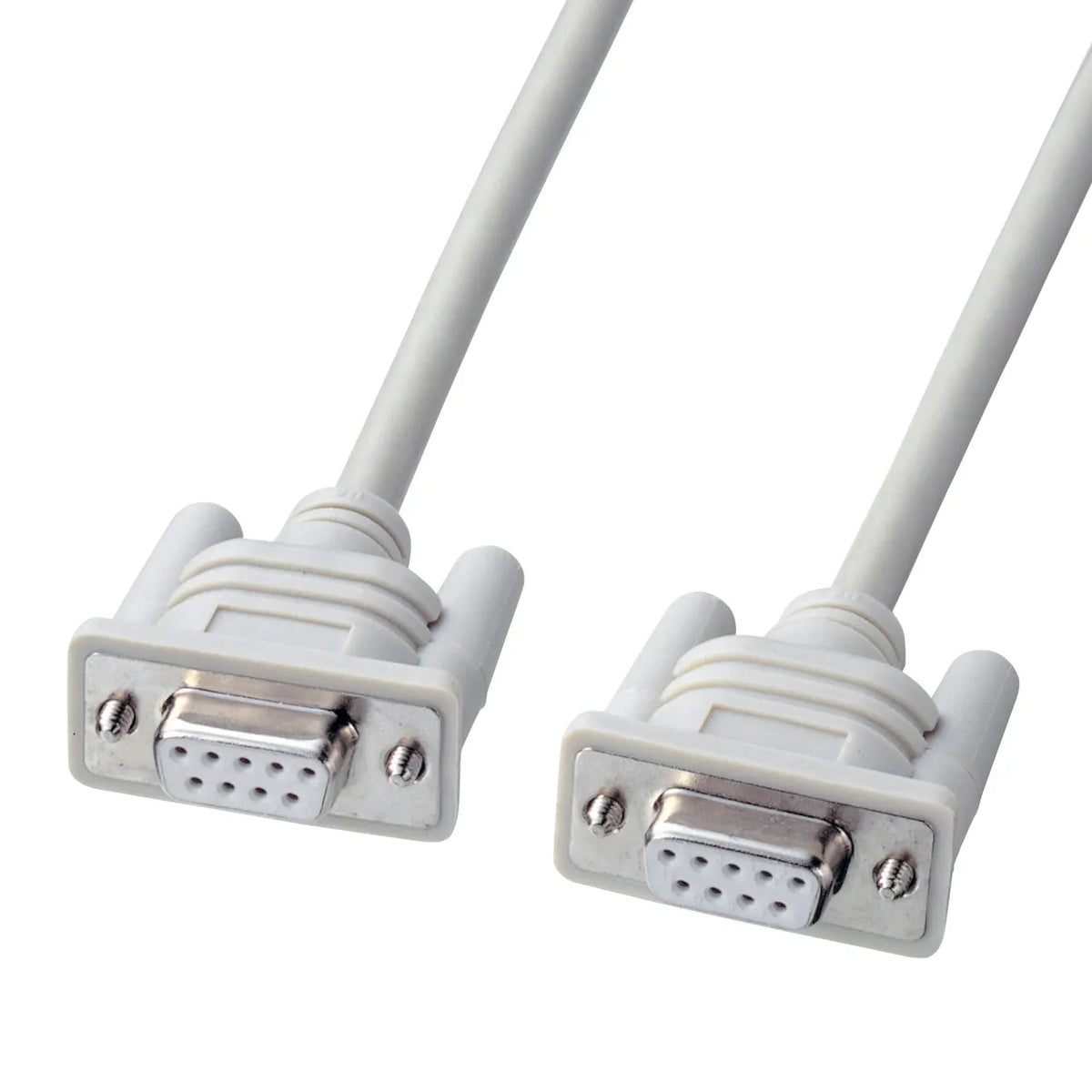

Eco RS-232C Cable KR-ECCR2
Eco RS-232C Cable KR-ECCR2
GTIN（JAN）：4969887845394
SKU：KR-ECCR2
Regular price
¥1,670 JPY
Regular price
Sale price
¥1,670 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Earth-friendly non-halogen RS-232C cable. Crossover connection, 2m.]

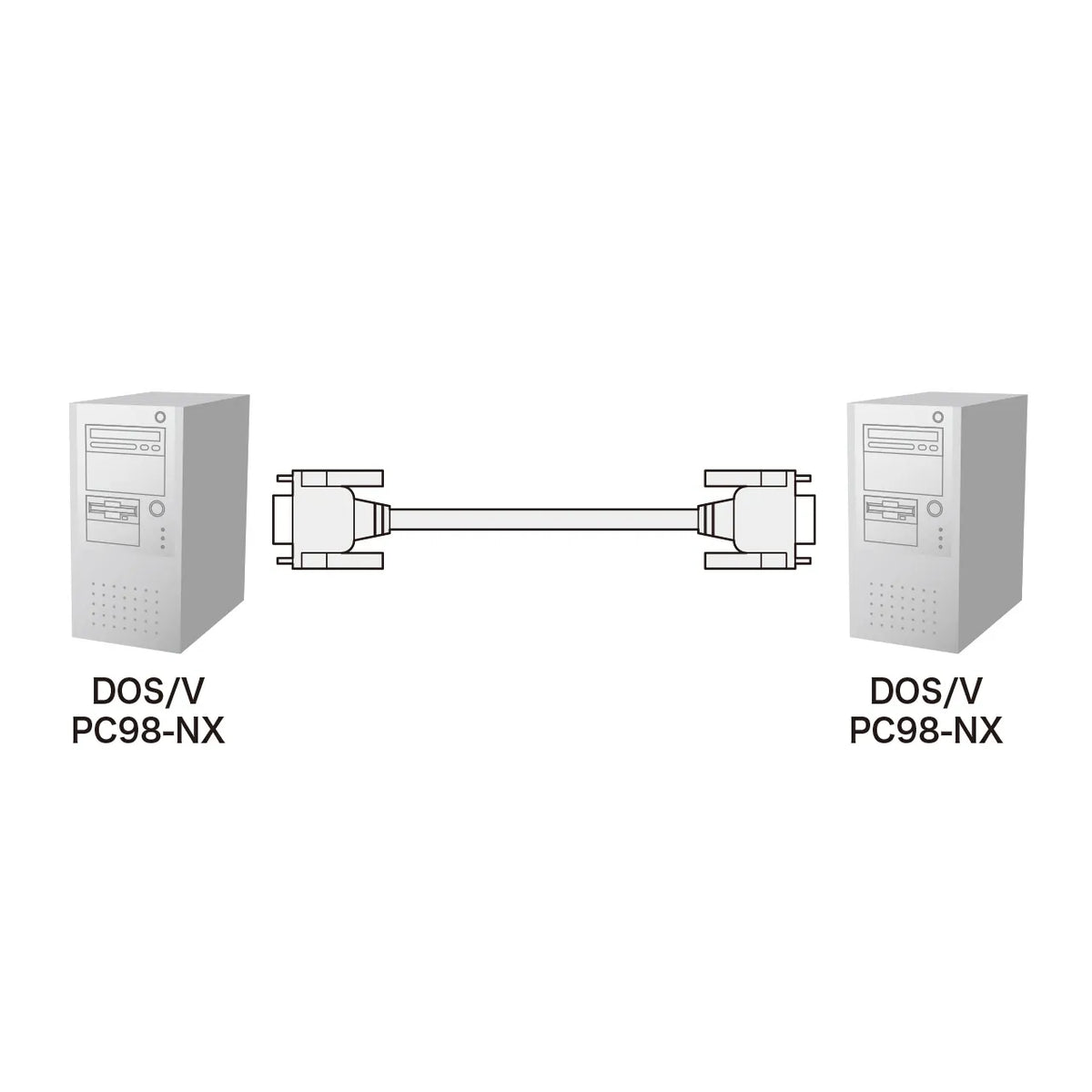

●This cable connects two computers, such as Windows-based (DOS/V) PCs (D-sub9pin), for data transfer.
●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
●It uses non-PVC cable (cable wire) and non-PVC connector (resin molded part of connector cover) that do not generate harmful substances when incinerated.
●The simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: 2m

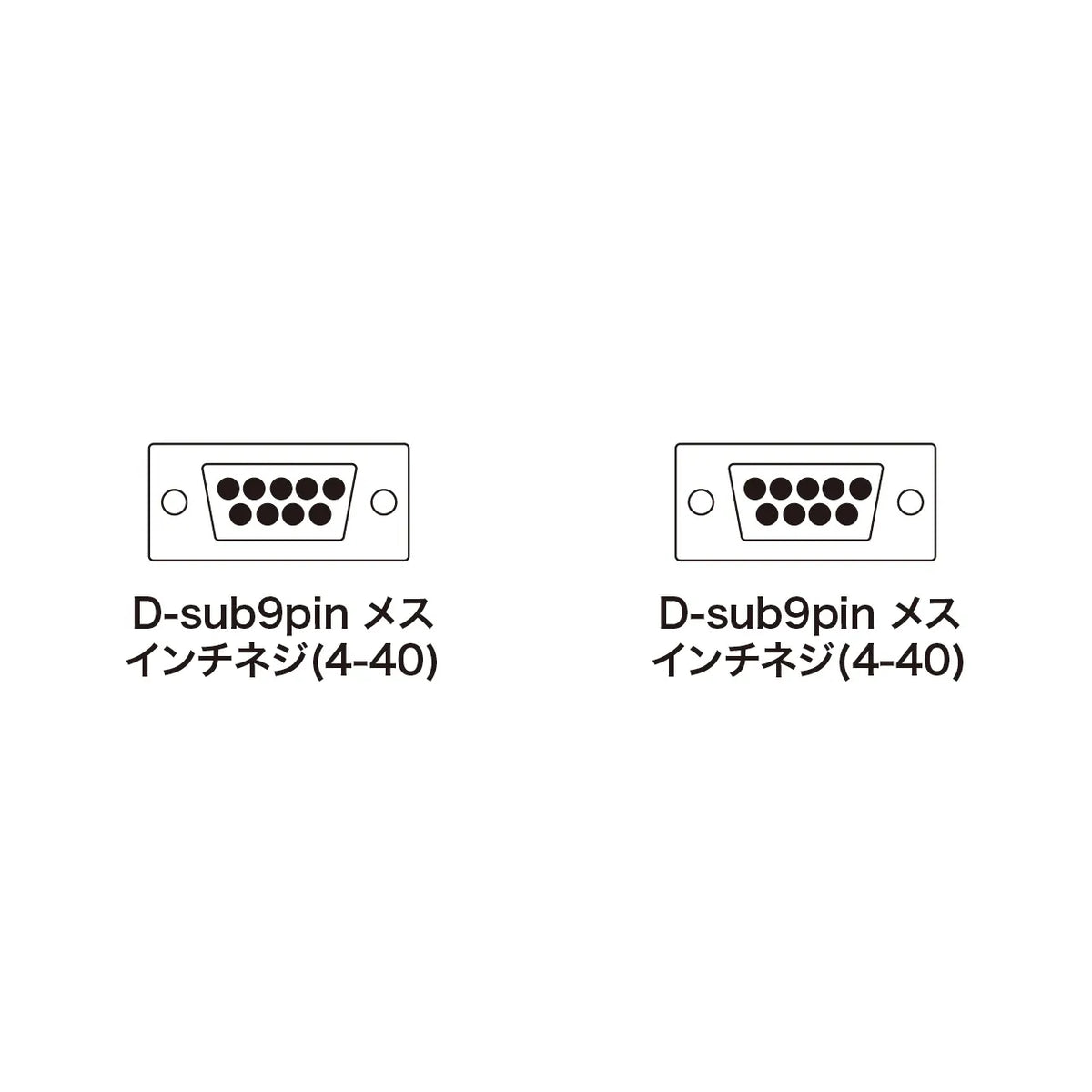

■Connector: D-sub 9-pin female inch screw (4-40) - D-sub 9-pin female inch screw (4-40)
■Connector size: Approx. W33.7 x D31 x H16mm
■Cable diameter: 6mm
■Cable standard: Non-UL standard

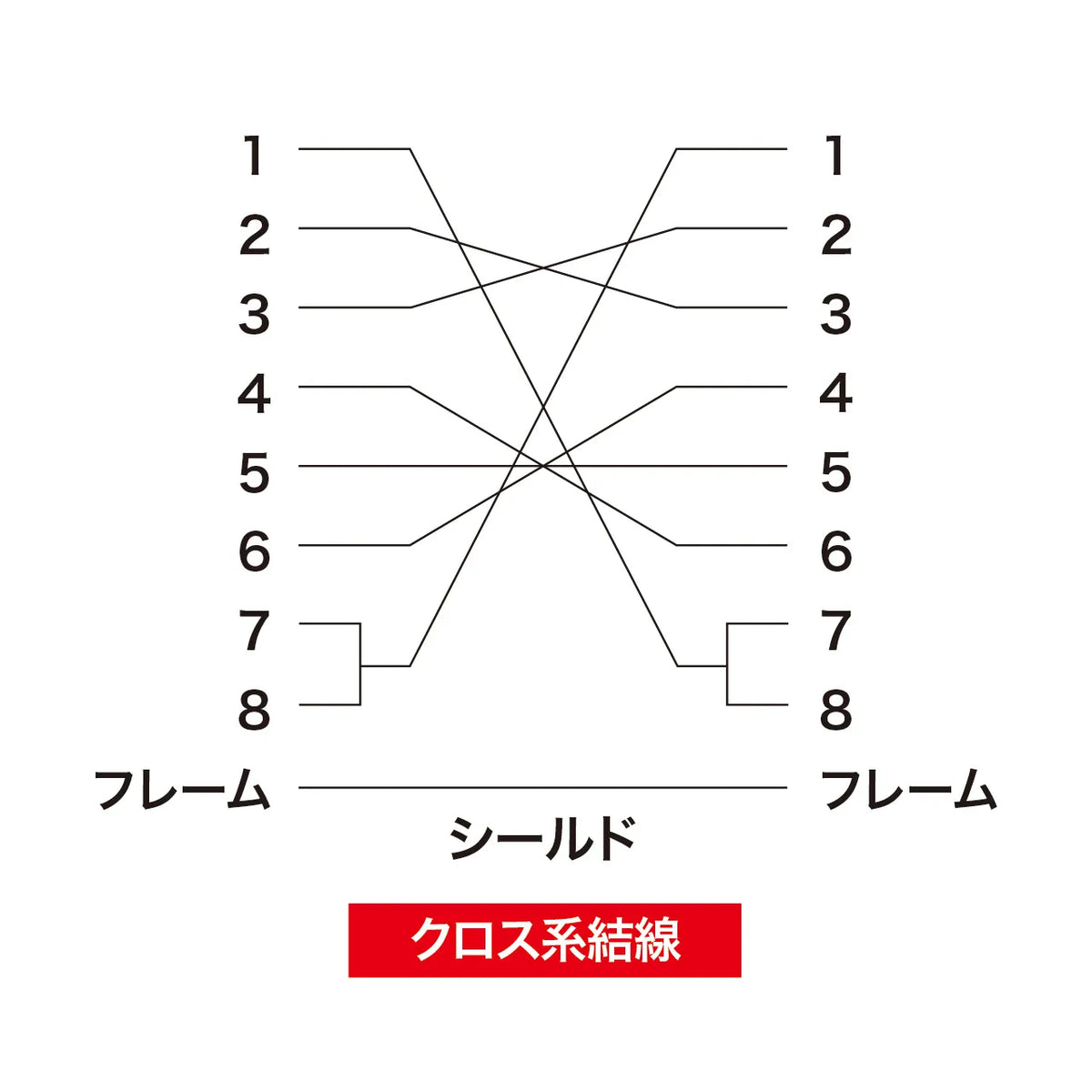

■Wiring: Crossover wiring
≪Custom order lot 300 to≫
*Custom orders are possible for orders of more than 300 units. The minimum order quantity may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 unit is possible if materials and parts such as connectors and wires are as specified by Sanwa Supply. (Custom production in small quantities is not possible with molded connectors or PC99 color specifications.)
●This cable connects two computers, such as Windows-based (DOS/V) PCs (D-sub9pin), for data transfer.
●This double-shielded cable features a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●The molded connector has a resin molded interior and is fully shielded, preventing external interference and providing excellent noise protection. It also boasts excellent vibration and shock resistance.
●The pins (contacts) are gold-plated, making them highly resistant to rust and minimizing signal degradation over time.
●It uses non-PVC cable (cable wire) and non-PVC connector (resin molded part of connector cover) that do not generate harmful substances when incinerated.
●The simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: 2m
■Connector: D-sub 9-pin female inch screw (4-40) - D-sub 9-pin female inch screw (4-40)
■Connector size: Approx. W33.7 x D31 x H16mm
■Cable diameter: 6mm
■Cable standard: Non-UL standard
■Wiring: Crossover wiring
≪Custom order lot 300 to≫
*Custom orders are possible for orders of more than 300 units. The minimum order quantity may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
*Custom production from 1 unit is possible if materials and parts such as connectors and wires are as specified by Sanwa Supply. (Custom production in small quantities is not possible with molded connectors or PC99 color specifications.)
