SANWA SUPPLY

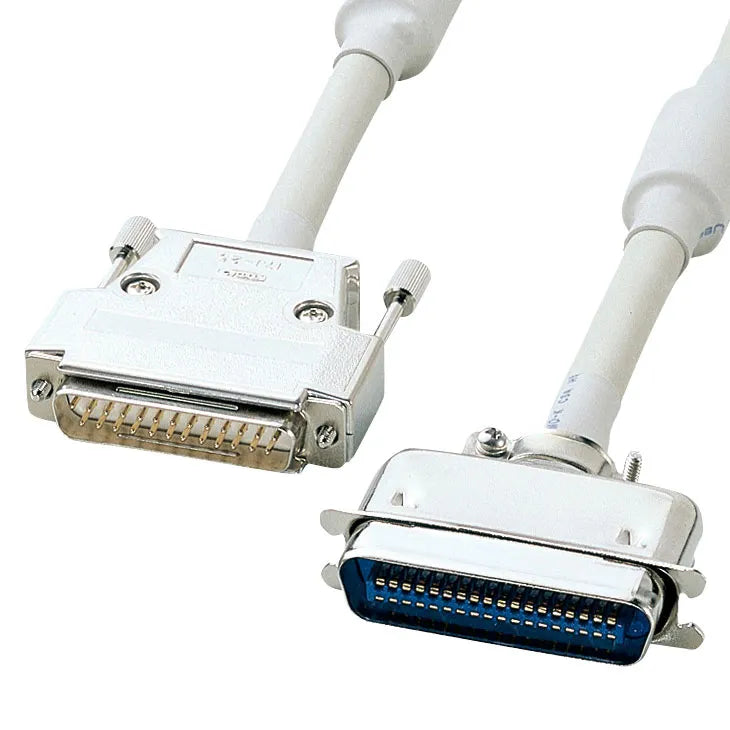

Printer cable KPU-PS15N
Printer cable KPU-PS15N
GTIN（JAN）：4969887843604
SKU：KPU-PS15N
Regular price
¥31,363 JPY
Regular price
Sale price
¥31,363 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Printer Cable (for DOS/V) 15m]

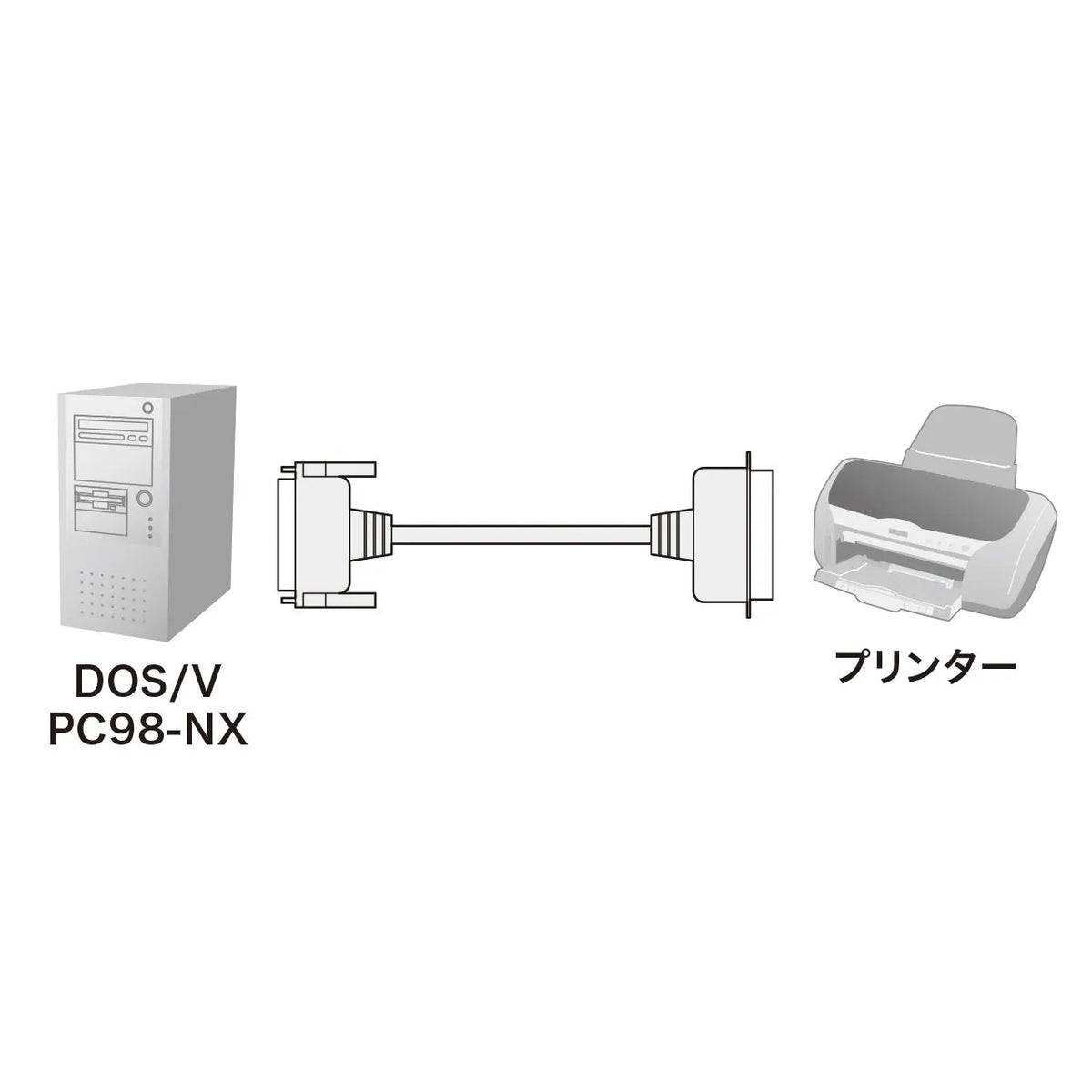

●This cable connects a DOS/V PC to a printer. It can also be connected to a printer switch and buffer, and supports bidirectional communication.
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The shielded connector (D-sub25pin) has metal processing, making it highly resistant to external noise and fully compliant with FCC standards for electromagnetic interference (EMI). The metal connector cover provides a high level of shielding effect.
●By using machined pins (gold plated) (D-sub25pin) compliant with US MIL standards, contact noise is shut out. Of course, the gold plating is also resistant to rust and signal degradation due to aging.
●Equipped with a ferrite core that functions as a noise filter to effectively absorb noise transmitted through the cable.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: 15m

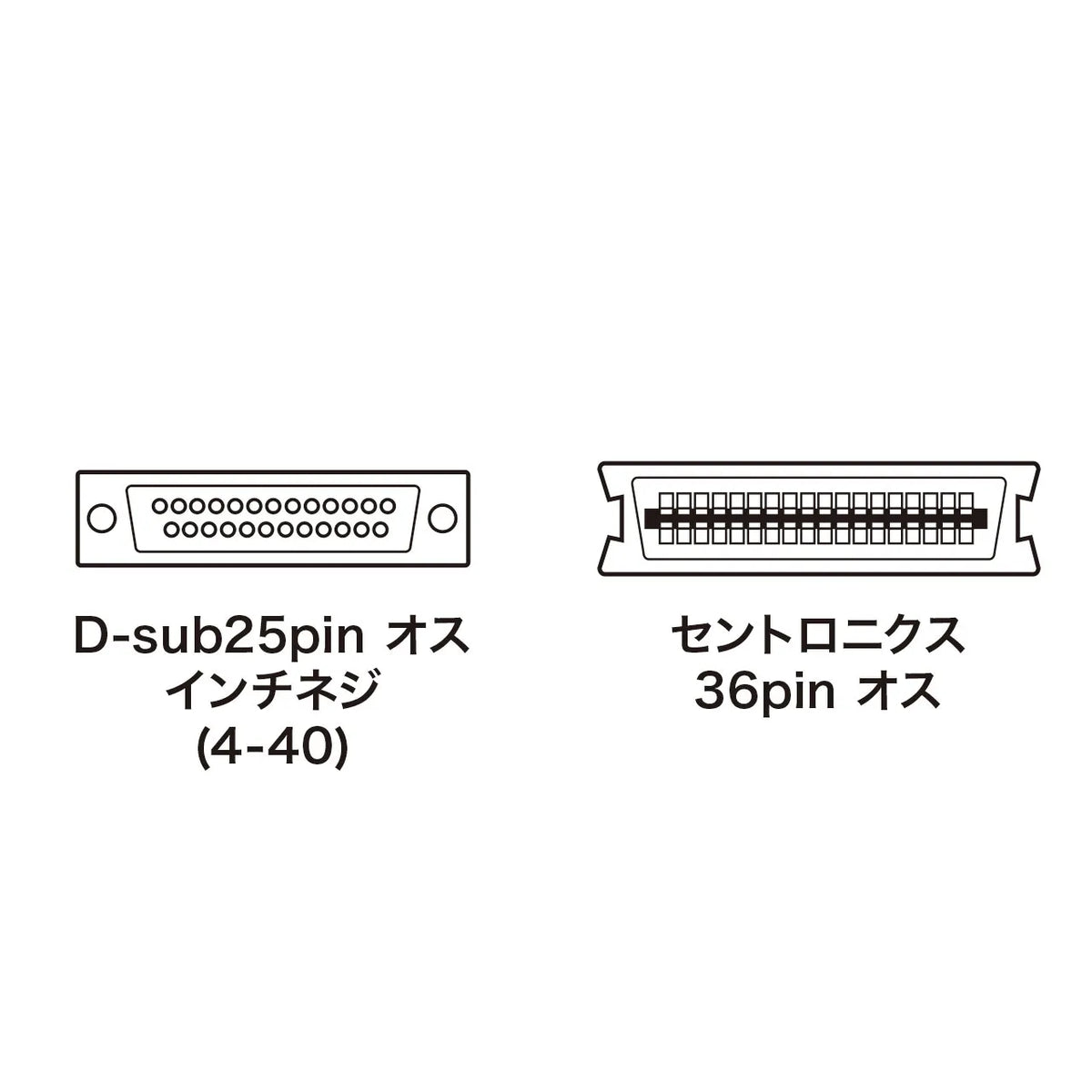

■Connector: D-sub 25-pin male inch screw (4-40) - Centronics 36-pin male
■Cable outer diameter: 9.8mm
■Cable standard: UL2464

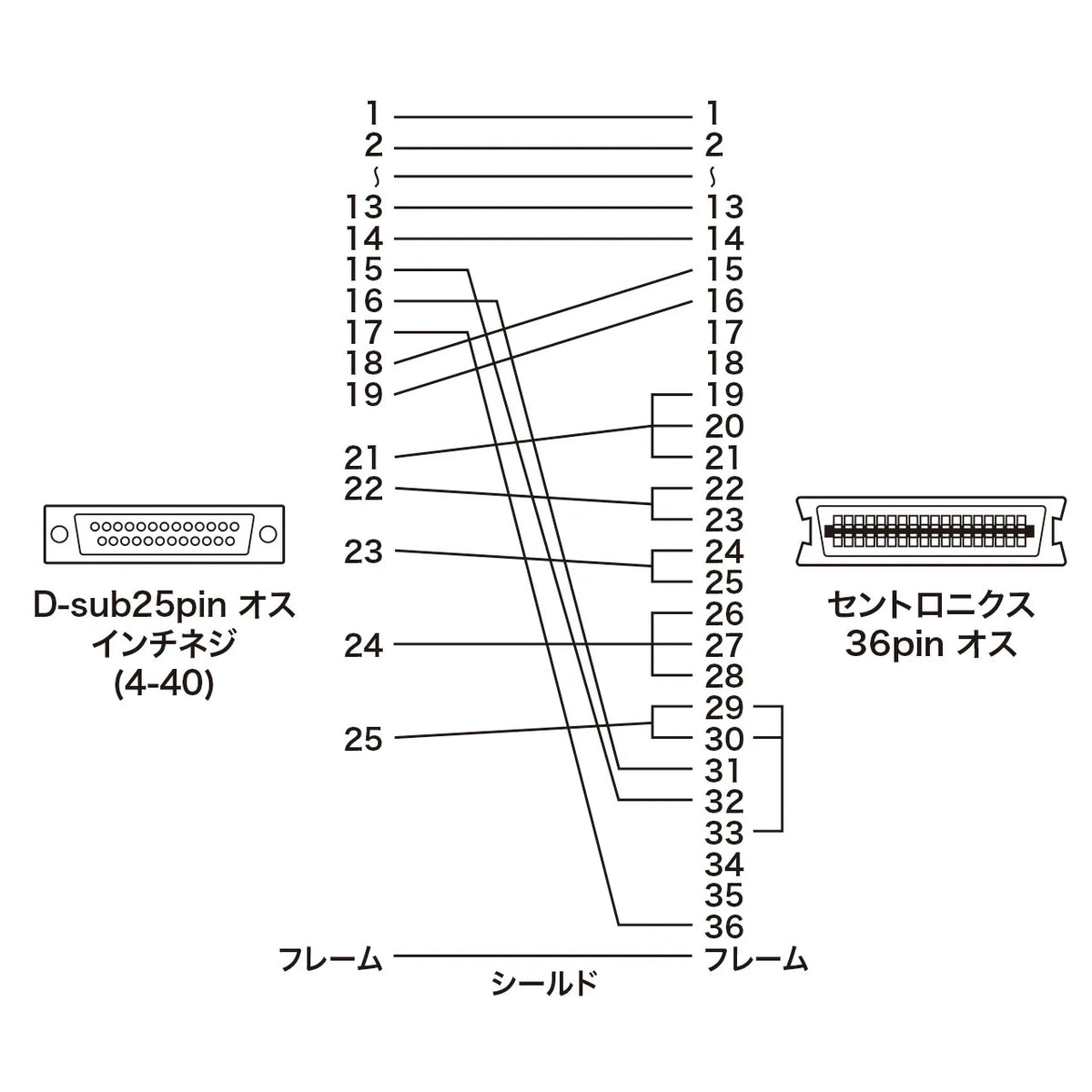

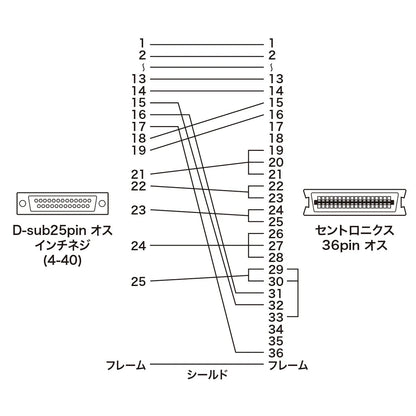

■Wiring: IBM ID#81X7875, ID#09F5544 compliant
≪Custom orders available≫
Custom production such as length changes is possible from just one unit.
●This cable connects a DOS/V PC to a printer. It can also be connected to a printer switch and buffer, and supports bidirectional communication.
●This double-shielded cable has a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The shielded connector (D-sub25pin) has metal processing, making it highly resistant to external noise and fully compliant with FCC standards for electromagnetic interference (EMI). The metal connector cover provides a high level of shielding effect.
●By using machined pins (gold plated) (D-sub25pin) compliant with US MIL standards, contact noise is shut out. Of course, the gold plating is also resistant to rust and signal degradation due to aging.
●Equipped with a ferrite core that functions as a noise filter to effectively absorb noise transmitted through the cable.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: 15m
■Connector: D-sub 25-pin male inch screw (4-40) - Centronics 36-pin male
■Cable outer diameter: 9.8mm
■Cable standard: UL2464
■Wiring: IBM ID#81X7875, ID#09F5544 compliant
≪Custom orders available≫
Custom production such as length changes is possible from just one unit.
