SANWA SUPPLY
SDI Cable with Waterproof Connector, 5m, KM-SDIWP05
SDI Cable with Waterproof Connector, 5m, KM-SDIWP05
GTIN(JAN):4969887774755
SKU:KM-SDIWP05
Regular price
¥18,150 JPY
Regular price
Sale price
¥18,150 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

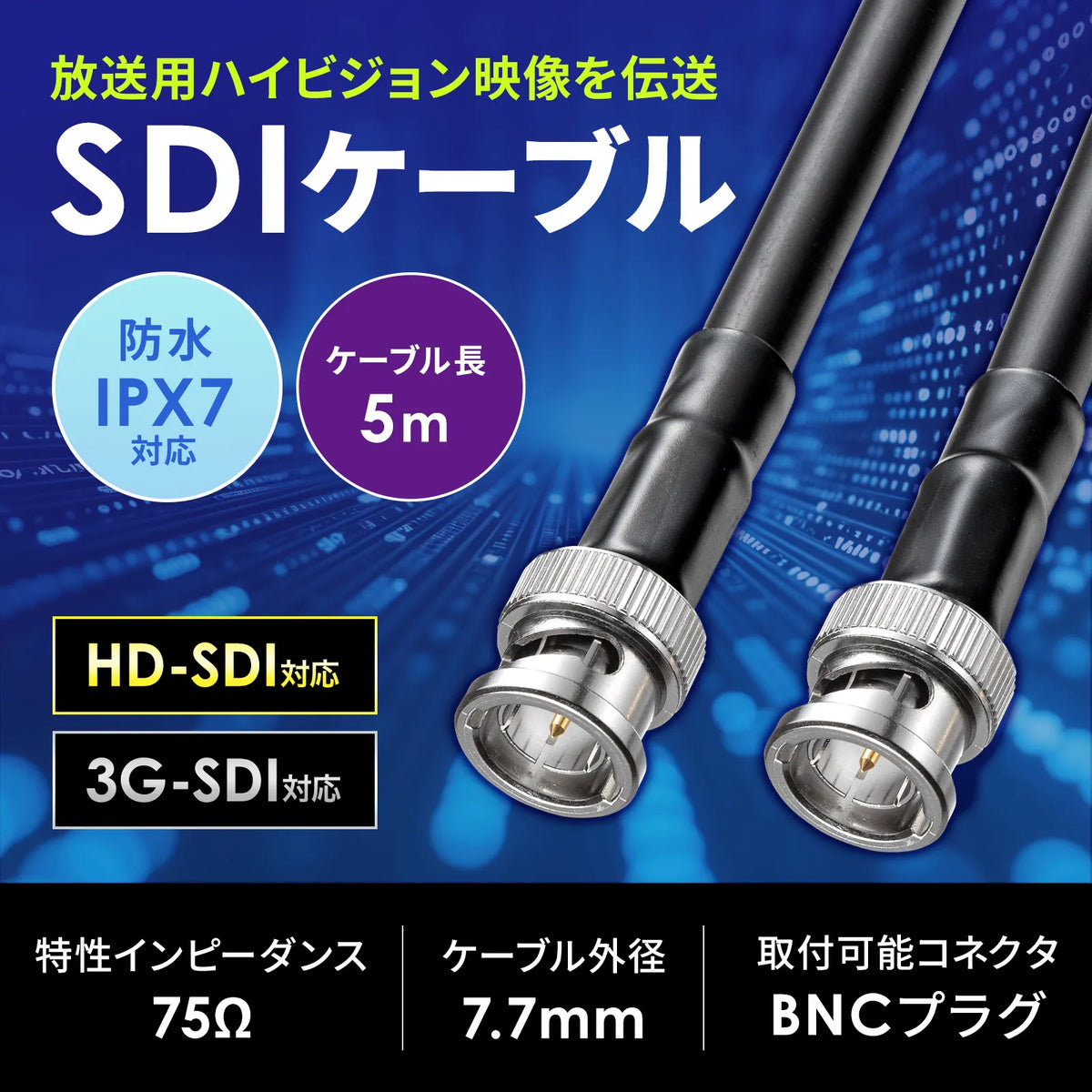

[Waterproof SDI Cable (HD-SDI Cable) 5m with IPX7-rated Connectors]

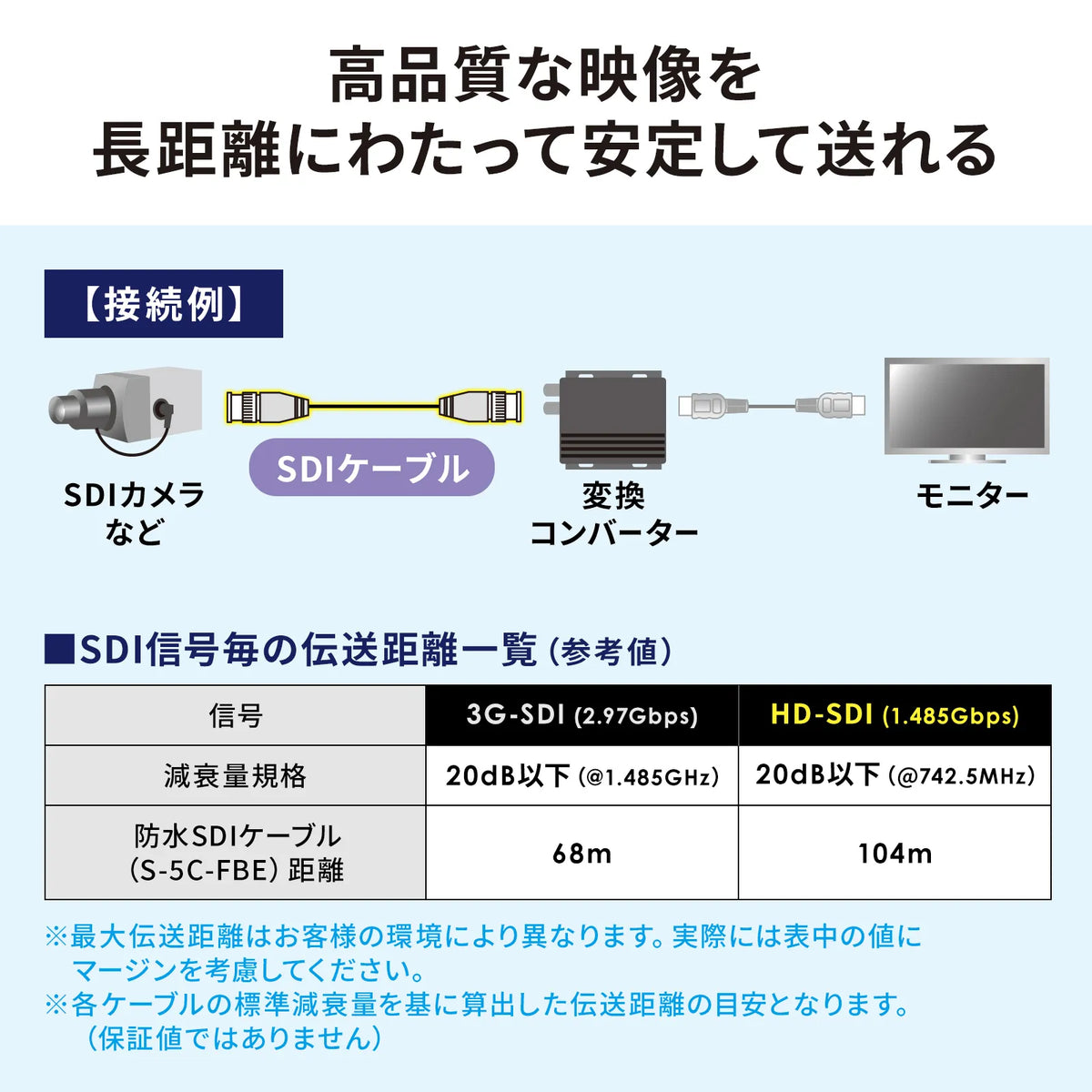

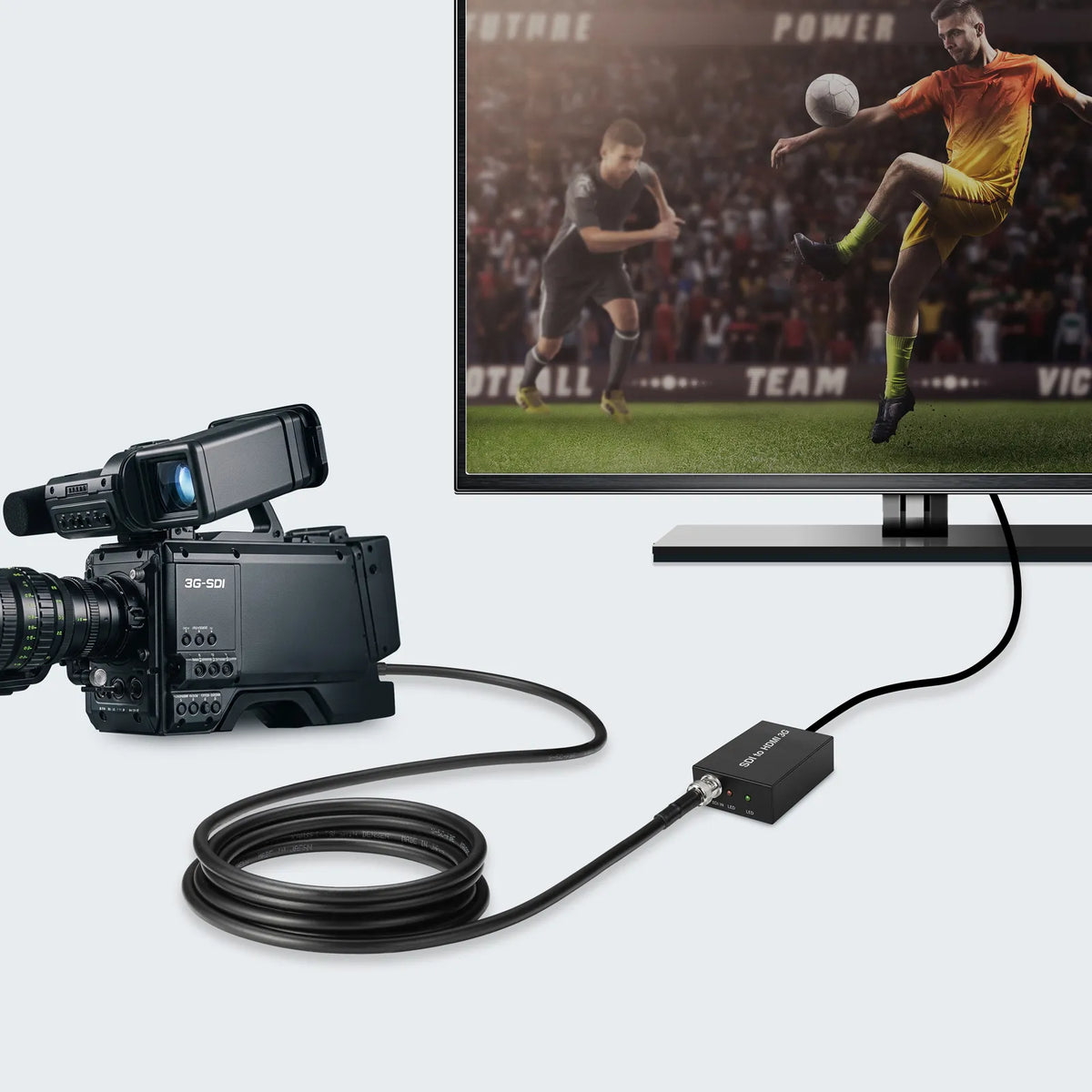

SDI cables are cables that transmit SDI signals, a signal standard widely used in broadcast high-definition digital VTRs.
●Transmits standard-definition uncompressed digital video and digital audio with a single BNC connector and coaxial cable.

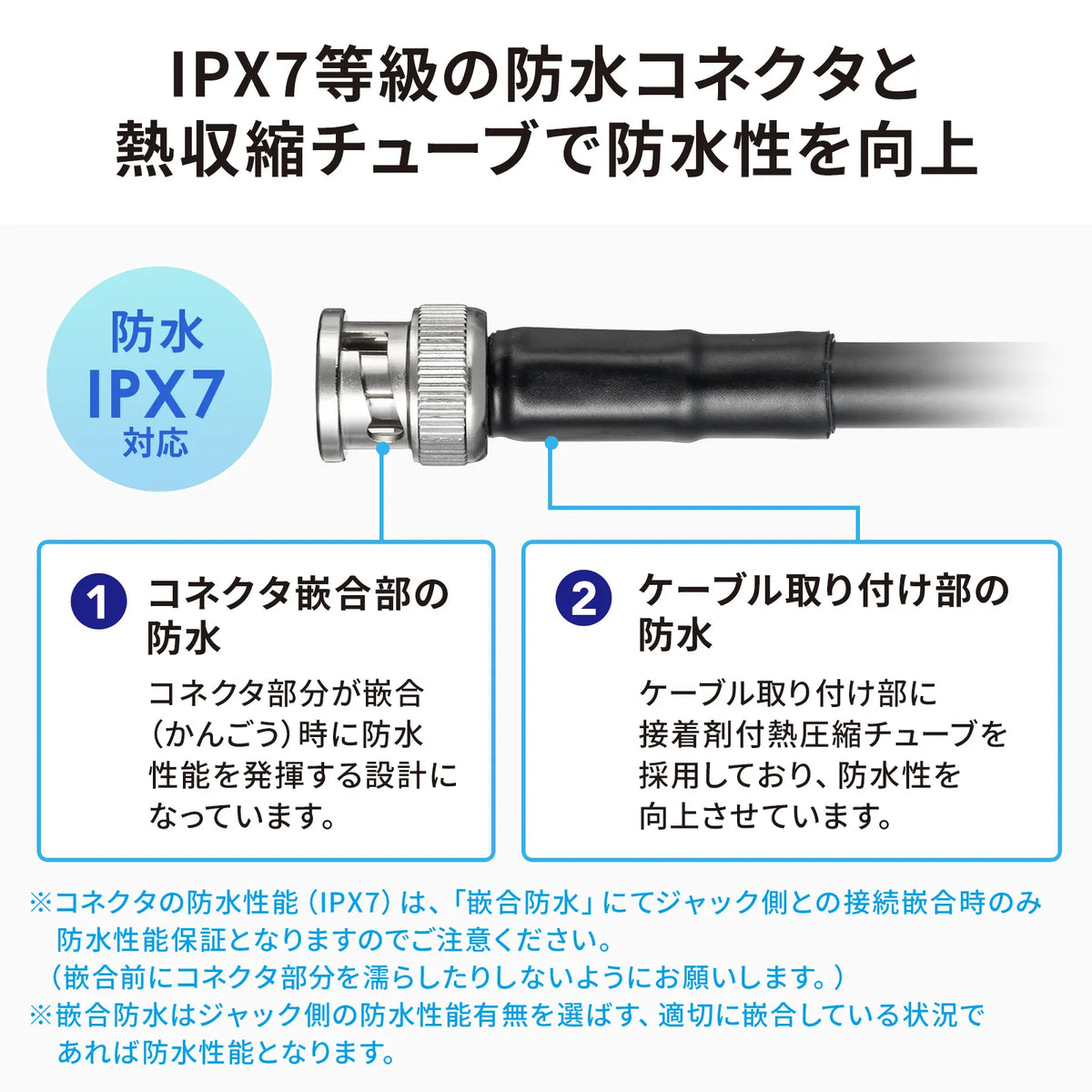

●Uses IPX7-rated connectors (JIS C 0920 / protection against immersion)
(No signs of water ingress even when temporarily submerged in water under specified pressure and time)
●Polyethylene material is used for the wire sheath, ensuring outdoor weather resistance.

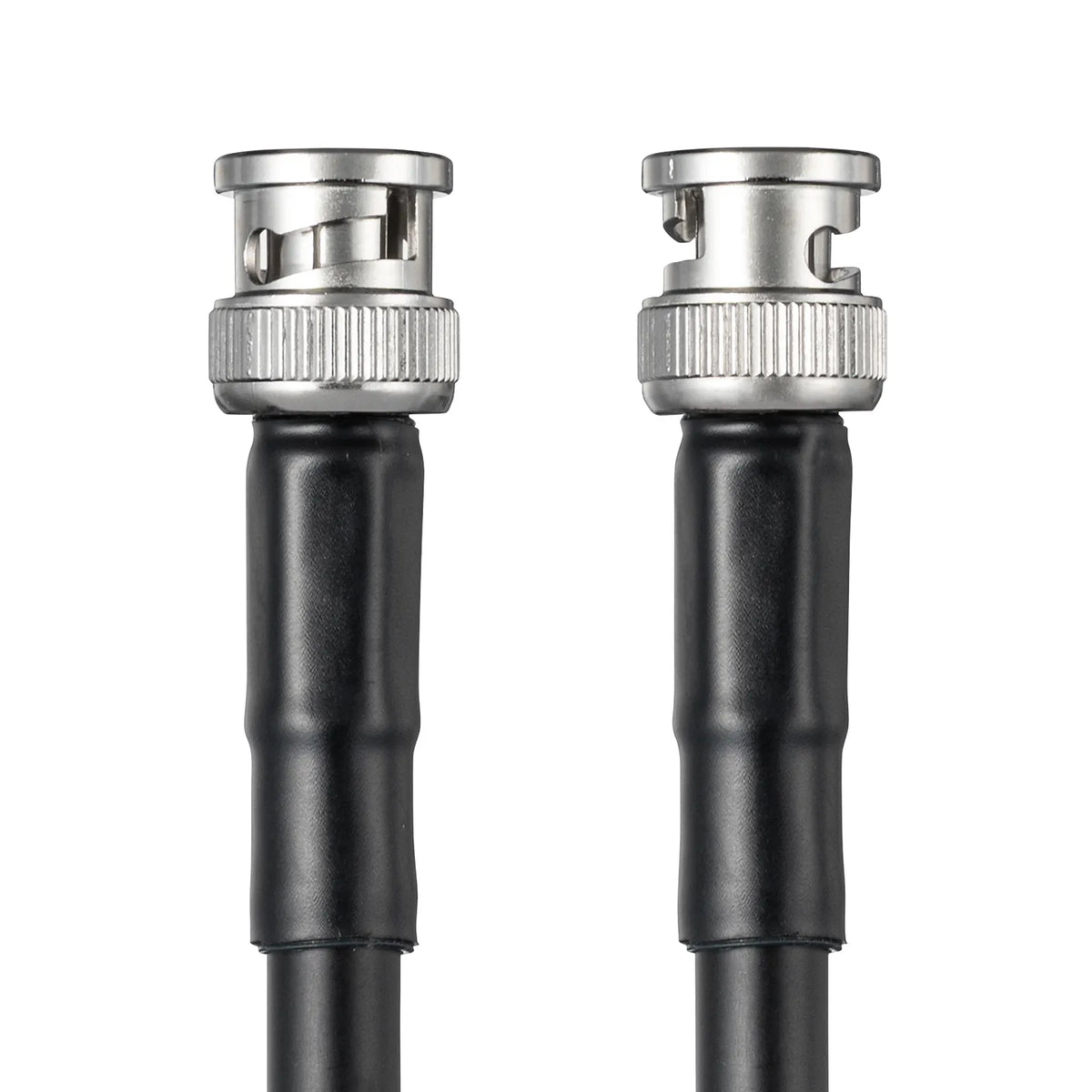

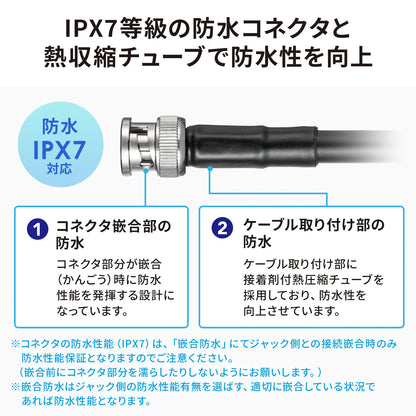

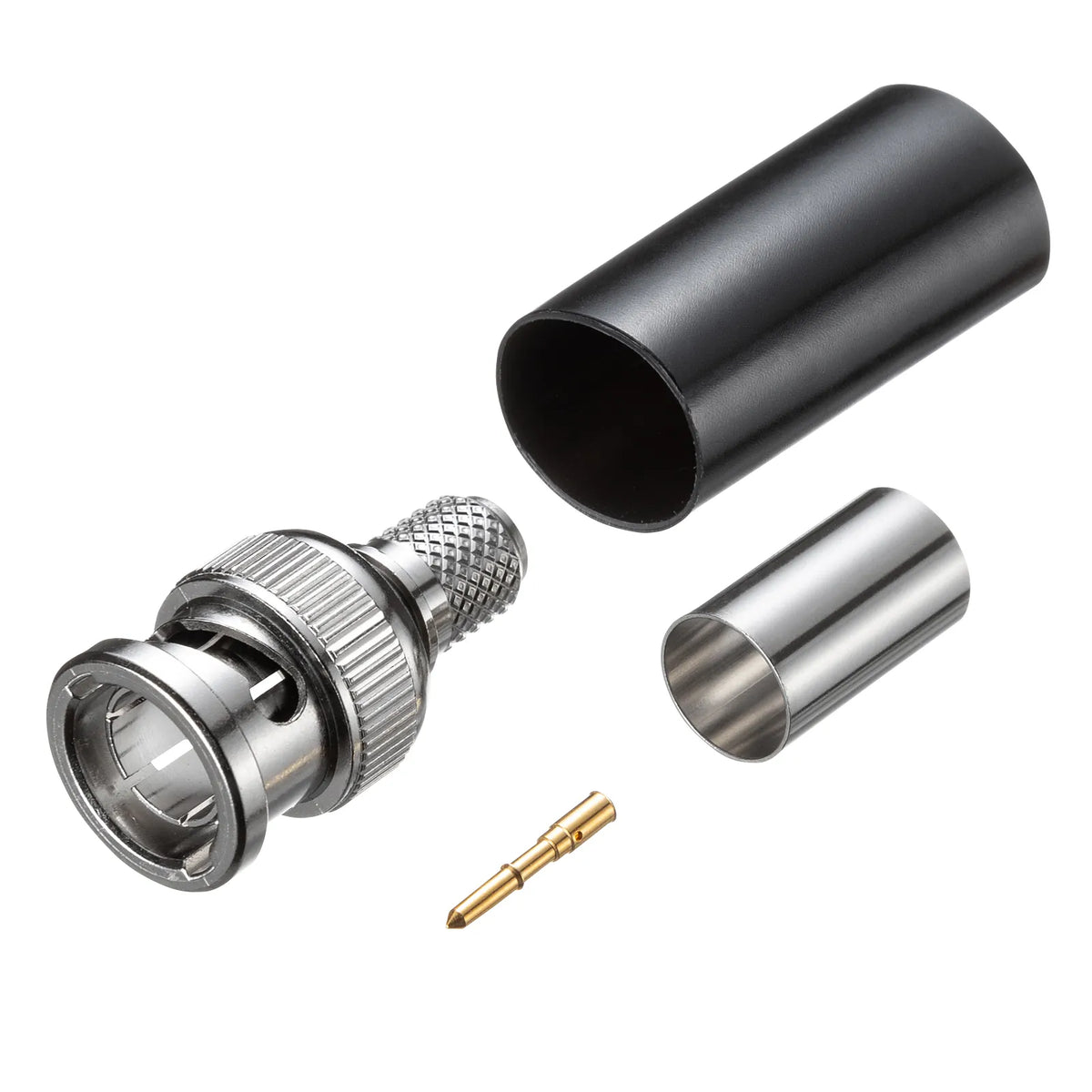

●The connector neck area uses heat shrink tubing with adhesive to improve waterproofing.
■Cable length: Approx. 5m

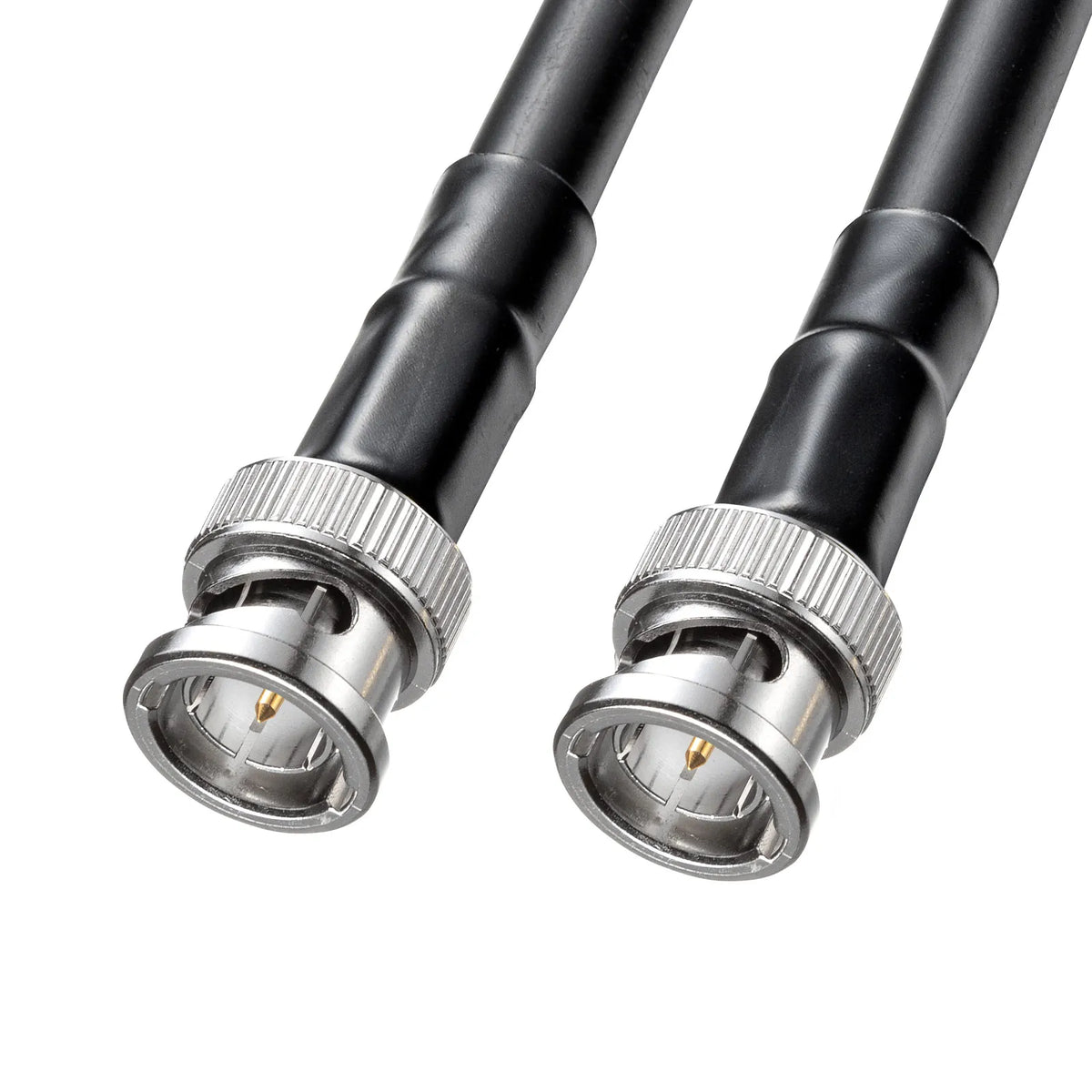

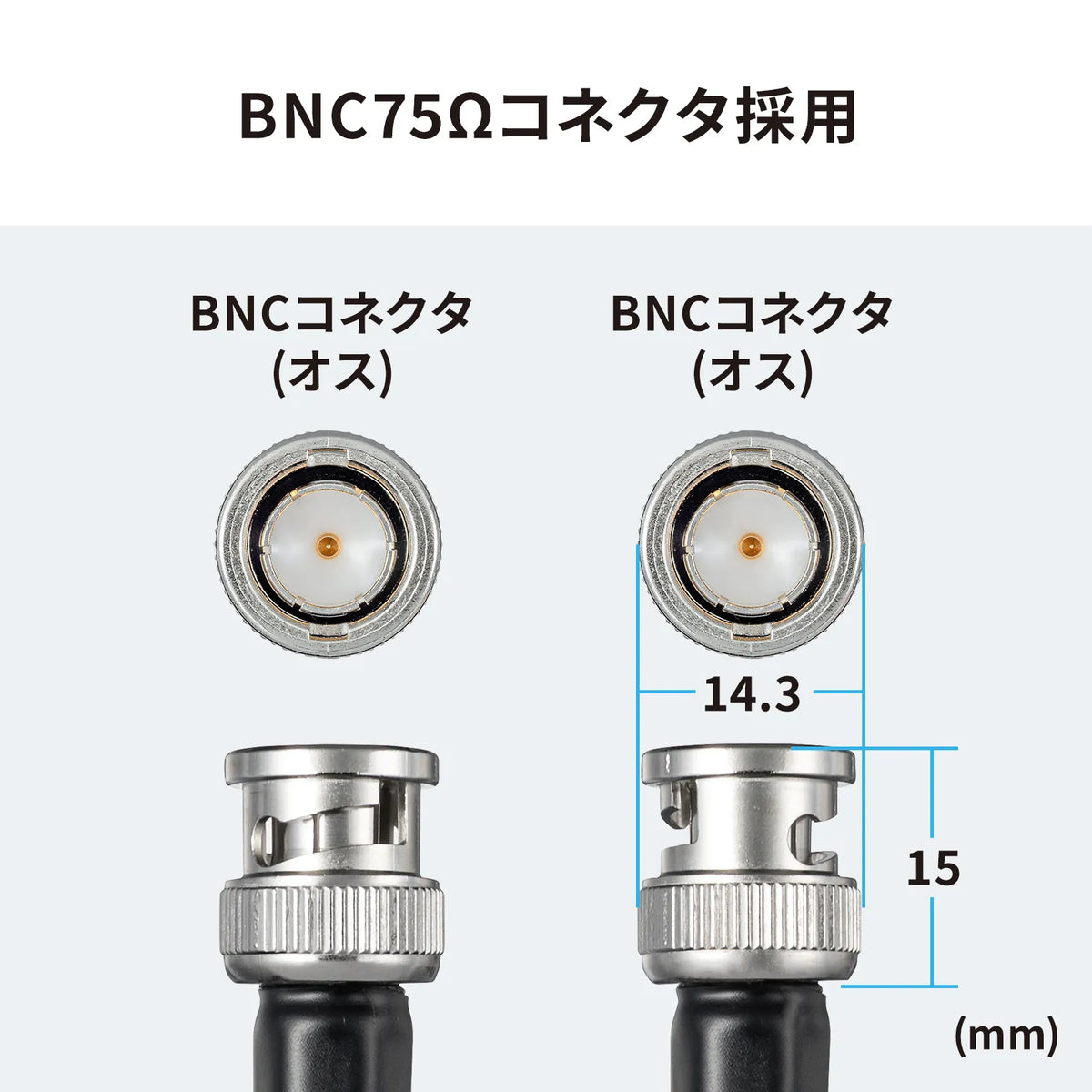

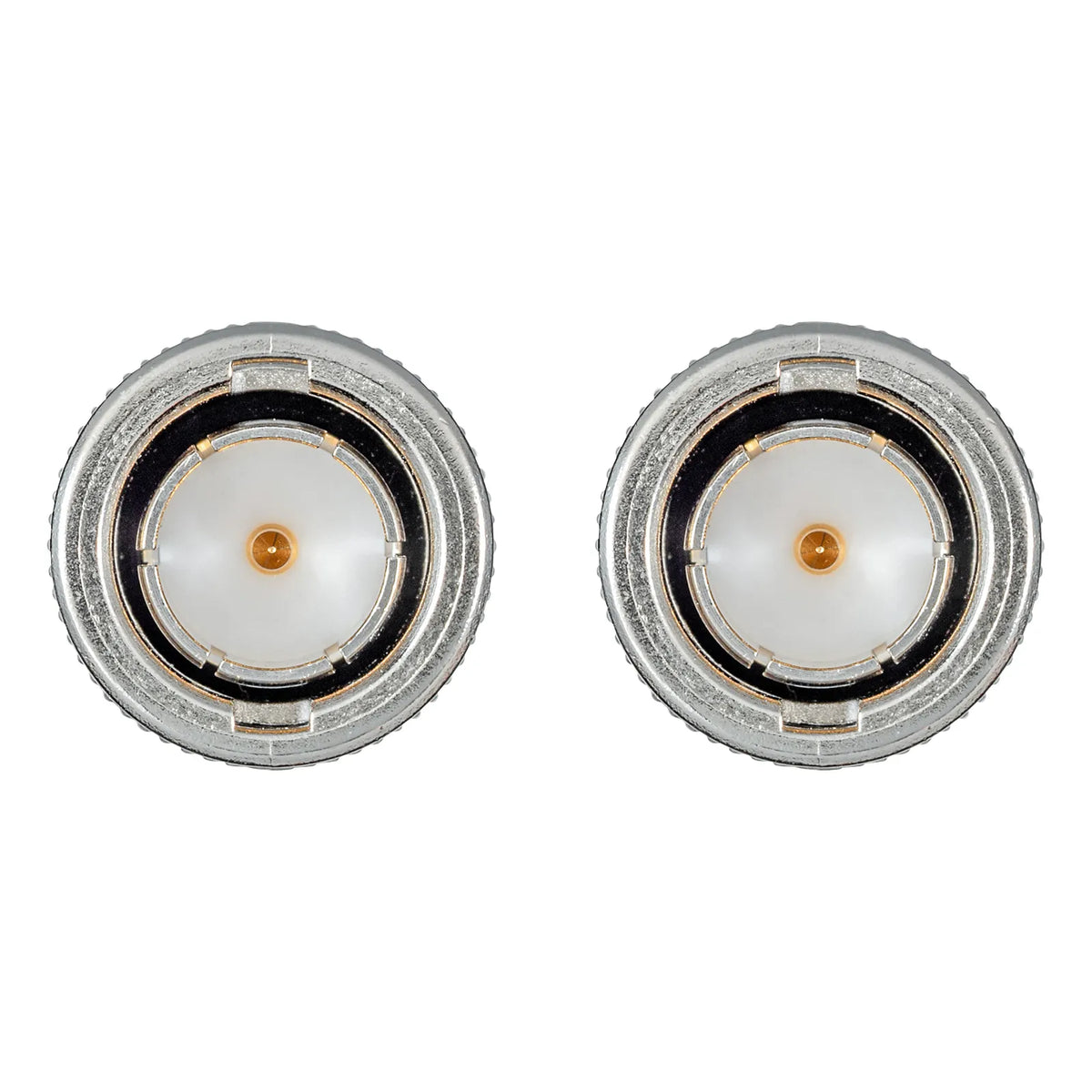

■Connector shape: BNC plug・BNC plug

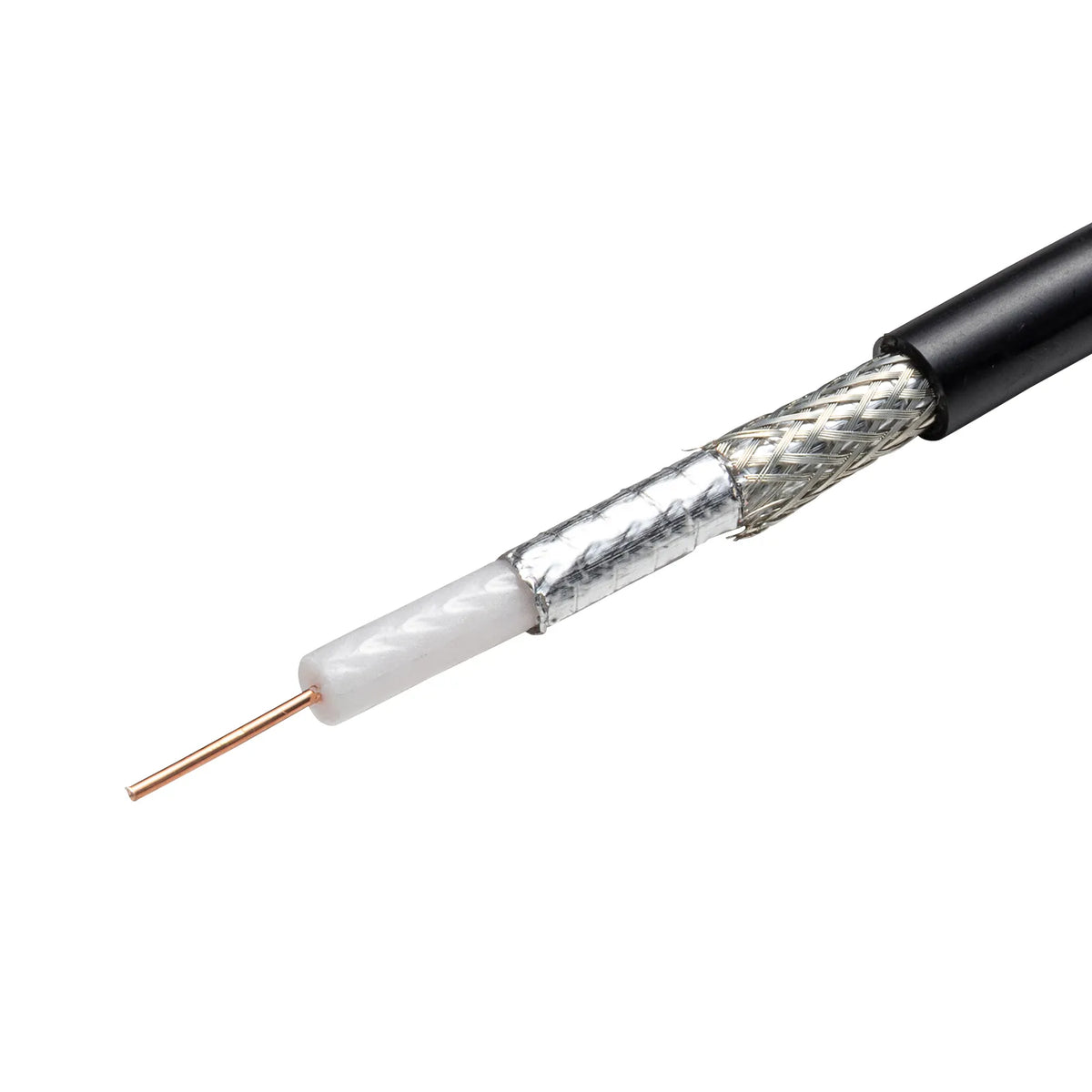

■Standard: 5C-FB

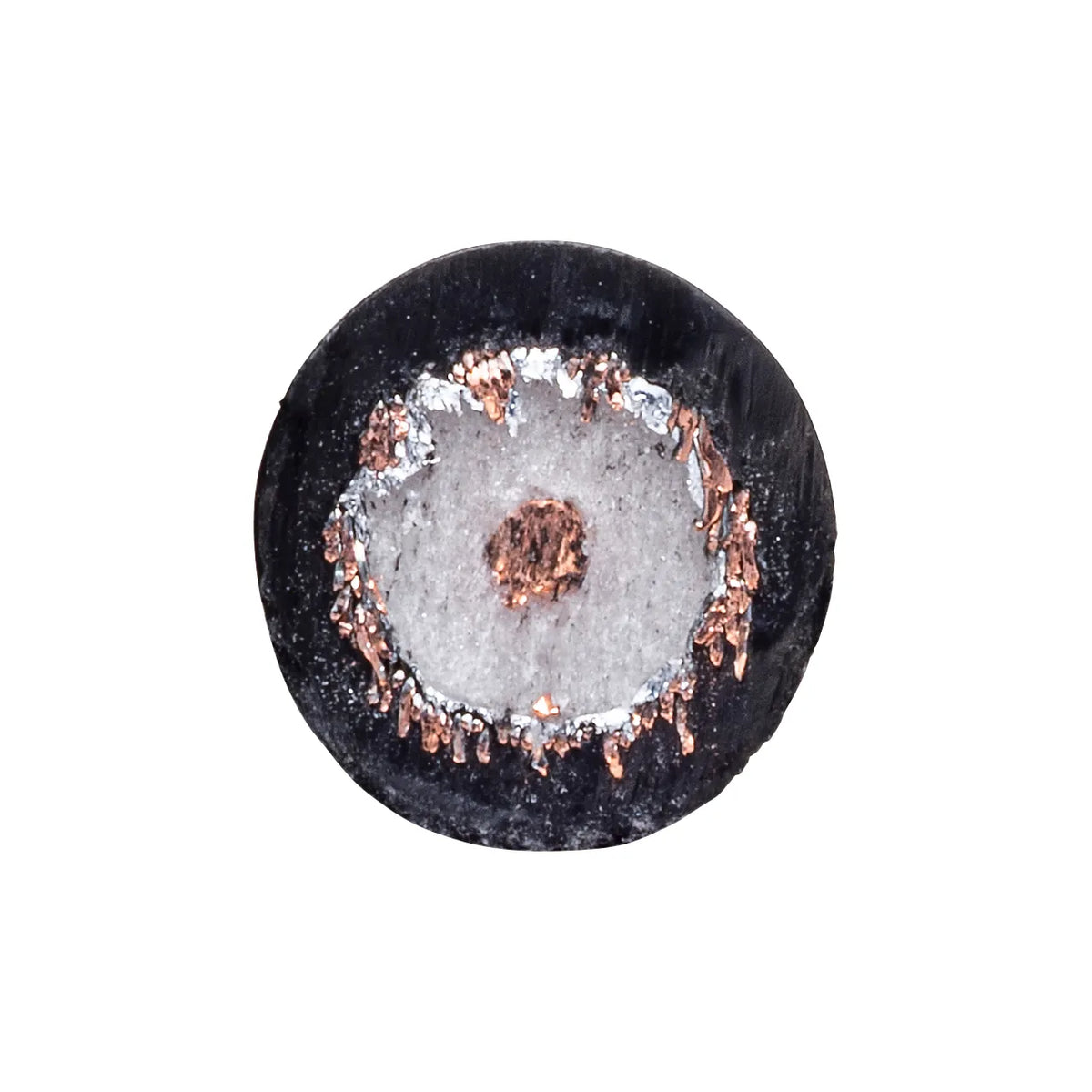

■Cable outer diameter: Approx. 7.7mm
■Type: Coaxial

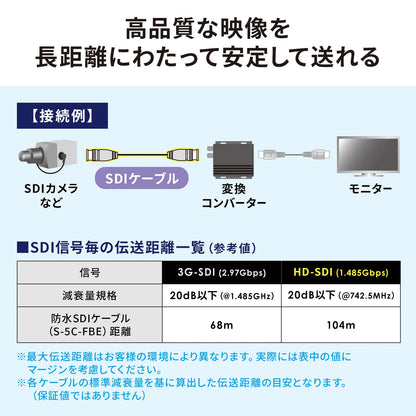

■Coaxial standard: HD-SDI (3G-SDI)
■Cable length: Approx. 5m (between SR)
■Connector shape: BNC plug・BNC plug
■Wire material: 5C-FB
■Characteristic impedance: 75 ohms
■Average outer diameter of wire: Approx. 7.7mm
■Wire color: Black
■Compatible standards: HD-SDI・3G-SDI
SDI cables are cables that transmit SDI signals, a signal standard widely used in broadcast high-definition digital VTRs.
●Transmits standard-definition uncompressed digital video and digital audio with a single BNC connector and coaxial cable.
●Uses IPX7-rated connectors (JIS C 0920 / protection against immersion)
(No signs of water ingress even when temporarily submerged in water under specified pressure and time)
●Polyethylene material is used for the wire sheath, ensuring outdoor weather resistance.
●The connector neck area uses heat shrink tubing with adhesive to improve waterproofing.
■Cable length: Approx. 5m
■Connector shape: BNC plug・BNC plug
■Standard: 5C-FB
■Cable outer diameter: Approx. 7.7mm
■Type: Coaxial
■Coaxial standard: HD-SDI (3G-SDI)
■Cable length: Approx. 5m (between SR)
■Connector shape: BNC plug・BNC plug
■Wire material: 5C-FB
■Characteristic impedance: 75 ohms
■Average outer diameter of wire: Approx. 7.7mm
■Wire color: Black
■Compatible standards: HD-SDI・3G-SDI
