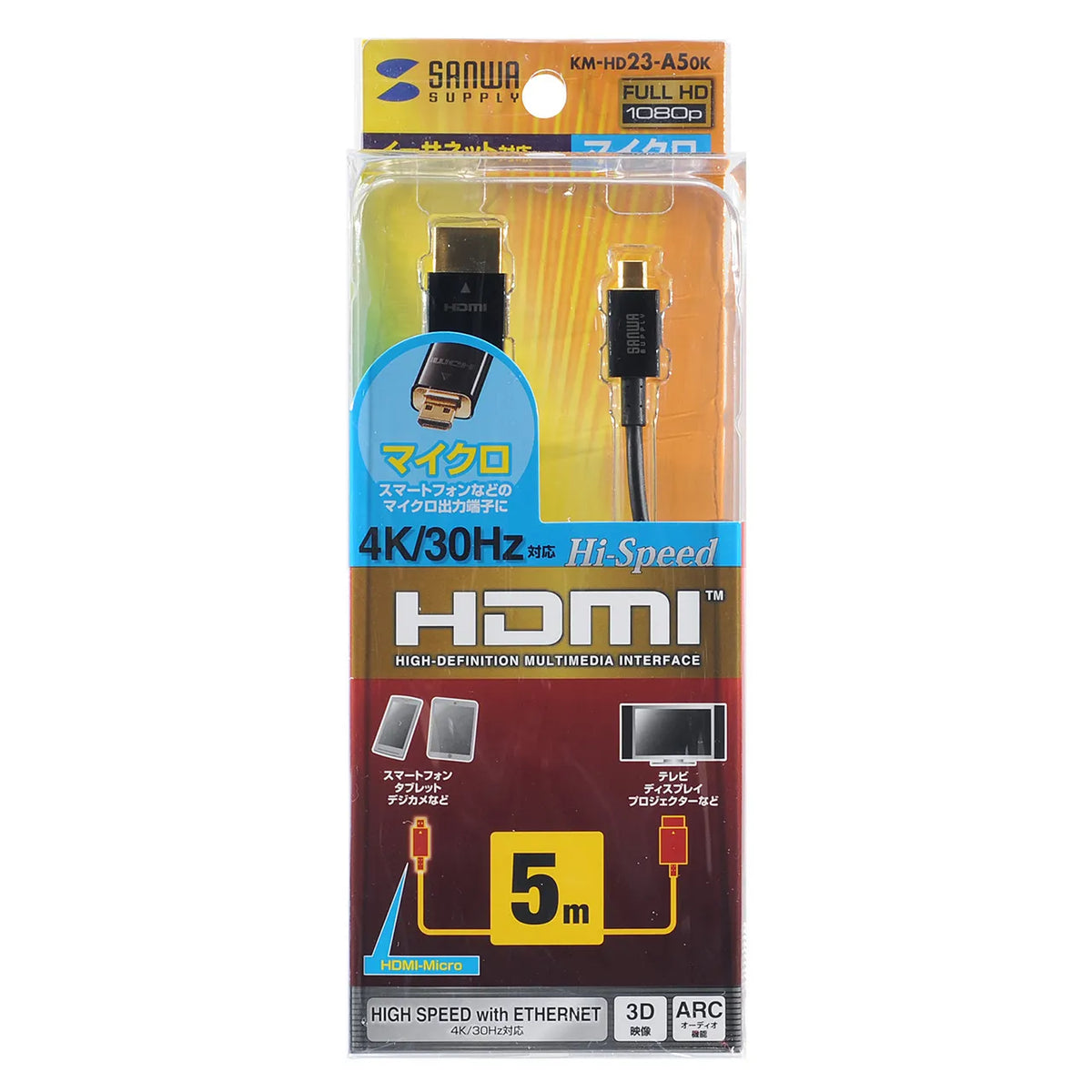

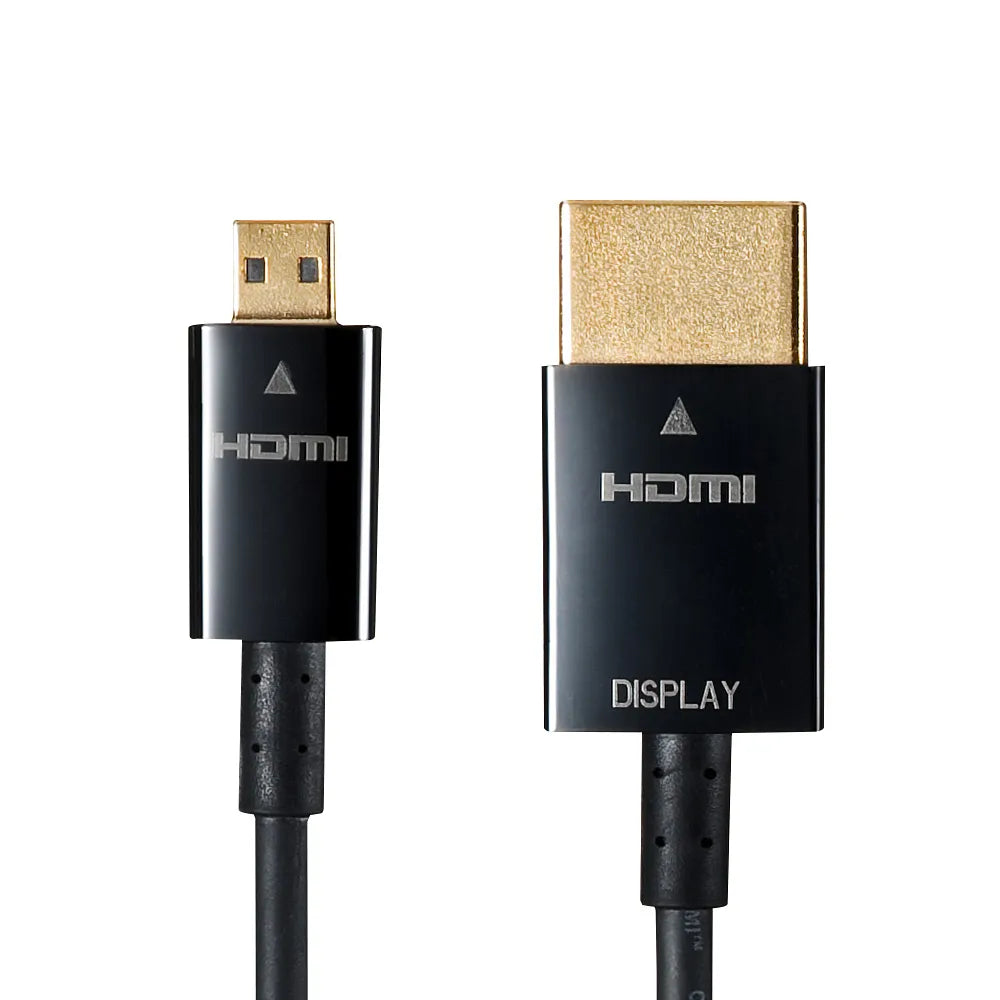

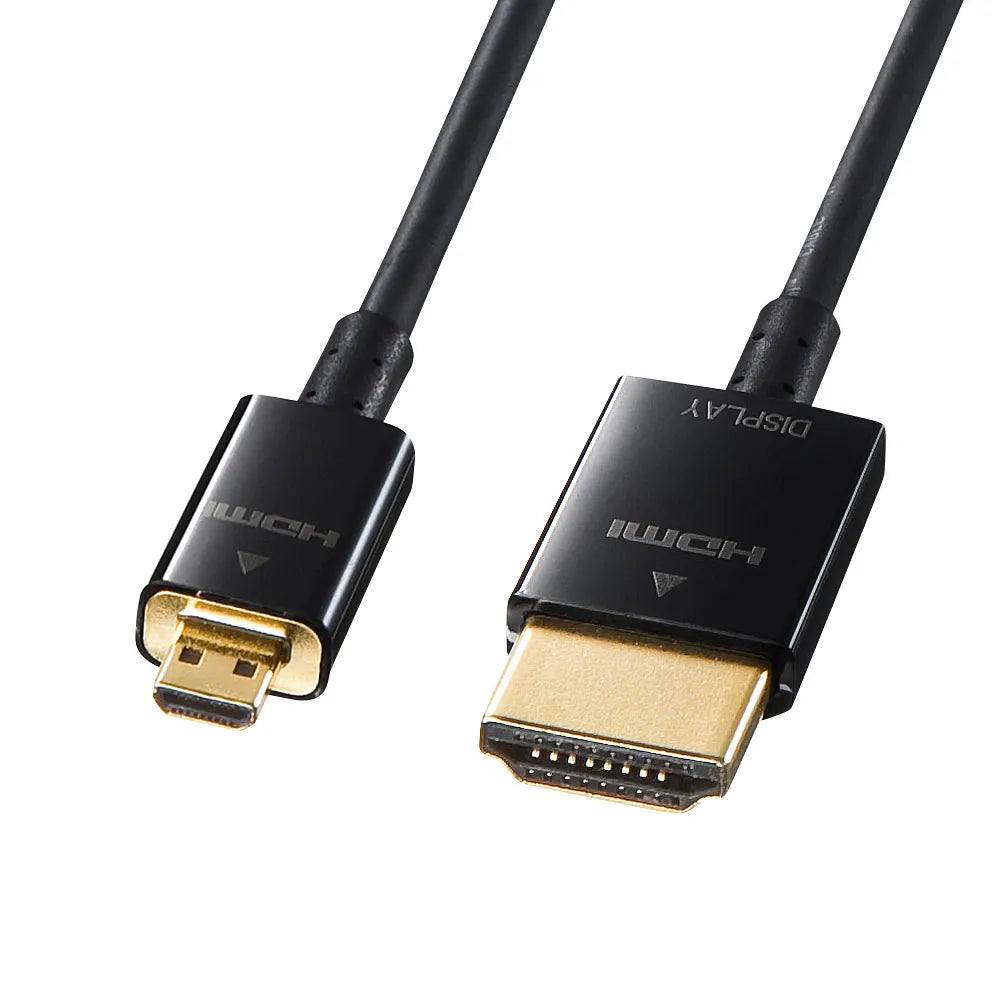

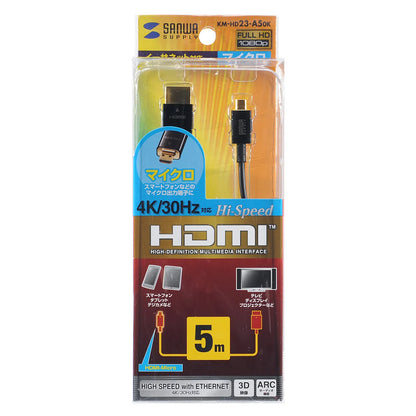

High-speed HDMI micro cable with Ethernet support, 5m, KM-HD23-A50K
High-speed HDMI micro cable with Ethernet support, 5m, KM-HD23-A50K
GTIN（JAN）：4969887760567
SKU：KM-HD23-A50K
Regular price
¥9,075 JPY
Regular price
Sale price
¥9,075 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[5m Micro HDMI Cable, also suitable for tablet presentations]
●Connects devices equipped with an HDMI Micro (D-type) output terminal, such as tablets, smartphones, mobile phones, and digital cameras, to devices with an HDMI input terminal, such as TVs and projectors, transmitting video and audio signals through a single cable.
●Supports HDMI Ethernet Channel (HEC). Compatible devices can be connected via an Ethernet network.
●Supports 4Kx2K/30Hz resolution. Supports high-resolution video with a resolution of 4000x2000 pixels or higher.
(Full HD resolution is 1920x1080)
●Supports 3D video. You can enjoy Full HD 3D video by connecting compatible devices.
●Supports Audio Return Channel (ARC). Audio signals can be transmitted from the TV to an AV amplifier, etc.
●Triple shielding is applied from the center of the cable: "aluminum shield (twisted pair cable) → aluminum shield → spiral shield" to protect important data from noise.
●Gold-plated plugs are used. This reduces contact resistance, suppresses deterioration over time due to rust, etc., and prevents degradation of picture and sound quality.
＜Caution＞

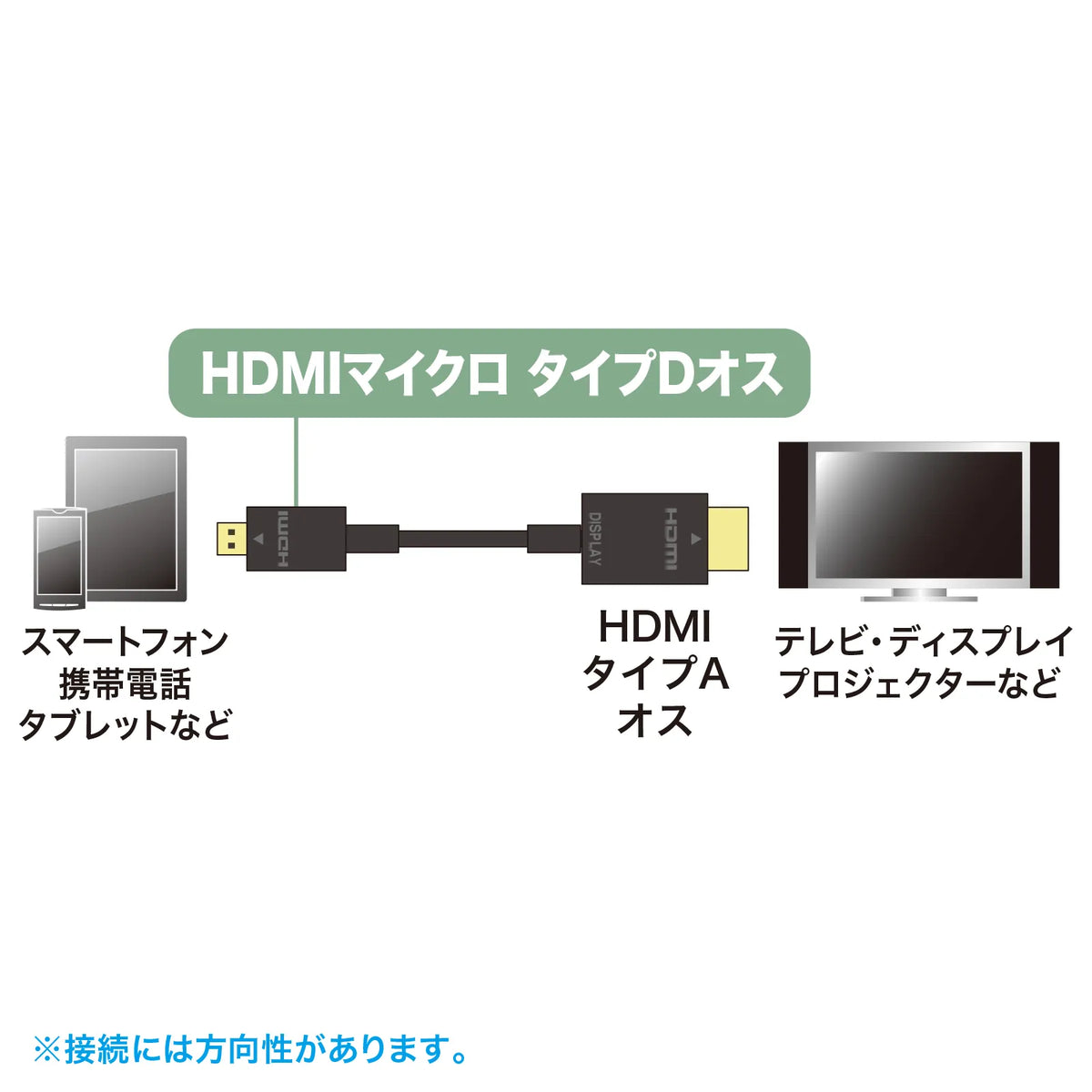

*This product has a signal direction. It cannot be used if connected in the wrong direction (to the wrong device).
・Micro HDMI connector/device side
・HDMI connector/TV/display side
*An output device and input device that support each function are required.
＜Precautions when connecting the cable to a device＞
*When inserting the HDMI connector, make sure the logo on the connector cover is facing upwards and insert it straight, slowly and securely. When removing the HDMI connector, hold the cover part (resin part) of the connector and pull it out slowly and straight.
*When connecting this product to each device, please read the instruction manual of the device carefully before proceeding.
*Do not connect or disconnect this product with wet hands.
*When inserting or removing this product, always hold the connector part and do not apply excessive force. Pulling the cable part or applying excessive force may cause damage or malfunction.
■Color: Black
■Cable Length: 5m
■Cable Outer Diameter: 3.2mm

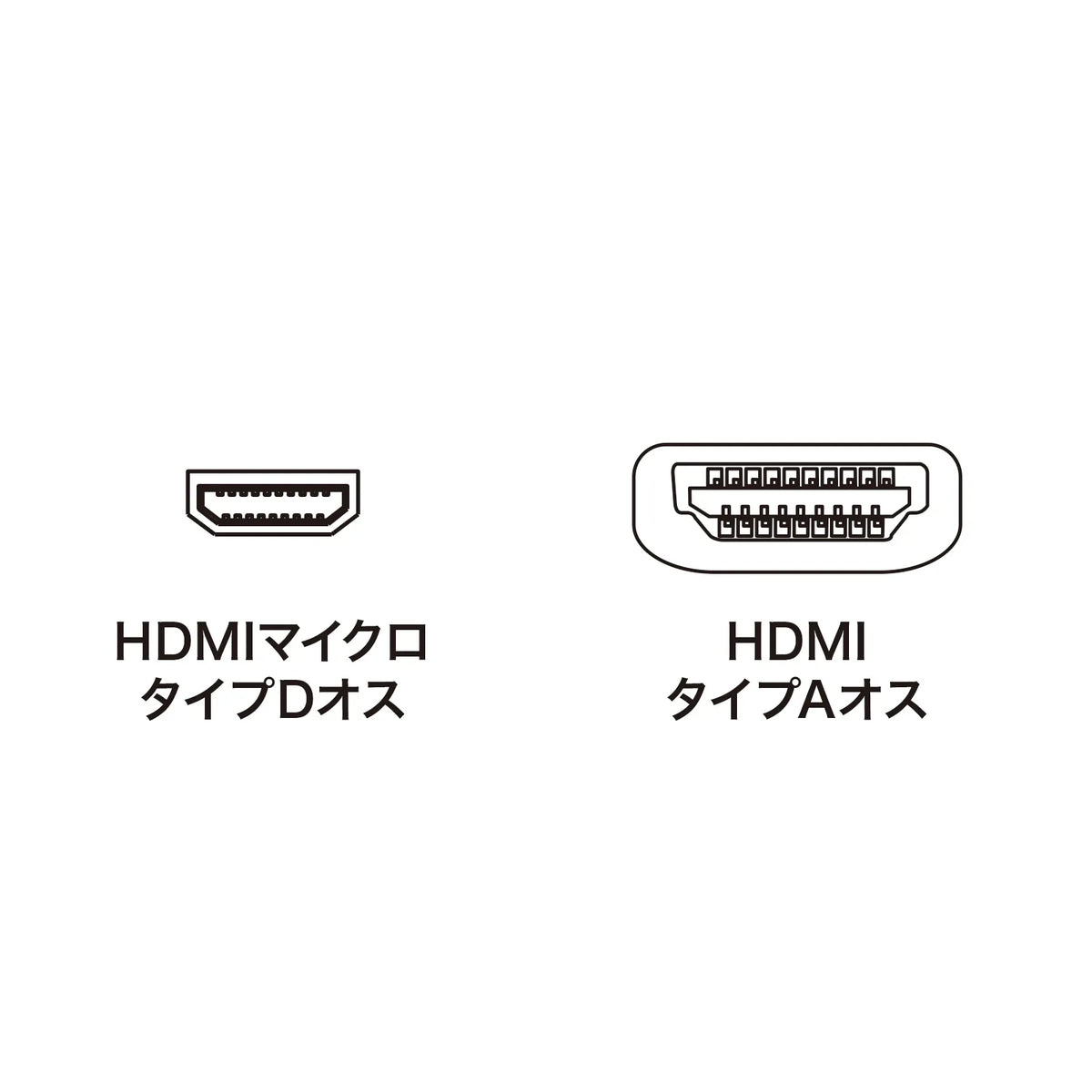

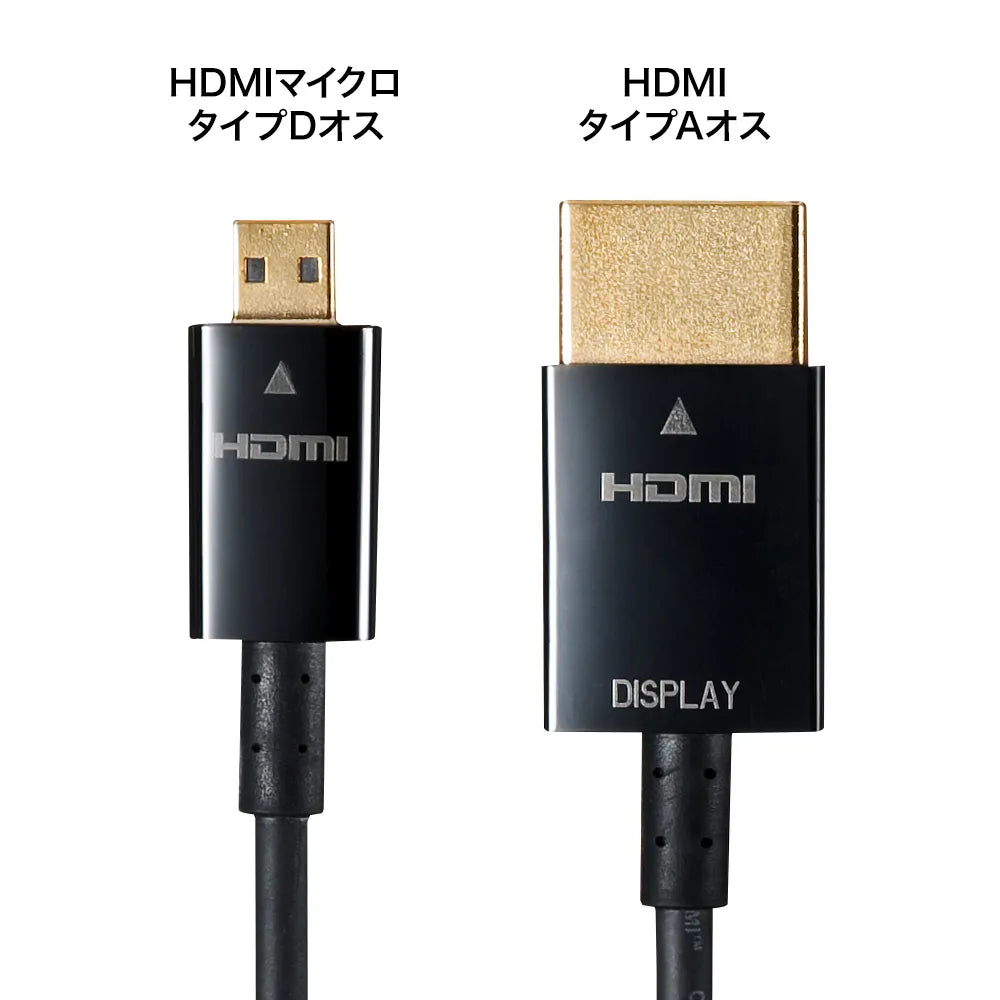

■Connector: HDMI Micro Plug - HDMI Plug (HDMI Type D - HDMI Type A)
■Sheath Material: TPE (Thermoplastic Elastomer) Resin
■HDMI Standard: HIGH SPEED with ETHERNET Standard Compliant
■Supported Resolutions: 4K (3840x2160)/60Hz, 5K (5120x2880)/30Hz, 1920x1080/60Hz (1080p), 1920x1080/240Hz, 2560x1440/120Hz
■Bandwidth: 10.2Gbps
■Weight: Approx. 76g
●Connects devices equipped with an HDMI Micro (D-type) output terminal, such as tablets, smartphones, mobile phones, and digital cameras, to devices with an HDMI input terminal, such as TVs and projectors, transmitting video and audio signals through a single cable.
●Supports HDMI Ethernet Channel (HEC). Compatible devices can be connected via an Ethernet network.
●Supports 4Kx2K/30Hz resolution. Supports high-resolution video with a resolution of 4000x2000 pixels or higher.
(Full HD resolution is 1920x1080)
●Supports 3D video. You can enjoy Full HD 3D video by connecting compatible devices.
●Supports Audio Return Channel (ARC). Audio signals can be transmitted from the TV to an AV amplifier, etc.
●Triple shielding is applied from the center of the cable: "aluminum shield (twisted pair cable) → aluminum shield → spiral shield" to protect important data from noise.
●Gold-plated plugs are used. This reduces contact resistance, suppresses deterioration over time due to rust, etc., and prevents degradation of picture and sound quality.
＜Caution＞
*This product has a signal direction. It cannot be used if connected in the wrong direction (to the wrong device).
・Micro HDMI connector/device side
・HDMI connector/TV/display side
*An output device and input device that support each function are required.
＜Precautions when connecting the cable to a device＞
*When inserting the HDMI connector, make sure the logo on the connector cover is facing upwards and insert it straight, slowly and securely. When removing the HDMI connector, hold the cover part (resin part) of the connector and pull it out slowly and straight.
*When connecting this product to each device, please read the instruction manual of the device carefully before proceeding.
*Do not connect or disconnect this product with wet hands.
*When inserting or removing this product, always hold the connector part and do not apply excessive force. Pulling the cable part or applying excessive force may cause damage or malfunction.
■Color: Black
■Cable Length: 5m
■Cable Outer Diameter: 3.2mm
■Connector: HDMI Micro Plug - HDMI Plug (HDMI Type D - HDMI Type A)
■Sheath Material: TPE (Thermoplastic Elastomer) Resin
■HDMI Standard: HIGH SPEED with ETHERNET Standard Compliant
■Supported Resolutions: 4K (3840x2160)/60Hz, 5K (5120x2880)/30Hz, 1920x1080/60Hz (1080p), 1920x1080/240Hz, 2560x1440/120Hz
■Bandwidth: 10.2Gbps
■Weight: Approx. 76g
