SANWA SUPPLY

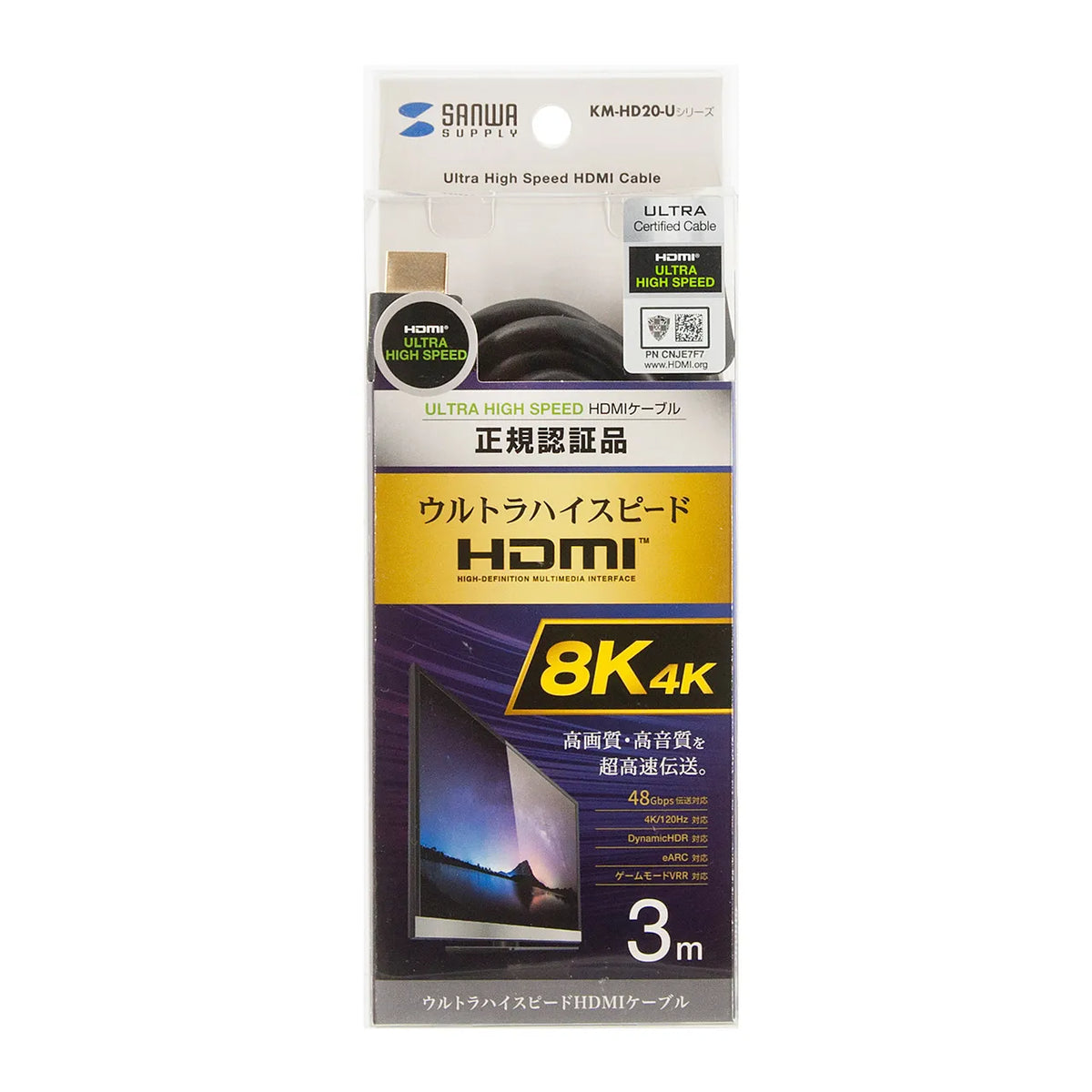

Ultra High-Speed HDMI Cable KM-HD20-U30
Ultra High-Speed HDMI Cable KM-HD20-U30
GTIN（JAN）：4969887764381
SKU：KM-HD20-U30
Regular price
¥4,937 JPY
Regular price
Sale price
¥4,937 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[8K/4K Compatible, 48Gbps Transmission Bandwidth, Officially Certified HDMI, Ultra High Speed HDMI Cable (Black) 3m]
●This is an ultra high speed HDMI cable that has passed the ULTRA HIGH SPEED HDMI certification program.
●This cable supports 8K/60Hz, 5K/60Hz, 4K/120Hz, and a transmission bandwidth of 48Gbps.
*When using DSC compression, 10K/60Hz, 10K/30Hz, 8K/120Hz, and 5K/120Hz can be displayed.
●DynamicHDR
Supports DynamicHDR (dynamic HDR), which controls brightness, color depth, and contrast for each scene and frame, and HDR, which transmits images with a sense of depth that makes the most of the difference in brightness and darkness.
●Game Mode VRR Compatible
By synchronizing the signal output with the display using a variable refresh rate, it reduces latency in games and supports a function that suppresses screen skipping and flickering.
● Supports eARC "Enhanced Audio Return Channel"
It also supports the transmission of uncompressed 5.1ch, 7.1ch, or object-based audio consisting of up to 32 channels via the TV.
● Supports ARC (Audio Return Channel)
● Supports HDMI Ethernet Channel (HEC) for bidirectional communication of Ethernet signals
● Supports high-quality digital audio signals (multi-channel surround)
● Shielded twisted pair cable
Each pair of twisted pair cables and drain wires in the core are treated with a sealed aluminum shield to protect important data from external noise. (TMDS twisted pair cable only)
● Triple shielding structure
Triple shielding is applied from the center of the cable: "aluminum shield (TMDS twisted pair cable) → aluminum shield → high-density braided shield" to protect important data from noise.
● Gold-plated plugs
Gold-plated plugs are used. This reduces contact resistance and suppresses deterioration over time due to rust, etc., preventing degradation of picture and sound quality.
*Equipment and environment compatible with each function are required.
■Color: Black
■Cable Length: Approx. 3m
■Connector Specifications: HDMI plug - HDMI plug (HDMI Type A connector - Type A connector)
■Standard: ULTRA HIGH SPEED HDMI cable certified
■Wire Material: UL20276/VW-1 30AWG conductor
■Outer Diameter: Approx. 6.0mm
■Sheath Material: PVC
■HDCP: HDCP2.2/HDCP1.4 compatible
■Supported Resolutions: 8K (7680x4320)/30Hz, 4K (3840x2160)/120Hz, 5K (5120x2880)/60Hz, 1920x1080/60Hz (1080p), 1920x1080/240Hz, 2560x1440/240Hz
■Transmission Bandwidth: Maximum 48Gbps
●This is an ultra high speed HDMI cable that has passed the ULTRA HIGH SPEED HDMI certification program.
●This cable supports 8K/60Hz, 5K/60Hz, 4K/120Hz, and a transmission bandwidth of 48Gbps.
*When using DSC compression, 10K/60Hz, 10K/30Hz, 8K/120Hz, and 5K/120Hz can be displayed.
●DynamicHDR
Supports DynamicHDR (dynamic HDR), which controls brightness, color depth, and contrast for each scene and frame, and HDR, which transmits images with a sense of depth that makes the most of the difference in brightness and darkness.
●Game Mode VRR Compatible
By synchronizing the signal output with the display using a variable refresh rate, it reduces latency in games and supports a function that suppresses screen skipping and flickering.
● Supports eARC "Enhanced Audio Return Channel"
It also supports the transmission of uncompressed 5.1ch, 7.1ch, or object-based audio consisting of up to 32 channels via the TV.
● Supports ARC (Audio Return Channel)
● Supports HDMI Ethernet Channel (HEC) for bidirectional communication of Ethernet signals
● Supports high-quality digital audio signals (multi-channel surround)
● Shielded twisted pair cable
Each pair of twisted pair cables and drain wires in the core are treated with a sealed aluminum shield to protect important data from external noise. (TMDS twisted pair cable only)
● Triple shielding structure
Triple shielding is applied from the center of the cable: "aluminum shield (TMDS twisted pair cable) → aluminum shield → high-density braided shield" to protect important data from noise.
● Gold-plated plugs
Gold-plated plugs are used. This reduces contact resistance and suppresses deterioration over time due to rust, etc., preventing degradation of picture and sound quality.
*Equipment and environment compatible with each function are required.
■Color: Black
■Cable Length: Approx. 3m
■Connector Specifications: HDMI plug - HDMI plug (HDMI Type A connector - Type A connector)
■Standard: ULTRA HIGH SPEED HDMI cable certified
■Wire Material: UL20276/VW-1 30AWG conductor
■Outer Diameter: Approx. 6.0mm
■Sheath Material: PVC
■HDCP: HDCP2.2/HDCP1.4 compatible
■Supported Resolutions: 8K (7680x4320)/30Hz, 4K (3840x2160)/120Hz, 5K (5120x2880)/60Hz, 1920x1080/60Hz (1080p), 1920x1080/240Hz, 2560x1440/240Hz
■Transmission Bandwidth: Maximum 48Gbps
