SANWA SUPPLY

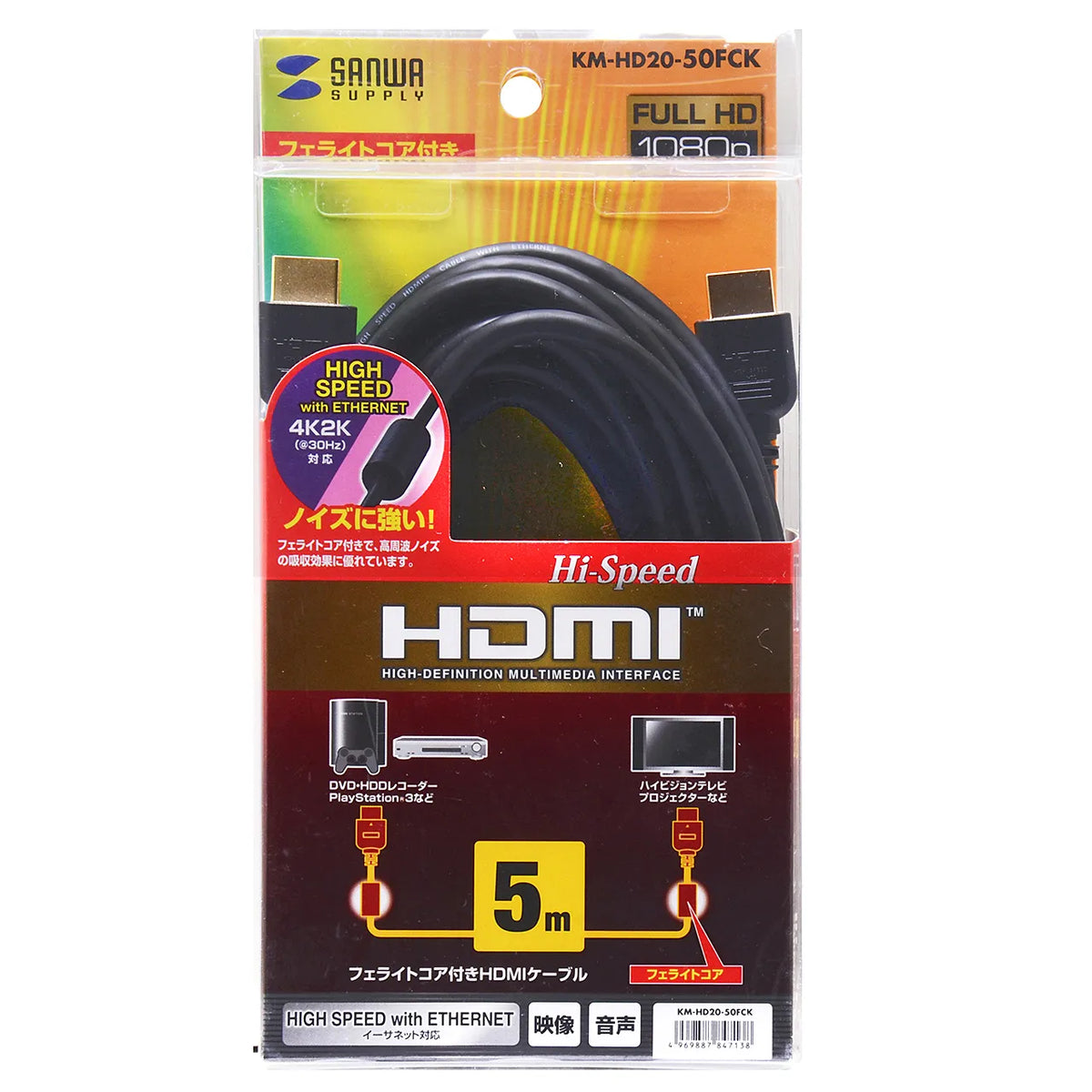

High-speed HDMI cable KM-HD20-50FCK
High-speed HDMI cable KM-HD20-50FCK
GTIN（JAN）：4969887847138
SKU：KM-HD20-50FCK
Regular price
¥4,211 JPY
Regular price
Sale price
¥4,211 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Full-spec high-definition (1080P) compatible, high-speed HDMI cable with ferrite core, 5m]
●Connects DVD/hard disk/Blu-ray disc recorders, PCs, etc. to high-definition TVs, LCD displays, projectors, etc. It can transmit video, audio, and network signals with a single cable.
●Supports HDMI Ethernet Channel (HEC). Compatible devices can be connected via an Ethernet network. (*1)
●Supports Audio Return Channel (ARC), allowing audio signals to be transmitted from the TV to an AV amplifier, etc. (*1)
●Supports high-resolution video of 4K2K [4096x2160 (24p), 3840x2160 (30p)]. (*1)
●Supports 3D Full HD (1080px 2-screen display) video. (*1)
●Supports 1080p Full HD video signals. (*1)
●Supports high-quality digital audio signals (multi-channel surround). (*1)
●Equipped with a high-density ferrite core, it has excellent high-frequency noise absorption.
●Triple shielding is applied from the center of the cable: "aluminum shield (TMDS twisted pair cable) → aluminum shield → high-density braided shield" to protect important data from noise.
●Each pair of twisted pair cables and drain wires in the core are treated with a sealed aluminum shield, making it a shielded twisted pair cable that protects important data from external noise. (TMDS twisted pair cable only)
●This OFC cable uses 99.996% pure OFC (oxygen-free copper) for the wire material, suppressing image quality degradation.
●It uses gold-plated connector shells and pins (contacts) that are resistant to rust and have little to no risk of signal degradation due to aging.
●The compact connector, measuring W20 x D25 x H11mm (resin cover part), allows for a clean and uncluttered look on the back of the device.
●Uses lead-free solder, which contains almost no lead, a cause of environmental pollution in soil and groundwater.
(*1) Equipment compatible with each function is required.
■Cable length: 5m
■Cable diameter: 6.5mm

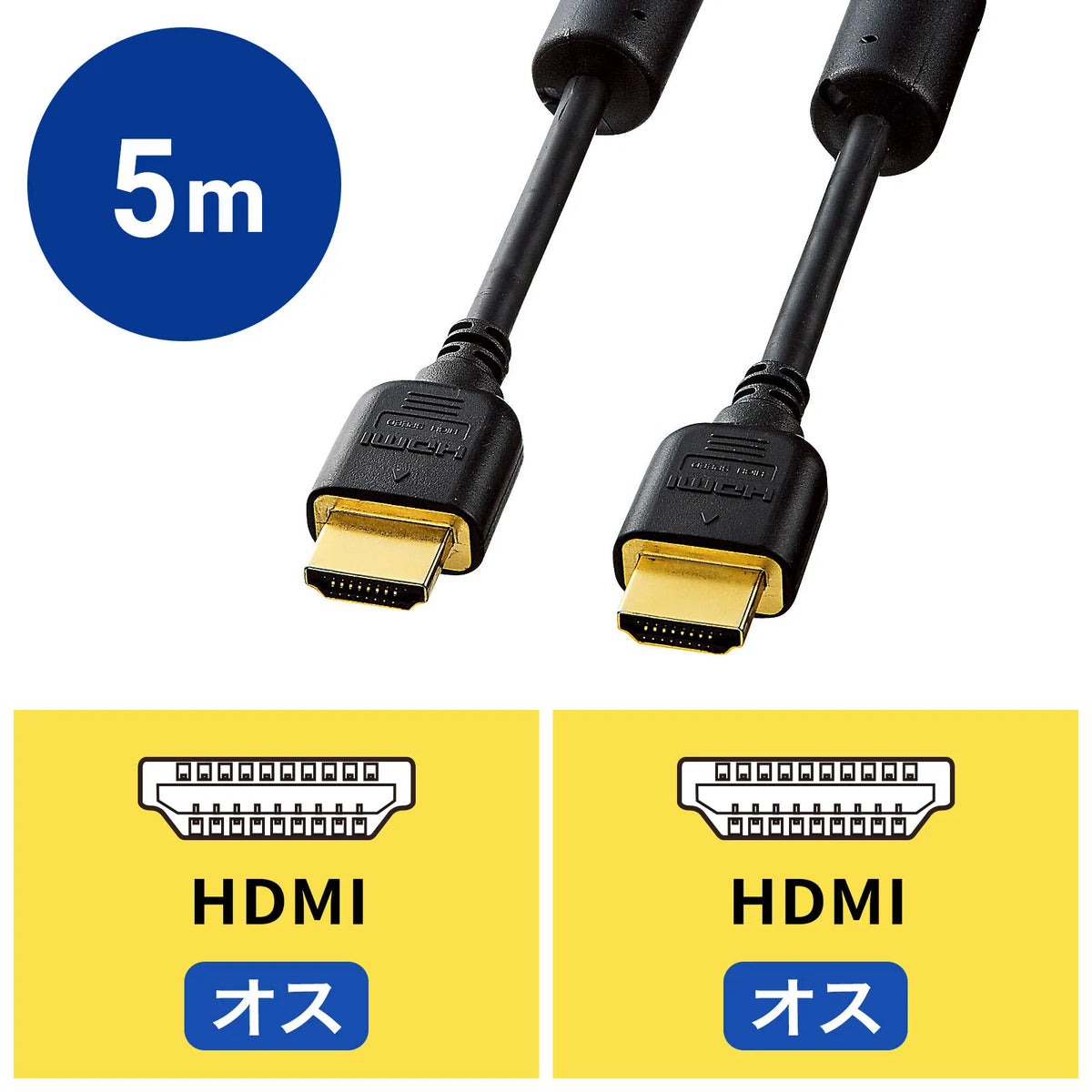

■Connector shape: HDMI plug - HDMI plug
(HDMI Type A connector male - HDMI Type A connector male)
■HDMI standard: HIGH SPEED with ETHERNET (Version 1.4, Category 2 certified)
■Cable standard: UL20276
■Supported resolutions: 4K (3840x2160)/30Hz, 4096x2160/24Hz, 1920x1080/60Hz (1080p), 1920x1080/120Hz, 2560x1440/60Hz
■Bandwidth: 10.2Gbps
≪Custom orders not accepted≫
We cannot accept custom orders for small quantities. Depending on the quantity, it may be possible, so please contact Sanwa Supply sales for details.
●Connects DVD/hard disk/Blu-ray disc recorders, PCs, etc. to high-definition TVs, LCD displays, projectors, etc. It can transmit video, audio, and network signals with a single cable.
●Supports HDMI Ethernet Channel (HEC). Compatible devices can be connected via an Ethernet network. (*1)
●Supports Audio Return Channel (ARC), allowing audio signals to be transmitted from the TV to an AV amplifier, etc. (*1)
●Supports high-resolution video of 4K2K [4096x2160 (24p), 3840x2160 (30p)]. (*1)
●Supports 3D Full HD (1080px 2-screen display) video. (*1)
●Supports 1080p Full HD video signals. (*1)
●Supports high-quality digital audio signals (multi-channel surround). (*1)
●Equipped with a high-density ferrite core, it has excellent high-frequency noise absorption.
●Triple shielding is applied from the center of the cable: "aluminum shield (TMDS twisted pair cable) → aluminum shield → high-density braided shield" to protect important data from noise.
●Each pair of twisted pair cables and drain wires in the core are treated with a sealed aluminum shield, making it a shielded twisted pair cable that protects important data from external noise. (TMDS twisted pair cable only)
●This OFC cable uses 99.996% pure OFC (oxygen-free copper) for the wire material, suppressing image quality degradation.
●It uses gold-plated connector shells and pins (contacts) that are resistant to rust and have little to no risk of signal degradation due to aging.
●The compact connector, measuring W20 x D25 x H11mm (resin cover part), allows for a clean and uncluttered look on the back of the device.
●Uses lead-free solder, which contains almost no lead, a cause of environmental pollution in soil and groundwater.
(*1) Equipment compatible with each function is required.
■Cable length: 5m
■Cable diameter: 6.5mm
■Connector shape: HDMI plug - HDMI plug
(HDMI Type A connector male - HDMI Type A connector male)
■HDMI standard: HIGH SPEED with ETHERNET (Version 1.4, Category 2 certified)
■Cable standard: UL20276
■Supported resolutions: 4K (3840x2160)/30Hz, 4096x2160/24Hz, 1920x1080/60Hz (1080p), 1920x1080/120Hz, 2560x1440/60Hz
■Bandwidth: 10.2Gbps
≪Custom orders not accepted≫
We cannot accept custom orders for small quantities. Depending on the quantity, it may be possible, so please contact Sanwa Supply sales for details.
