SANWA SUPPLY

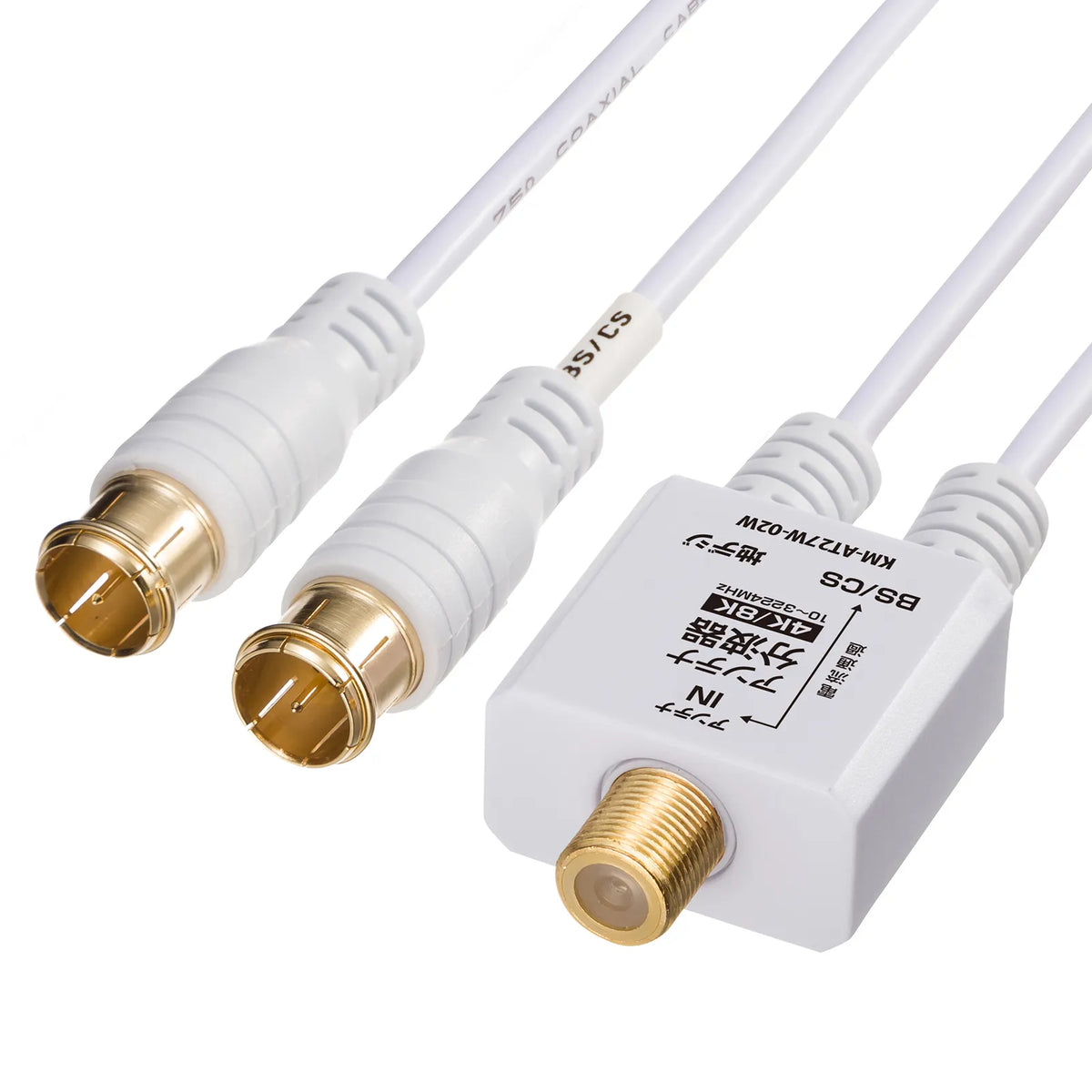

Antenna splitter output cable 0.2m KM-AT27W-02W

Antenna splitter output cable 0.2m KM-AT27W-02W

GTIN(JAN):4969887771525

SKU:KM-AT27W-02W

Regular price ¥1,525 JPY
Regular price Sale price ¥1,525 JPY
Sale Sold out
Quantity

Important: Return Policy

Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

[Antenna Splitter for Terrestrial Digital/BS/CS 4K/8Kt, Output Cable 0.2m x 2]

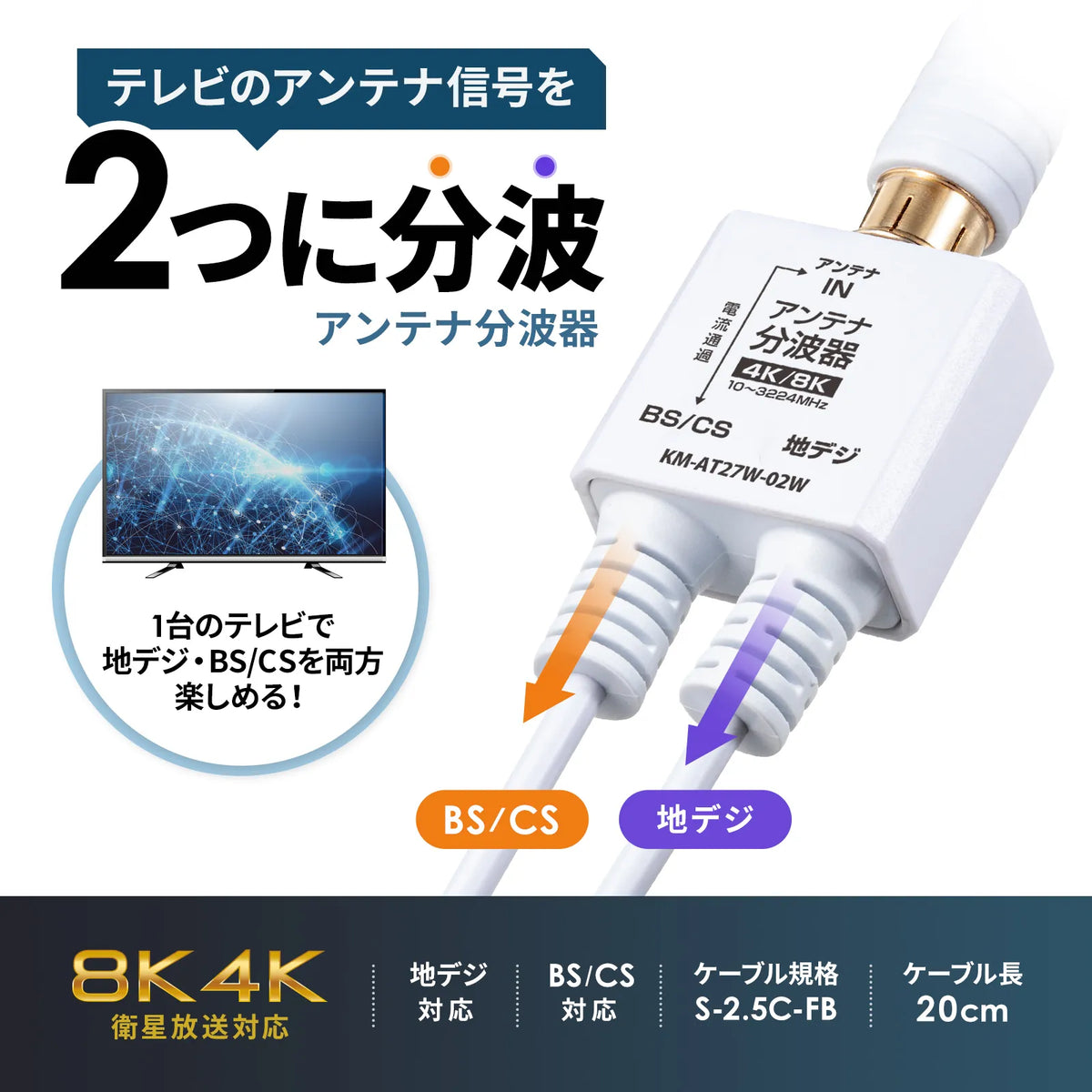

●When you want to watch terrestrial digital broadcasting and BS/CS broadcasting separately

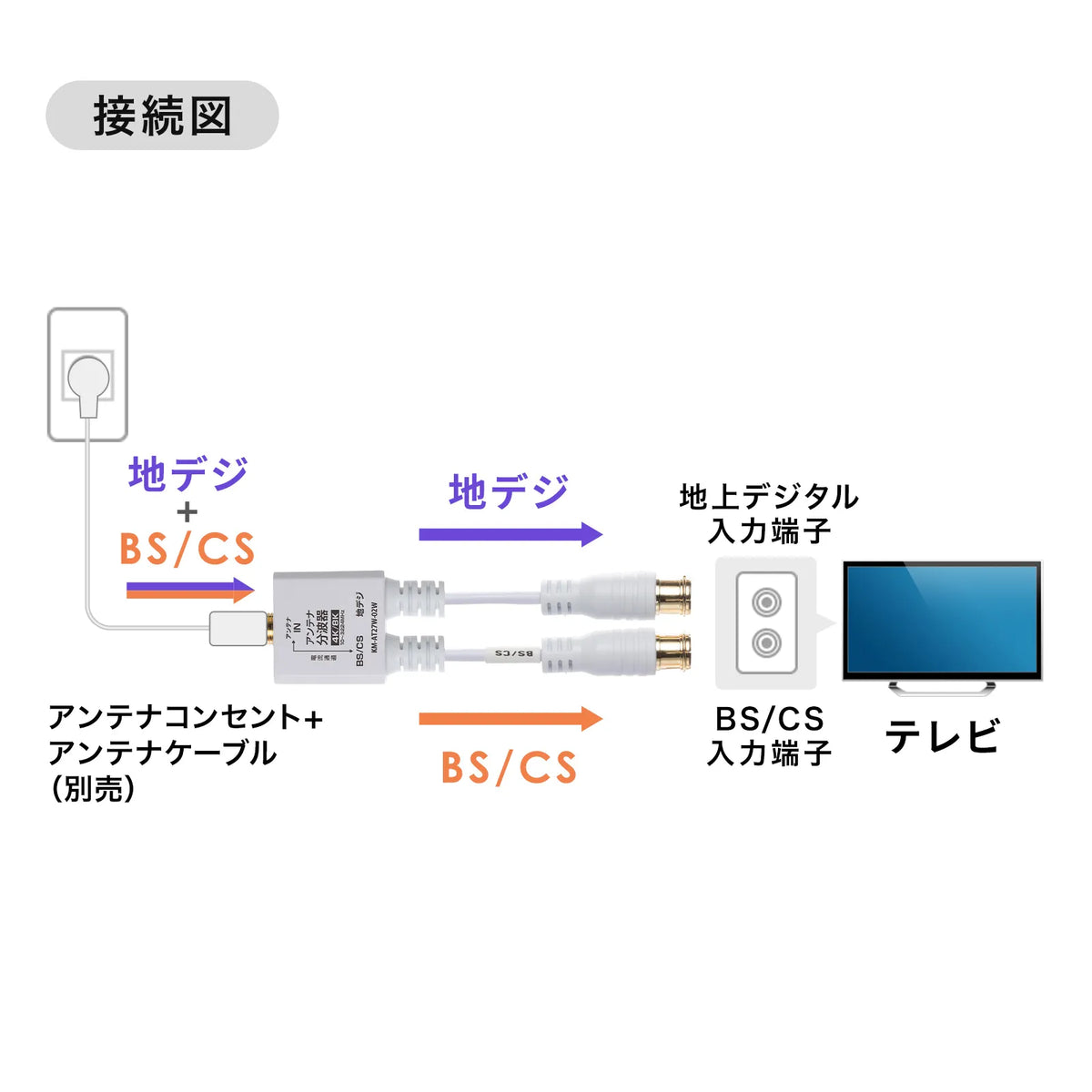

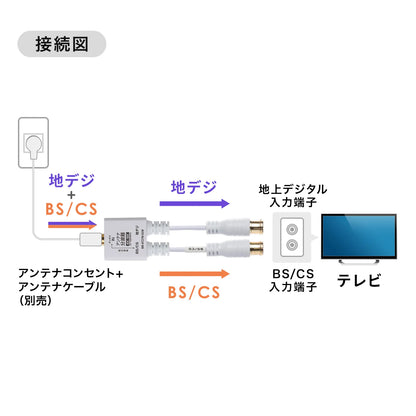

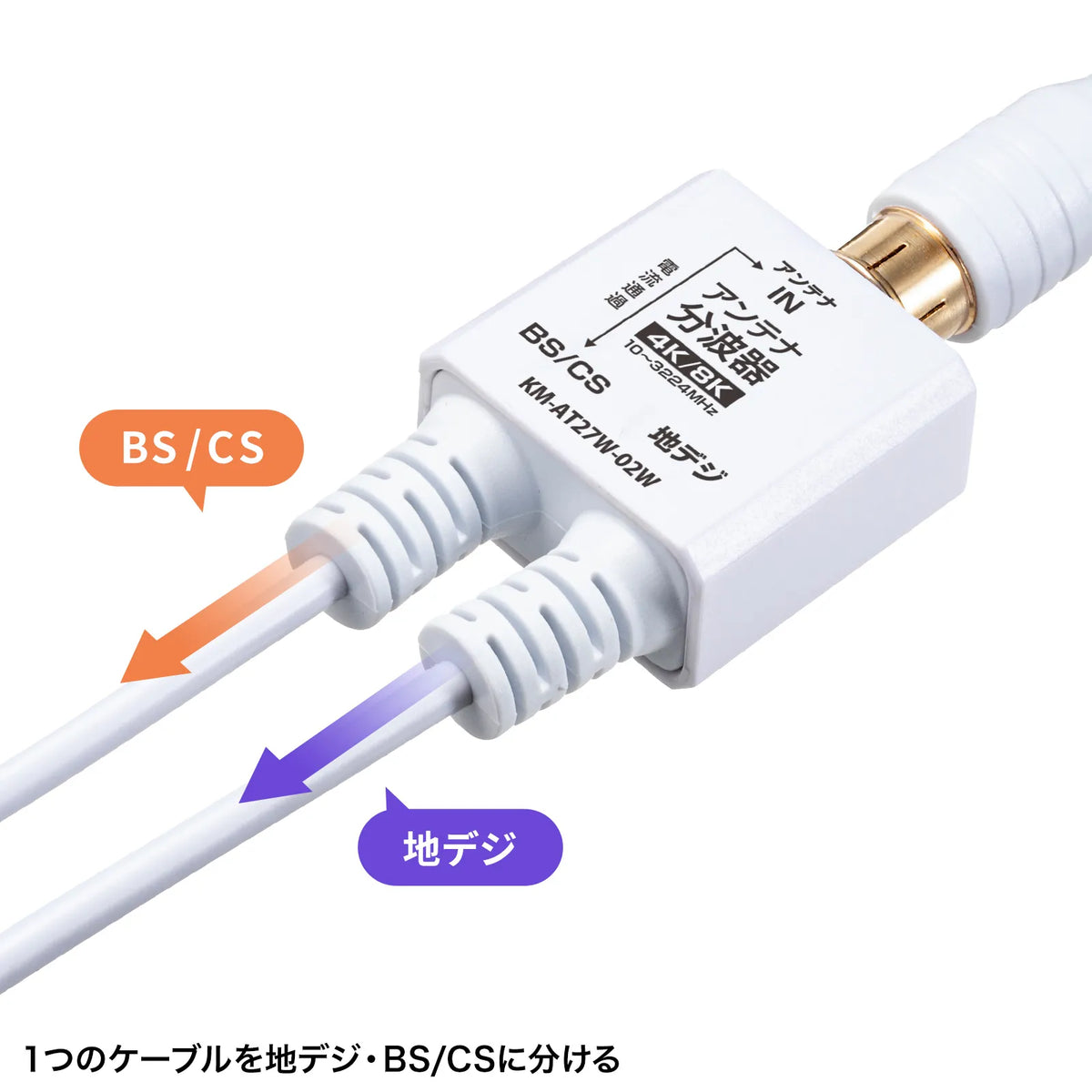

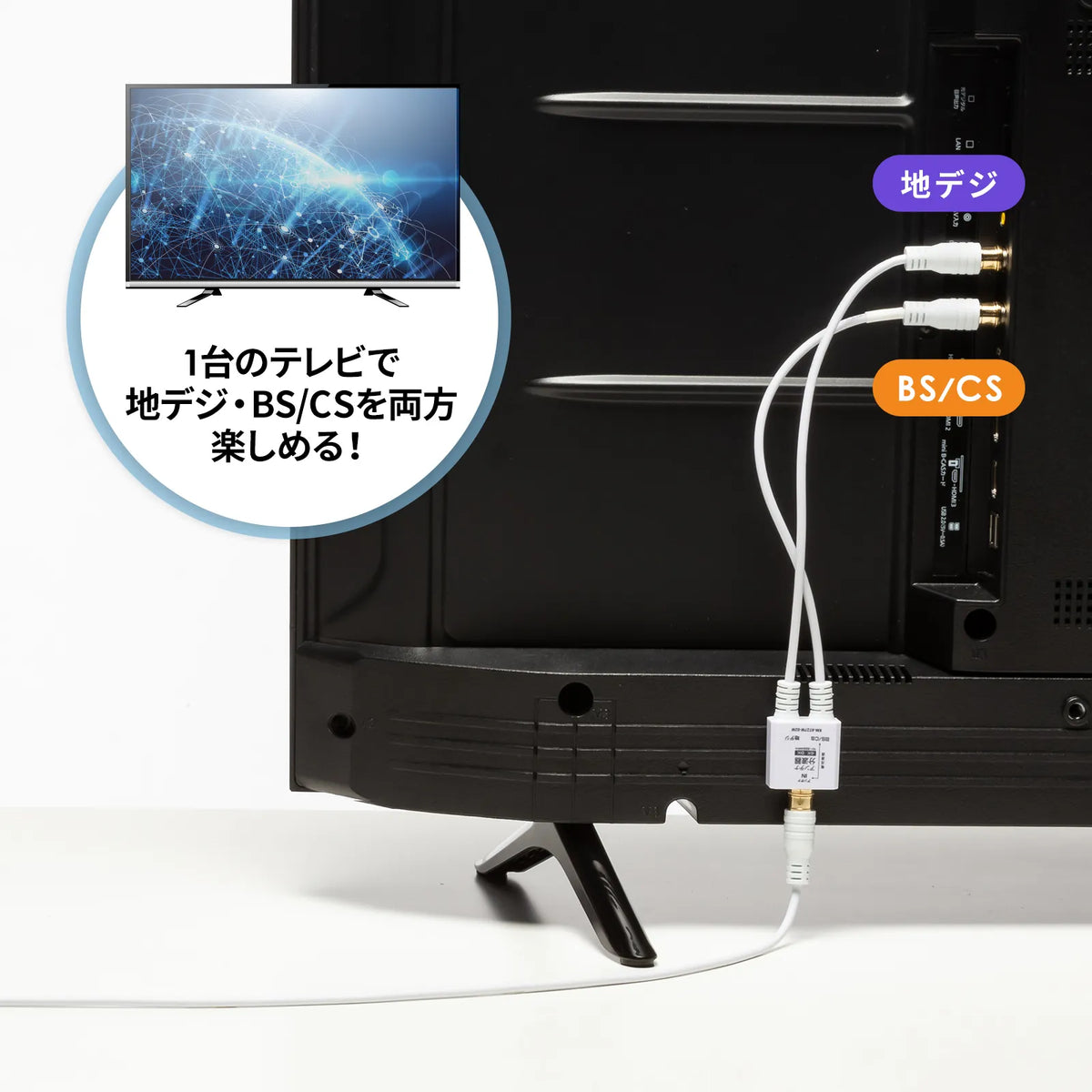

It efficiently separates terrestrial digital (UHF) and satellite waves (BS/CS), allowing you to watch terrestrial digital, BS, and CS on one TV.
●4K/8K Satellite Broadcasting Compatible
In addition to conventional terrestrial digital, BS, and CS broadcasting, it also supports 4K/8K broadcasting.

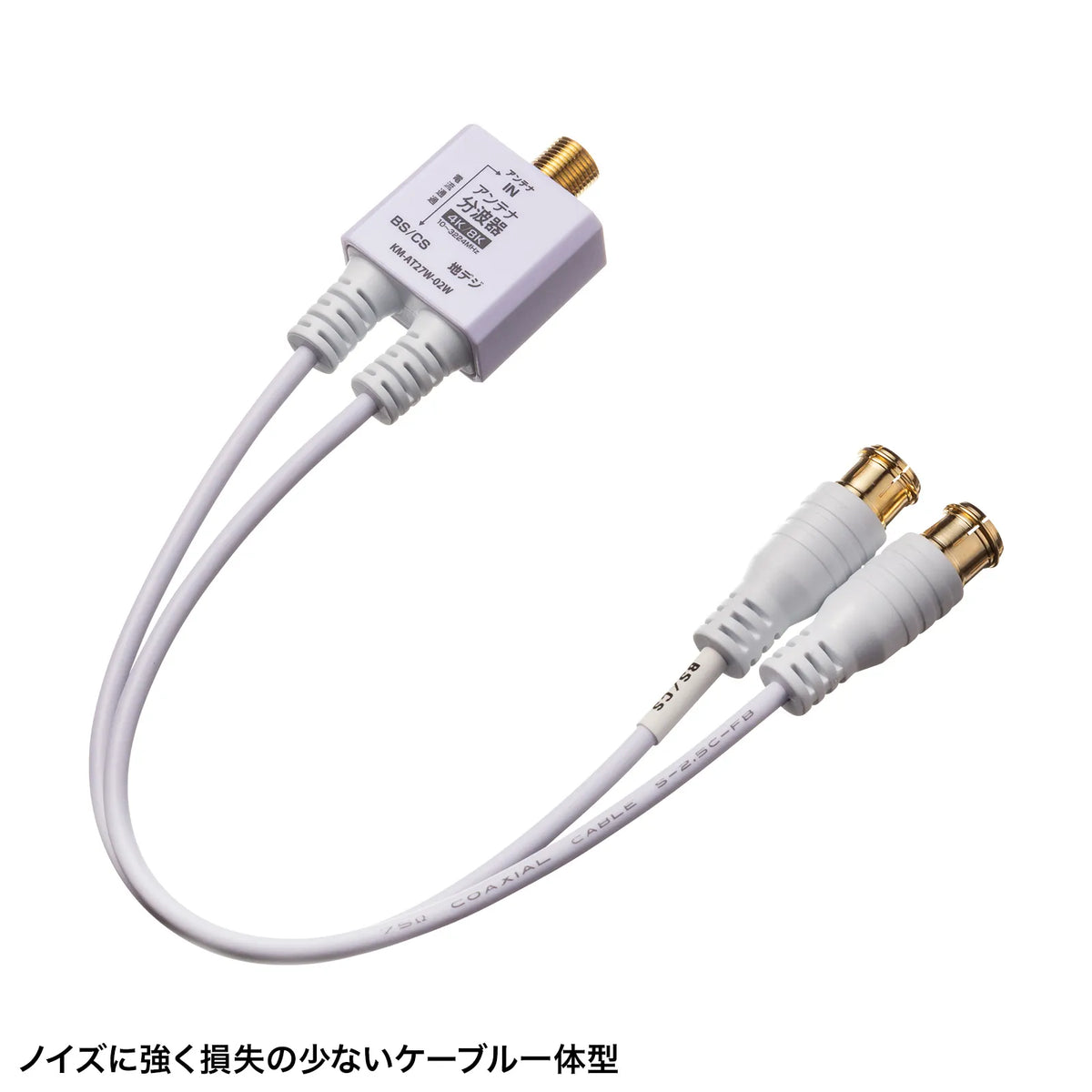

●Integrated Cable Structure
The splitter body and input/output cables are integrated, which reduces connection loss compared to separate types.

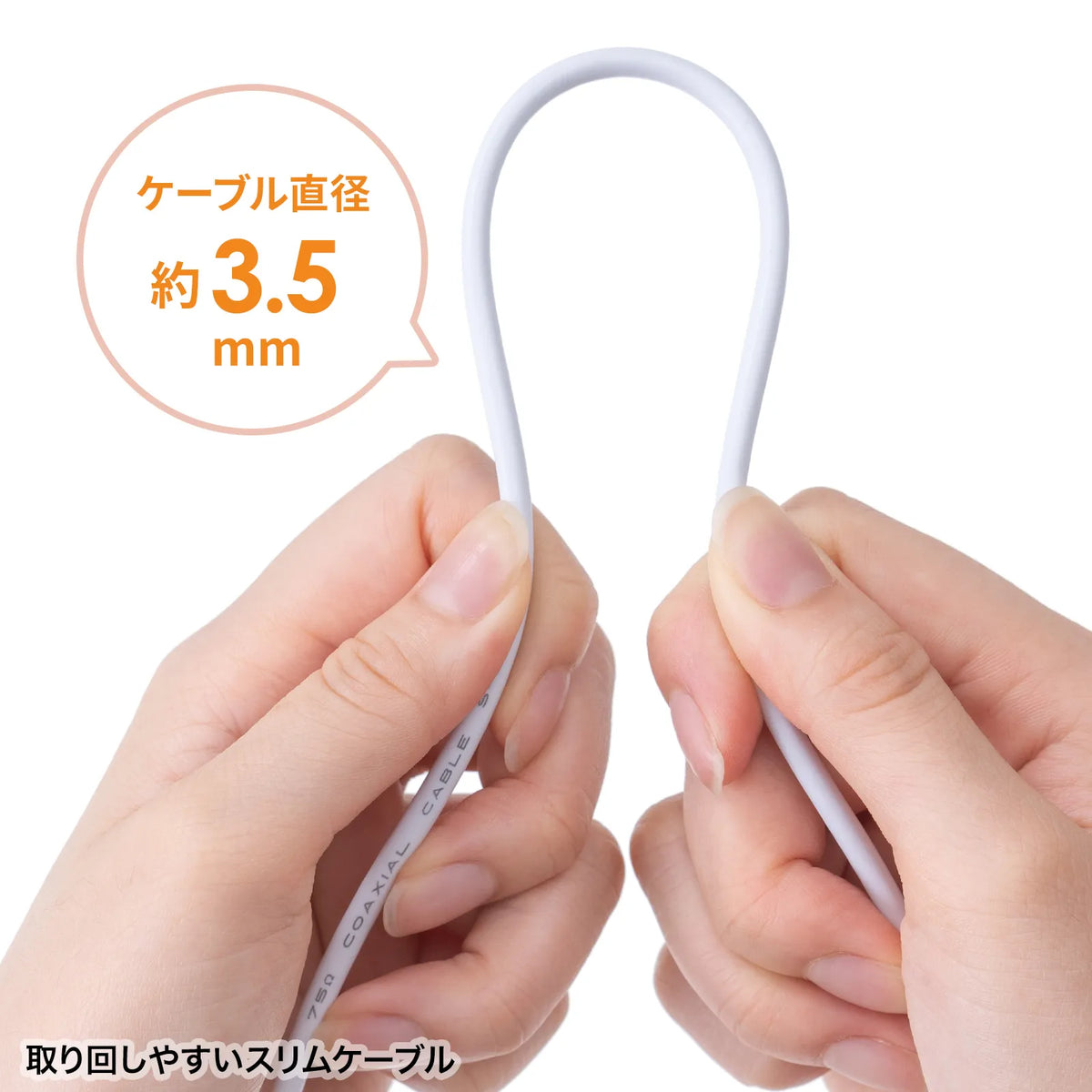

●Flexible and Slim Cable
It uses a flexible and easy-to-wire S-2.5C-FB standard coaxial cable.

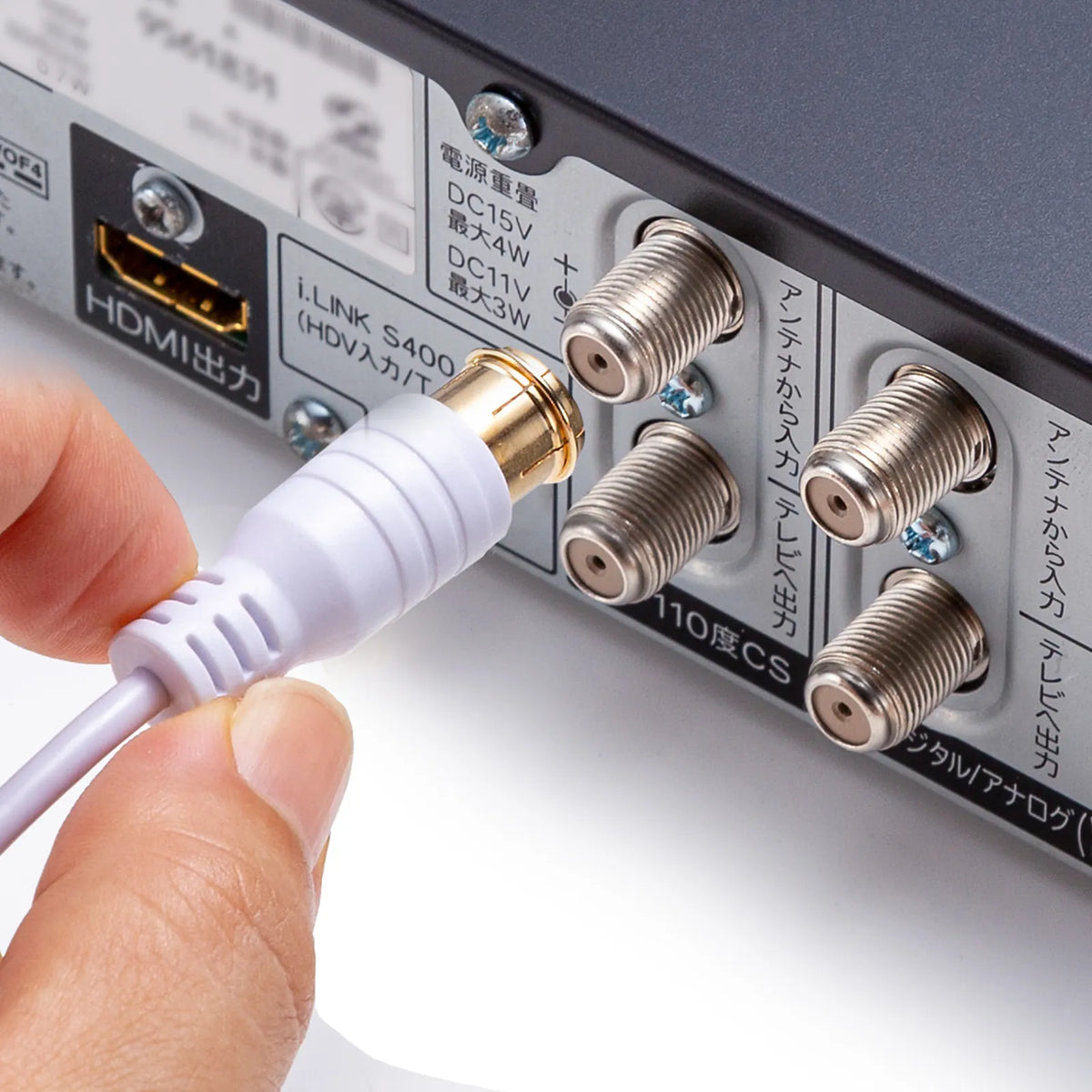

●BS antenna power supply possible
The BS/CS terminal is a current-transmission type that allows power to be supplied to the antenna from devices such as TVs and recorders.

■Cable length: 0.2m (between SR)
■Connector shape:
F-type jack - F-type plug (plug-in type) x2
Cable/F-type plug (plug-in type)
■Cable outer diameter: 3.5mm
■Type: Coaxial
■Coaxial standard: 2.5C

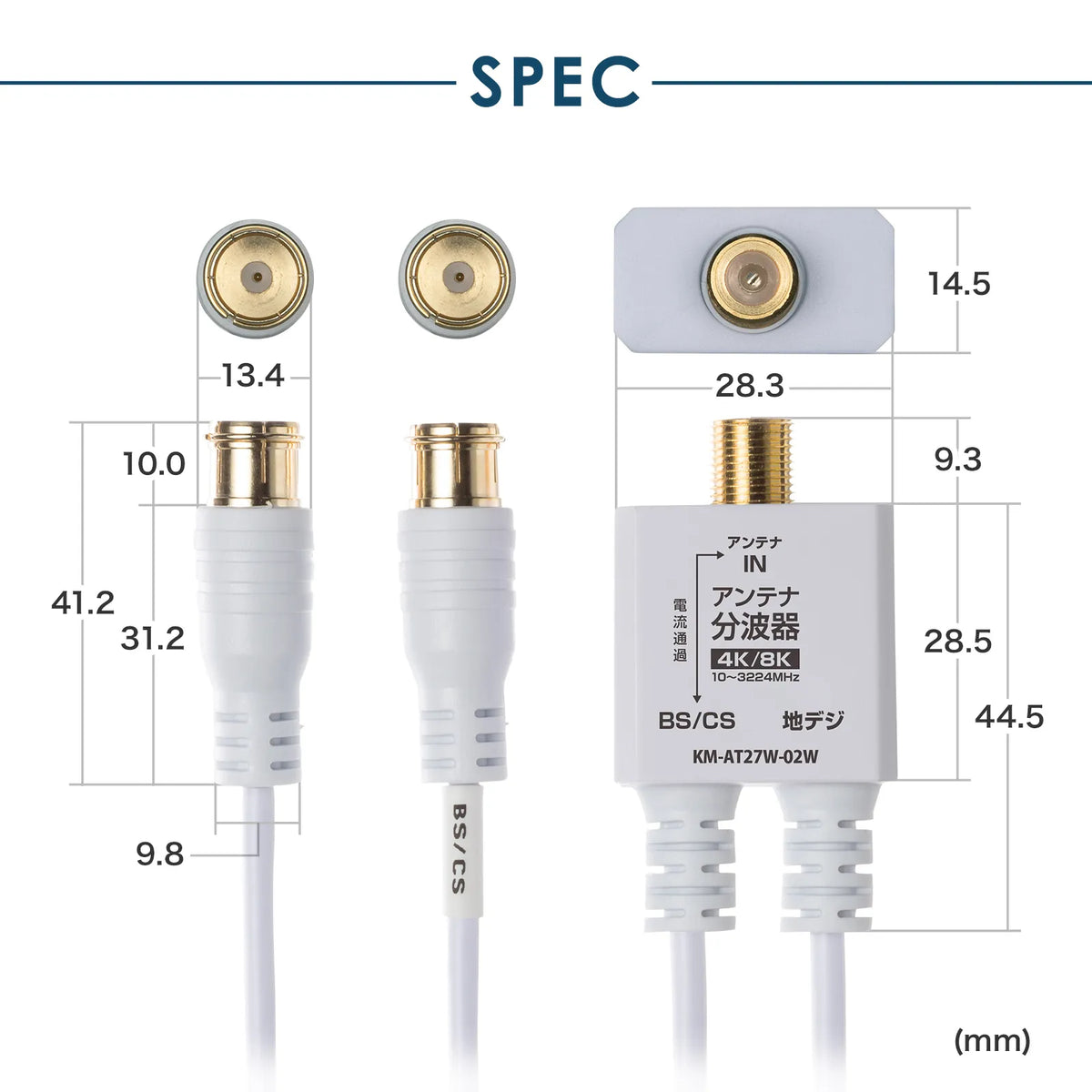

■Product size: Housing/approx. W28.3xD14.5xH44.5mm (excluding protrusions and cable)
■Weight: approx. 52g
■Input frequency: 47 to 3224MHz
■Output frequency: U/V output terminal 47 to 862MHz BS/CS output terminal 950 to 3224MHz
■Cable standard: S-2.5C-FB
■Connector standard: F-type
■Connector shape: Straight/screw type (both terminals gold plated)
■Impedance: 75 ohms
