SANWA SUPPLY

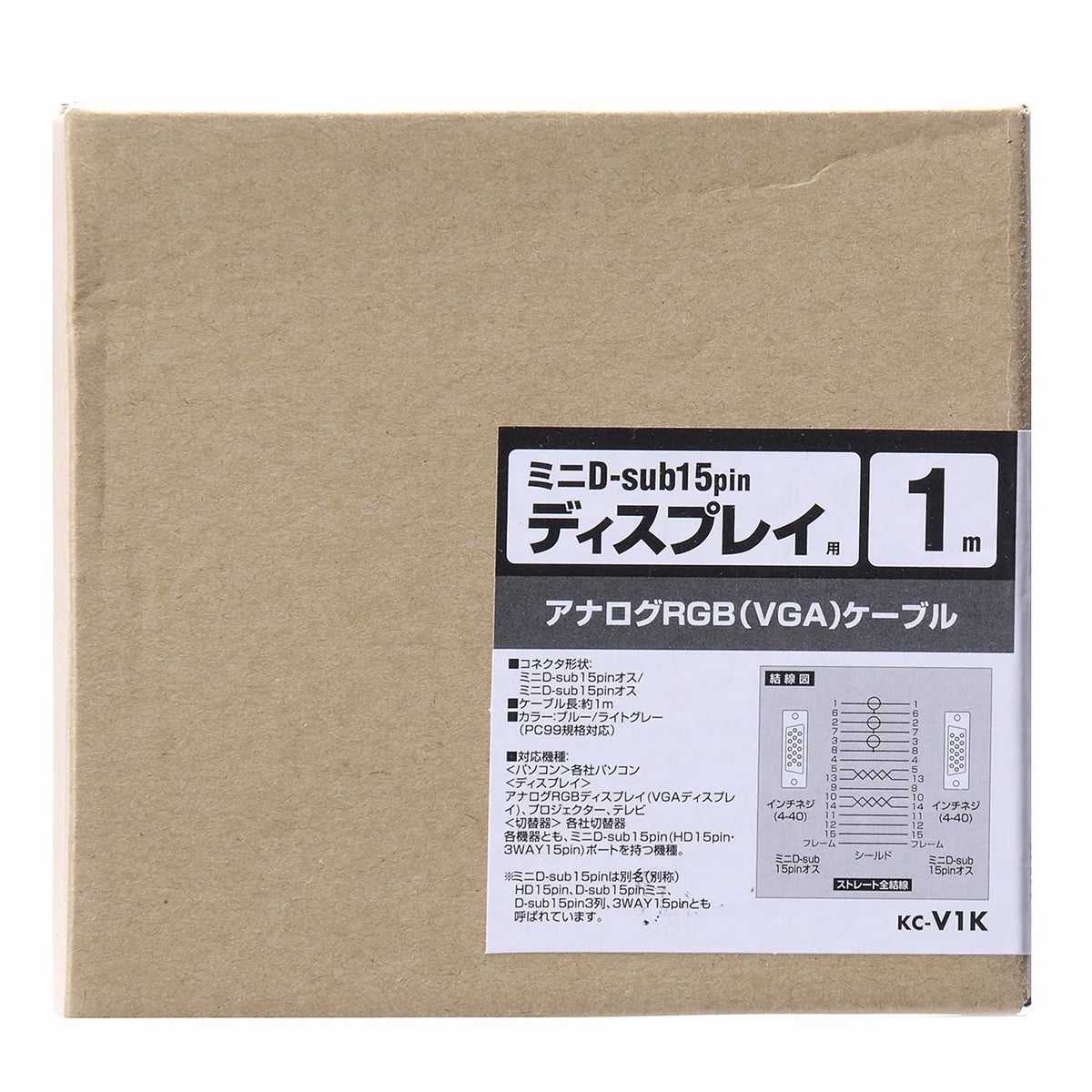

Display cable KC-V1K
Display cable KC-V1K
GTIN（JAN）：4969887846872
SKU：KC-V1K
Regular price
¥2,251 JPY
Regular price
Sale price
¥2,251 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Display Cable 1m Analog VGA Color Connector]
●This cable connects a computer with a mini D-sub 15-pin display terminal to a display, projector, etc., and also to a switch or splitter.
●This is a composite coaxial cable that uses 75-ohm coaxial cable for the R, G, and B video signals.It is highly resistant to noise and has extremely low signal loss, making it a high-quality cable with very little image degradation even in high-resolution modes.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has the inside solidified with resin molding and further shielded on all sides, preventing external interference and providing complete noise protection. It also has excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are highly resistant to rust and have little concern about signal degradation due to aging.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
●Lead-free solder, which contains almost no lead, is used to fix the cable's core wires to the pins inside the connector.
●Complies with the VESA DDCI standard and supports Windows 95 Plug & Play.
■Color: Light Gray
■Cable Length: 1m
■Connector Shape:
Mini D-sub (HD) 15-pin male inch screw (4-40) -
Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable Diameter: 9mm
■Cable Standard: UL2919
■Wiring: Straight through wiring
≪Custom Lot 500 pieces to≫
※Custom orders are possible for quantities greater than 500 pieces. The minimum lot size may vary, so please check in advance. For pricing, delivery times, specifications, etc., please contact Sanwa Supply sales.
*Custom production is possible from a single unit if materials and components such as connectors and wires conform to Sanwa Supply's specifications. (Custom production in small quantities is not possible for molded connectors or PC99 color specifications.)
●This cable connects a computer with a mini D-sub 15-pin display terminal to a display, projector, etc., and also to a switch or splitter.
●This is a composite coaxial cable that uses 75-ohm coaxial cable for the R, G, and B video signals.It is highly resistant to noise and has extremely low signal loss, making it a high-quality cable with very little image degradation even in high-resolution modes.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has the inside solidified with resin molding and further shielded on all sides, preventing external interference and providing complete noise protection. It also has excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are highly resistant to rust and have little concern about signal degradation due to aging.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
●Lead-free solder, which contains almost no lead, is used to fix the cable's core wires to the pins inside the connector.
●Complies with the VESA DDCI standard and supports Windows 95 Plug & Play.
■Color: Light Gray
■Cable Length: 1m
■Connector Shape:
Mini D-sub (HD) 15-pin male inch screw (4-40) -
Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable Diameter: 9mm
■Cable Standard: UL2919
■Wiring: Straight through wiring
≪Custom Lot 500 pieces to≫
※Custom orders are possible for quantities greater than 500 pieces. The minimum lot size may vary, so please check in advance. For pricing, delivery times, specifications, etc., please contact Sanwa Supply sales.
*Custom production is possible from a single unit if materials and components such as connectors and wires conform to Sanwa Supply's specifications. (Custom production in small quantities is not possible for molded connectors or PC99 color specifications.)
