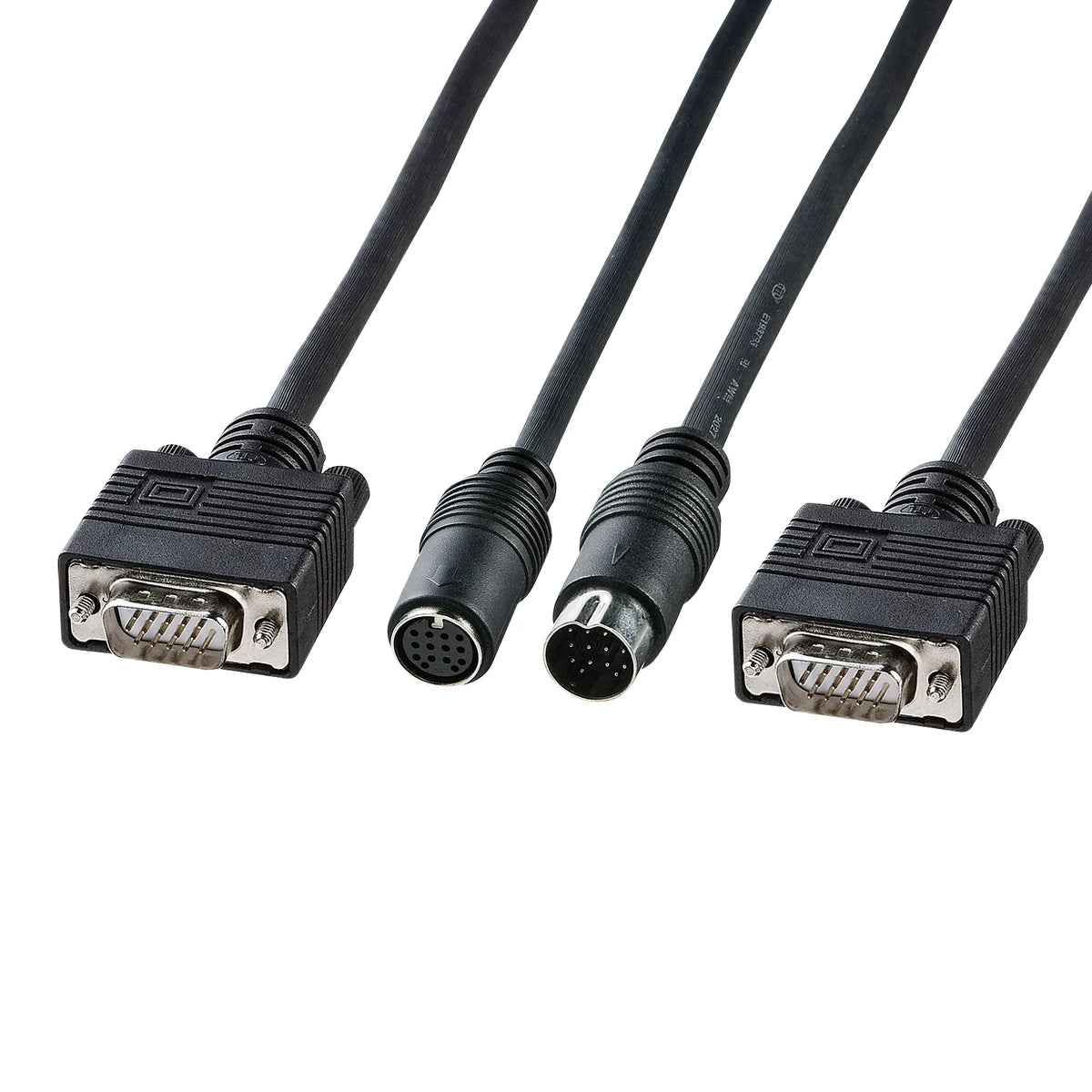

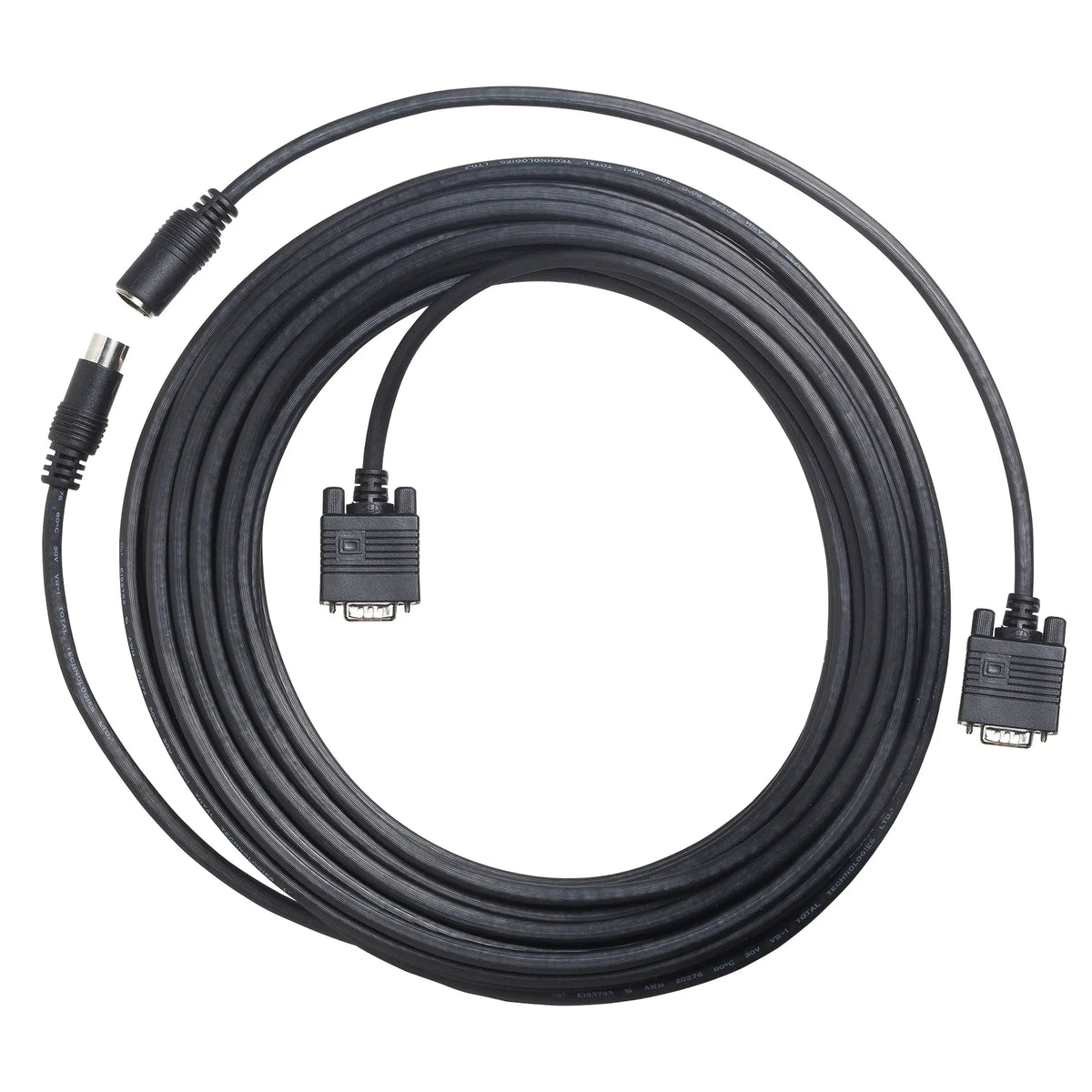

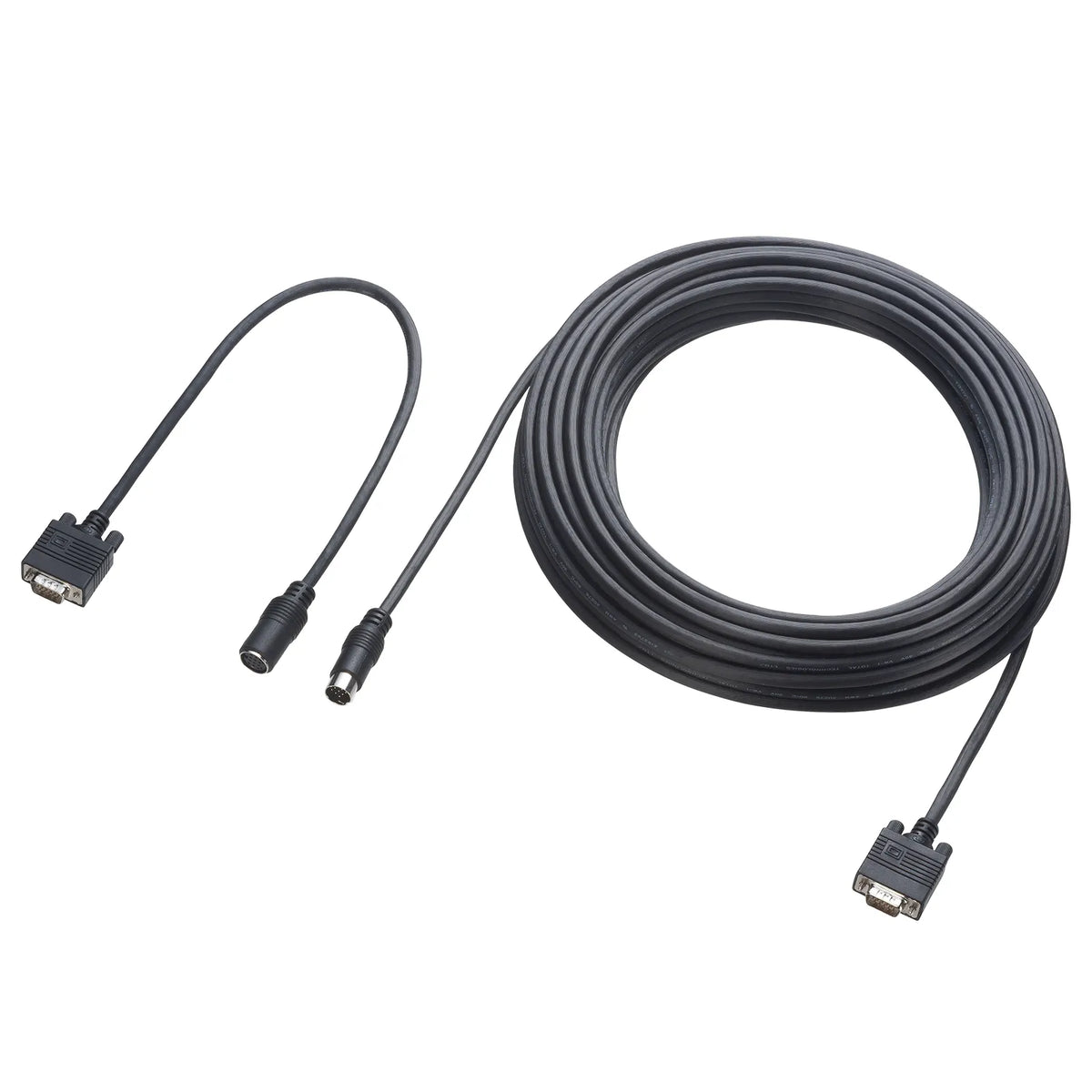

[Display Installation Cable 20m VGA (Analog RGB)]

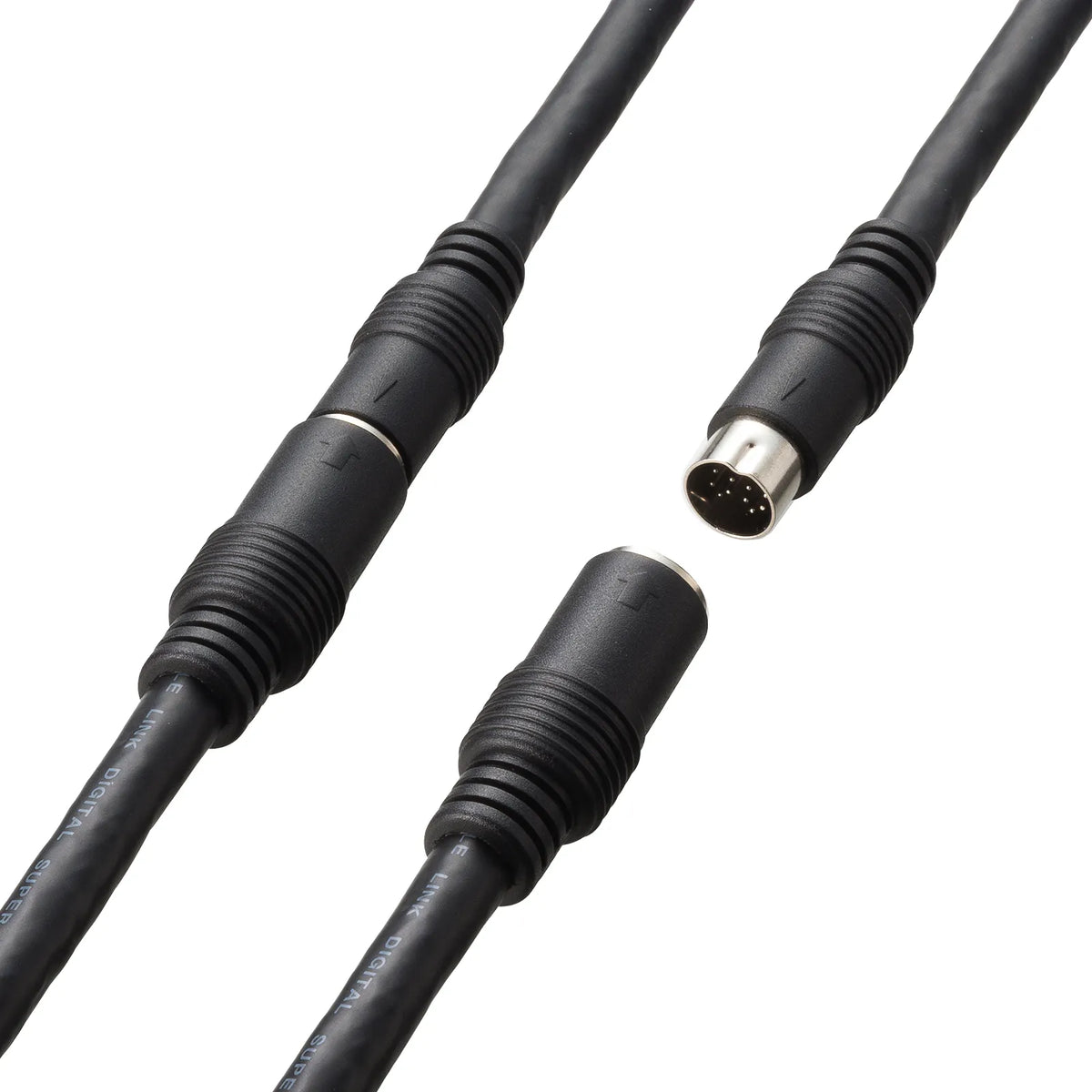

●This cable connects various manufacturers' DOS/V PCs to displays. ●This is a set of two installation cables that can be connected with a detachable DIN connector (20mm diameter) for easy routing through conduits. ●This is a composite coaxial cable that uses 75-ohm coaxial cable for R, G, and B video signals.It is highly resistant to noise and has extremely low signal loss, making it a high-quality cable with very little image degradation even in high-resolution modes. ●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies. ●The molded connector has a resin molded interior and is further fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance. ●Uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.

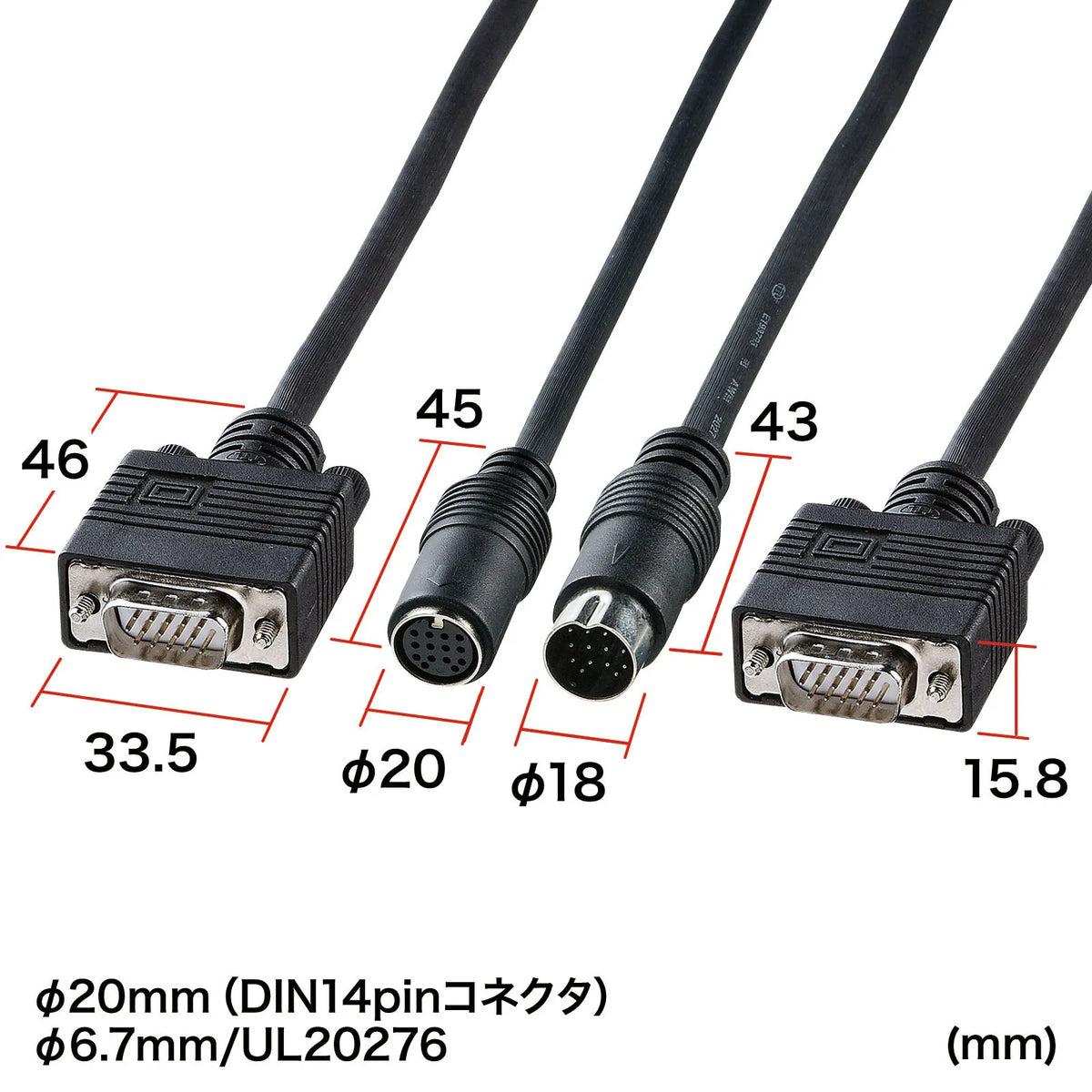

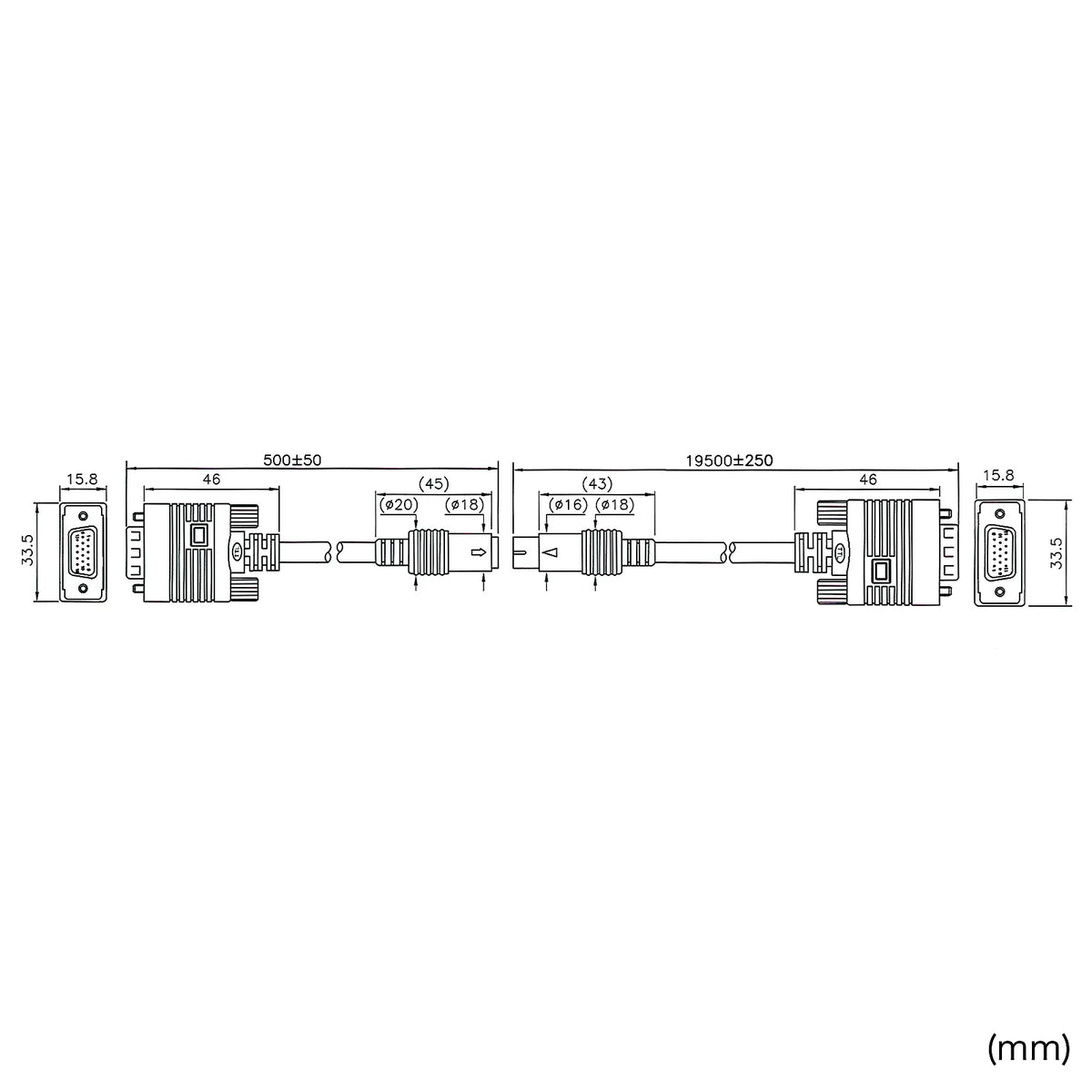

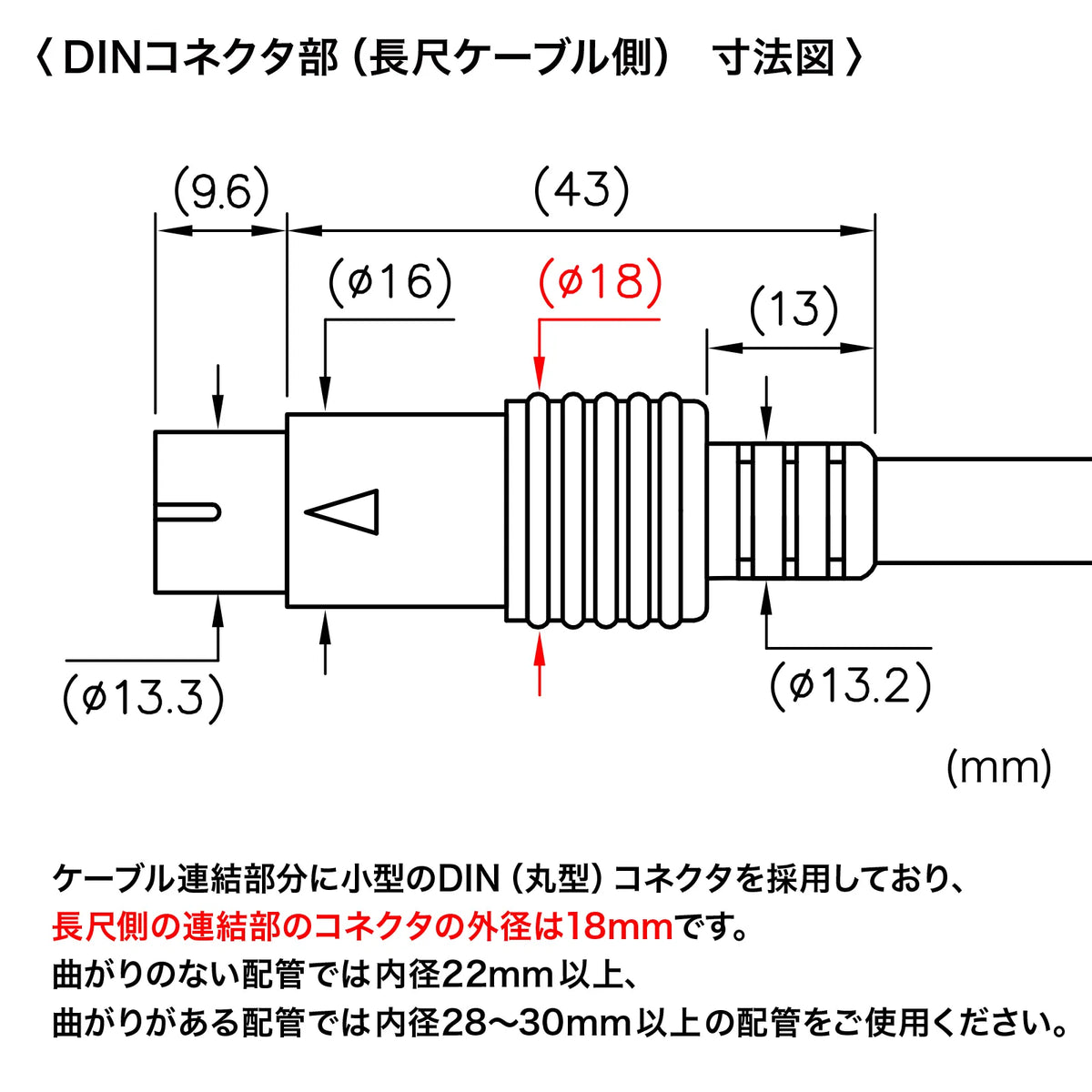

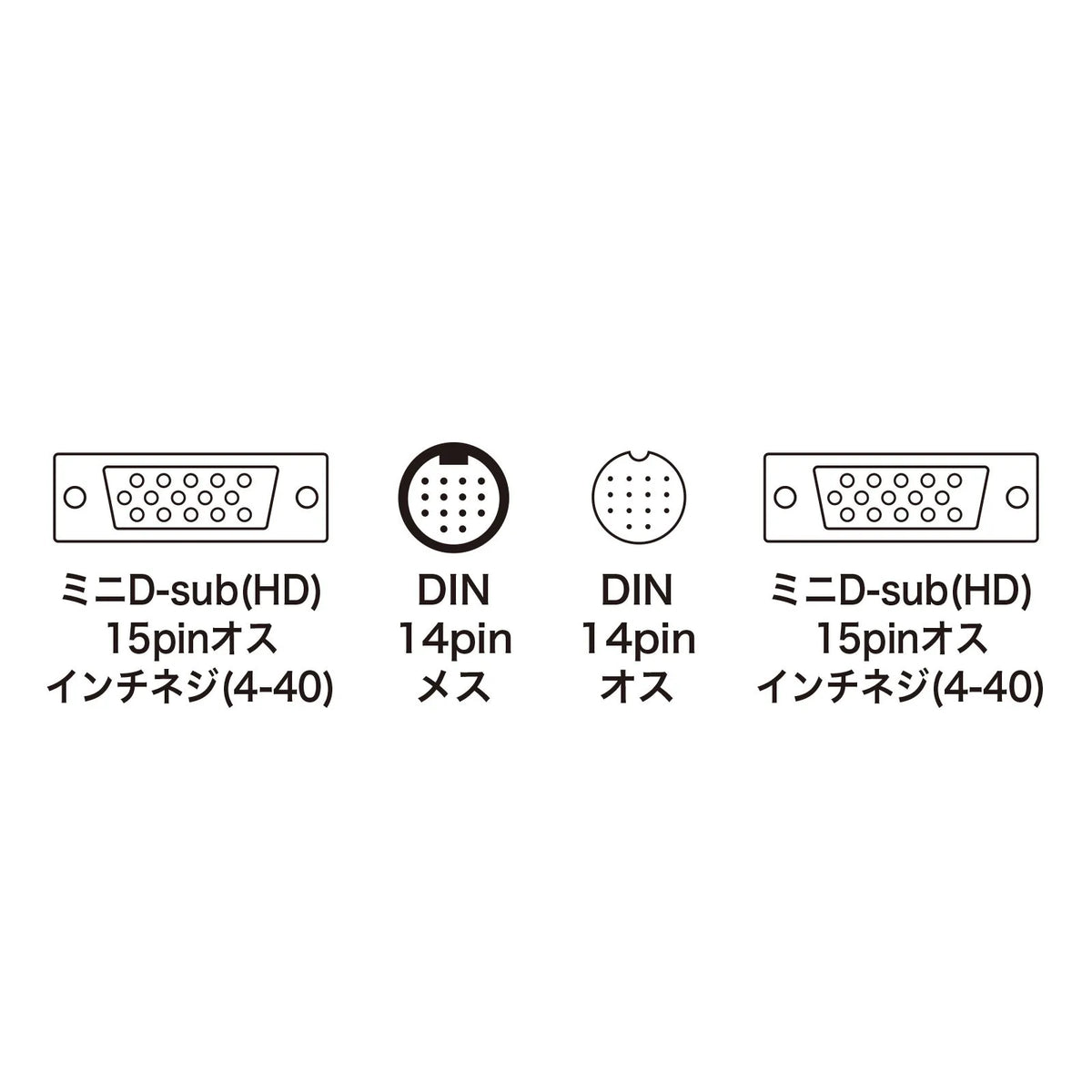

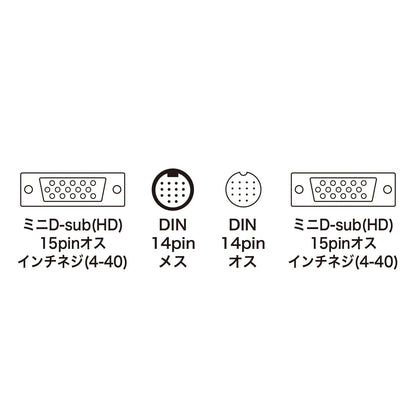

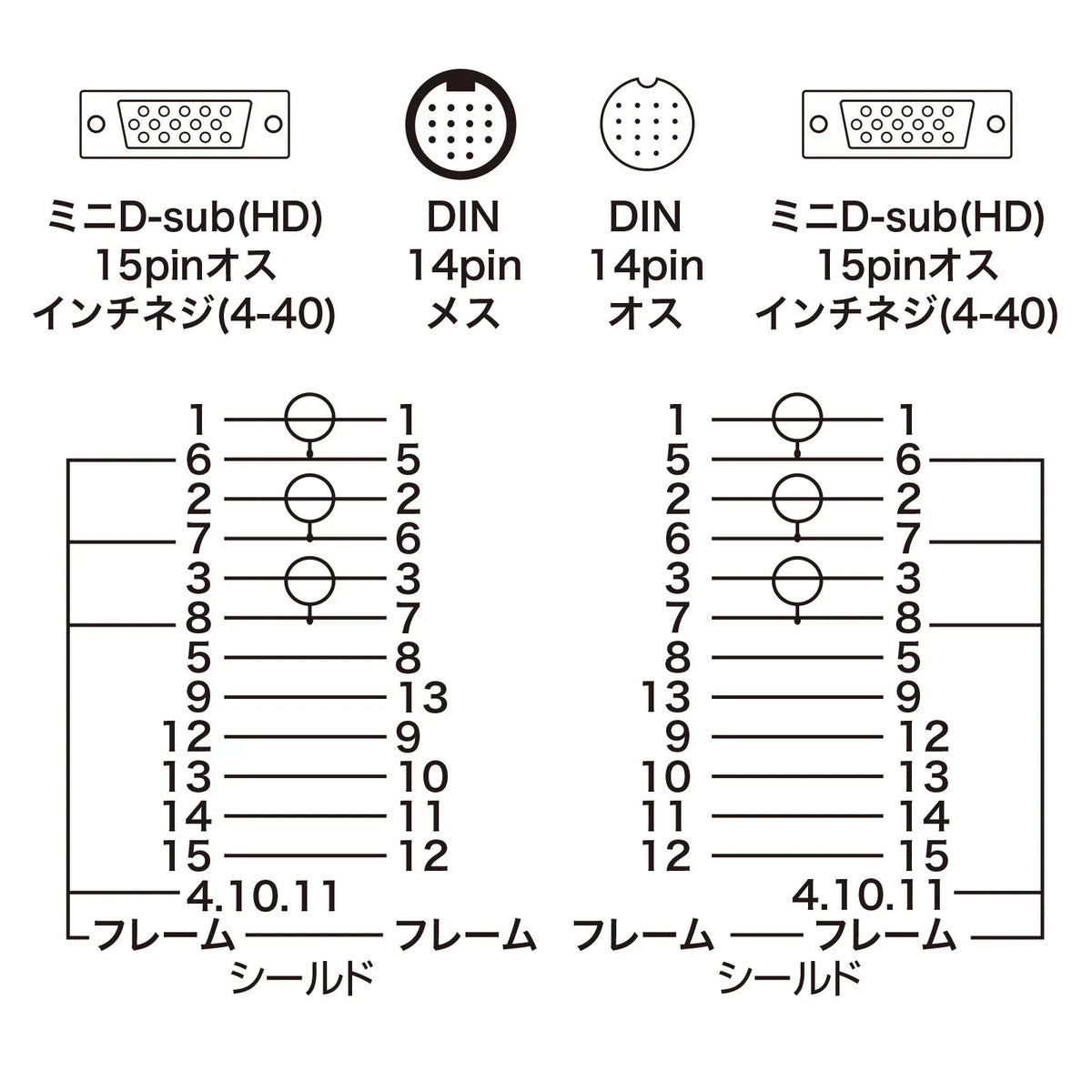

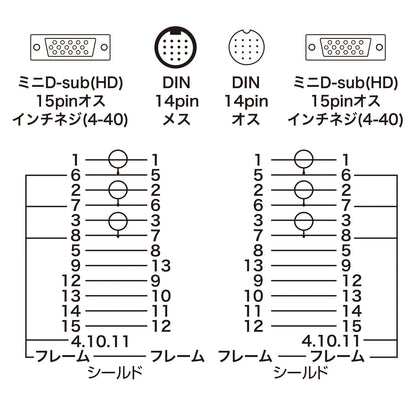

■Cable length: 19.5m + 0.5m ■Cable diameter: 6.7mm ■DIN14pin connector diameter: 20mm ■Connector shape: Mini D-sub (HD) 15pin male inch screw (4-40) - DIN14pin male Mini D-sub (HD) 15pin male inch screw (4-40) - DIN14pin female ■Wire standard: UL20276
