[DVI Installation Cable 10m Digital Single Link]

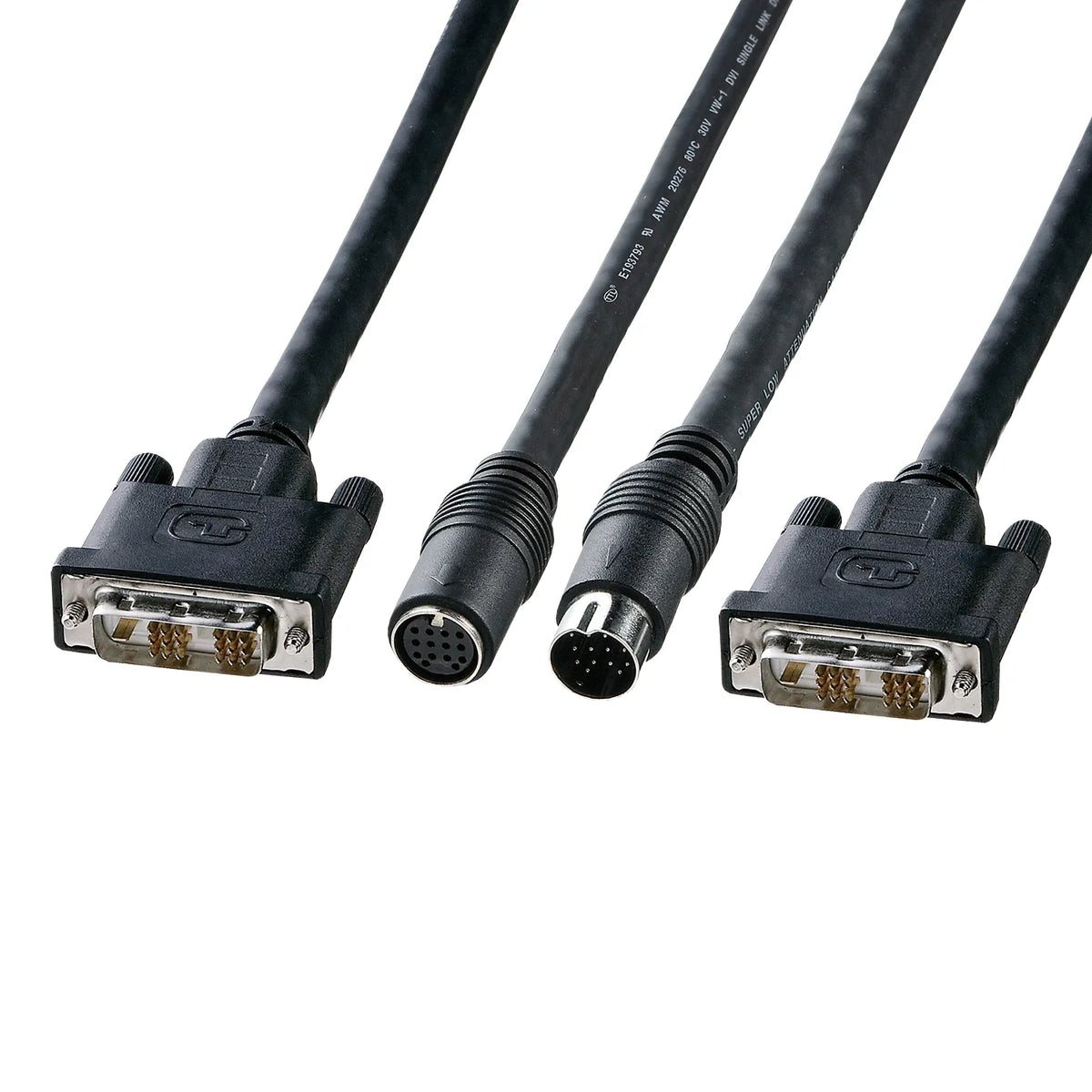

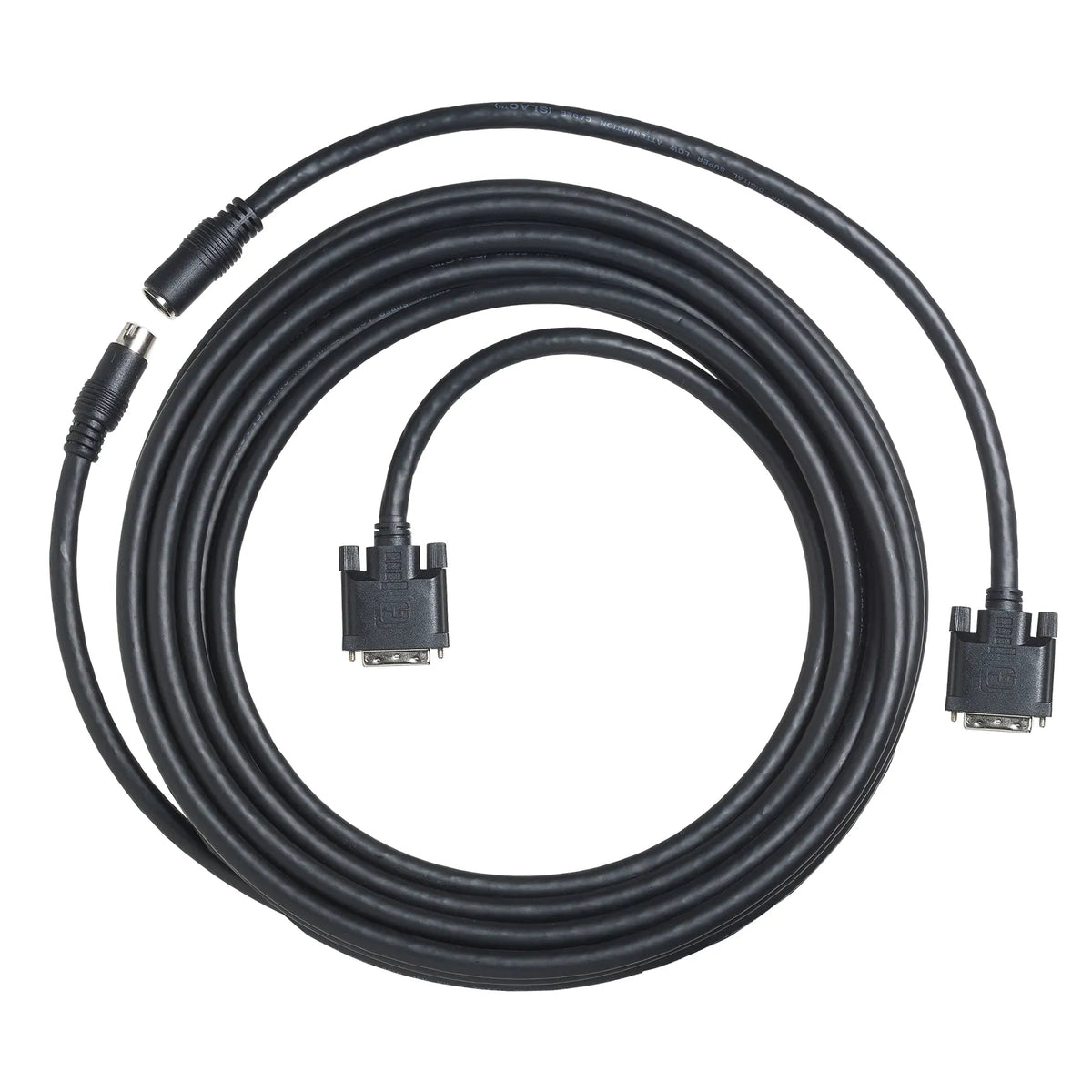

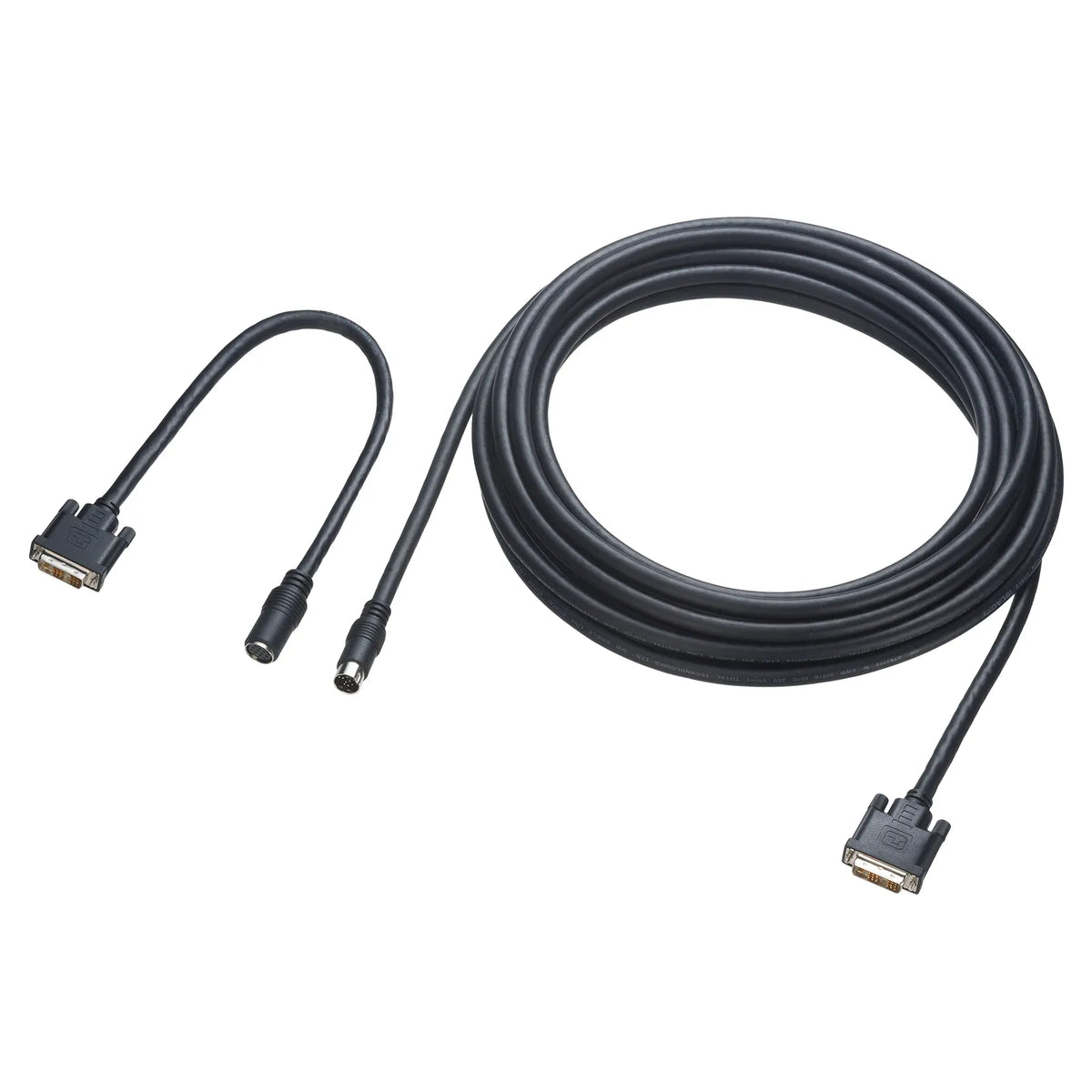

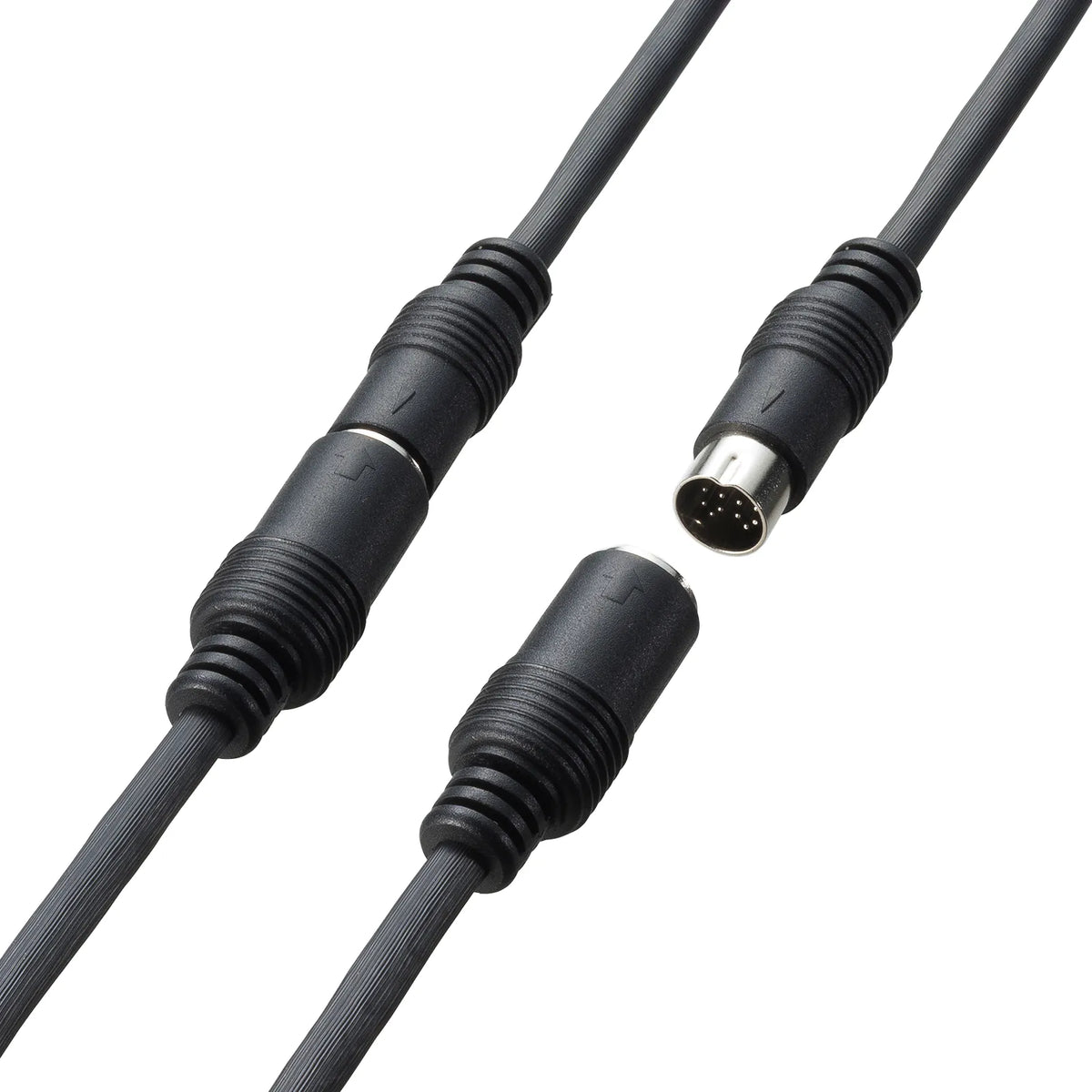

●This cable connects a computer with a DVI (29-pin or 24-pin) connector to a digital LCD display with a DVI (29-pin or 24-pin) connector. ●For single-link mode only. ※Cannot be used in dual-link mode or analog mode. ●This cable comes in a pair of cables that can be connected using a detachable DIN connector (20mm diameter) for easy routing through conduits. ●A thick cable with an outer diameter of 9.8mm is used to minimize signal loss even during long-distance transmission of 10m. ●The cable has triple shielding from the center outwards: "aluminum shield → aluminum shield → high-density braided shield" for even higher shielding performance. (TMDS signal lines only) ●It uses noise-resistant twisted pair wires with two core wires twisted together. (TMDS signal lines only) ●This molded connector has an internal resin mold and is fully shielded, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance. ●It uses gold-plated pins (contacts) that are resistant to rust and have minimal signal degradation due to aging.

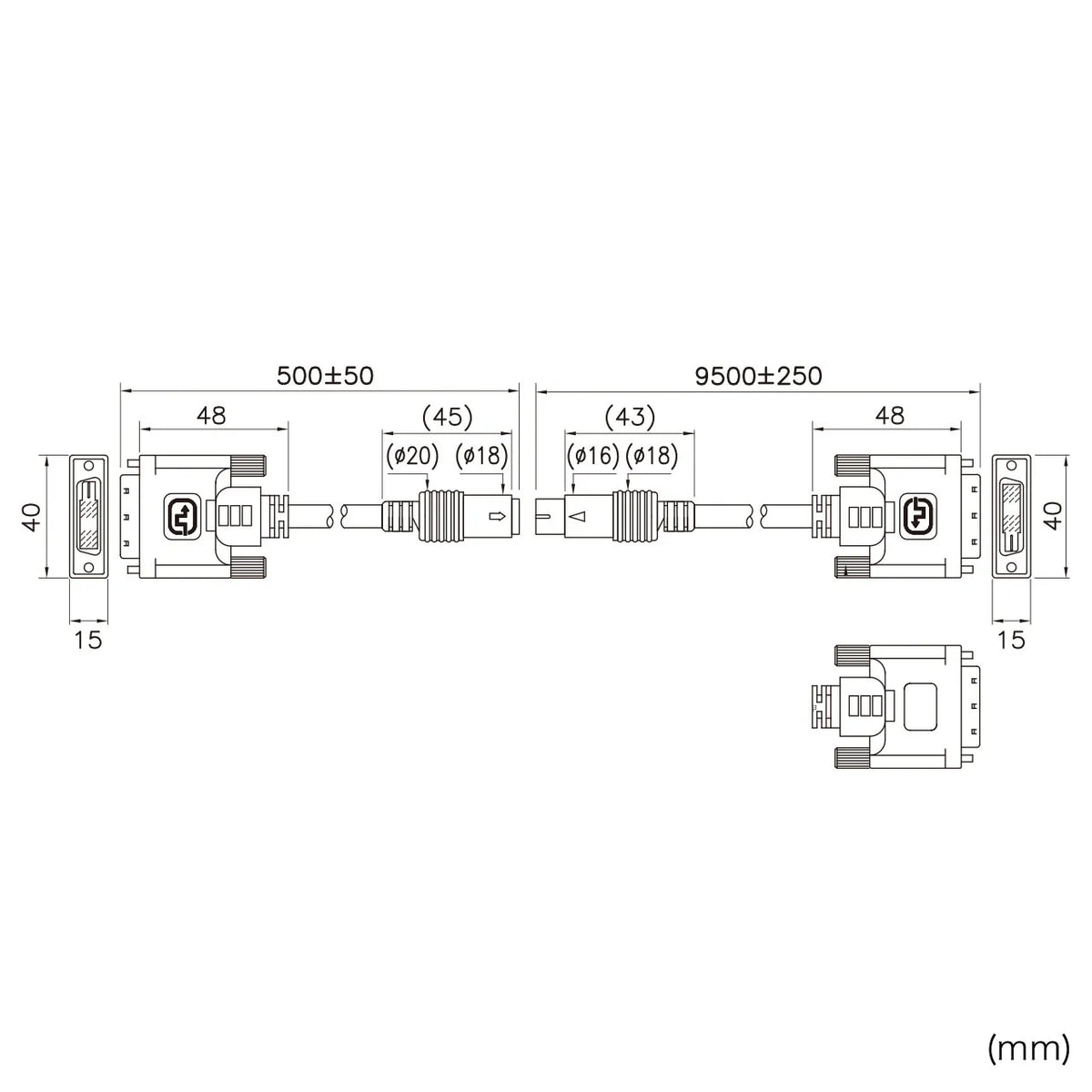

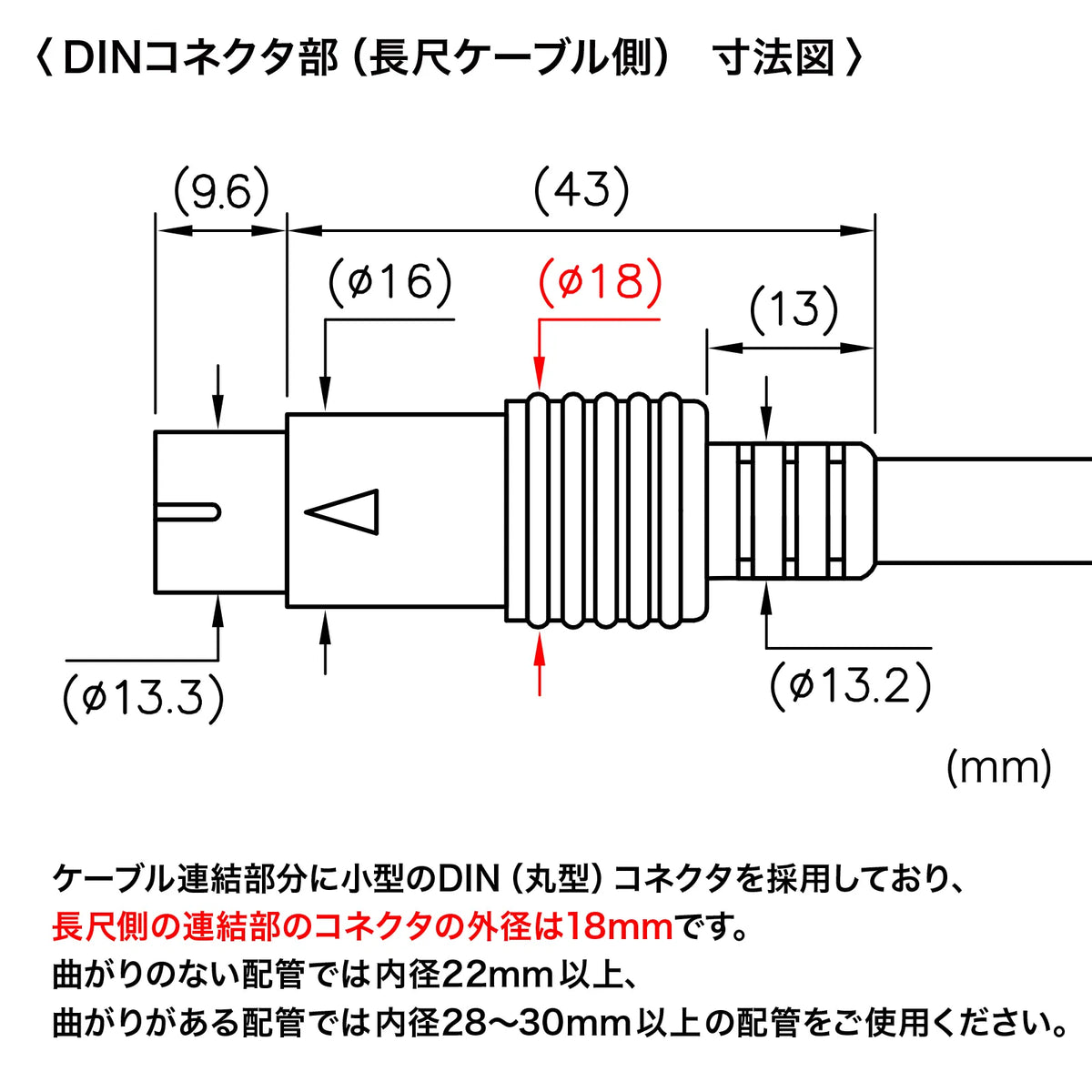

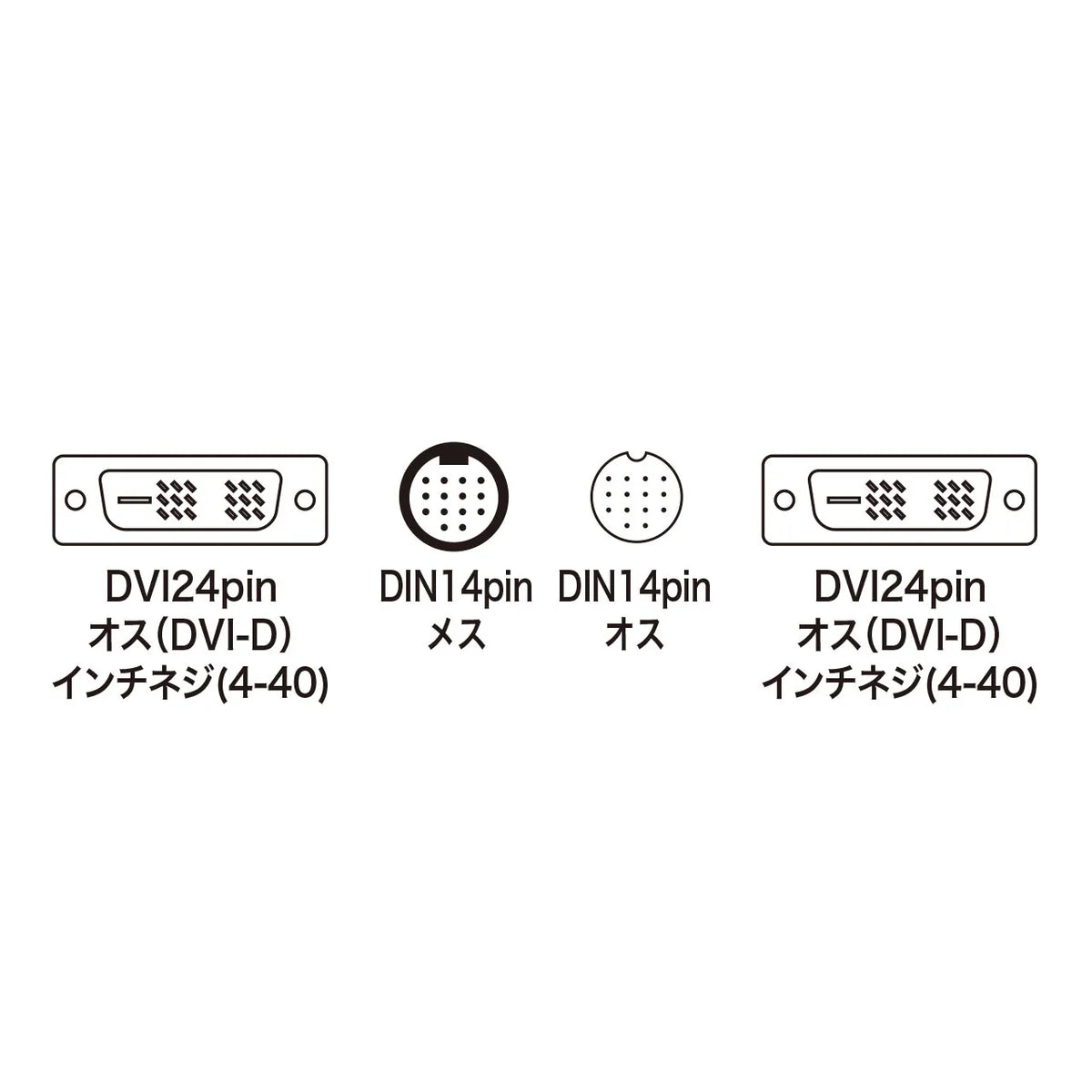

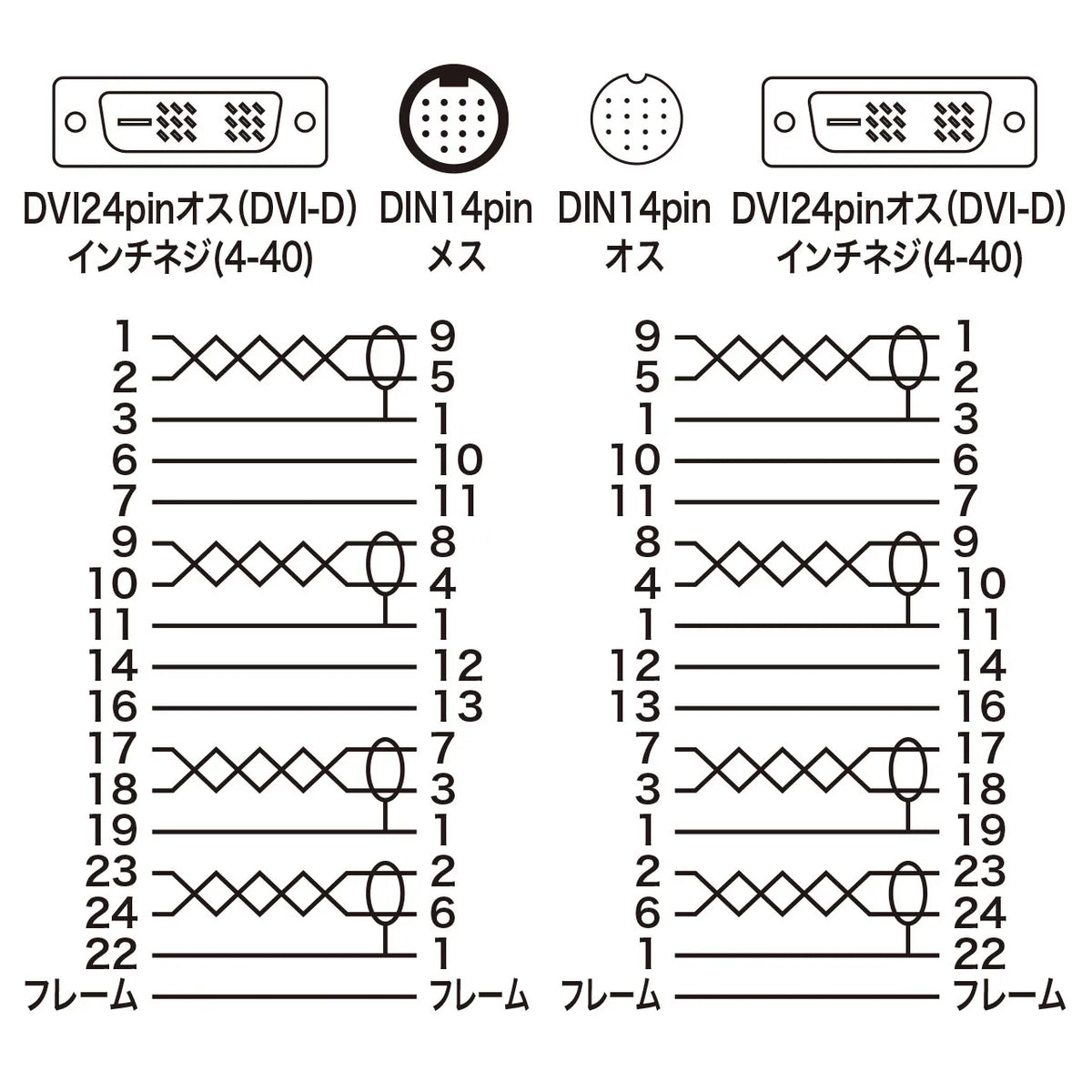

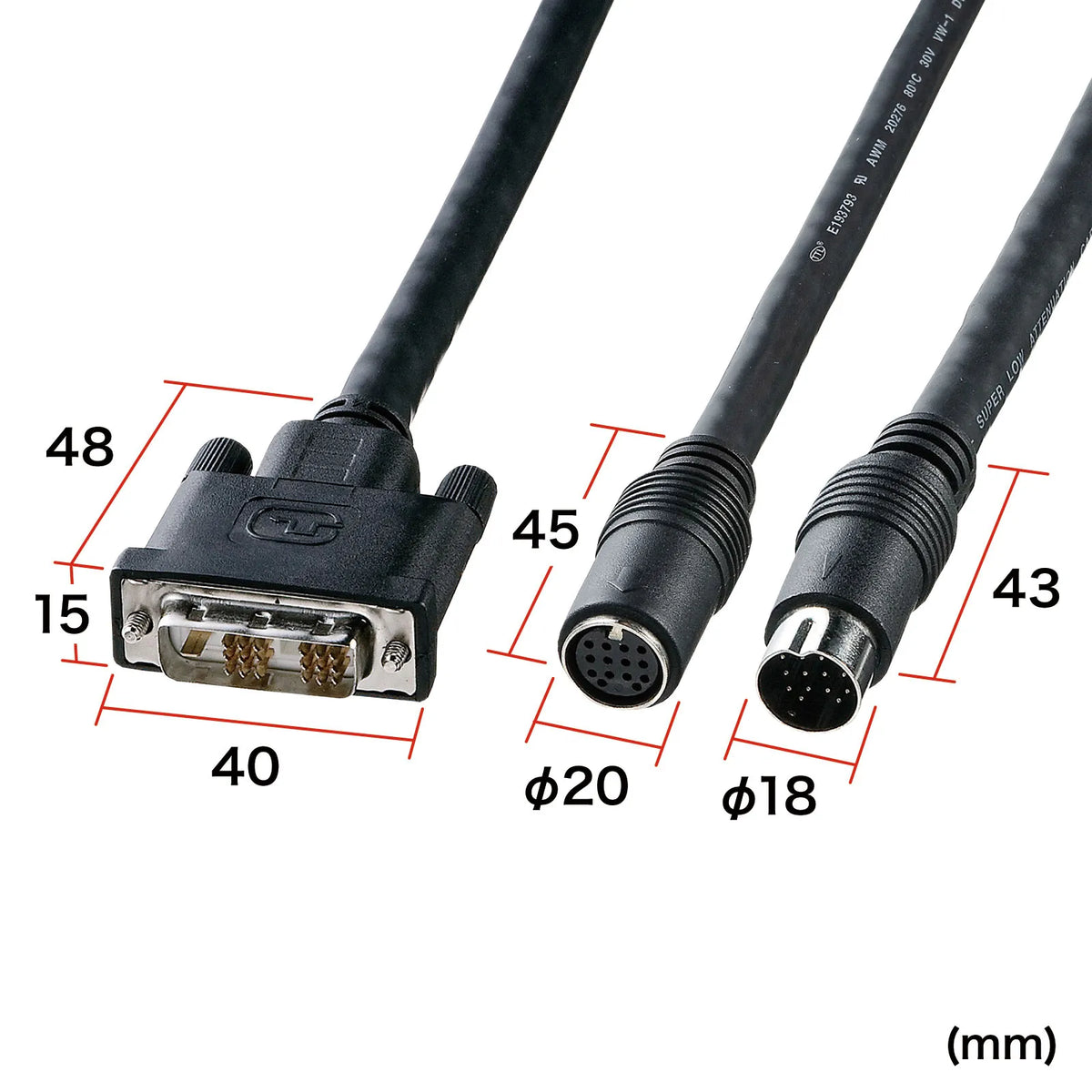

■Color: Black ■Cable length: 10m (9.5m + 0.5m) ■Cable diameter: 9.8mm ■DIN14pin connector diameter: 20mm ■Connector shape: DVI24pin male (DVI-D) inch screw (4-40) - DIN14pin male DVI24pin male (DVI-D) inch screw (4-40) - DIN14pin female ■Wire standard: UL20276 ≪Custom order lot 500 pieces to≫ *Custom orders are possible for orders of more than 500 pieces. The minimum order quantity may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
