SANWA SUPPLY
DVI cable (analog) KC-DVI-HD1K3
DVI cable (analog) KC-DVI-HD1K3
GTIN（JAN）：4969887763728
SKU：KC-DVI-HD1K3
Regular price
¥2,178 JPY
Regular price
Sale price
¥2,178 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

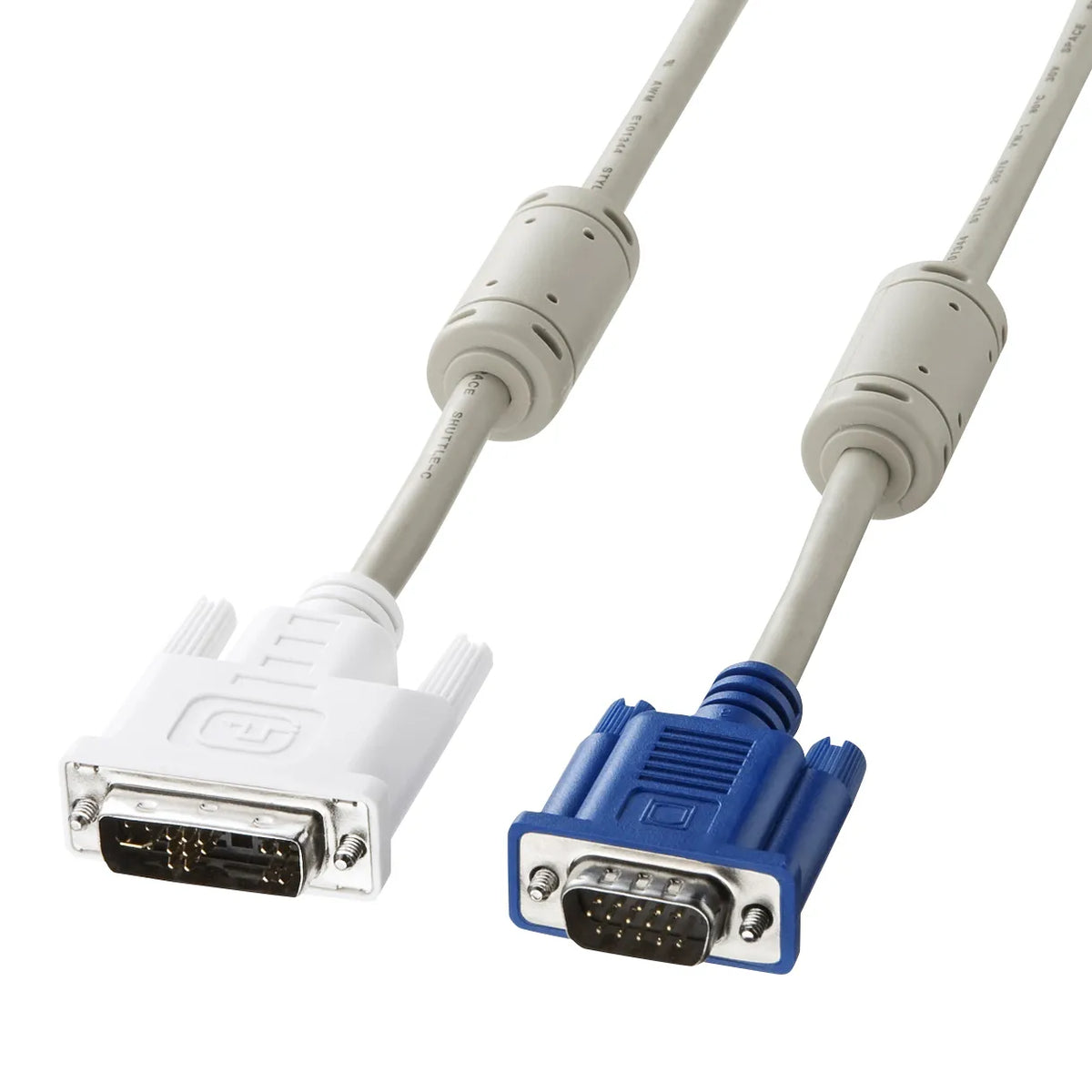

【DVI-A Analog Mode Cable 1m】
●This cable connects a computer with a DVI-A (29-pin) port to an analog display with a mini D-sub (HD) 15-pin connector, or a computer with a mini D-sub (HD) 15-pin port to a digital/analog compatible display with a DVI-A (29-pin) port in analog mode.
●This is a composite coaxial cable that uses 75-ohm coaxial cable for the R, G, and B video signals. It is highly resistant to noise and has extremely low signal loss, making it a high-quality cable with very little image degradation even in high-resolution mode.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has the inside solidified with resin molding and is further shielded on all sides, preventing external interference and providing complete noise protection. It also boasts excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are highly resistant to rust and minimize signal degradation due to aging.

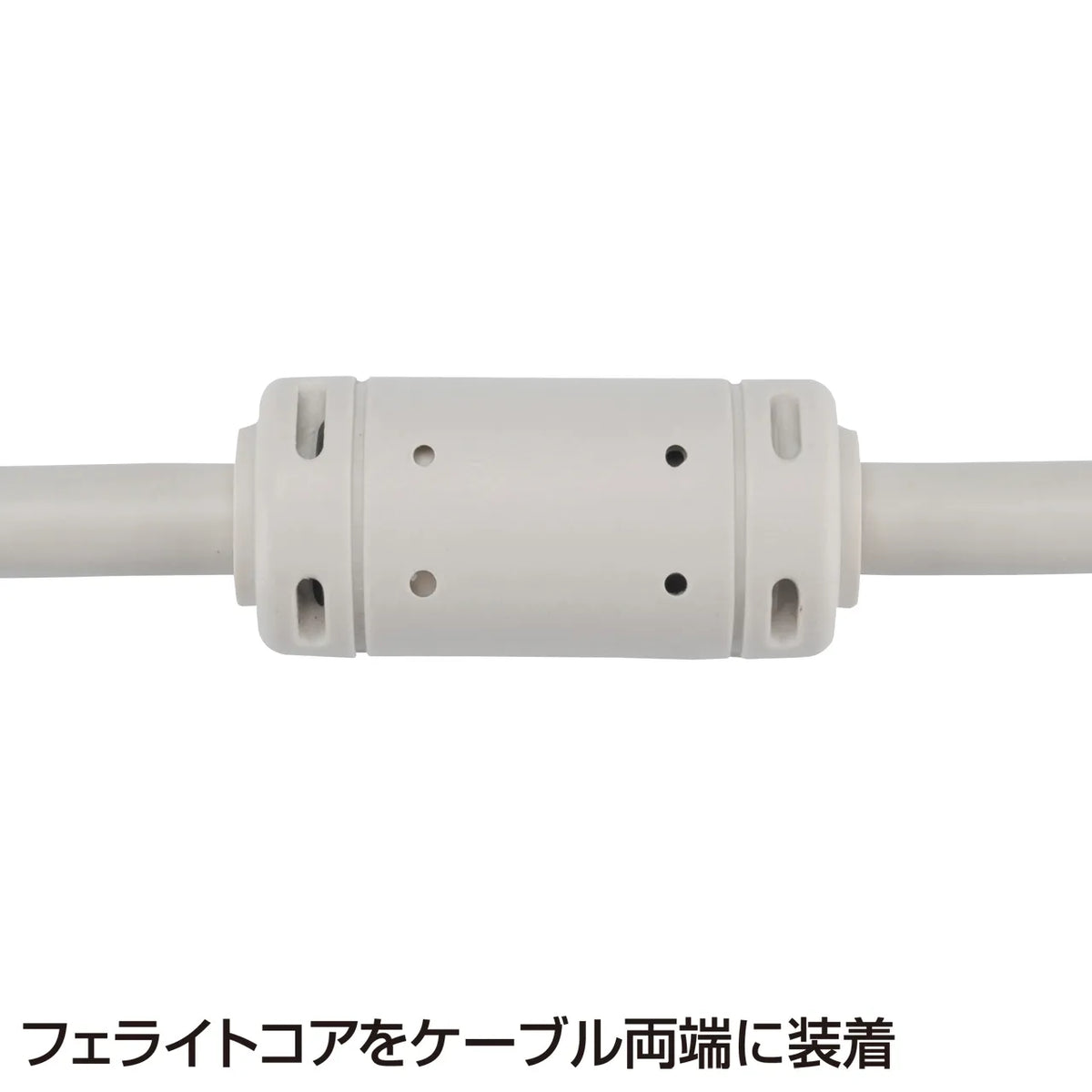

●Ferrite cores that absorb high-frequency noise are attached to both ends of the cable.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
■Color: Connector (DVI)/White (PC99 standard compliant)
Connector (Mini D-sub)/Blue (PC99 standard compliant)
■Cable diameter: 6.4mm
■Cable length: 1m

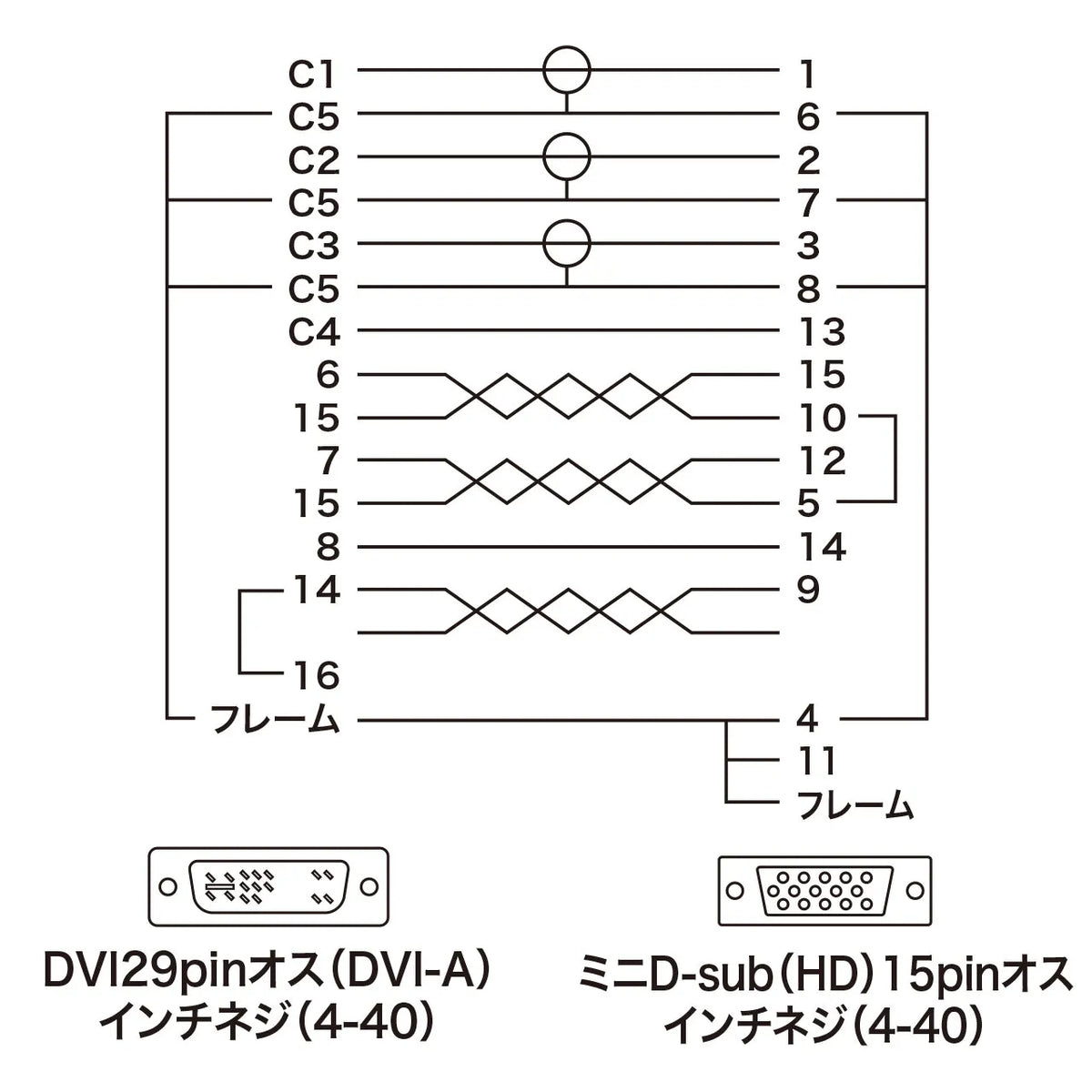

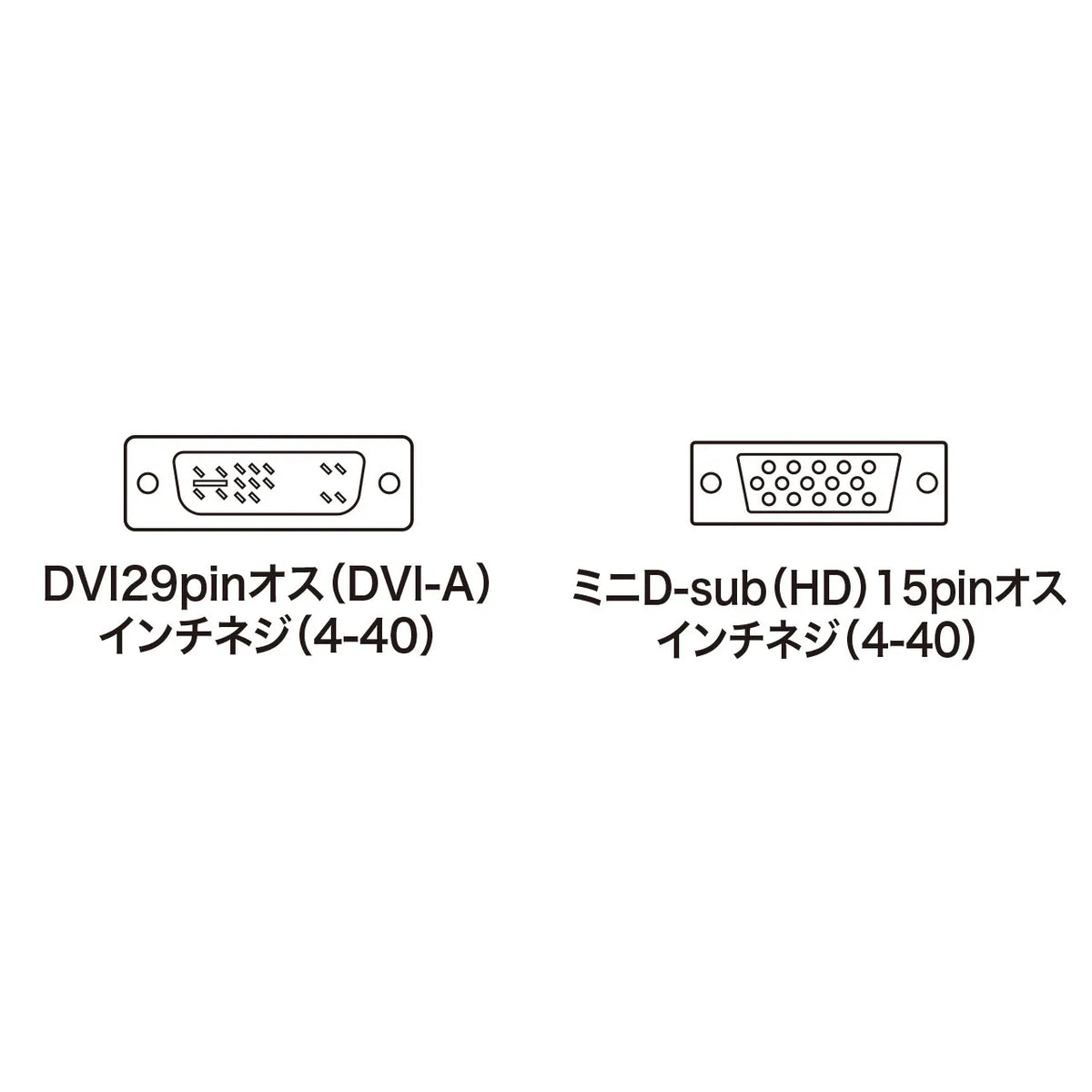

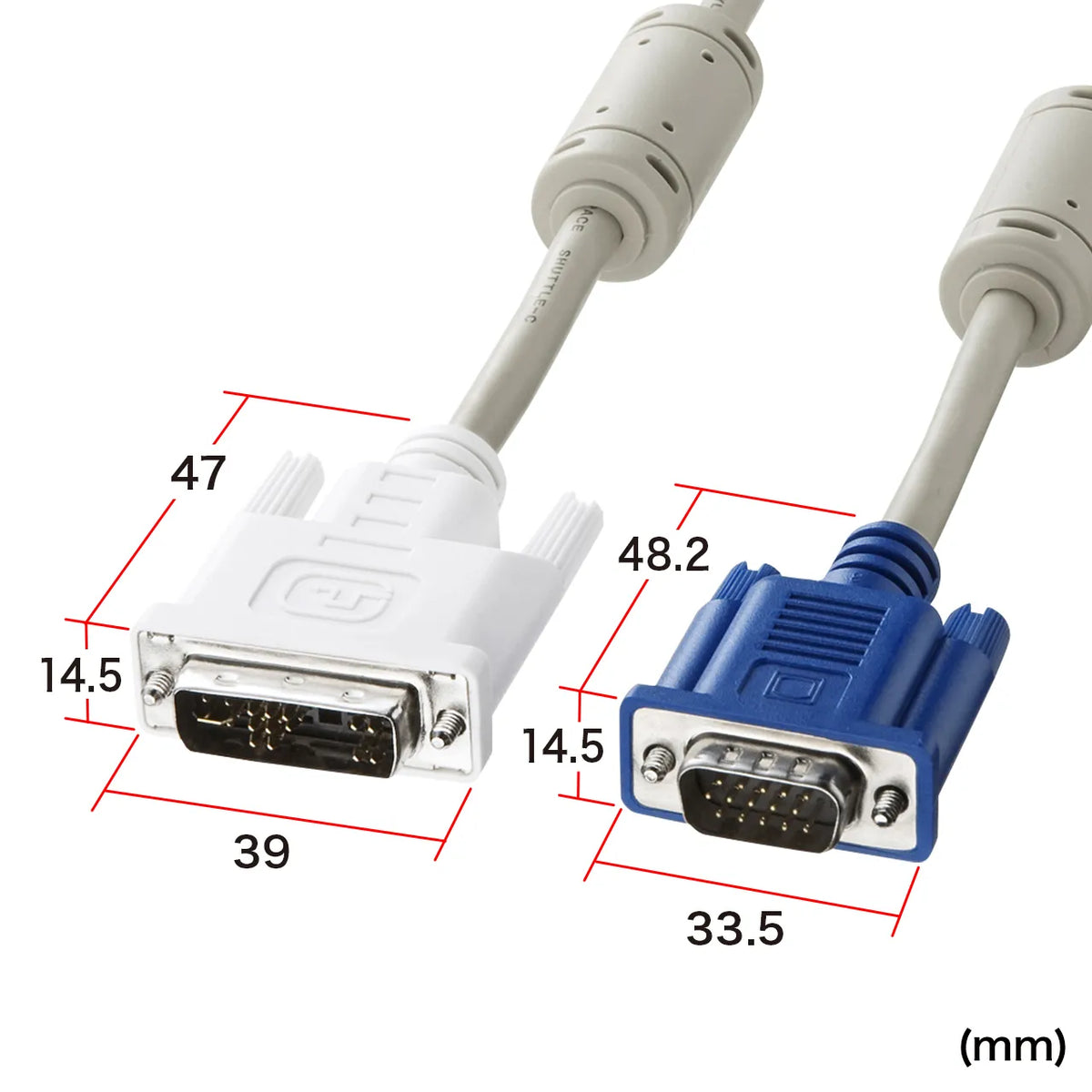

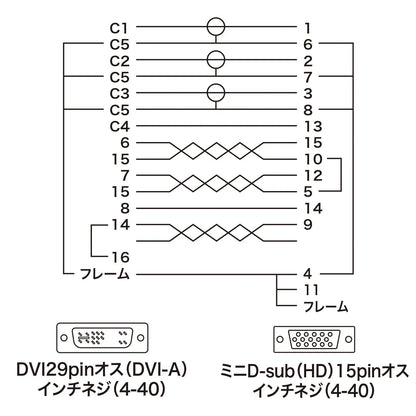

■Connector shape:

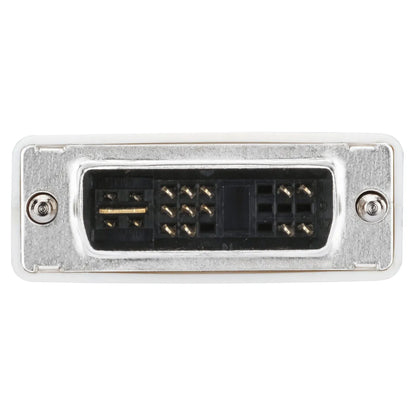

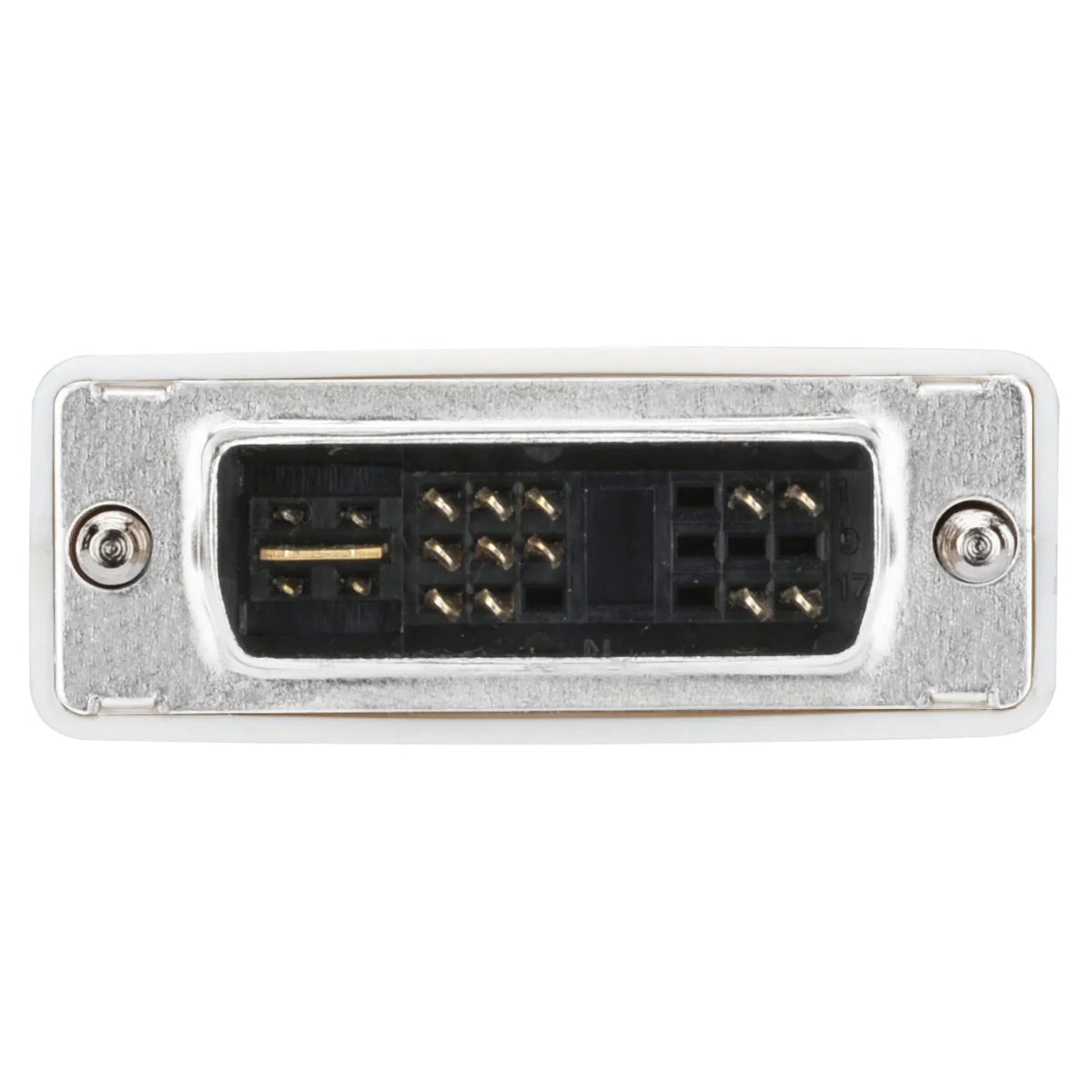

DVI 29-pin male (DVI-A) inch screw (4-40) -

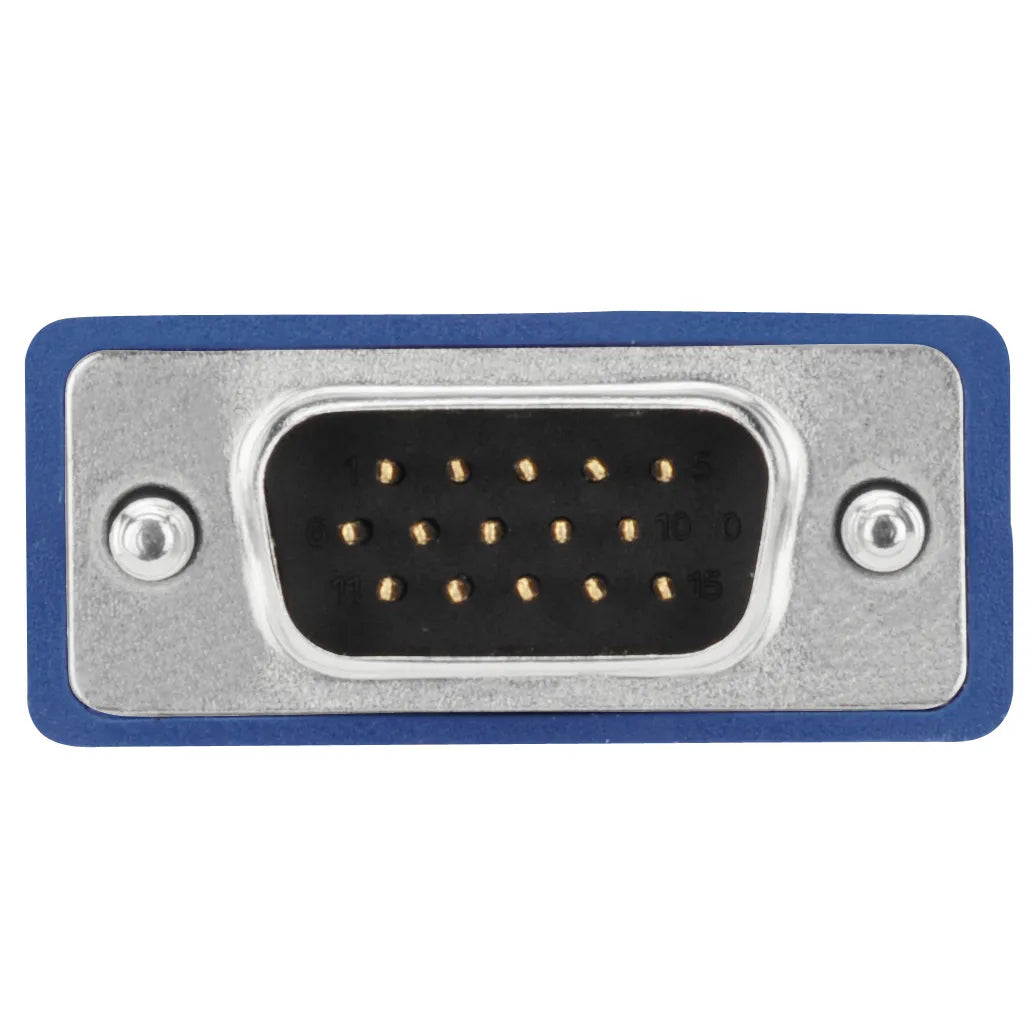

Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable standard: UL20276
■Supported mode: DVI analog mode
■Weight: Approx. 159g
≪Custom order lot size from 500 units≫
*Custom orders are possible for orders of more than 500 units. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
●This cable connects a computer with a DVI-A (29-pin) port to an analog display with a mini D-sub (HD) 15-pin connector, or a computer with a mini D-sub (HD) 15-pin port to a digital/analog compatible display with a DVI-A (29-pin) port in analog mode.
●This is a composite coaxial cable that uses 75-ohm coaxial cable for the R, G, and B video signals. It is highly resistant to noise and has extremely low signal loss, making it a high-quality cable with very little image degradation even in high-resolution mode.
●This is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●The molded connector has the inside solidified with resin molding and is further shielded on all sides, preventing external interference and providing complete noise protection. It also boasts excellent vibration and shock resistance.
●It uses gold-plated pins (contacts) that are highly resistant to rust and minimize signal degradation due to aging.
●Ferrite cores that absorb high-frequency noise are attached to both ends of the cable.
●This is a PC99 cable based on the PC standard jointly created by Intel and Microsoft. The connectors are color-coded to ensure correct connection between the PC and peripherals.
■Color: Connector (DVI)/White (PC99 standard compliant)
Connector (Mini D-sub)/Blue (PC99 standard compliant)
■Cable diameter: 6.4mm
■Cable length: 1m
■Connector shape:
DVI 29-pin male (DVI-A) inch screw (4-40) -
Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable standard: UL20276
■Supported mode: DVI analog mode
■Weight: Approx. 159g
≪Custom order lot size from 500 units≫
*Custom orders are possible for orders of more than 500 units. The minimum lot size may vary, so please check in advance. For price, delivery time, specifications, etc., please contact Sanwa Supply sales.
