SANWA SUPPLY
DisplayPort ver2.1 cable 1m (DP40) KC-DP4010
DisplayPort ver2.1 cable 1m (DP40) KC-DP4010
GTIN（JAN）：4969887771921
SKU：KC-DP4010
Regular price
¥3,194 JPY
Regular price
Sale price
¥3,194 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[DisplayPort ver.2.1 DP40 Certified UHBR13.5/UHBR10 Compatible Cable 1m]

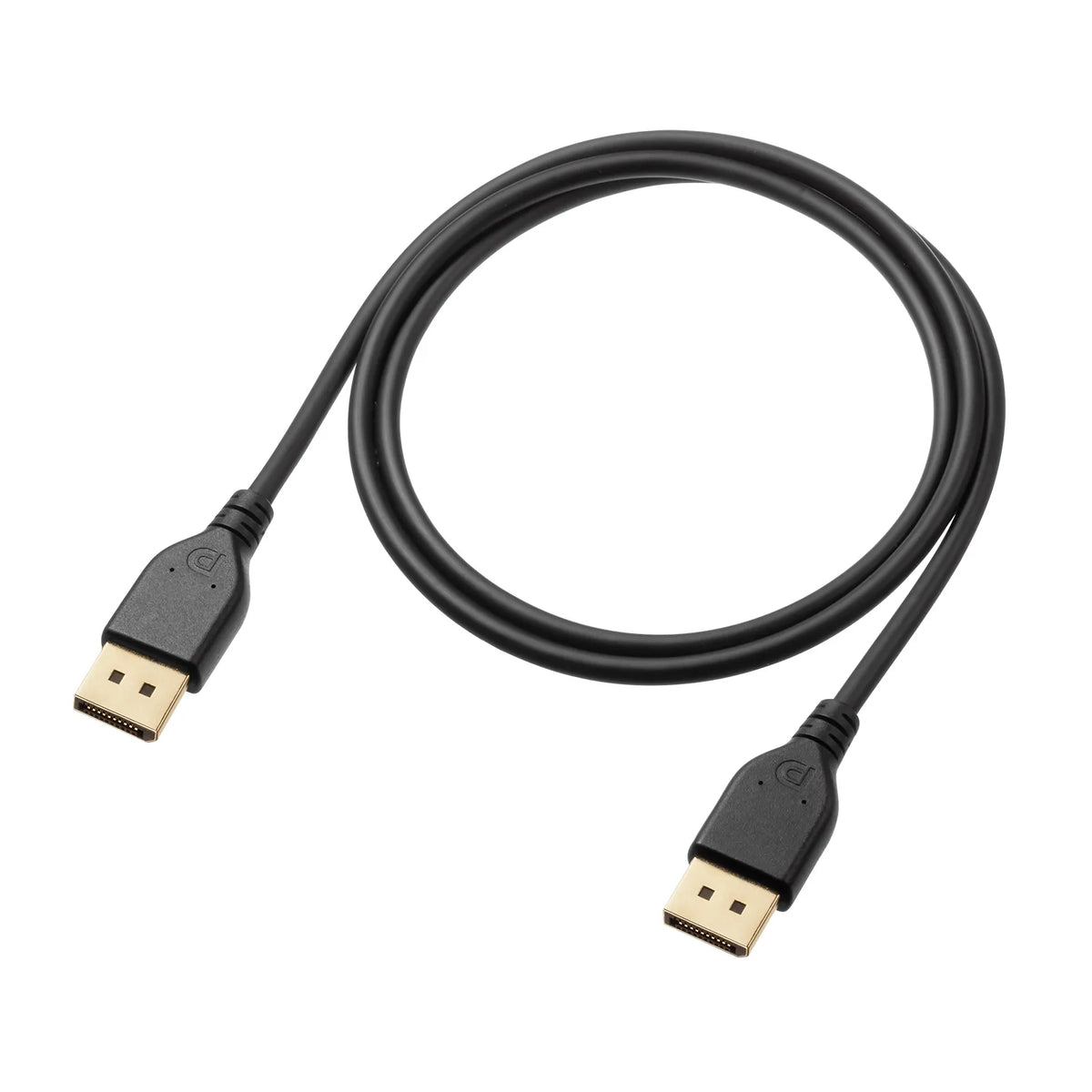

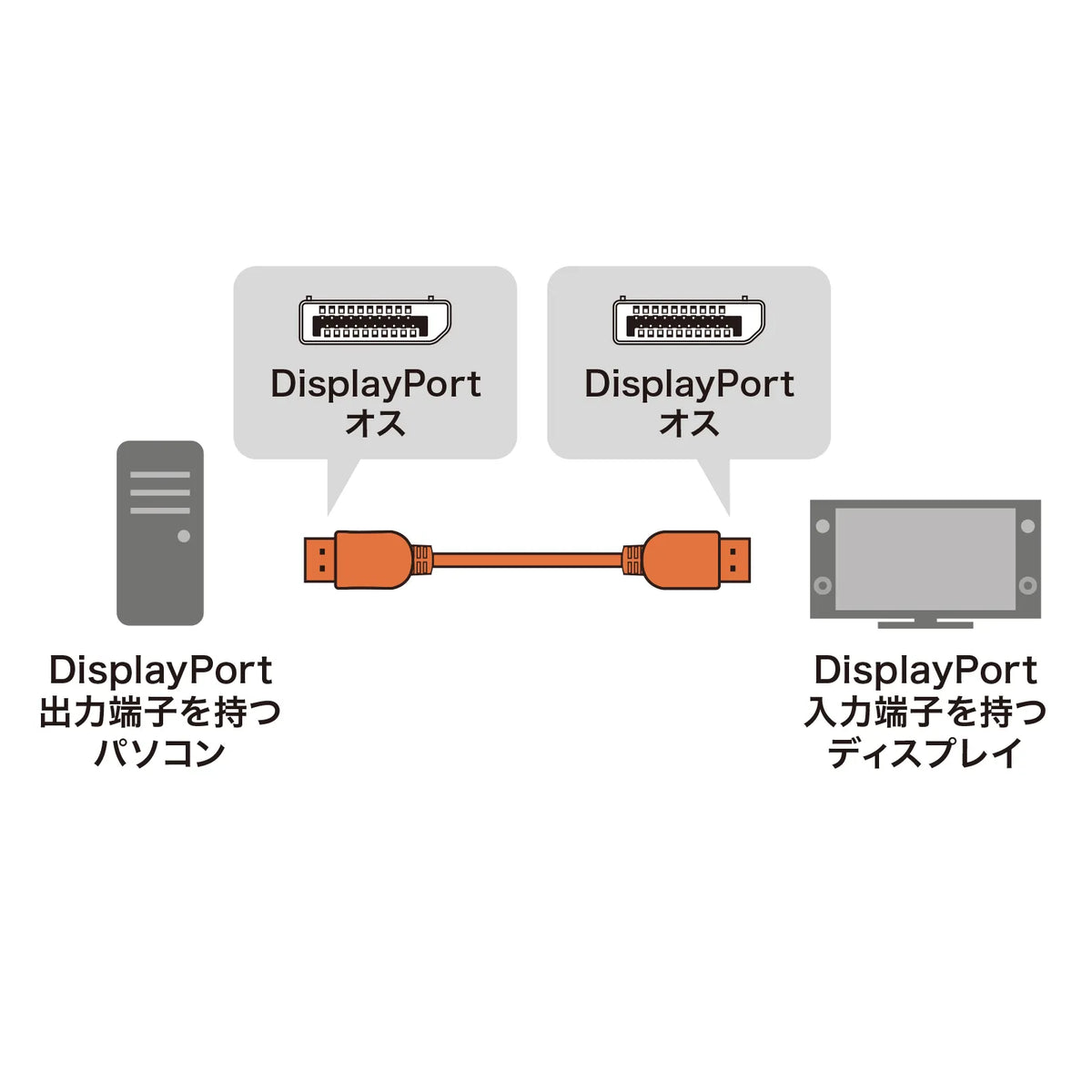

●This is a DisplayPort cable for connecting a DisplayPort-compatible computer and a display.
●Compatible with DisplayPort standard ver.2.1. Supports transfer speeds of 54Gbps and 40Gbps with UHBR13.5 and UHBR10. Enables high-resolution and high-refresh-rate image display.
*Depending on the screen display specifications, Display Stream Compression (DSC) may be required.
*Does not support UHBR20.
*Can also be used in DisplayPort ver.2.0/1.4/1.3/1.2 environments.
●Supports HDR and DHDR (Dynamic-HDR). It is possible to dynamically change the brightness and darkness frame by frame, making dark images darker and bright images brighter.
●Supports DSC (Display Stream Compression) technology.

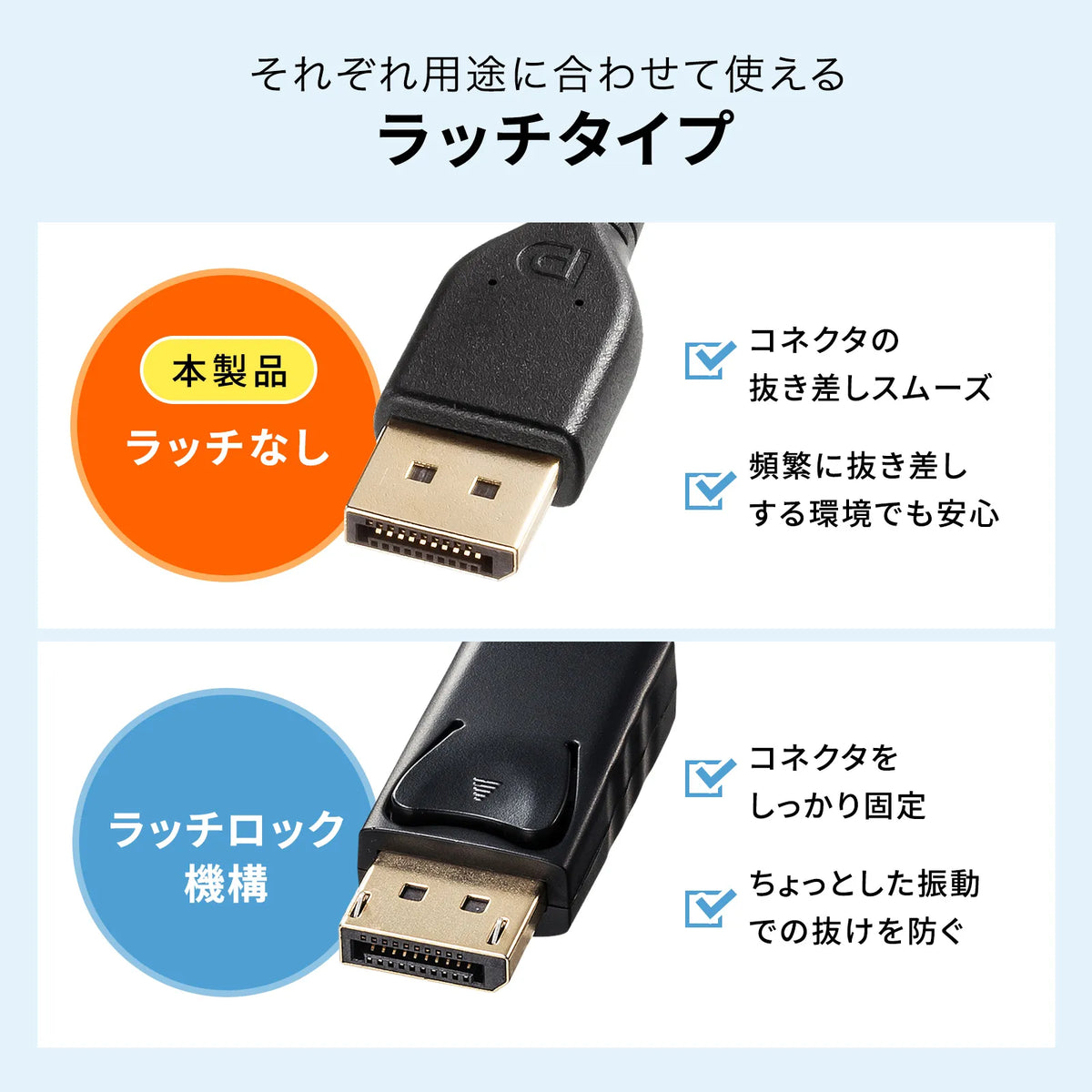

●Features a connector without a retaining hook, making it easy to plug and unplug even in environments where plugging and unplugging is frequent.

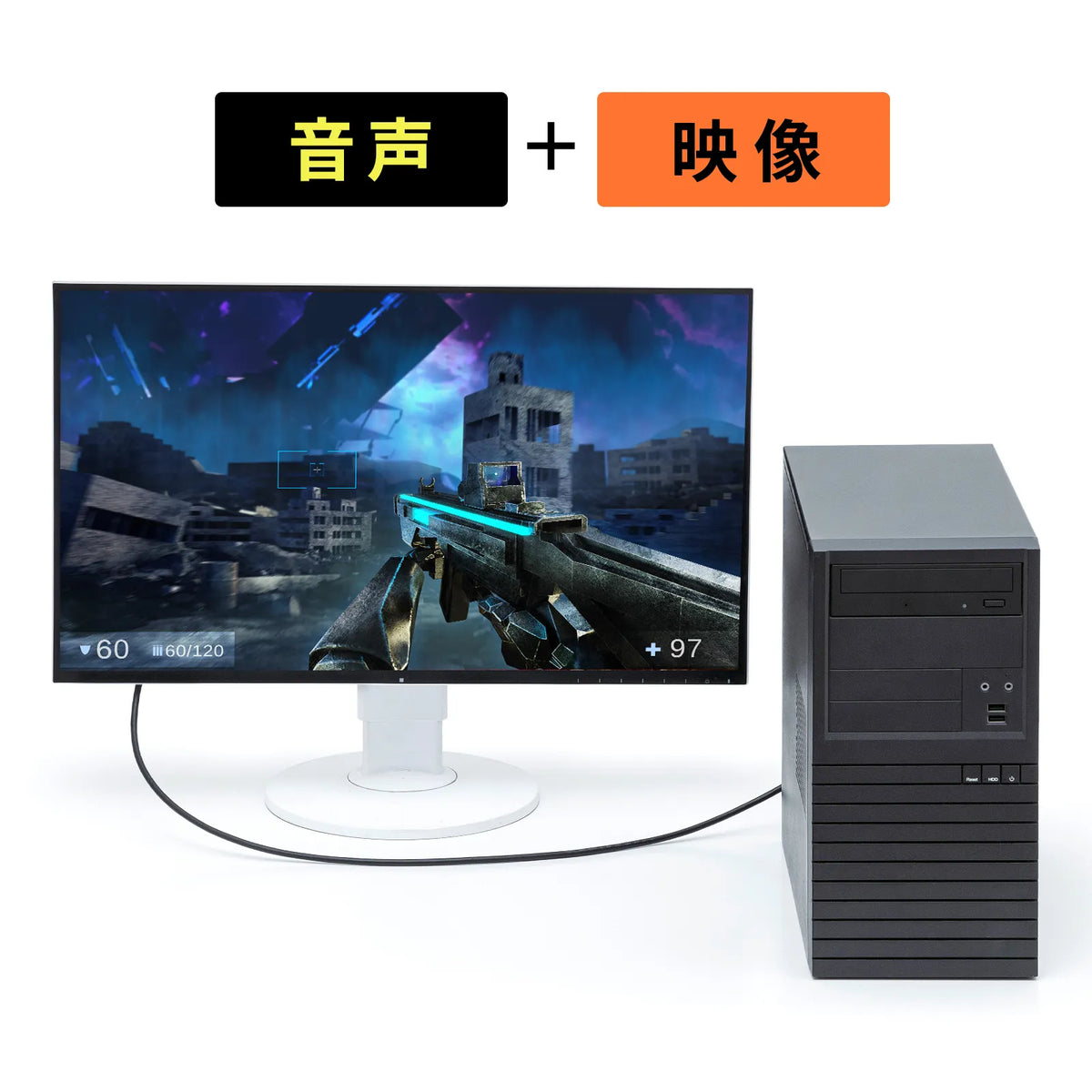

●Transmits both video and audio with a single cable. Supports audio streams up to 32 channels and 1536 kHz/24bit.
*Audio signal input and output are optional features of the equipment, so compatible equipment is required.
●Easily create a multi-display environment by daisy-chaining multiple displays or connecting them via a hub.
●Supports HDCP2.3/1.4 to prevent unauthorized copying of content.
●Triple shielding from the center of the cable protects important data from noise.

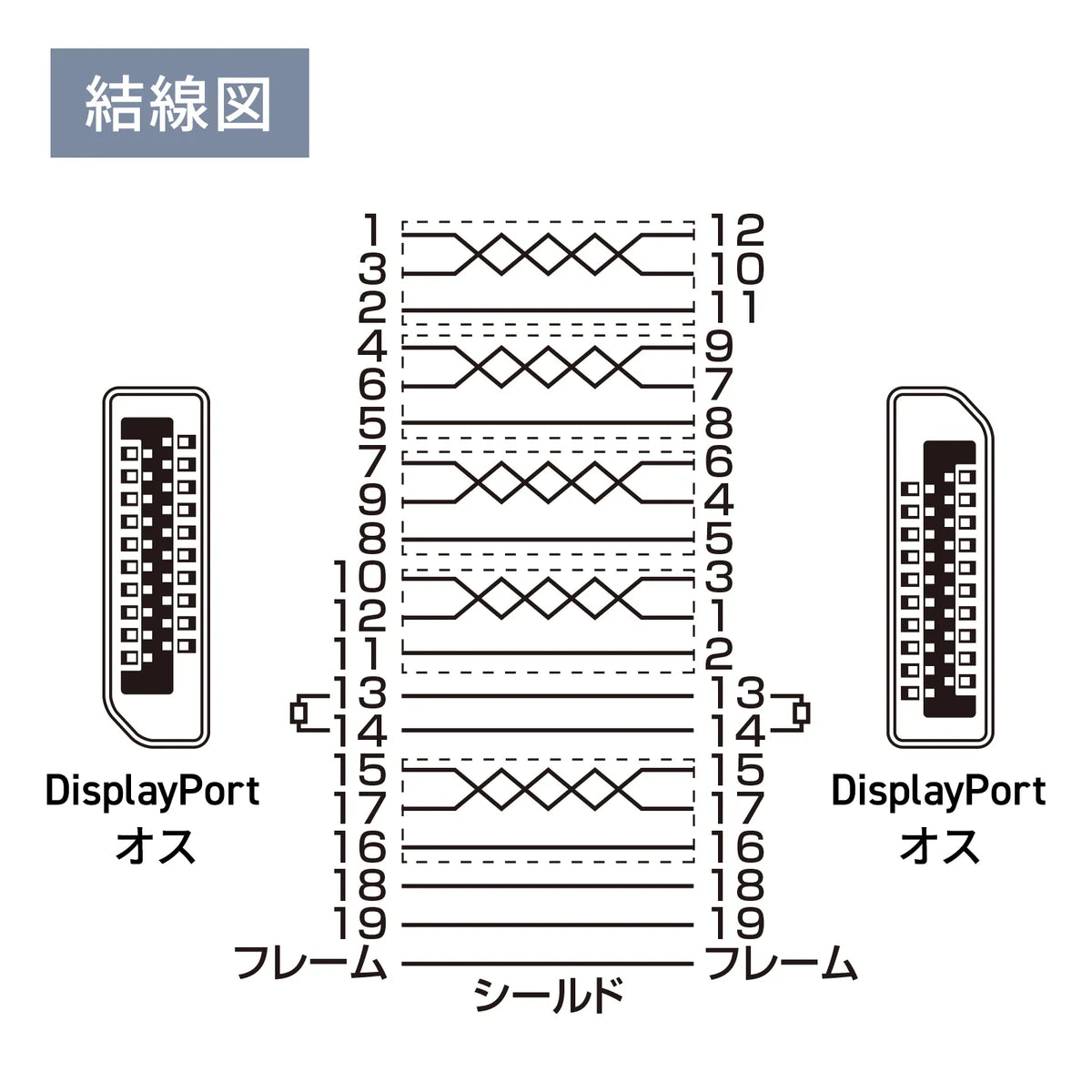

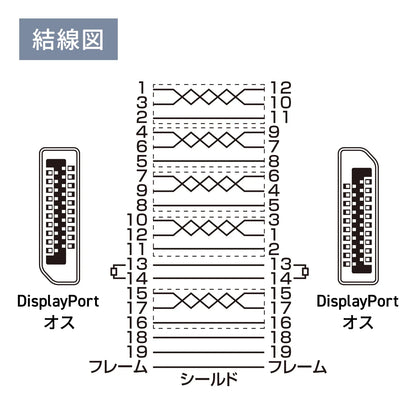

●Uses noise-resistant twisted pair wires with two core wires twisted together.

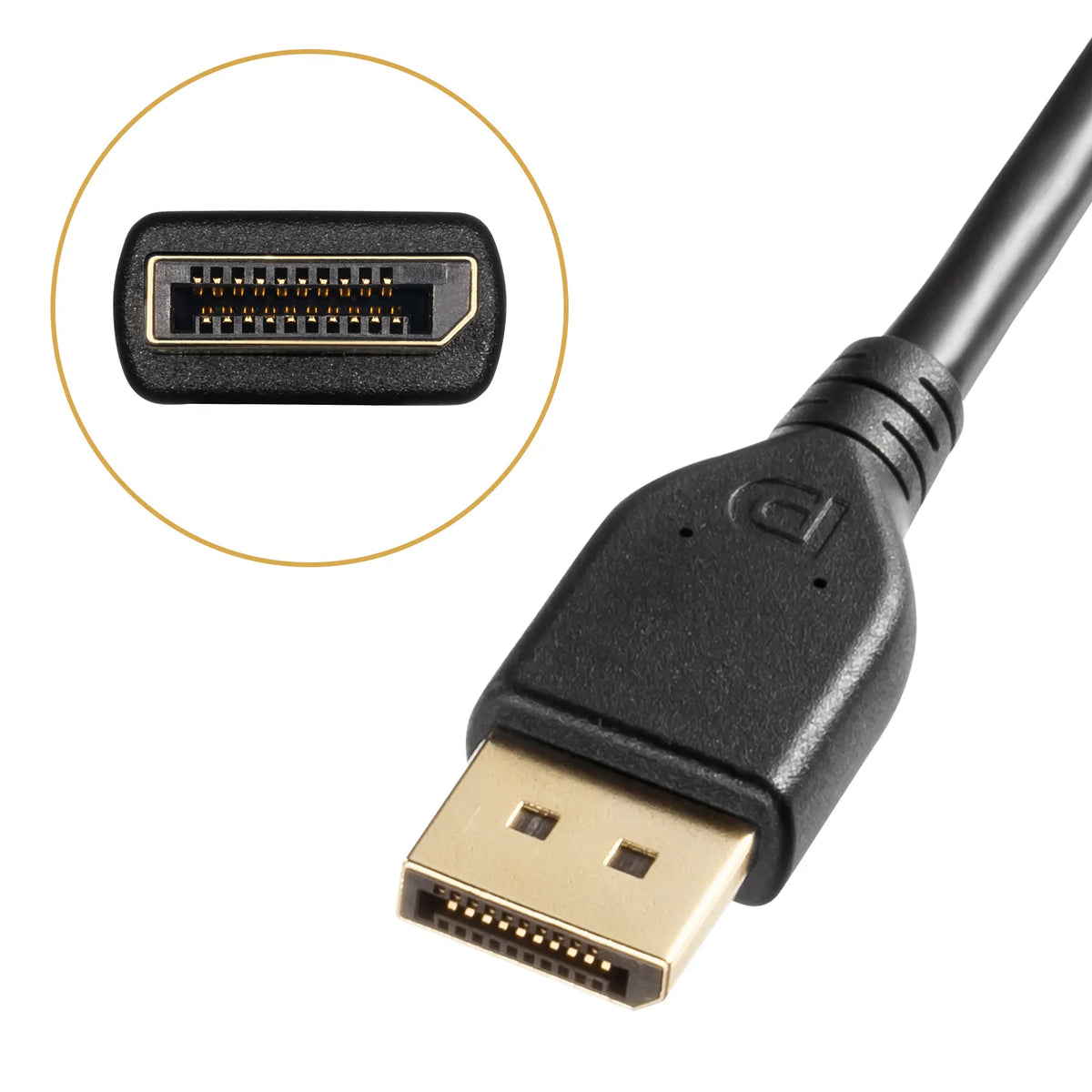

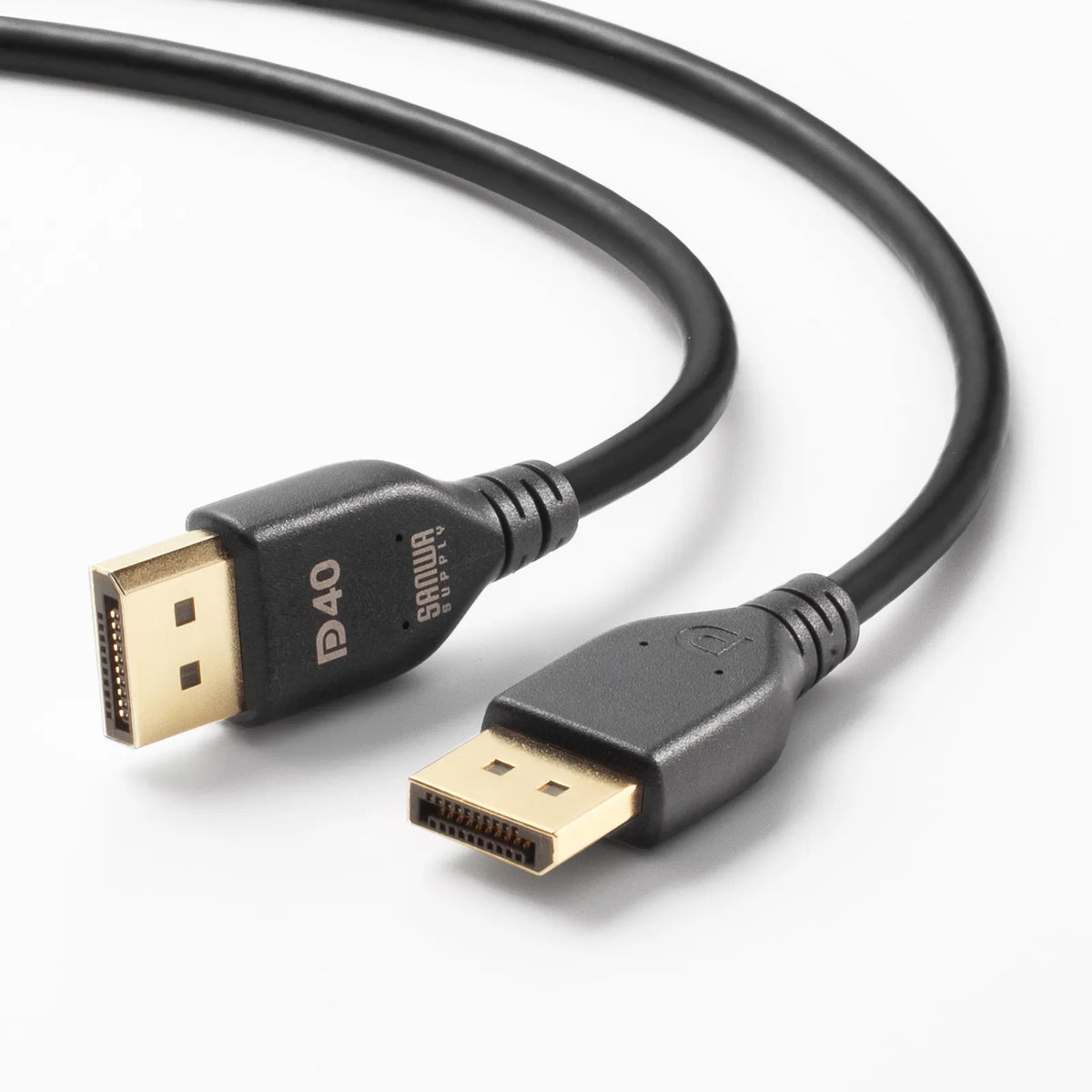

●Uses gold-plated connector shells and pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
■Cable length: Approx. 1m
(including connector)
■Cable outer diameter: Approx. 5m

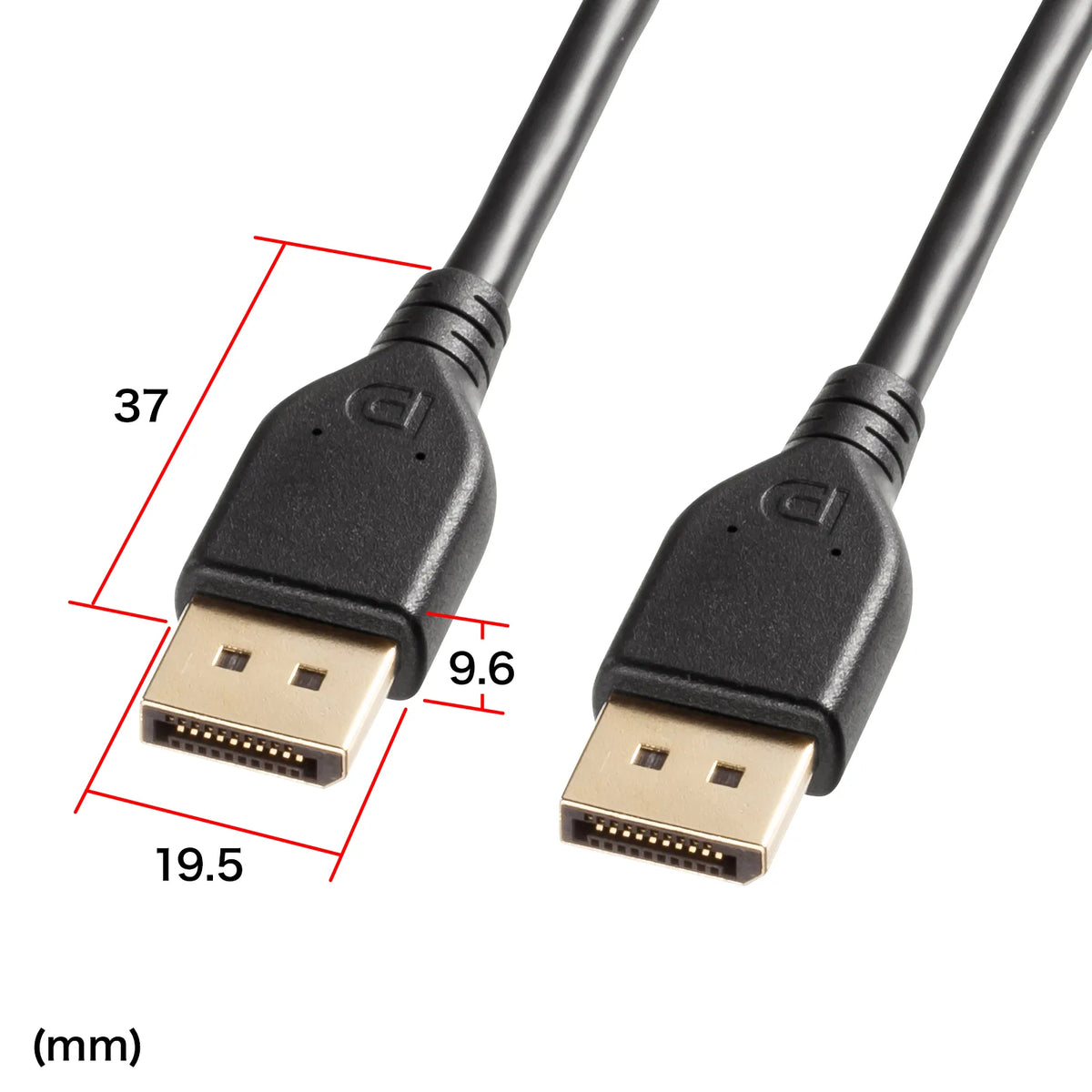

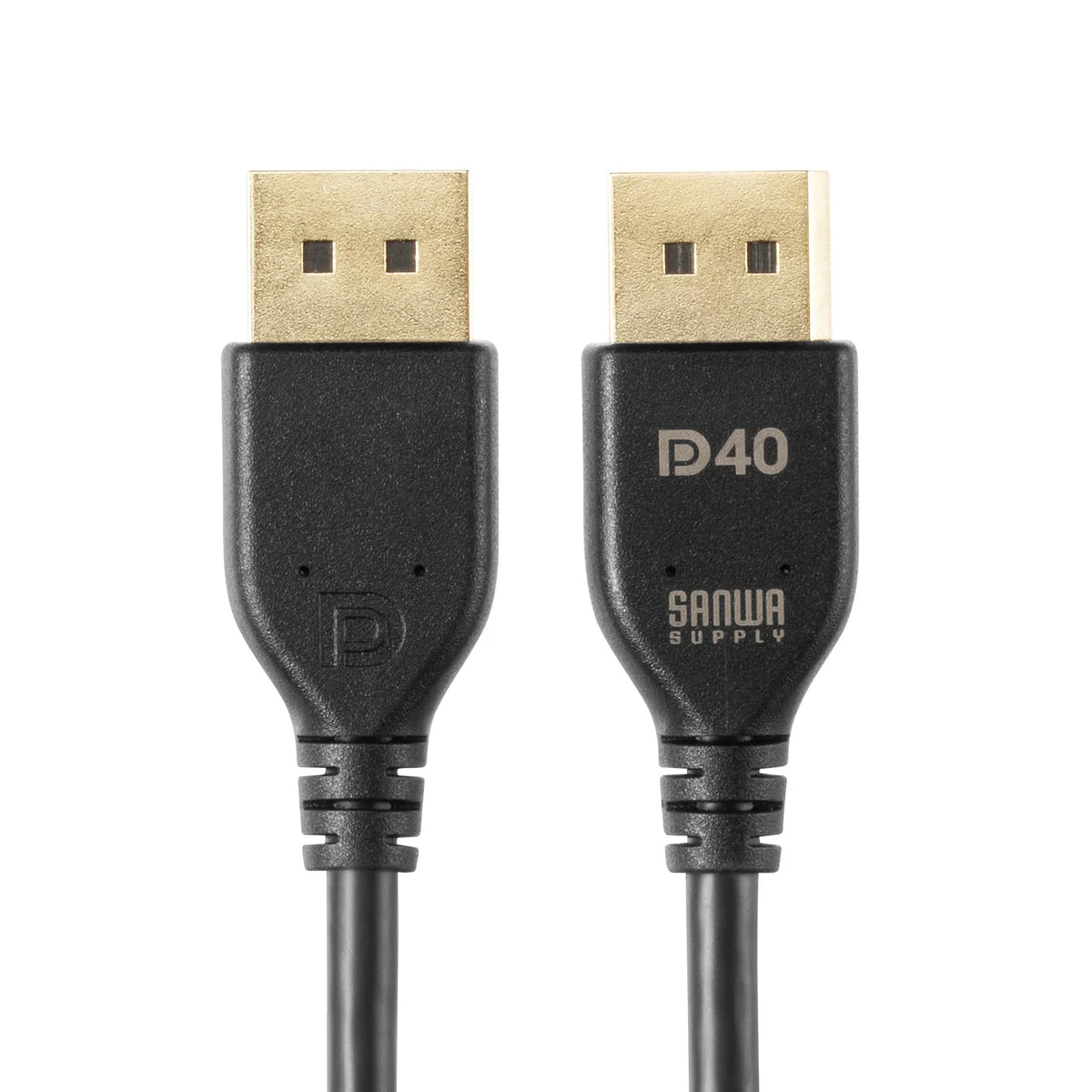

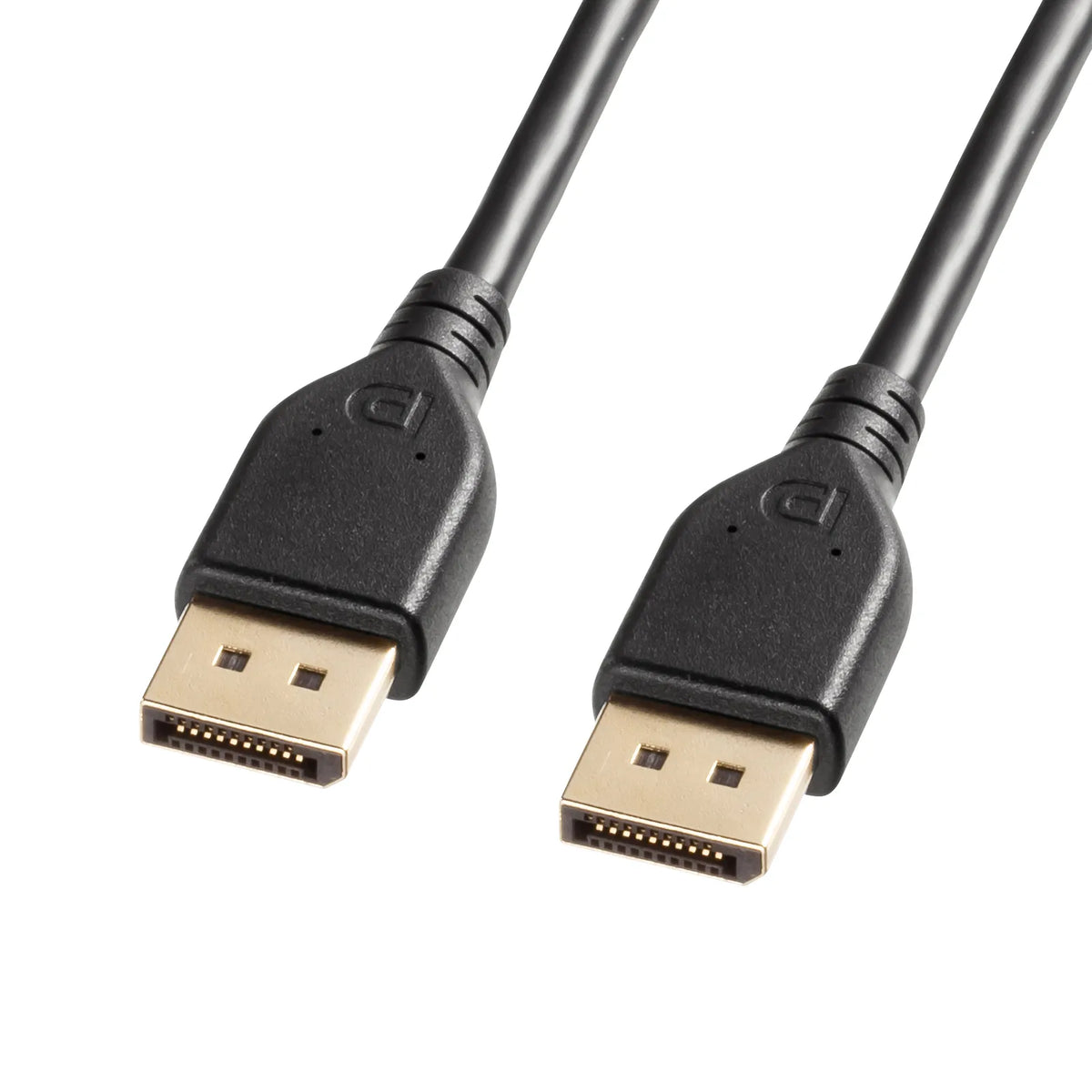

■Connector shape: DisplayPort connector male - DisplayPort connector male
■Wire material standard (UL): UL20276
■Standard: Displayport ver.2.1
VESA certified
■Compatible models:
＜PC＞
PCs from various manufacturers *Compatible with models that have a DisplayPort output terminal.
＜Display＞
Displays, TVs, projectors, etc. from various manufacturers
*Compatible with models that have a DisplayPort input terminal.
■DisplayPort Standard: Ver2.1
※VESA certified product
DisplayPort Ver.2.1
■Certification: Acquired
■DisplayPort Connector: DisplayPort Male
■DisplayPort Resolution:
Main Supported Maximum Resolutions
16K60Hz (DSC compressed/UHBR13.5)
8K60Hz (DSC compressed/UHBR10・HBR3) or uncompressed UHBR13.5
4K240Hz (DSC compressed/UHBR13.5)
■DisplayPort Directionality: None
■Cable (Wire) Type: Passive Cable
■Color: Black
■Cable Length: Approx. 1m
■Cable Diameter: Approx. 5.0mm
■Connector Shape: DisplayPort Male - DisplayPort Male
■Wire Standard: UL20276
■Standard: Displayport Product certified to version 2.1
