SANWA SUPPLY

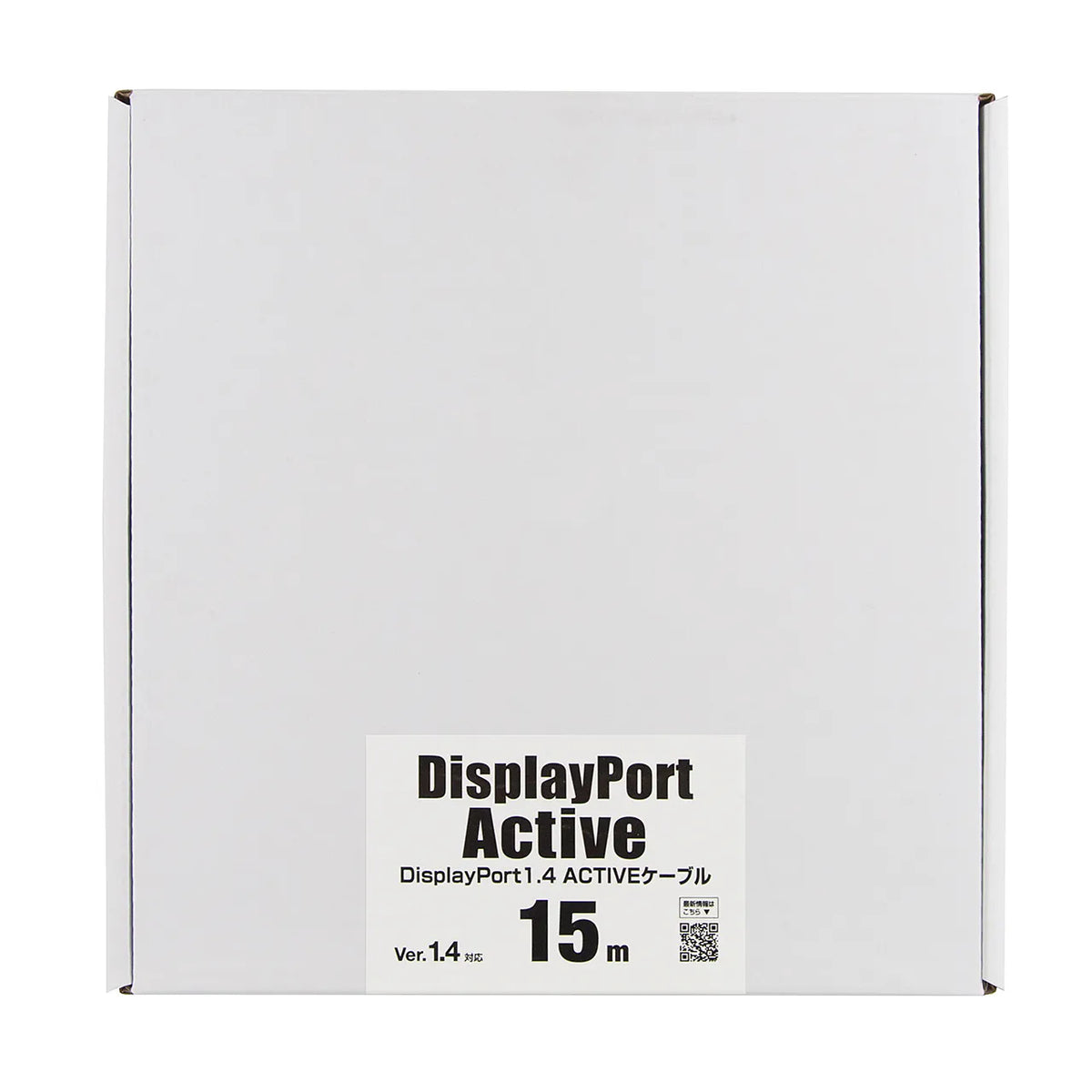

DisplayPort 1.4 ACTIVE Cable KC-DP14A150
DisplayPort 1.4 ACTIVE Cable KC-DP14A150
GTIN（JAN）：4969887765340
SKU：KC-DP14A150
Regular price
¥18,150 JPY
Regular price
Sale price
¥18,150 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[DisplayPort ver.1.4 Compatible ACTIVEt Type DisplayPort Cable 15m HBR3 8K Compatible]
●This cable connects a computer equipped with DisplayPort to a display.
●This cable is compatible with the DisplayPort Ver.1.4 standard. By adopting HBR3, it supports a total bandwidth of up to 32.4Gbps (8.1Gbps x 4 lanes), enabling high-resolution display of up to 8K/60Hz (with DSC compression) or 4K/120Hz.
●It supports HDR (High Dynamic Range), which can express differences in brightness and darkness more dynamically.
●It supports the DSC 1.2 standard for video compression technology.
*Display Stream Compression (DSC).
●It is possible to transmit both image and sound with a single cable. It supports audio streams up to 32 channels and 1536kHz/24bit.
(Audio signal input/output is an optional feature of the device, so compatible devices are required.)
●Multiple displays can be daisy-chained or connected via a hub, making it easy to build a multi-display environment.
●Supports HDCP 2.2/1.4 to prevent unauthorized copying of content.
●It is compatible with lower standards, so it can be used in environments such as DisplayPort Ver 1.3/1.2/1.1/1.0.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Uses gold-plated connector shells and pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
■Color: Black
■Cable length: Approximately 15m (between SRs)
*SR refers to the part that protects the connection between the rear end of the connector and the cable.
■Connector shape: DisplayPort male - DisplayPort male
■Cable diameter: Approx. 7.5mm
■Wire material standard: UL20276
■Standard: Compliant with DisplayPort standard Ver.1.4
*Not a certified product
■Resolution: Up to 8K/30Hz, 5K/60Hz, 4K/120Hz
*Up to 8K/60Hz, 5K/120Hz, 4K/144Hz when DSC compressed
≪Custom orders not accepted≫
We cannot accept custom orders for small quantities. Depending on the quantity, it may be possible, so please contact Sanwa Supply sales for details.
●This cable connects a computer equipped with DisplayPort to a display.
●This cable is compatible with the DisplayPort Ver.1.4 standard. By adopting HBR3, it supports a total bandwidth of up to 32.4Gbps (8.1Gbps x 4 lanes), enabling high-resolution display of up to 8K/60Hz (with DSC compression) or 4K/120Hz.
●It supports HDR (High Dynamic Range), which can express differences in brightness and darkness more dynamically.
●It supports the DSC 1.2 standard for video compression technology.
*Display Stream Compression (DSC).
●It is possible to transmit both image and sound with a single cable. It supports audio streams up to 32 channels and 1536kHz/24bit.
(Audio signal input/output is an optional feature of the device, so compatible devices are required.)
●Multiple displays can be daisy-chained or connected via a hub, making it easy to build a multi-display environment.
●Supports HDCP 2.2/1.4 to prevent unauthorized copying of content.
●It is compatible with lower standards, so it can be used in environments such as DisplayPort Ver 1.3/1.2/1.1/1.0.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Uses gold-plated connector shells and pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
■Color: Black
■Cable length: Approximately 15m (between SRs)
*SR refers to the part that protects the connection between the rear end of the connector and the cable.
■Connector shape: DisplayPort male - DisplayPort male
■Cable diameter: Approx. 7.5mm
■Wire material standard: UL20276
■Standard: Compliant with DisplayPort standard Ver.1.4
*Not a certified product
■Resolution: Up to 8K/30Hz, 5K/60Hz, 4K/120Hz
*Up to 8K/60Hz, 5K/120Hz, 4K/144Hz when DSC compressed
≪Custom orders not accepted≫
We cannot accept custom orders for small quantities. Depending on the quantity, it may be possible, so please contact Sanwa Supply sales for details.
