SANWA SUPPLY

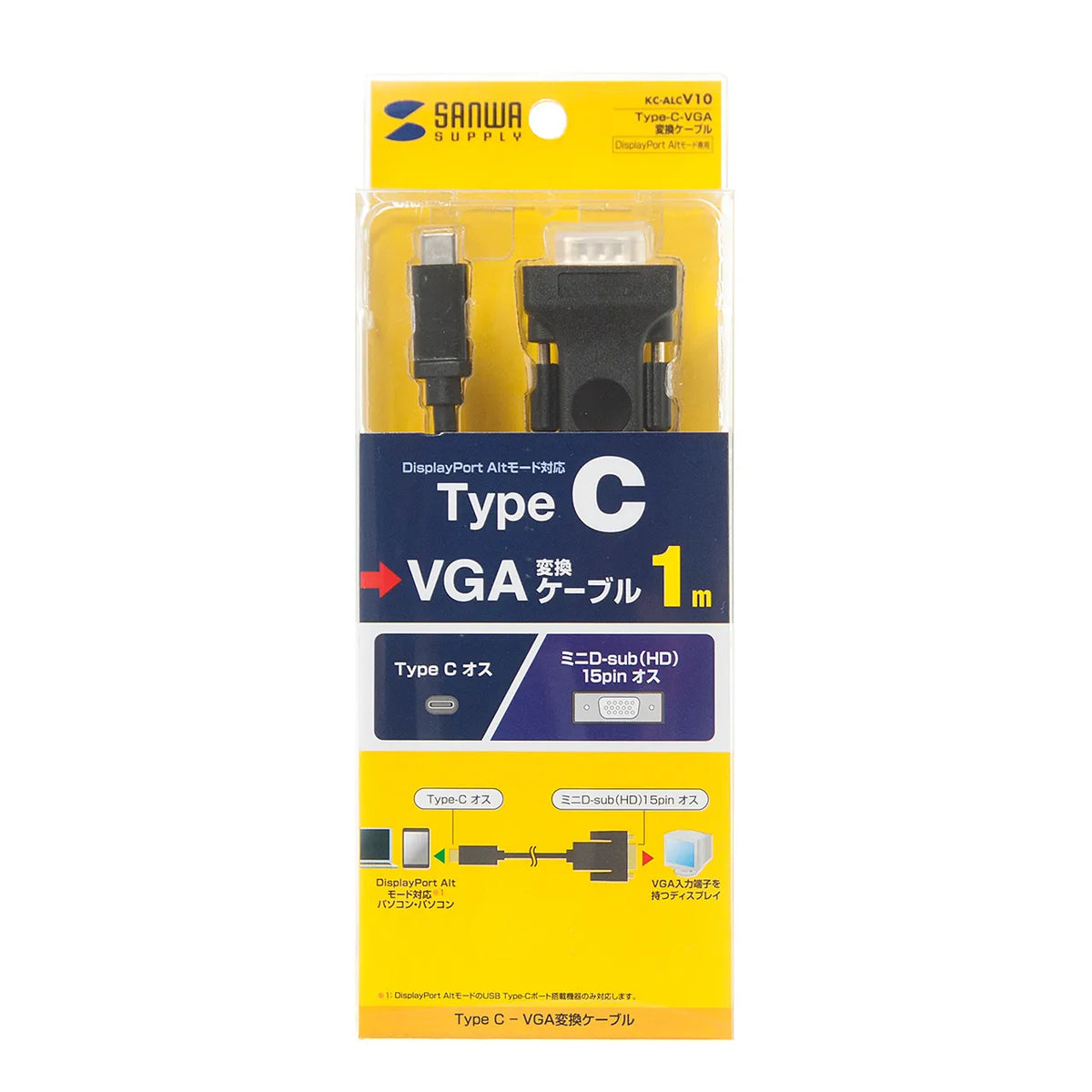

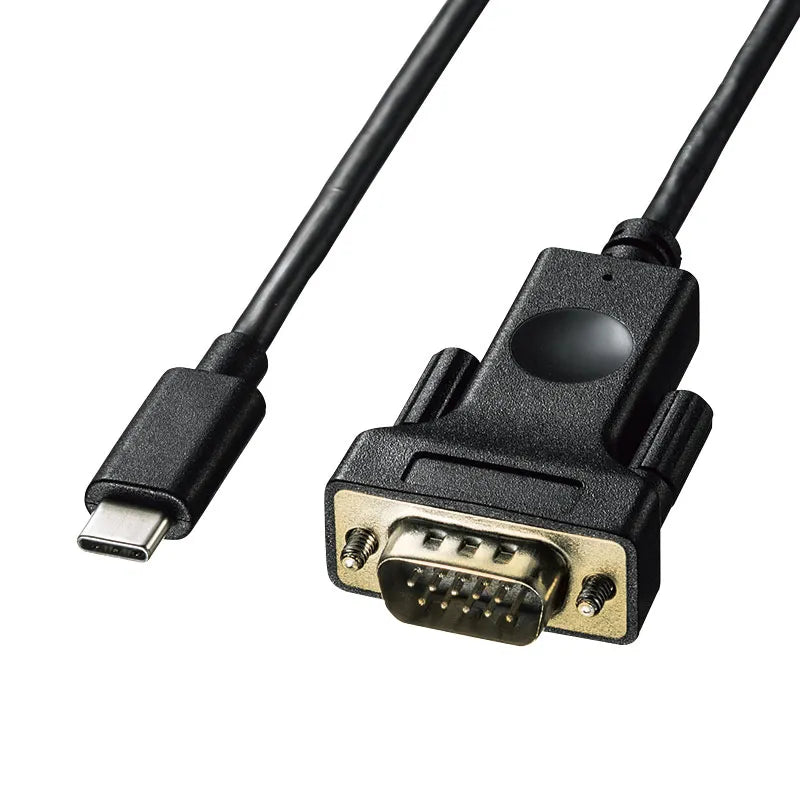

TYPE C to VGA conversion cable 1m KC-ALCV10
TYPE C to VGA conversion cable 1m KC-ALCV10
GTIN（JAN）：4969887764909
SKU：KC-ALCV10
Regular price
¥4,719 JPY
Regular price
Sale price
¥4,719 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A cable that allows you to directly connect a USB Type-C PC to a VGA display without an adapter]

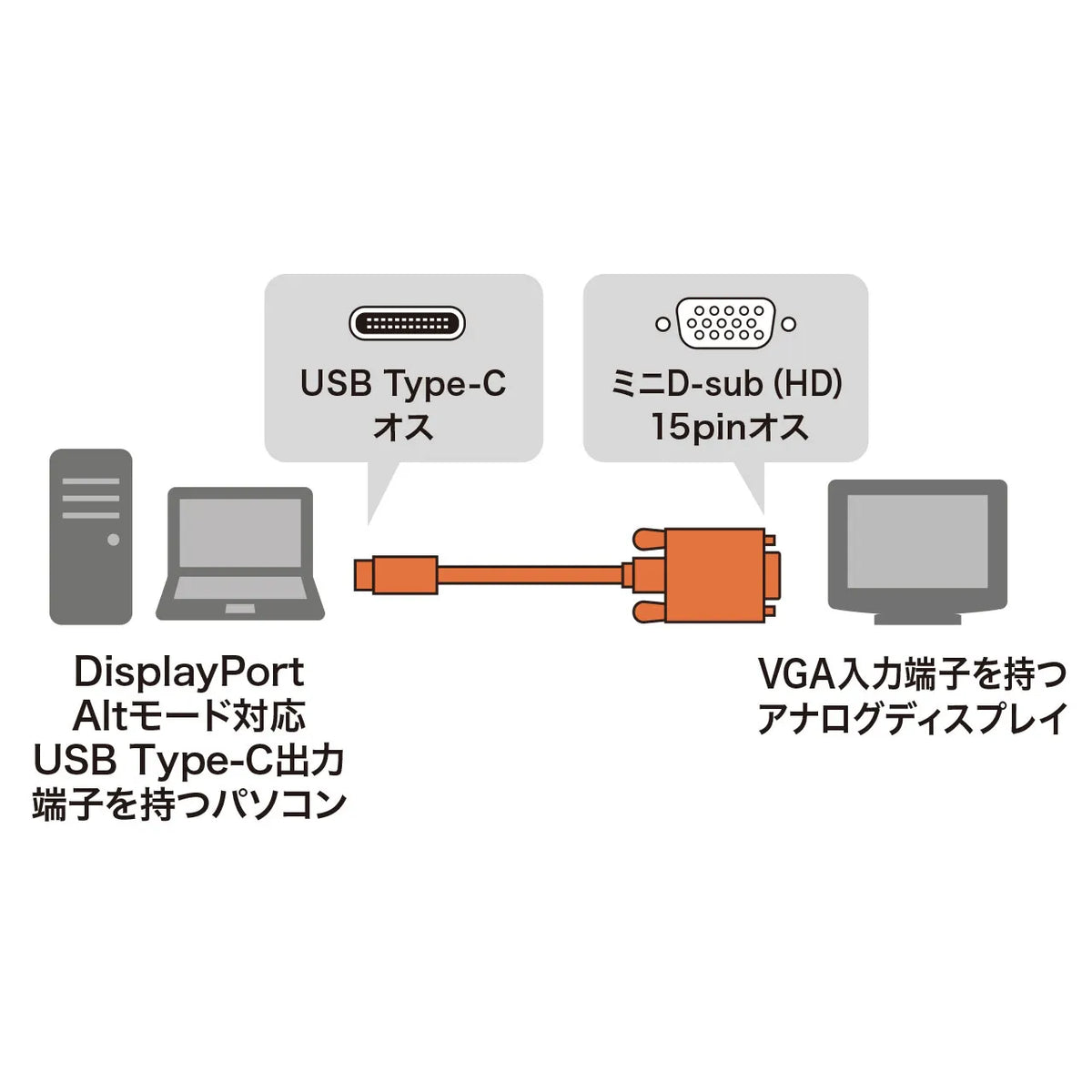

●This is a conversion cable used to connect a PC equipped with a DisplayPort Alt Mode compatible USB Type-C port to a display or TV with a VGA interface.
●You can use an external display as an extended display to work on a large workspace, or use mirror mode for presentations on a projector, etc.
●No driver installation is required. Just connect it and it's ready to use.
■Color: Black
■Connector: USB Type-C connector male - VGA (mini D-sub 15-pin) male
■Resolution: Maximum 1920x1200 (Wide) / 1920x1080 (Full HD) / 1600x1200 (4:3)
*Both the PC and the display must support the same resolution.
■Cable length: Approximately 1m (including both ends of the connector)
■Size:
USB Type-C male connector part: Approximately W12.3 x D30 x H6.5mm
*Excluding connector shell
VGA connector part: Approximately W33 x D54 x H14.5mm
*Excluding connector shell
■Weight: Approximately 58g
■Cable diameter: Approximately 4.5mm
■Cable sheath material: PVC
■Cable standard: UL2725
■Compliant standard: DisplayPort Ver.1.2/VGA
■HDCP: Not supported
■Package size: W80 x D35 x H210mm
●This is a conversion cable used to connect a PC equipped with a DisplayPort Alt Mode compatible USB Type-C port to a display or TV with a VGA interface.
●You can use an external display as an extended display to work on a large workspace, or use mirror mode for presentations on a projector, etc.
●No driver installation is required. Just connect it and it's ready to use.
■Color: Black
■Connector: USB Type-C connector male - VGA (mini D-sub 15-pin) male
■Resolution: Maximum 1920x1200 (Wide) / 1920x1080 (Full HD) / 1600x1200 (4:3)
*Both the PC and the display must support the same resolution.
■Cable length: Approximately 1m (including both ends of the connector)
■Size:
USB Type-C male connector part: Approximately W12.3 x D30 x H6.5mm
*Excluding connector shell
VGA connector part: Approximately W33 x D54 x H14.5mm
*Excluding connector shell
■Weight: Approximately 58g
■Cable diameter: Approximately 4.5mm
■Cable sheath material: PVC
■Cable standard: UL2725
■Compliant standard: DisplayPort Ver.1.2/VGA
■HDCP: Not supported
■Package size: W80 x D35 x H210mm
