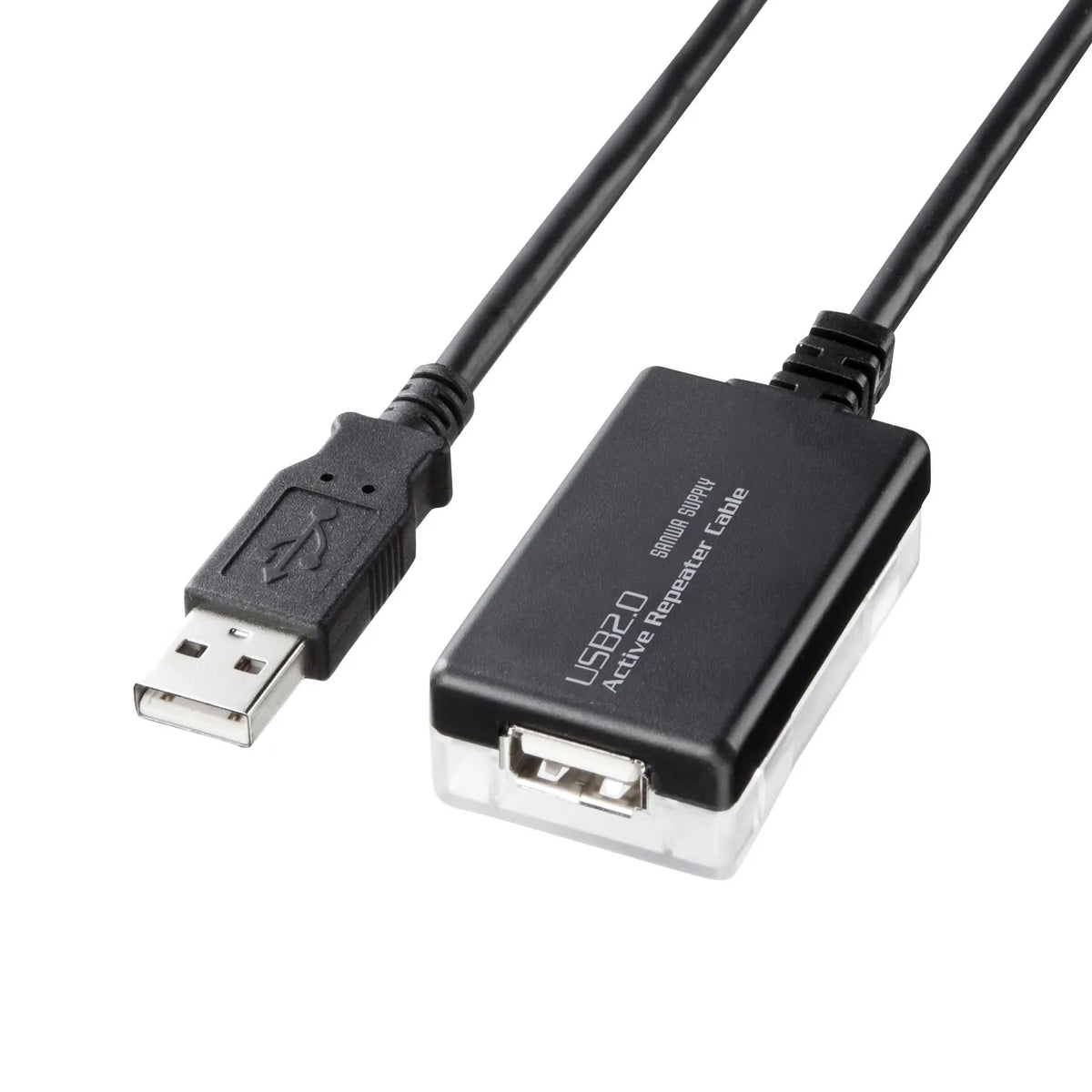

12m Extension USB 2.0 Active Repeater Cable KB-USB-R212N
12m Extension USB 2.0 Active Repeater Cable KB-USB-R212N
GTIN（JAN）：4969887765920
SKU：KB-USB-R212N
Regular price
¥4,937 JPY
Regular price
Sale price
¥4,937 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[USB 2.0 Active Repeater Cable that can extend USB 2.0 signals up to 12m.]
●This is a high-power repeater cable that can extend up to 12m, exceeding the USB cable standard (maximum cable length between devices of 5m).
●It has a built-in IC with repeater functionality, enabling stable extended transmission.
●It uses the drivers included in each OS, so there is no need to install any special software.
●It operates on bus power, just like a typical USB cable.
●The USB cable uses a thick cable with the "25AWG/1P+24AWG/2C" specification, which is excellent for noise suppression and is less susceptible to noise.

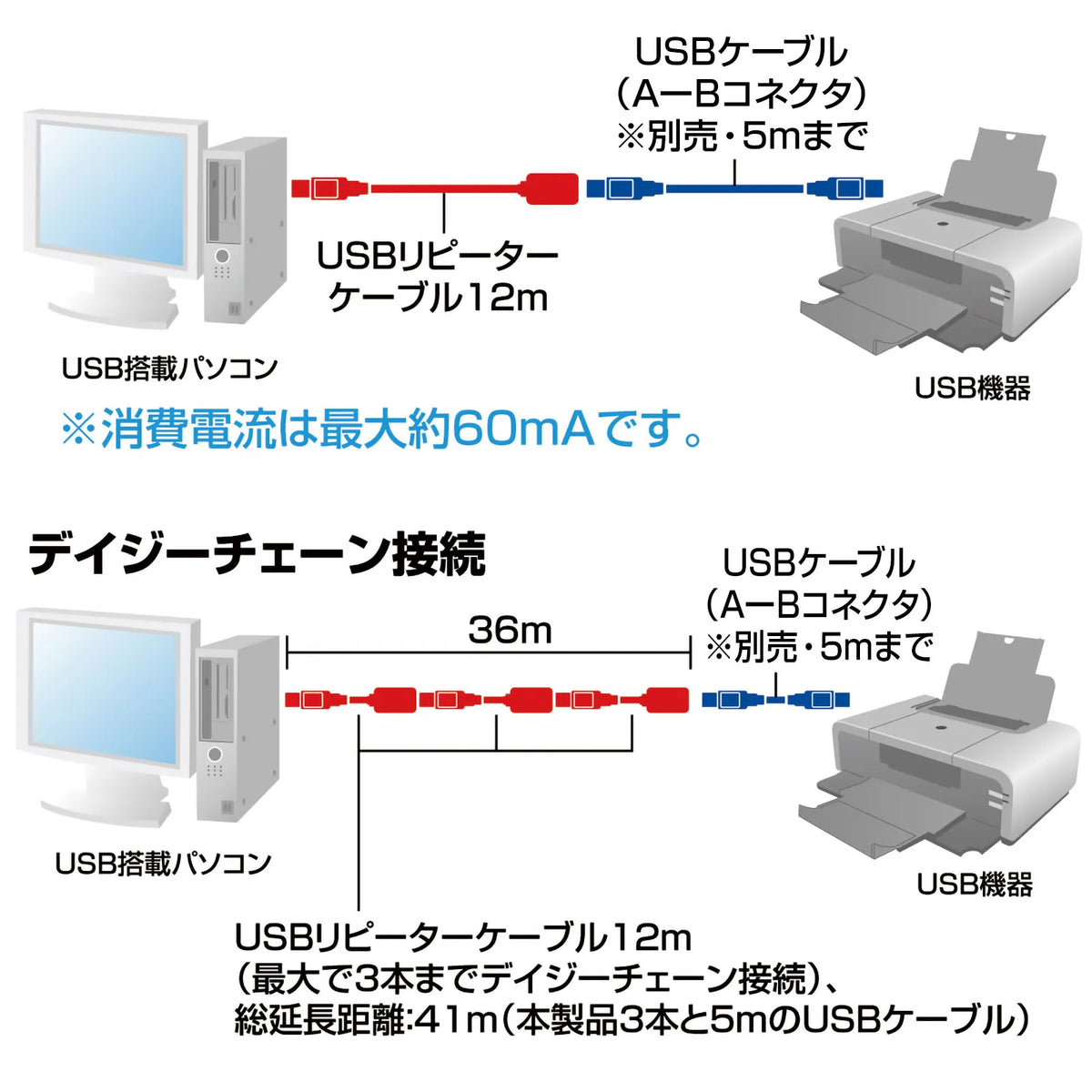

●Up to 3 cables can be connected in a daisy-chain configuration to extend up to 36m (12m x 3).
*Up to 3 cables can be connected in a daisy-chain configuration.
*When daisy-chained, bus-powered USB devices with high current consumption will not work.
For stable operation and recognition, it is recommended to connect USB peripherals that operate on self-power.
*When daisy-chaining three units, the total current consumption will be 180mA.
■Supported standards: USB Specification Ver2.0 compliant
■Communication speed: 480Mbps/12Mbps/1.5Mbps (theoretical value)
■Current consumption: Maximum 60mA
■Power supply: Bus power
*If the current consumption of the connected device exceeds the current supplied by this product, it may not operate properly with bus power.
■Connector shape:
USB A connector male (upstream)
USB A connector female (downstream)

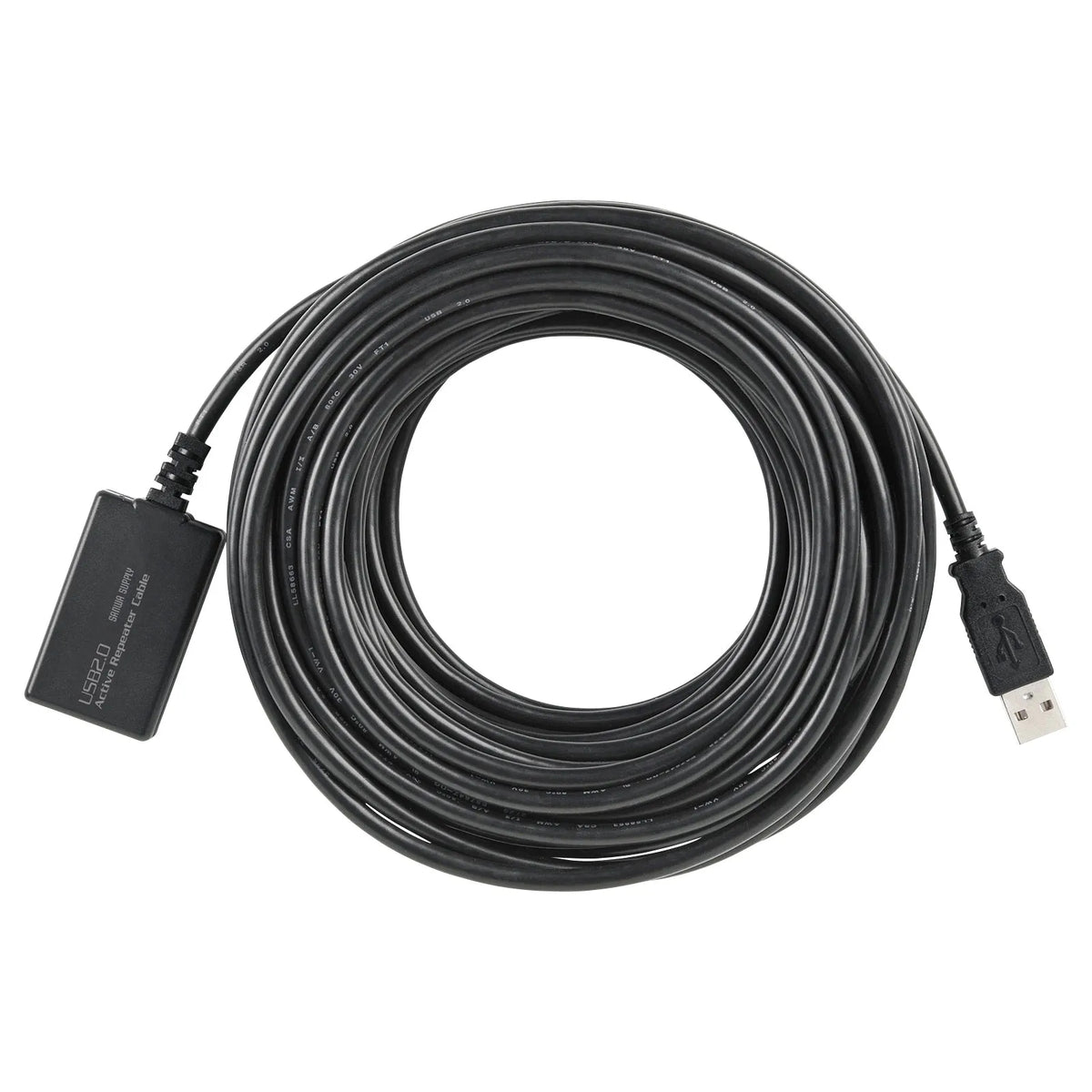

■Cable length: Approx. 12m
■Weight: 446g
■Environmental conditions:
Operating temperature 0 to 60 degrees Celsius, humidity 0 to 80%
Storage temperature -20 to 85 degrees Celsius, humidity 0 to 80%
