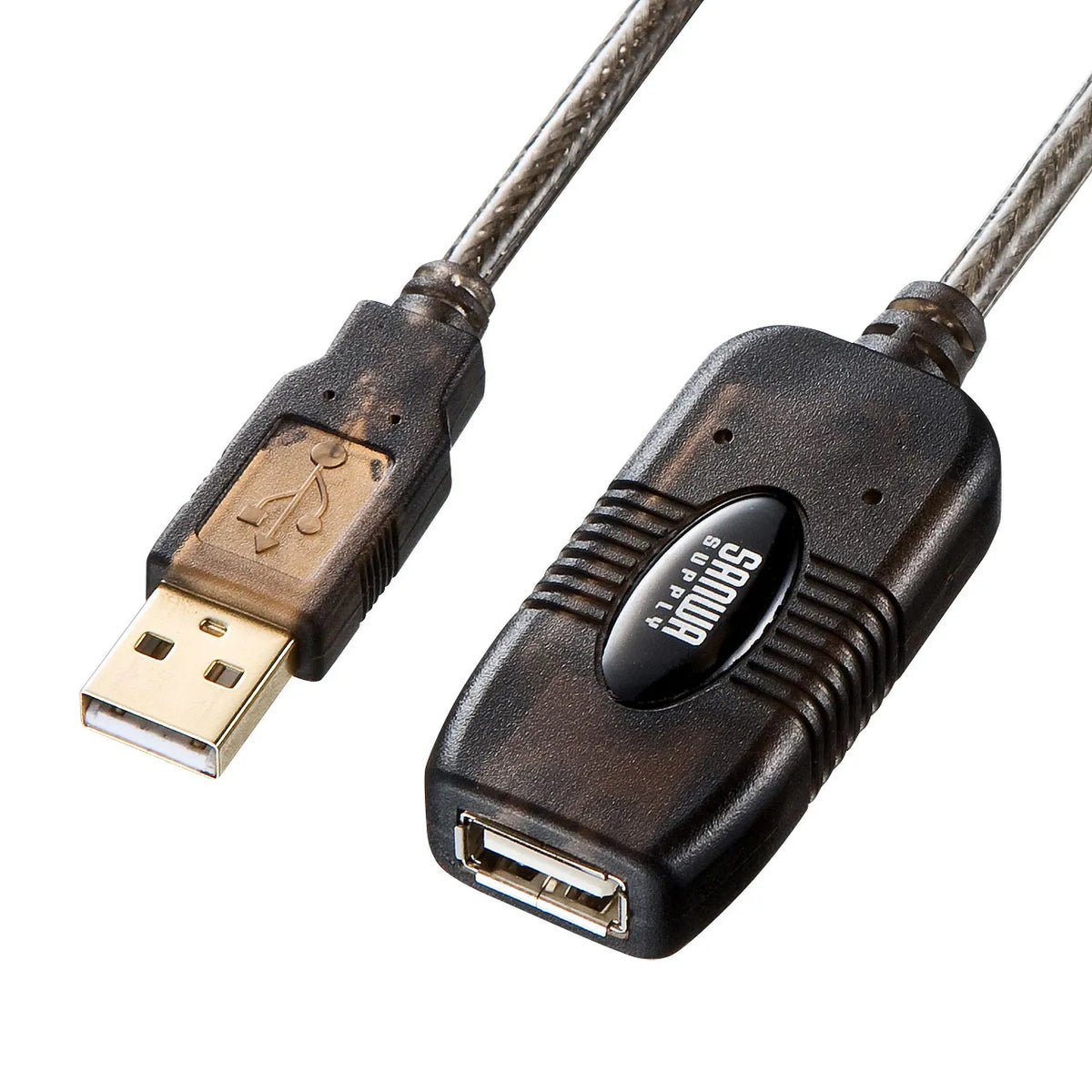

5m Extension USB Active Repeater Cable KB-USB-R205N

[USB 2.0 signal repeater that can extend up to 5m. Compatible with both USB 2.0 and 1.1.]

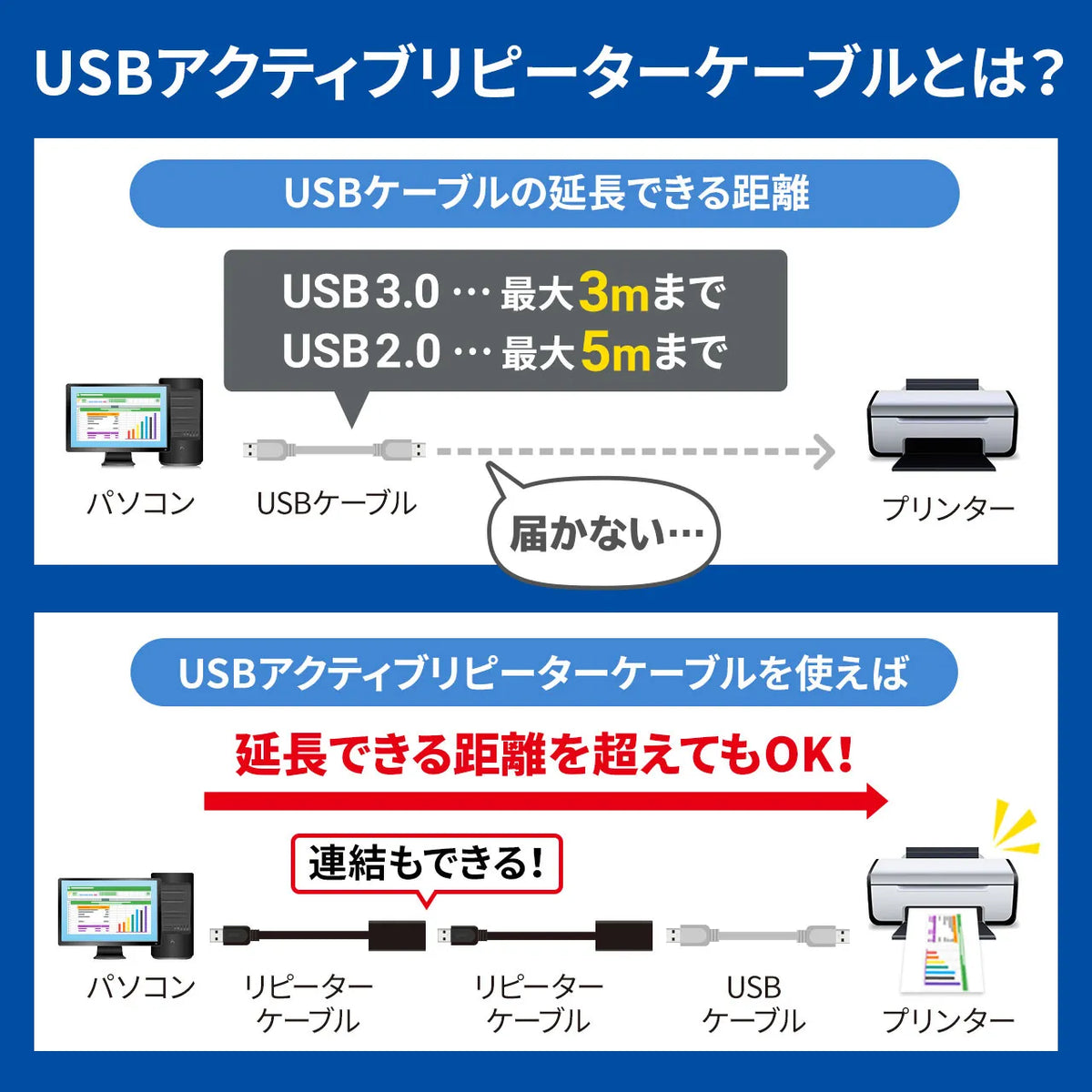

●This repeater cable extends the cable by an additional 5m, exceeding the USB cable standard (maximum cable length between devices of 5m).

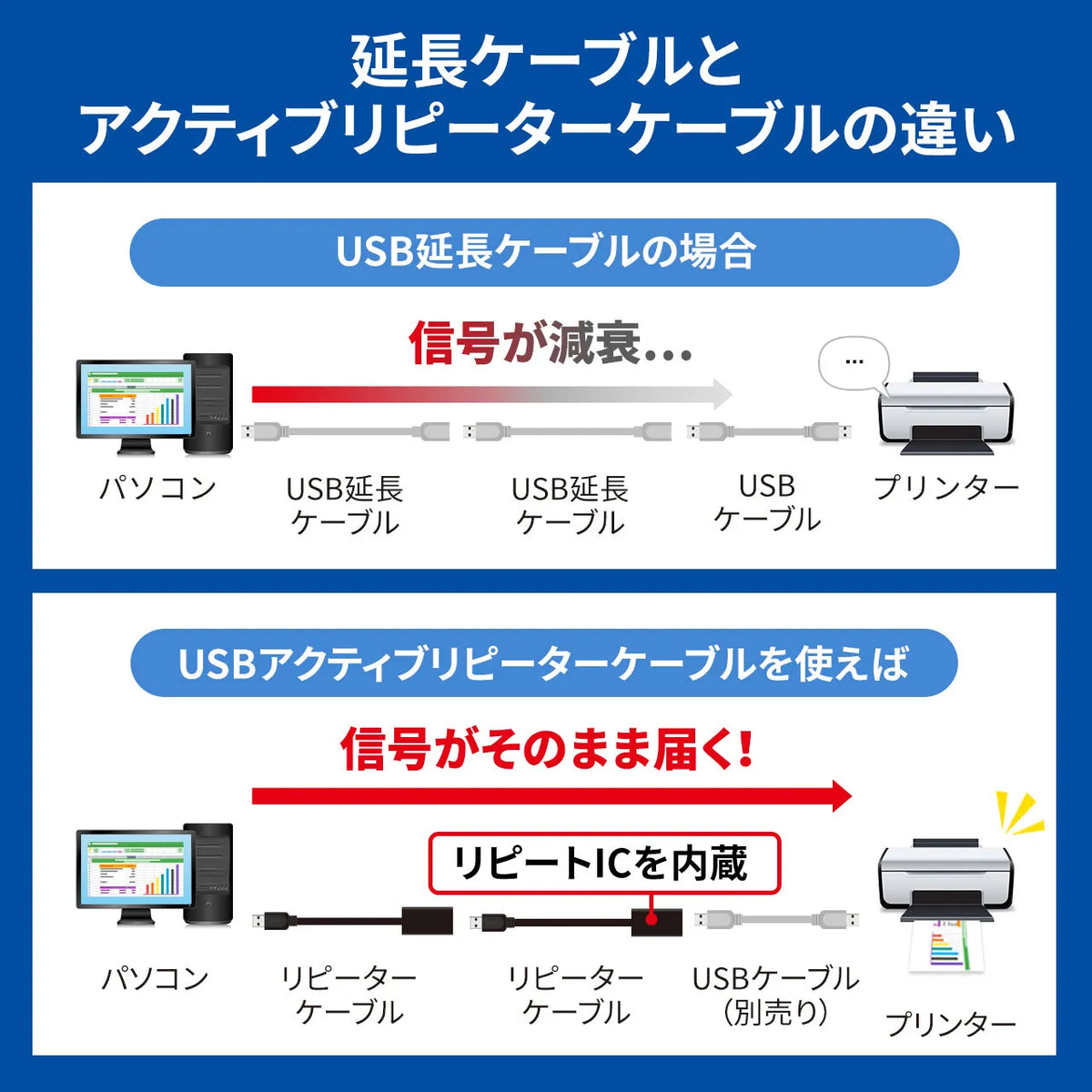

●It achieves a maximum extension of 5m by incorporating a signal amplification and correction circuit that restores attenuated USB signals.
●It uses the drivers included in each OS, so there is no need to install any special software.
●It operates on bus power, just like a typical USB cable.

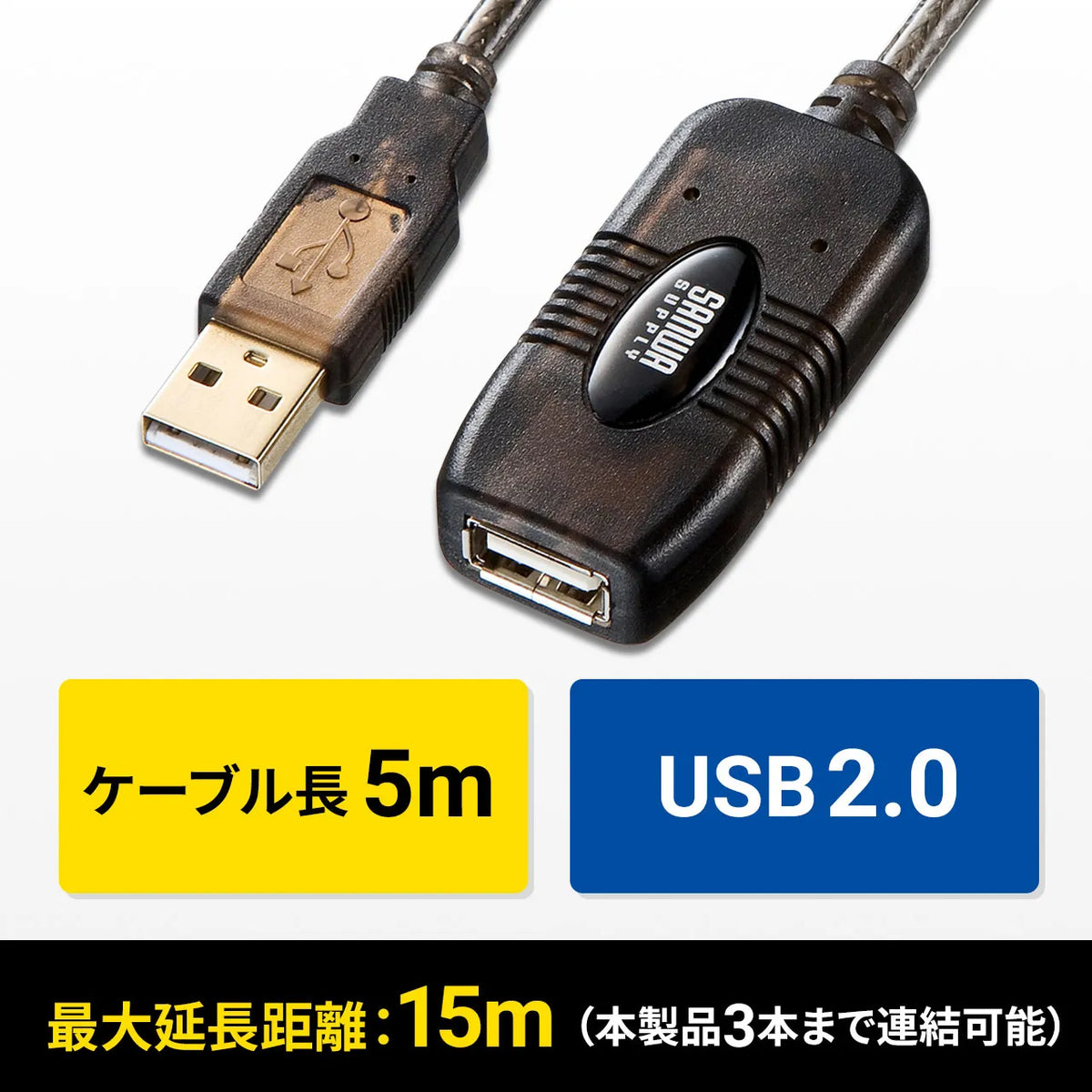

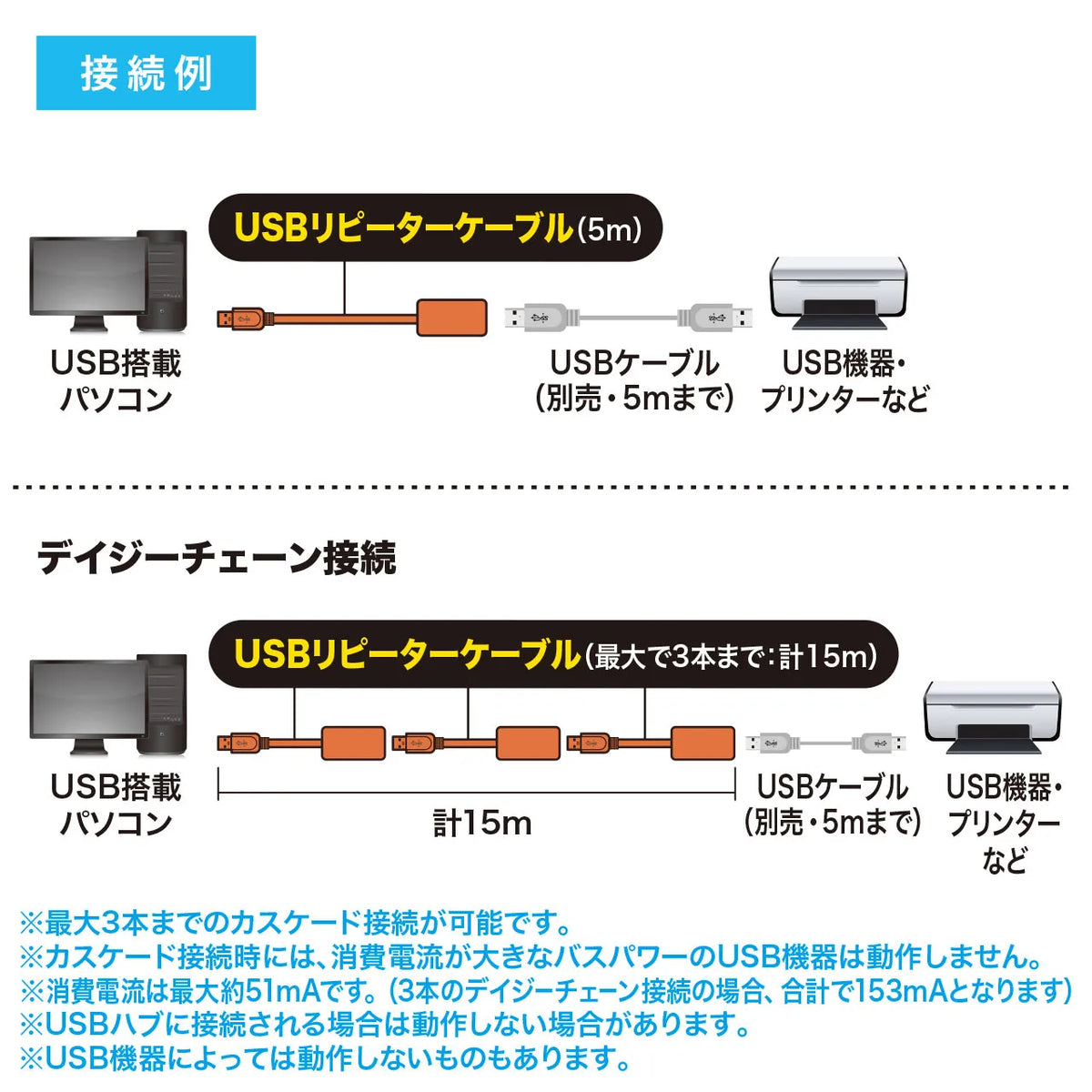

●Up to 3 cables can be connected in a daisy-chain configuration, extending the cable up to a maximum of 15m (5m x 3).
*When daisy-chaining 3 cables, the total current consumption is 153mA.

＜Please check before purchasing＞
*For stable operation and recognition, we recommend connecting USB peripherals that operate on self-power.
*When connecting bus-powered peripherals, the device may not be recognized or may not work. (Portable HDD, webcam, etc.)
*Operation is not guaranteed with all USB devices.
*When used in a USB 1.1 environment, it will not operate in "HI-SPEED" mode (transfer speed 480Mbps).

■Supported standards: USB Specification Ver2.0 compliant
■Communication speed: 480Mbps, 12Mbps, 1.5Mbps (theoretical value)
■Current consumption: Maximum approx. 51mA
■Power supply: Bus power
*If the current consumption of the connected device exceeds the current supplied by this product, it may not operate normally with bus power.

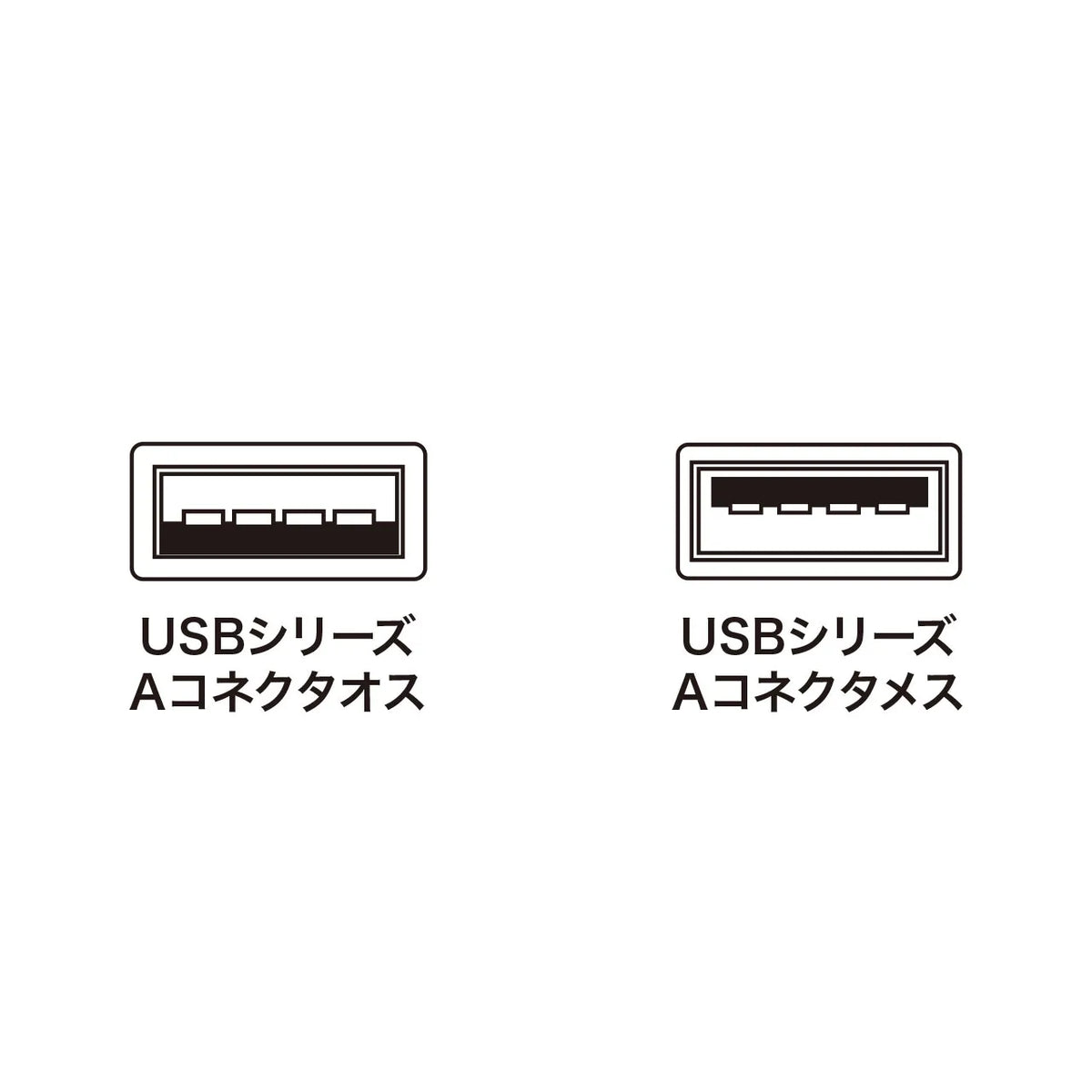

■Connector shape:
USB A connector female x1 (downstream)
USB A connector male x1 (upstream)
■Cable length: Approx. 5m
■Weight: 166g
■Environmental conditions:
Operating temperature: 0 to 60 degrees Celsius
Storage temperature: -20 to 85 degrees Celsius
Operating humidity: 0 to 80%
Storage humidity: 0 to 80%
