SANWA SUPPLY

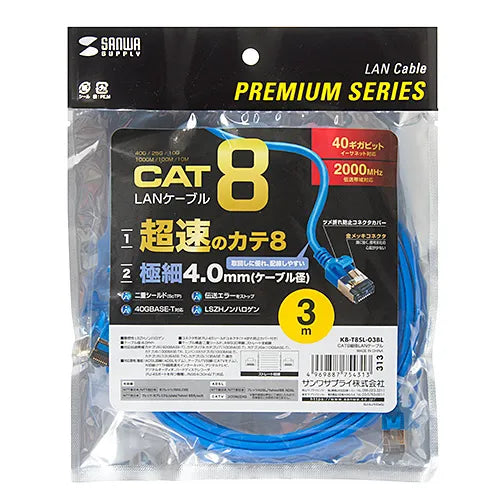

Category 8 Slim LAN Cable KB-T8SL-03BL
Category 8 Slim LAN Cable KB-T8SL-03BL
GTIN（JAN）：4969887754313
SKU：KB-T8SL-03BL
Regular price
¥1,597 JPY
Regular price
Sale price
¥1,597 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 8 Slim LAN Cable with Ultra-High Speed 40Gbps, Ultra-Wide Bandwidth 2000MHz, and Ultra-Slim 4.0mm Cable Diameter]
●By minimizing twisting within the plug, it fully supports next-generation Ethernet 40GBASE-T (40Gbps) and 25GBASE-T (25Gbps).
●It clears 2000MHz, which is 20 times the transmission bandwidth of Enhanced Category 5 and 8 times that of Category 6. The wider the bandwidth, the faster the transmission speed and the more effective it is in preventing data errors.
●With an ultra-slim 4.0mm cable diameter, it is easy to handle.
●When communicating at gigabit speeds or higher, bundling multiple cables together causes interference, significantly degrading performance and resulting in communication errors. This is called "alien crosstalk (ANEXT)". CAT8 LAN cables have a "double shielding" structure that shields each of the four pairs and the outer circumference, so they are well protected against EMI/RFI noise and can be used when multiple cables are bundled together.
●It blocks various interfering radio waves from the outside, and provides complete EMI/RFI protection.
●It uses flame-retardant LSZH non-halogen material that does not generate toxic halogen gases.
●It uses a highly elastic PVC claw-break prevention cover to prevent the connector claws from breaking.
■Category: CAT8
■Standard name: 40GBASE-T
■Compatible categories and standards: Category 8 (40GBASE-T), Category 7A (10GBASE-T), Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 40Gbps, 25Gbps
■Frequency response: 2000MHz
■Cable length: 3m
■Color: Blue
■Cable Cable diameter: 4mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable structure: ScTP
■Cross separator: None
■Minimum bending radius: During installation/32.0mm, After installation/32.0mm
■Cable conductor: 30AWG
■Cable conductor structure: Solid wire
■PoE: Not supported
■Sheath material: LSZH
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
●By minimizing twisting within the plug, it fully supports next-generation Ethernet 40GBASE-T (40Gbps) and 25GBASE-T (25Gbps).
●It clears 2000MHz, which is 20 times the transmission bandwidth of Enhanced Category 5 and 8 times that of Category 6. The wider the bandwidth, the faster the transmission speed and the more effective it is in preventing data errors.
●With an ultra-slim 4.0mm cable diameter, it is easy to handle.
●When communicating at gigabit speeds or higher, bundling multiple cables together causes interference, significantly degrading performance and resulting in communication errors. This is called "alien crosstalk (ANEXT)". CAT8 LAN cables have a "double shielding" structure that shields each of the four pairs and the outer circumference, so they are well protected against EMI/RFI noise and can be used when multiple cables are bundled together.
●It blocks various interfering radio waves from the outside, and provides complete EMI/RFI protection.
●It uses flame-retardant LSZH non-halogen material that does not generate toxic halogen gases.
●It uses a highly elastic PVC claw-break prevention cover to prevent the connector claws from breaking.
■Category: CAT8
■Standard name: 40GBASE-T
■Compatible categories and standards: Category 8 (40GBASE-T), Category 7A (10GBASE-T), Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 40Gbps, 25Gbps
■Frequency response: 2000MHz
■Cable length: 3m
■Color: Blue
■Cable Cable diameter: 4mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable structure: ScTP
■Cross separator: None
■Minimum bending radius: During installation/32.0mm, After installation/32.0mm
■Cable conductor: 30AWG
■Cable conductor structure: Solid wire
■PoE: Not supported
■Sheath material: LSZH
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
