SANWA SUPPLY

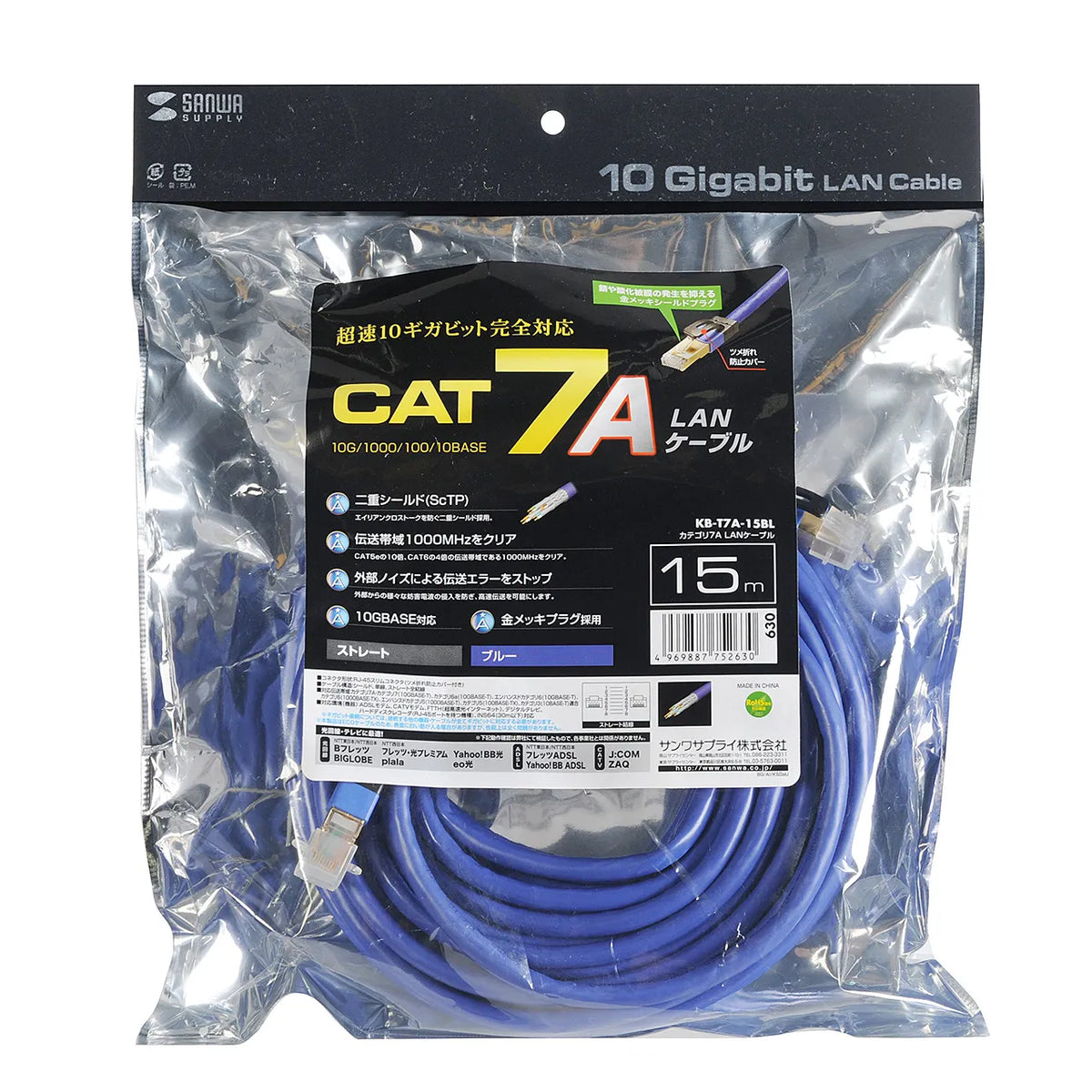

Category 7A LAN Cable KB-T7A-15BL
Category 7A LAN Cable KB-T7A-15BL
GTIN（JAN）：4969887752630
SKU：KB-T7A-15BL
Regular price
¥13,794 JPY
Regular price
Sale price
¥13,794 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 7A LAN Cable Achieving Ultra-High Speed 10Gbps and Ultra-Wide Range 1000MHz Transmission Bandwidth]
●When communicating at gigabit speeds or higher, bundling multiple cables together causes interference, significantly degrading performance and resulting in communication errors. This is called "alien crosstalk (ANEXT)". CAT7A LAN cables have a "double shielding" structure that shields each of the four pairs and the outer circumference, allowing for use when multiple cables are bundled together.
●It clears a transmission bandwidth of 1000MHz, which is 10 times that of Category 5e and 4 times that of Category 6. A wider bandwidth enables faster transmission and is effective in preventing data errors.
●By minimizing cable quality and twisting within the plug, it is fully compatible with 10GBASE (10Gbps), which is rapidly becoming practical.
●It prevents various interfering radio waves from entering from the outside, enabling high-speed transmission.
●It uses gold-plated shielded plugs that suppress the occurrence of rust and oxide films and guarantee high-precision contact.
●A highly elastic PVC claw-break prevention cover is used to prevent the connector's claws from breaking easily.
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
*This product is an ECO cable, so there may be white lines on the surface, but this does not affect its performance in any way.
■Category: CAT7A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 7A (10GBASE-T), Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 1000MHz
■Cable Length: 15m
■Color: Blue
■Cable Diameter: 8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: ScTP
■Cross Filler: None
■Minimum Bending Radius: When laid/64.0mm, After installation: 32.0mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: LSZH
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch protection connector: None
■Latch protection cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
●When communicating at gigabit speeds or higher, bundling multiple cables together causes interference, significantly degrading performance and resulting in communication errors. This is called "alien crosstalk (ANEXT)". CAT7A LAN cables have a "double shielding" structure that shields each of the four pairs and the outer circumference, allowing for use when multiple cables are bundled together.
●It clears a transmission bandwidth of 1000MHz, which is 10 times that of Category 5e and 4 times that of Category 6. A wider bandwidth enables faster transmission and is effective in preventing data errors.
●By minimizing cable quality and twisting within the plug, it is fully compatible with 10GBASE (10Gbps), which is rapidly becoming practical.
●It prevents various interfering radio waves from entering from the outside, enabling high-speed transmission.
●It uses gold-plated shielded plugs that suppress the occurrence of rust and oxide films and guarantee high-precision contact.
●A highly elastic PVC claw-break prevention cover is used to prevent the connector's claws from breaking easily.
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
*This product is an ECO cable, so there may be white lines on the surface, but this does not affect its performance in any way.
■Category: CAT7A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 7A (10GBASE-T), Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 1000MHz
■Cable Length: 15m
■Color: Blue
■Cable Diameter: 8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: ScTP
■Cross Filler: None
■Minimum Bending Radius: When laid/64.0mm, After installation: 32.0mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: LSZH
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch protection connector: None
■Latch protection cover: Yes
■Operating temperature range: -20 to 60℃
■Inspection: 100% continuity test
