SANWA SUPPLY

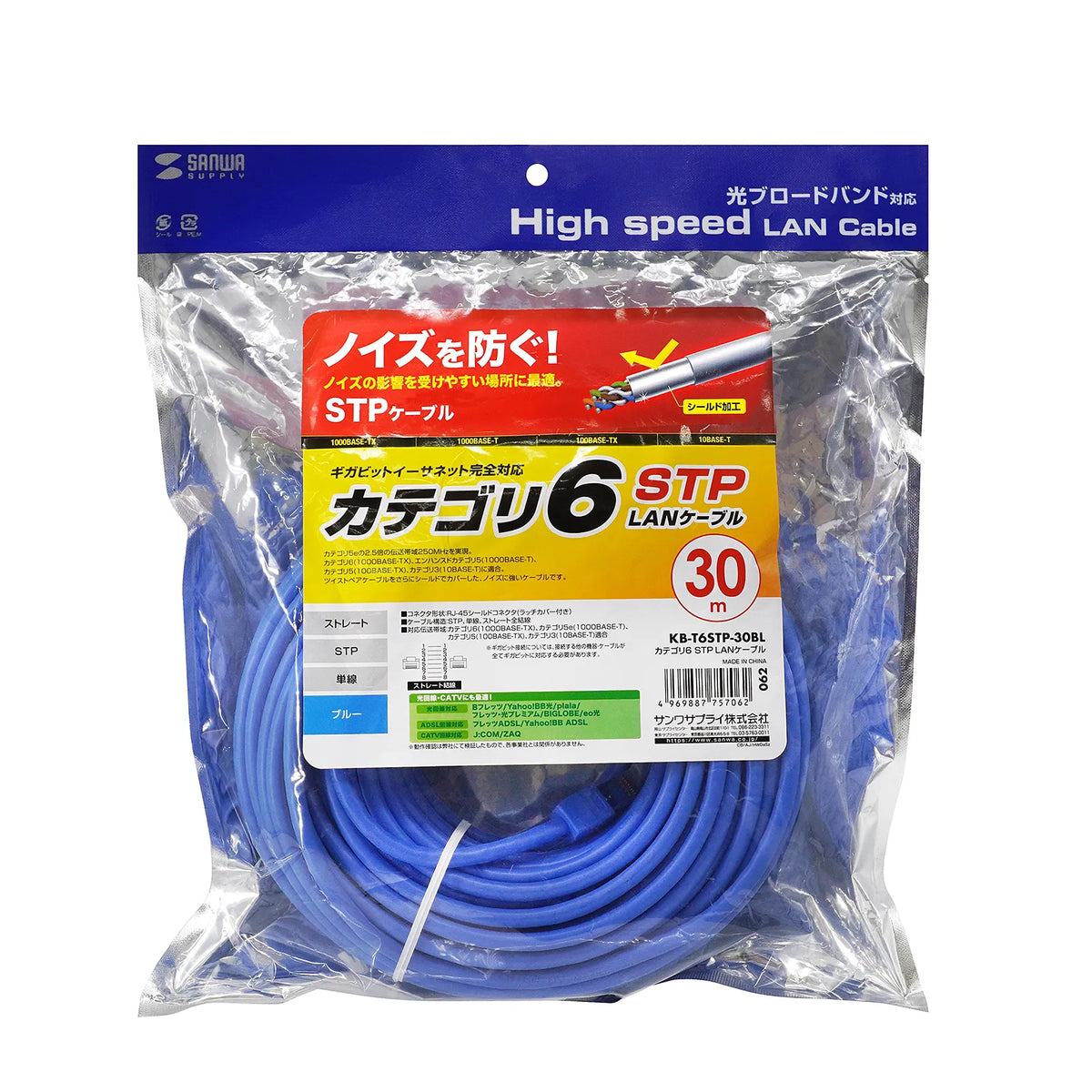

Category 6 STP LAN Cable KB-T6STP-30BL
Category 6 STP LAN Cable KB-T6STP-30BL
GTIN（JAN）：4969887757062
SKU：KB-T6STP-30BL
Regular price
¥13,794 JPY
Regular price
Sale price
¥13,794 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Noise-resistant shielded Category 6 STP LAN cable compatible with 1000BASE-TX]
●Twisted pair cable is further covered with shielding for a noise-resistant structure.
●Fully compatible with 1000BASE-TX Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●"Single-wire" specification to fully utilize performance.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 30m
■Color: Blue
■Cable Diameter: 6.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: STP
■Cross separator: None
■Minimum bending radius:
During installation/38.4mm
After installation/25.6mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
●Twisted pair cable is further covered with shielding for a noise-resistant structure.
●Fully compatible with 1000BASE-TX Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●"Single-wire" specification to fully utilize performance.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 30m
■Color: Blue
■Cable Diameter: 6.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: STP
■Cross separator: None
■Minimum bending radius:
During installation/38.4mm
After installation/25.6mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
