SANWA SUPPLY

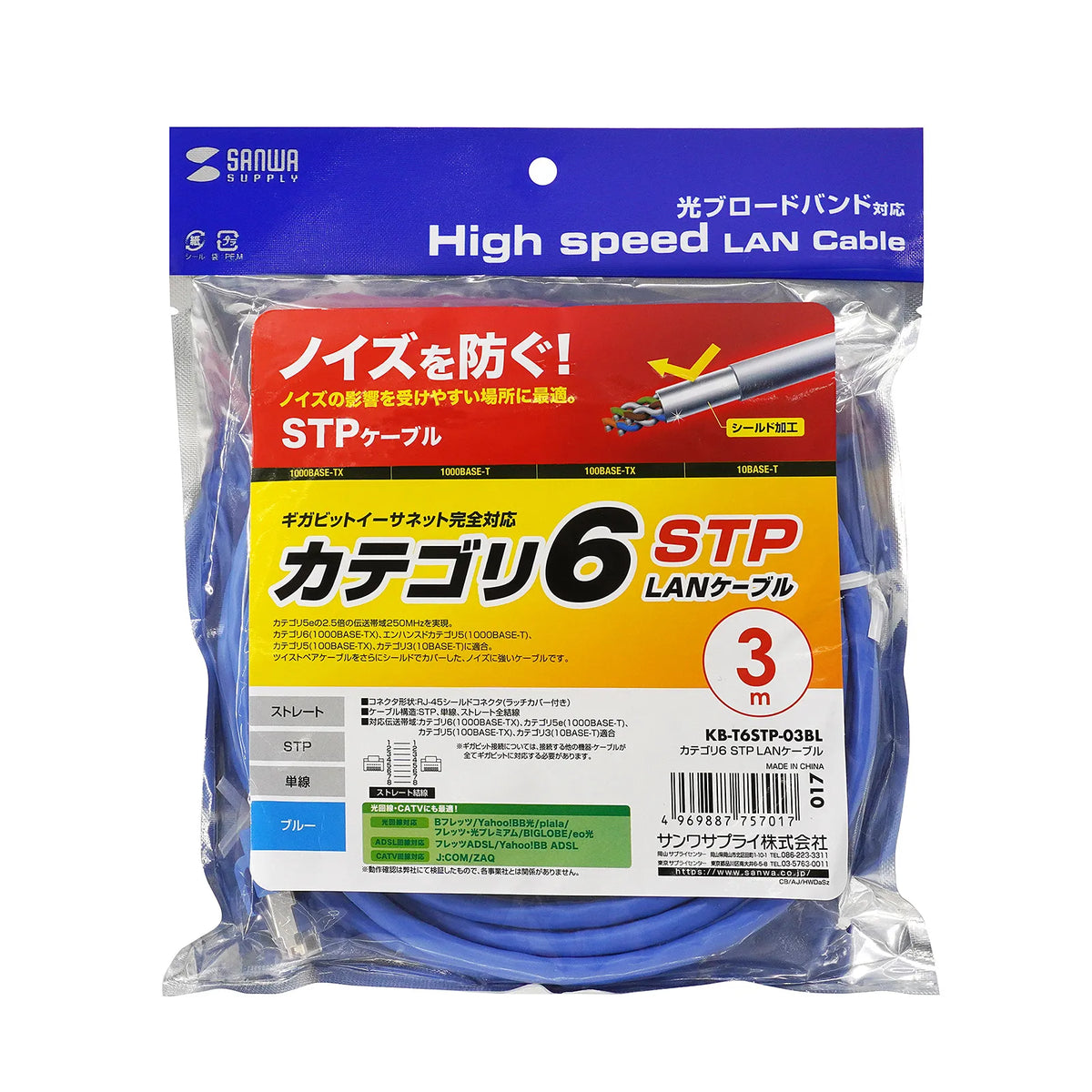

Category 6 STP LAN Cable KB-T6STP-03BL
Category 6 STP LAN Cable KB-T6STP-03BL
GTIN（JAN）：4969887757017
SKU：KB-T6STP-03BL
Regular price
¥2,033 JPY
Regular price
Sale price
¥2,033 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Noise-resistant shielded Category 6 STP LAN cable compatible with 1000BASE-TX]
●Twisted pair cable is further covered with shielding for a noise-resistant structure.
●Fully compatible with 1000BASE-TX Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●"Single-wire" specification to fully utilize performance.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 3m
■Color: Blue
■Cable Diameter: 6.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Cable Wiring
■Cable Structure: STP
■Cross Separator: None
■Minimum Bending Radius:
During Laying/38.4mm
After Installation/25.6mm
■Cable Conductor: 24AWG
■Cable Conductor Structure: Solid Wire
■PoE: Compatible
■Sheath Material: PVC
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: None
■Latch Protection Connector: None
■Latch Protection Cover: Yes
■Operating Temperature Range: -20 to 60 degrees Celsius
■Inspection: 100% Continuity Test
●Twisted pair cable is further covered with shielding for a noise-resistant structure.
●Fully compatible with 1000BASE-TX Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
●"Single-wire" specification to fully utilize performance.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 3m
■Color: Blue
■Cable Diameter: 6.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Cable Wiring
■Cable Structure: STP
■Cross Separator: None
■Minimum Bending Radius:
During Laying/38.4mm
After Installation/25.6mm
■Cable Conductor: 24AWG
■Cable Conductor Structure: Solid Wire
■PoE: Compatible
■Sheath Material: PVC
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: None
■Latch Protection Connector: None
■Latch Protection Cover: Yes
■Operating Temperature Range: -20 to 60 degrees Celsius
■Inspection: 100% Continuity Test
