SANWA SUPPLY

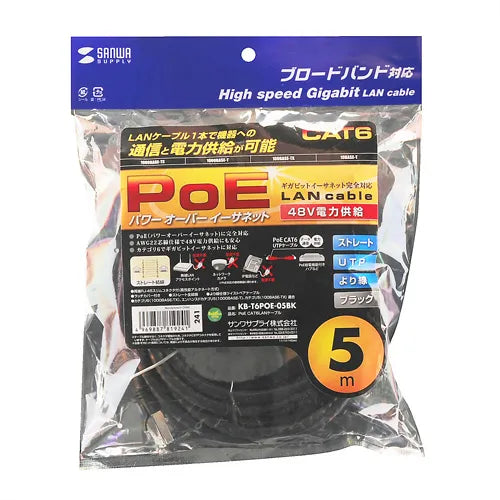

PoE CAT6 LAN cable (5m) KB-T6POE-05BK
PoE CAT6 LAN cable (5m) KB-T6POE-05BK
GTIN（JAN）：4969887819241
SKU：KB-T6POE-05BK
Regular price
¥2,831 JPY
Regular price
Sale price
¥2,831 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A CAT6 LAN cable fully compatible with PoE, enabling communication and power supply to devices with a single LAN cable]
●This is a Category 6 LAN cable that is fully compatible with PoE (Power over Ethernet), enabling signal communication and power supply to LAN devices with a single LAN cable.
●With a 22AWG core wire specification, it is fully compatible with 48V power supply and supports PoE, as well as PoE+ and UPoE.
●This is a Category 6 compliant LAN cable that is fully compatible with Gigabit Ethernet with a transmission speed of 1000Mbps (1Gbps).
●It achieves a transmission bandwidth of 250MHz, which is 2.5 times that of Category 5e.
*Although the cable wire material is thick and an STP connector is used for connector reinforcement, the cable itself is a UTP cable.
＜What is PoE?＞
PoE is a technology that supplies power via Ethernet cables (UTP cables) used for LAN wiring. By using a LAN switch with PoE functionality in combination with PoE-compatible equipment, power can be supplied from the LAN switch to the PoE-compatible equipment via the Ethernet cable used for sending and receiving data. This is suitable for installing network-connected equipment in locations where securing a power source is difficult. Specifically, it is used with IP phones, wireless LAN access points, and webcams.
*Limited to PoE-compatible connected equipment.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 5m
■Color: Black
■Cable Diameter (mm): 7.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection Wire
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: Laying/59.2mm, After installation/29.6mm
■Cable conductor: 22AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●This is a Category 6 LAN cable that is fully compatible with PoE (Power over Ethernet), enabling signal communication and power supply to LAN devices with a single LAN cable.
●With a 22AWG core wire specification, it is fully compatible with 48V power supply and supports PoE, as well as PoE+ and UPoE.
●This is a Category 6 compliant LAN cable that is fully compatible with Gigabit Ethernet with a transmission speed of 1000Mbps (1Gbps).
●It achieves a transmission bandwidth of 250MHz, which is 2.5 times that of Category 5e.
*Although the cable wire material is thick and an STP connector is used for connector reinforcement, the cable itself is a UTP cable.
＜What is PoE?＞
PoE is a technology that supplies power via Ethernet cables (UTP cables) used for LAN wiring. By using a LAN switch with PoE functionality in combination with PoE-compatible equipment, power can be supplied from the LAN switch to the PoE-compatible equipment via the Ethernet cable used for sending and receiving data. This is suitable for installing network-connected equipment in locations where securing a power source is difficult. Specifically, it is used with IP phones, wireless LAN access points, and webcams.
*Limited to PoE-compatible connected equipment.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 5m
■Color: Black
■Cable Diameter (mm): 7.4mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection Wire
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: Laying/59.2mm, After installation/29.6mm
■Cable conductor: 22AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
