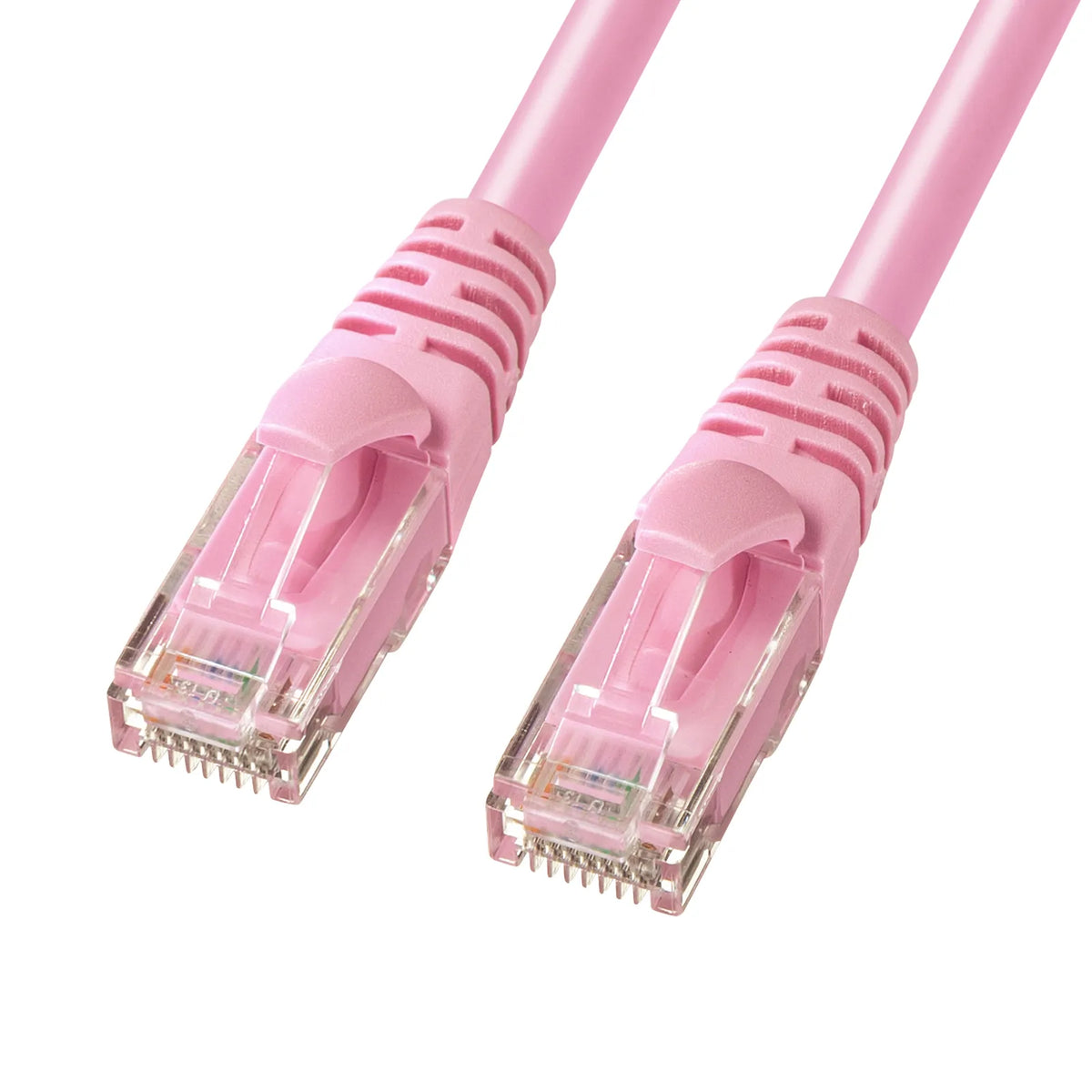

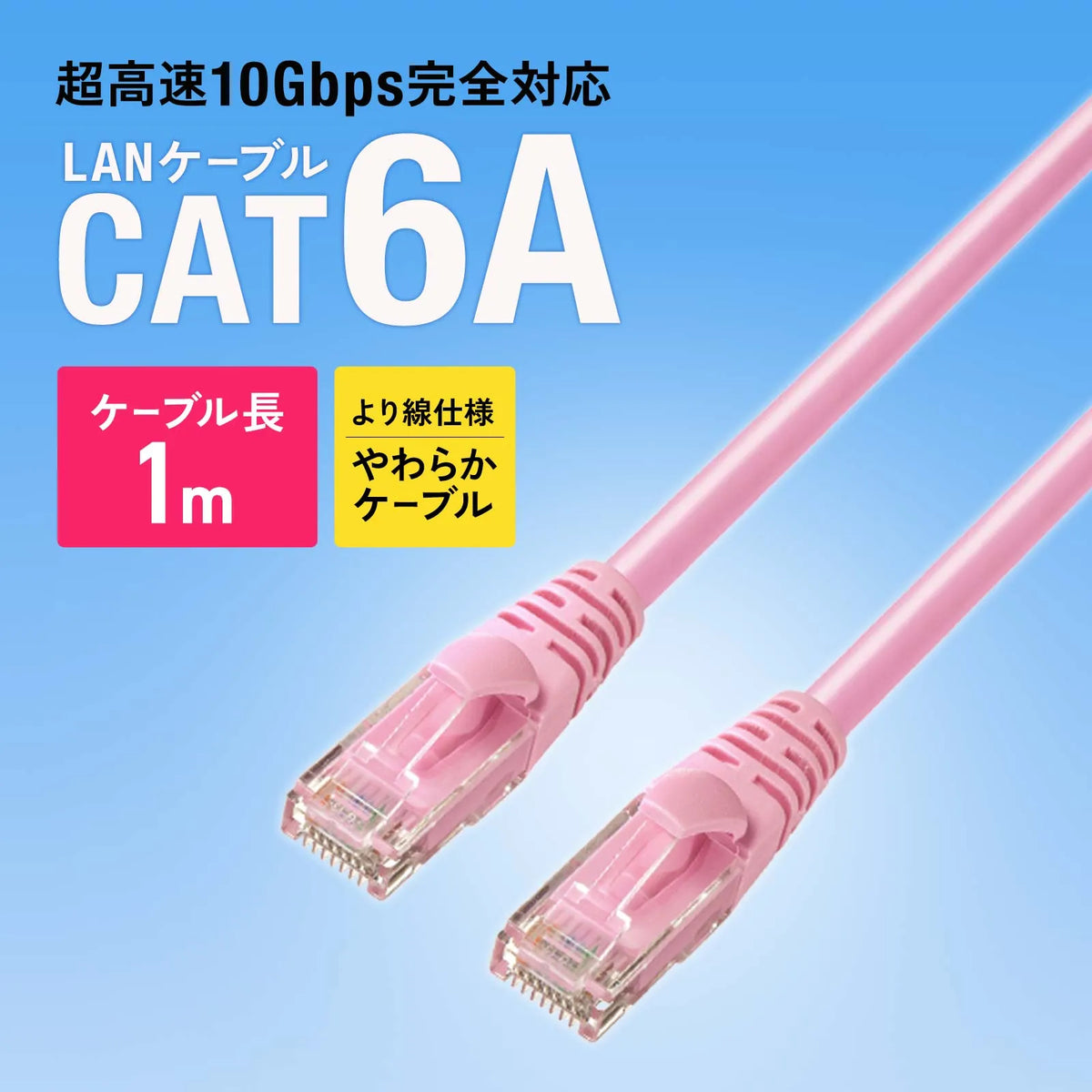

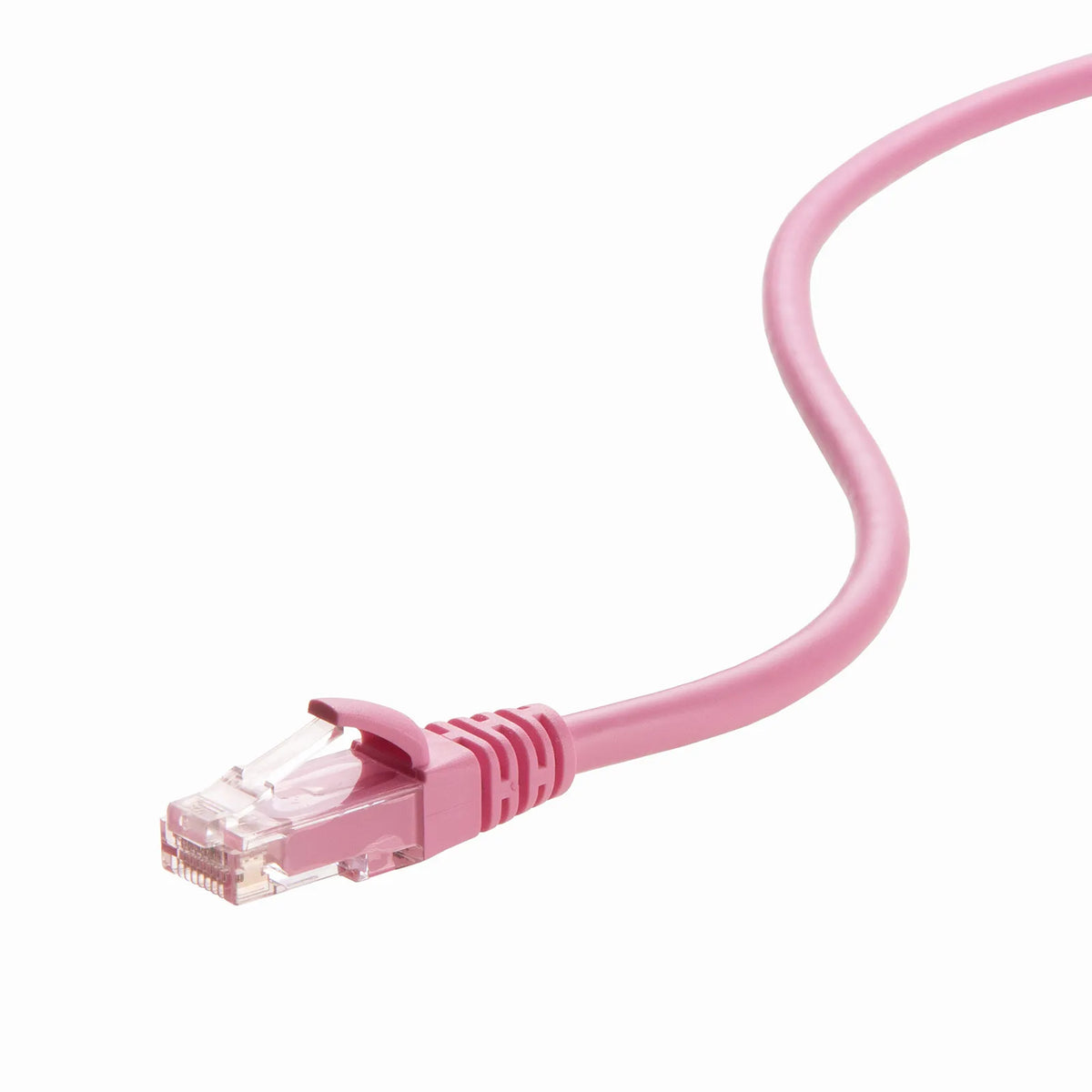

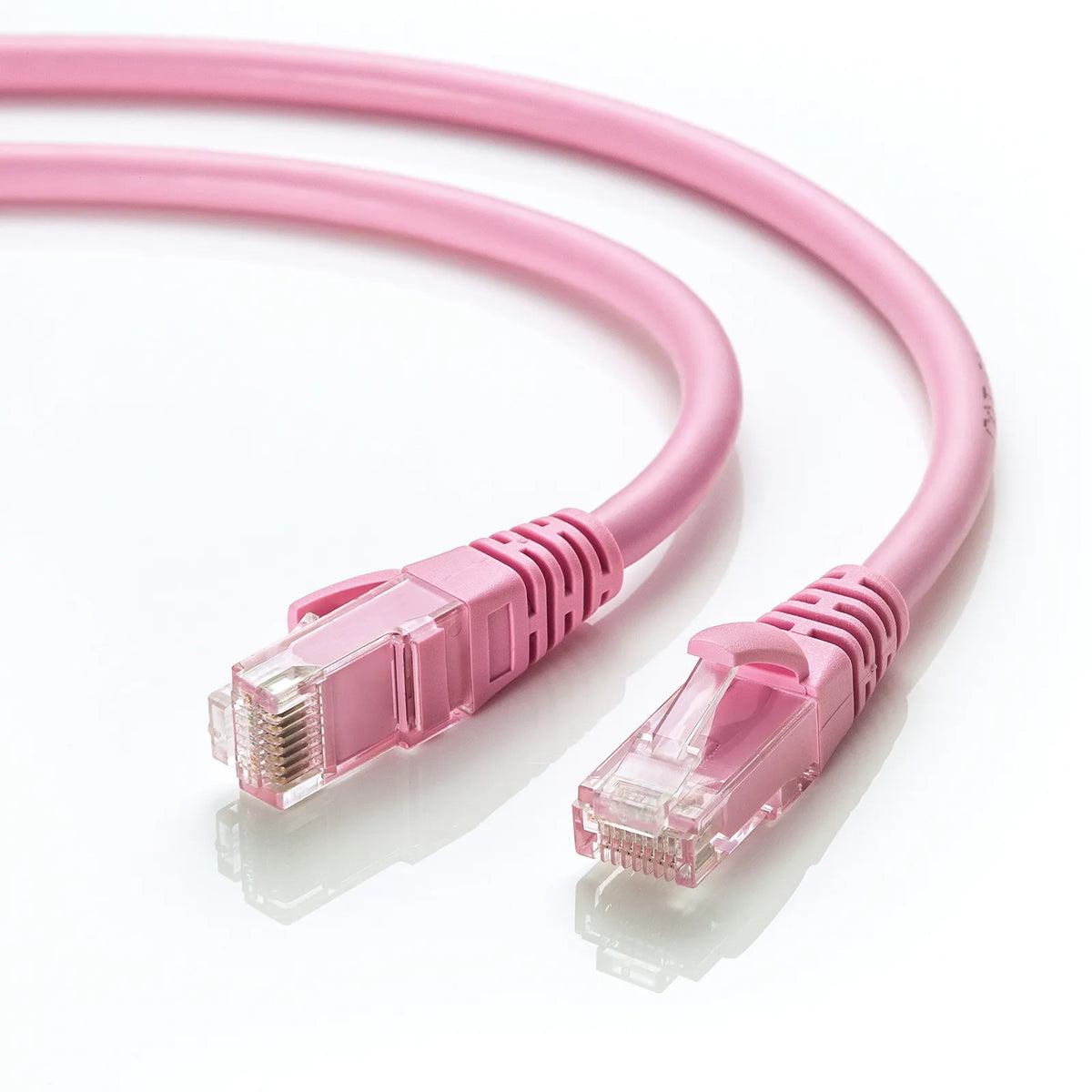

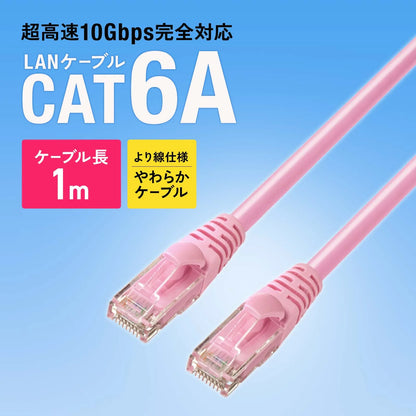

Category 6A Stranded LAN Cable (Pink, 1m) KB-T6AY-01P

【Ultra-High Speed ​​10 Gigabit Ethernet Fully Compatible, Stranded CAT6A LAN Cable】

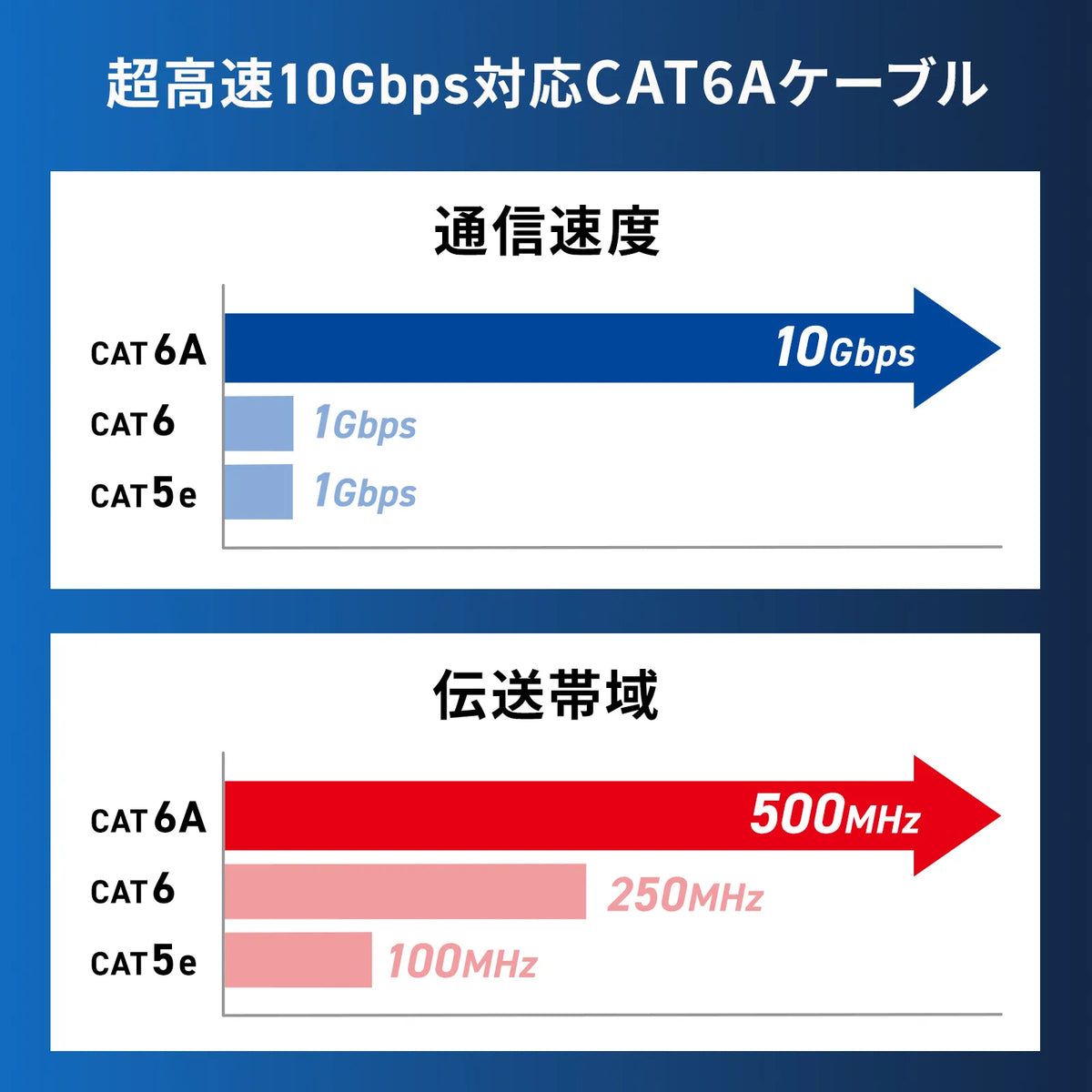

●Achieves a transmission bandwidth of 500MHz, 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! This high-performance LAN cable prevents errors with its ample transmission characteristics.
●Fully compatible with 10 Gigabit Ethernet, it can handle the ultra-high-speed networks of the future.

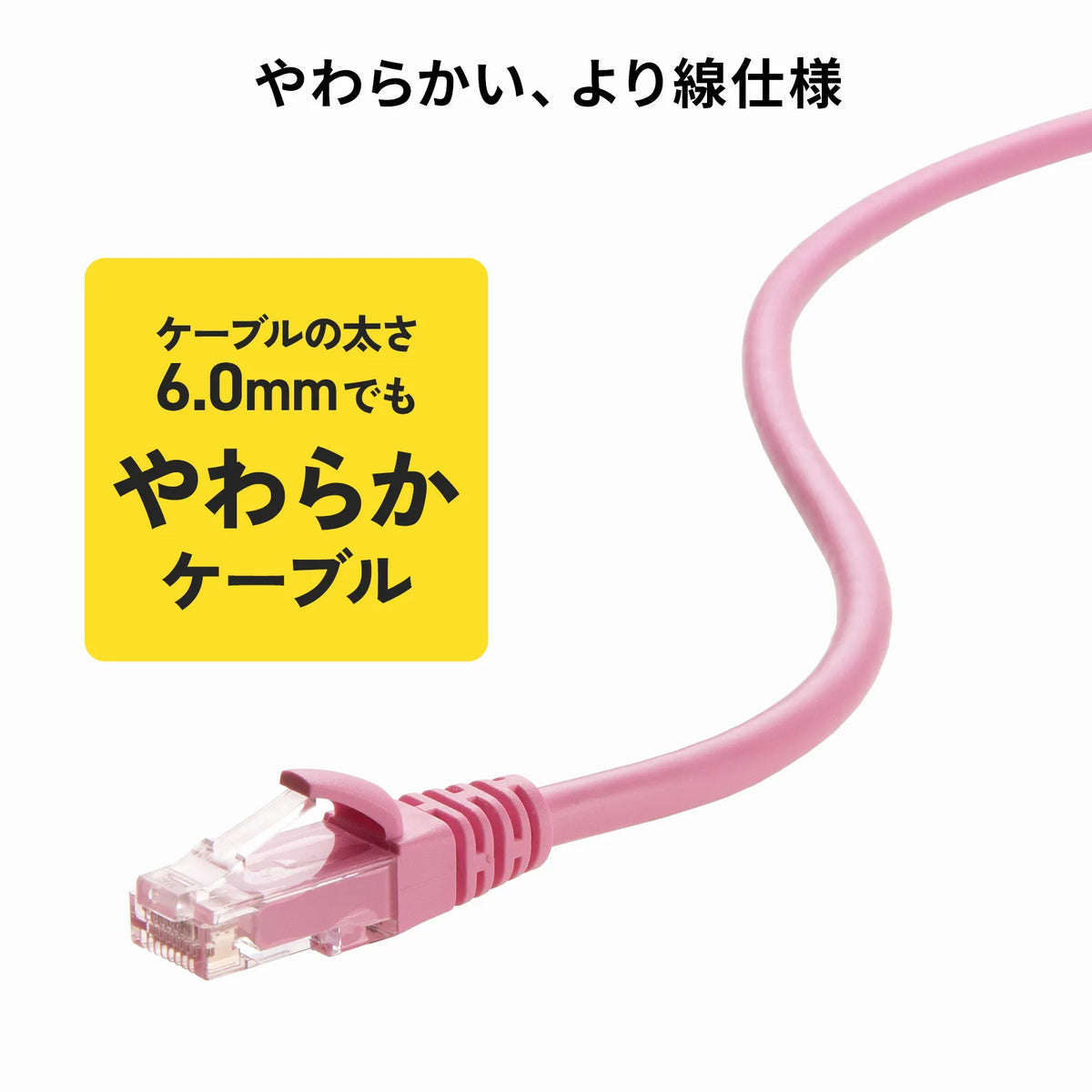

●Even with a cable thickness of 6.0mm, the stranded wire design makes it flexible and easy to handle.

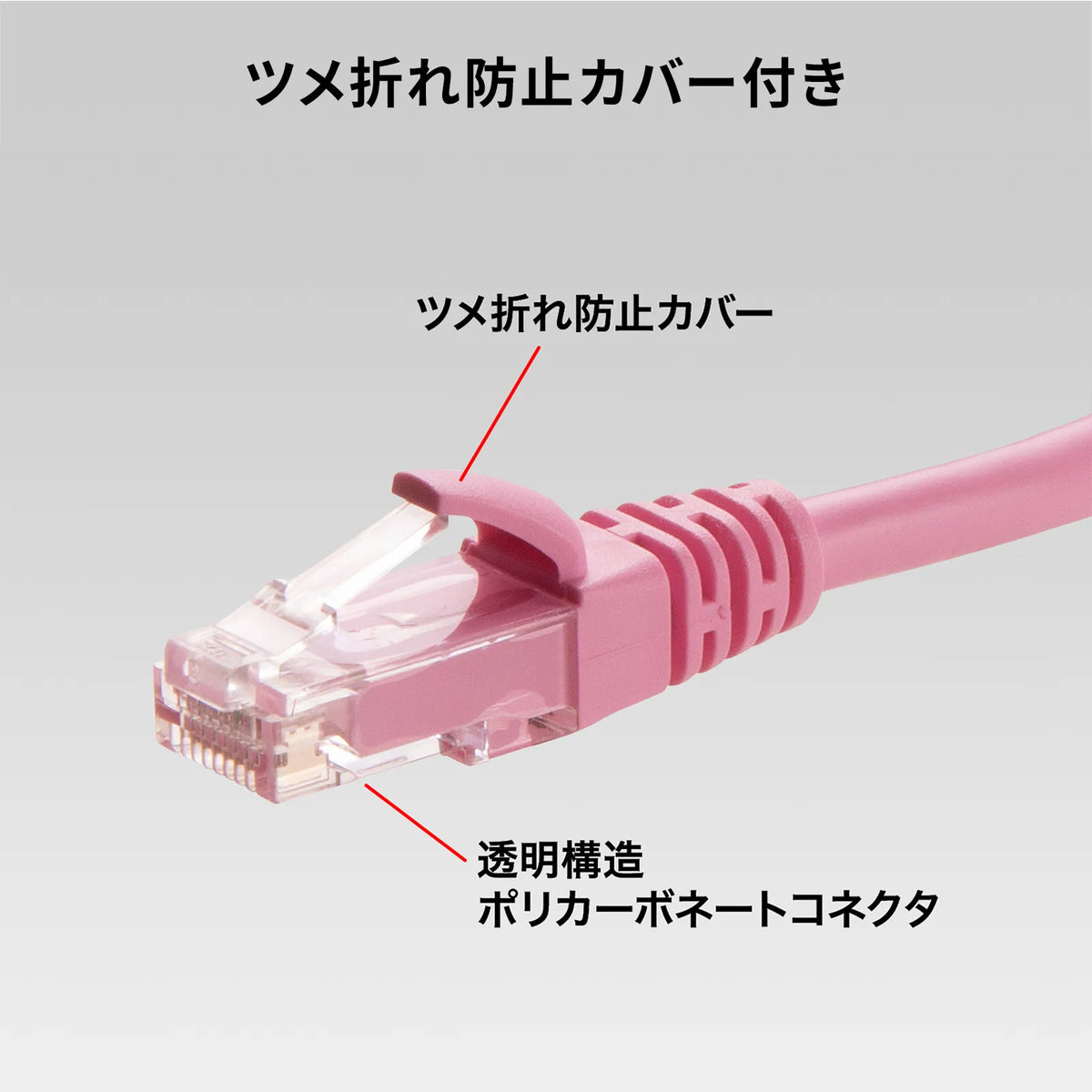

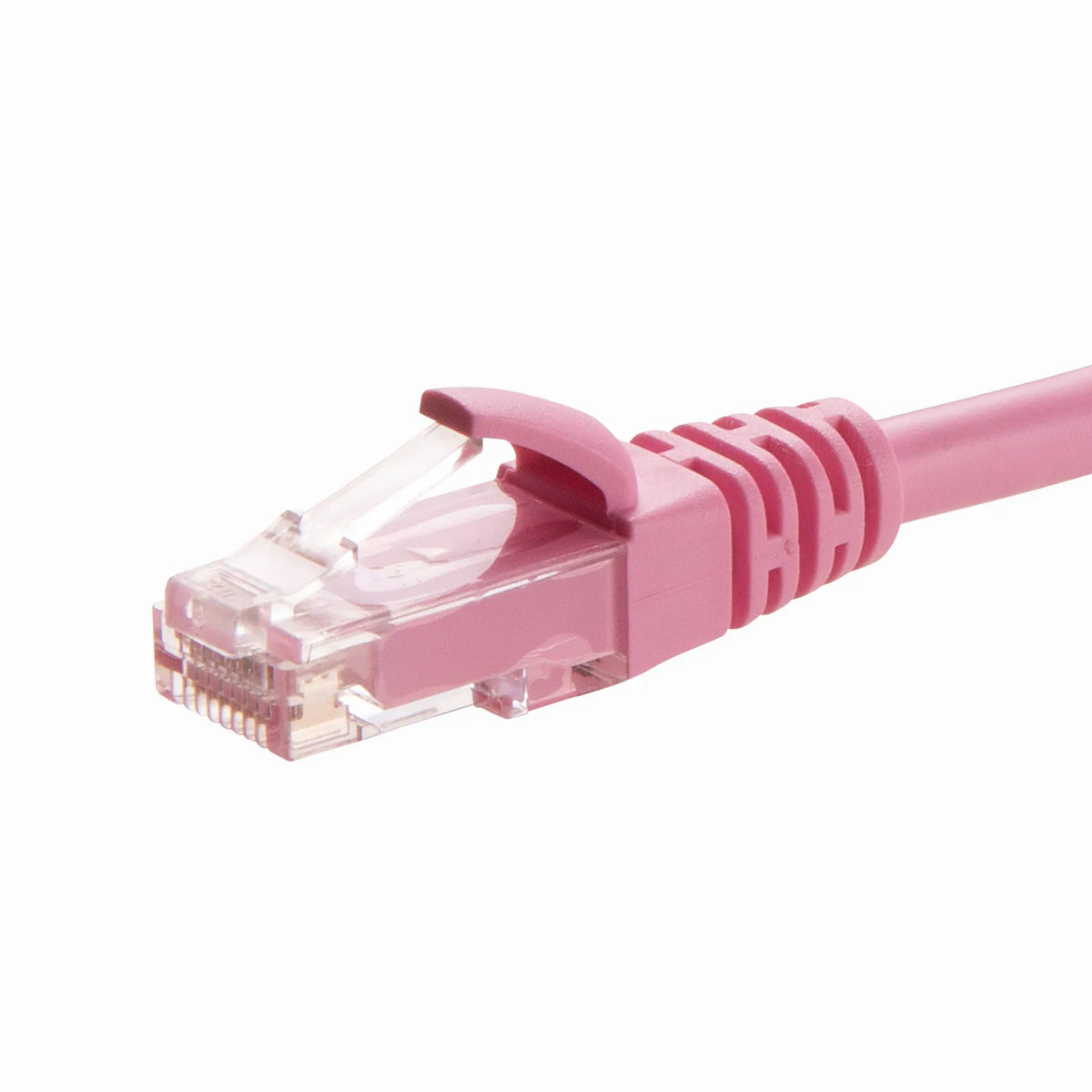

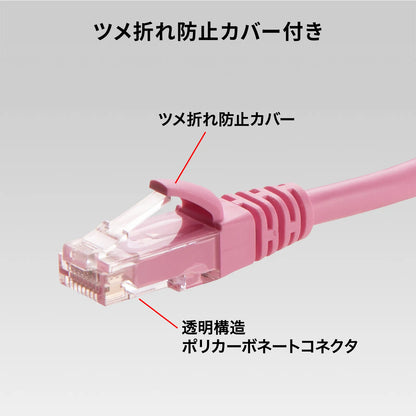

●Features a double-layer structure with a highly elastic PVC (polyvinyl chloride) claw-break prevention cover and a transparent polycarbonate connector that allows you to see the performance.

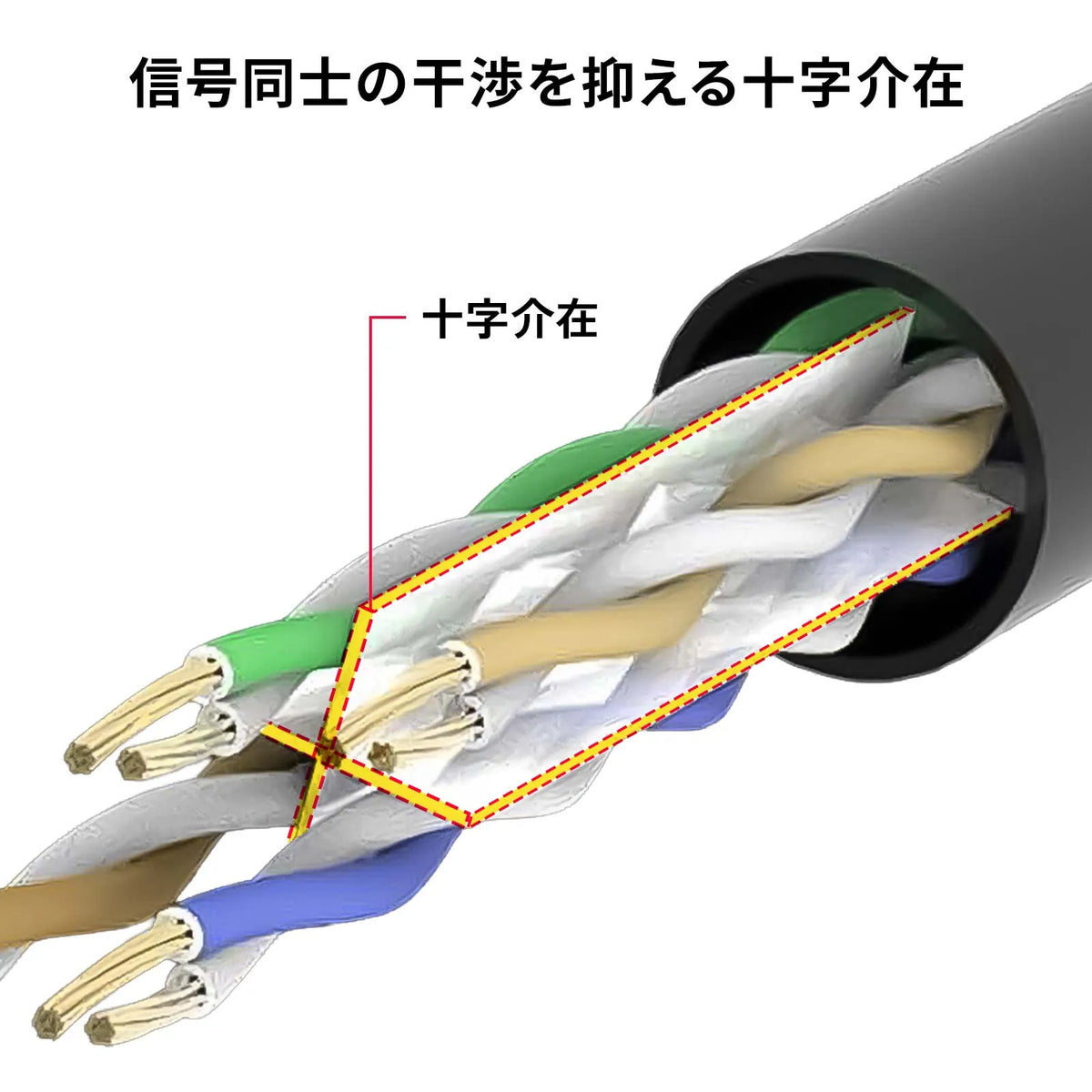

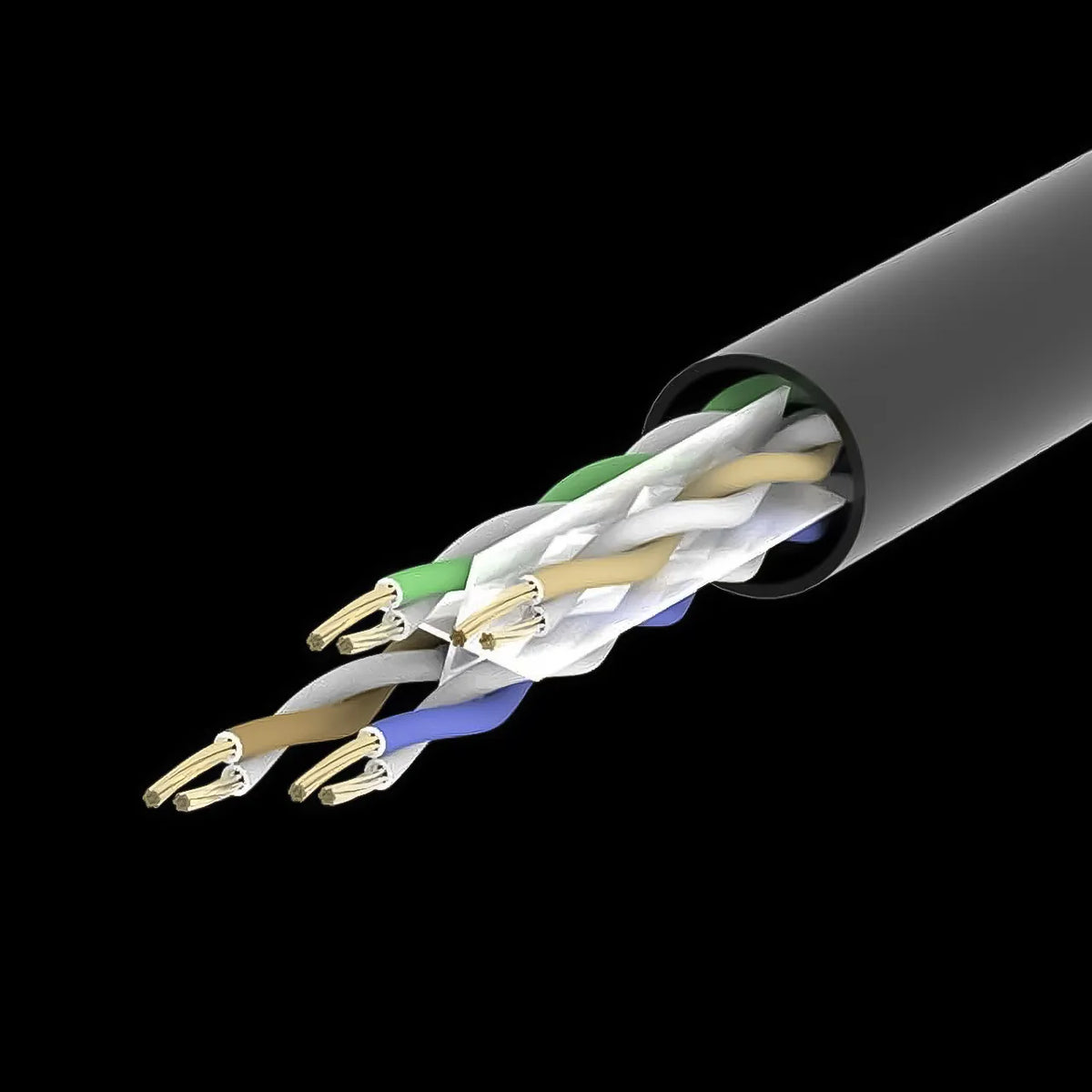

●The cable contains a cross-shaped separator to prevent electromagnetic interference between signals, achieving significantly stable electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.



■Shape Specification Type: Round Cable
■Shape Type: Standard Type
■Category: CAT6A
■Standard Name: 10GBASE-T
■Compatible Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) Compatible
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length: 1m

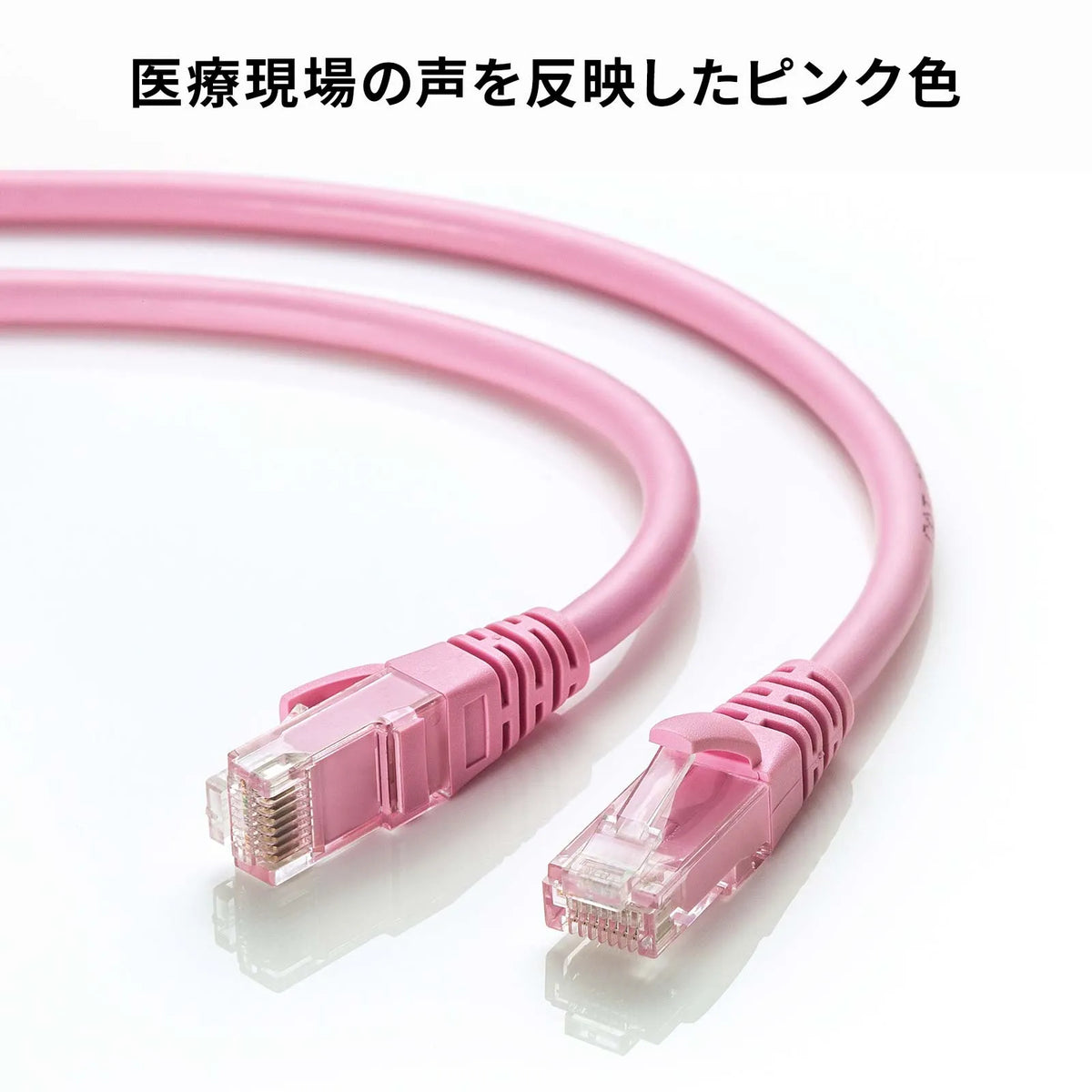

■Color: Pink
■Cable diameter: 6mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: Approx. 24.0mm when laid, 24.0mm after laid
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Compatible
Length: Up to 20m, IEEE802.3bt
(PoE++) compatible
*The temperature inside the cable will rise when power is supplied, so please do not exceed the operating temperature.
■Sheathing Material: PVC
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: Yes
■Latch-Break Prevention Connector: No
■Latch-Break Prevention Cover: Yes
■Storage Temperature Range: Approx. -10 to 40 degrees Celsius
■Operating Humidity: Approx. 0 to 90%
*No condensation
■Storage Humidity: Approx. 30 to 70%
*No condensation
■Testing: 100% Continuity Test
■Compatible Environments (Equipment): Fiber optic lines (FTTH ultra-high-speed fiber optic internet), cable TV lines (CATV modems), ADSL lines (ADSL modems), network lines (network equipment), digital televisions, digital audio, hard disk recorders (models with RJ-45 ports), INS64 (30m or less) compatible
*For Gigabit connections, all other connected equipment and cables must be Gigabit compatible.
■ Operating temperature range: Approx. -20 to 60 degrees
