SANWA SUPPLY

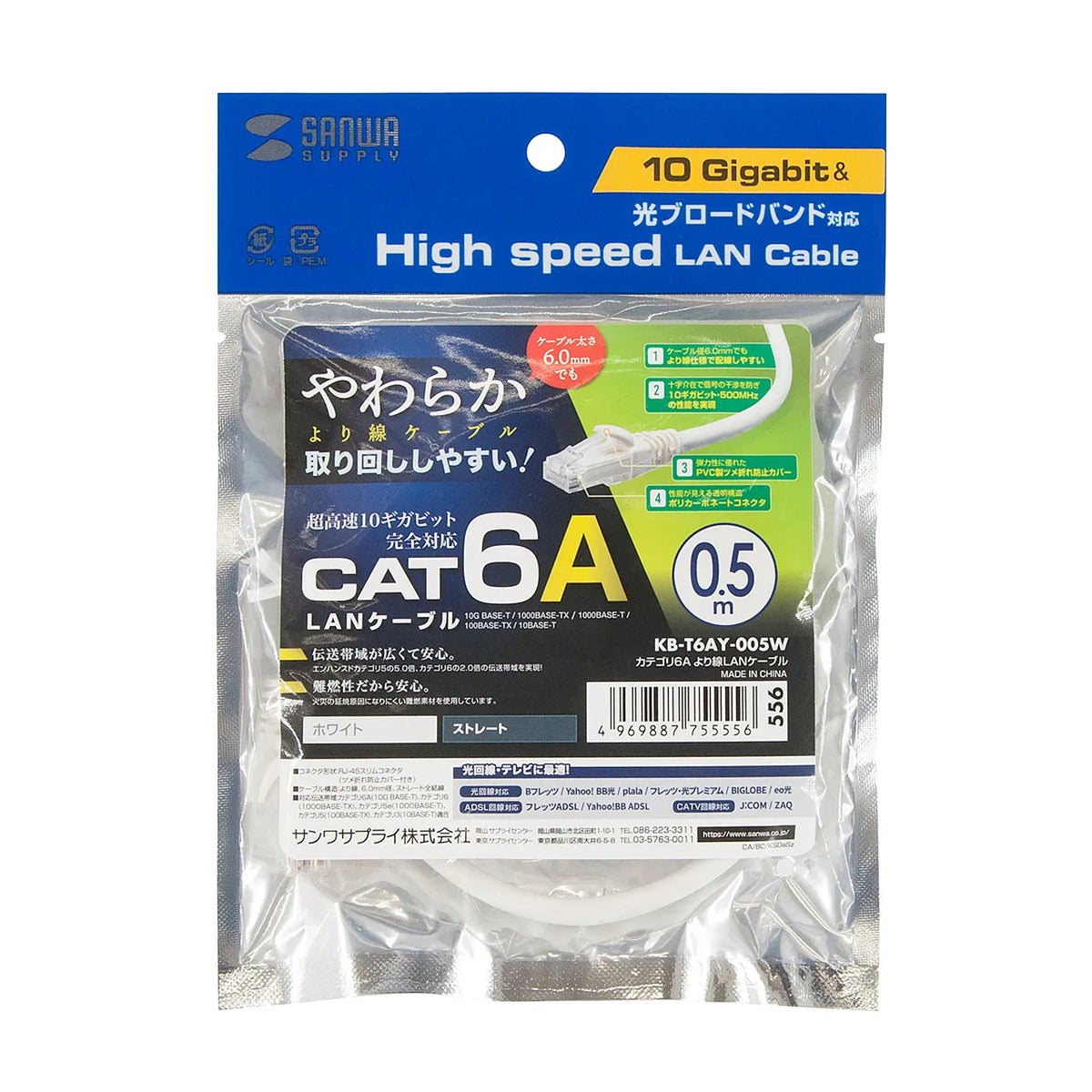

Category 6A Stranded LAN Cable KB-T6AY-005W
Category 6A Stranded LAN Cable KB-T6AY-005W
GTIN（JAN）：4969887755556
SKU：KB-T6AY-005W
Regular price
¥552 JPY
Regular price
Sale price
¥552 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-high-speed 10 Gigabit Ethernet fully compatible, stranded CAT6A LAN cable]
●Achieves a transmission bandwidth of 500MHz, 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6. This high-performance LAN cable prevents errors with its ample transmission characteristics.
●Fully compatible with 10 Gigabit Ethernet, it can handle the ultra-high-speed networks of the future.
●Even with a cable thickness of 6.0mm, it is flexible due to its stranded construction. This LAN cable is easy to handle.
●Features a double structure with a highly elastic PVC (polyvinyl chloride) claw-break prevention cover and a transparent polycarbonate connector that allows you to see the performance.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT6A
■Standard name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 0.5m
■Color: White
■Cable Diameter (mm): 6mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/24.0mm, after installation/24.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
●Achieves a transmission bandwidth of 500MHz, 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6. This high-performance LAN cable prevents errors with its ample transmission characteristics.
●Fully compatible with 10 Gigabit Ethernet, it can handle the ultra-high-speed networks of the future.
●Even with a cable thickness of 6.0mm, it is flexible due to its stranded construction. This LAN cable is easy to handle.
●Features a double structure with a highly elastic PVC (polyvinyl chloride) claw-break prevention cover and a transparent polycarbonate connector that allows you to see the performance.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT6A
■Standard name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 0.5m
■Color: White
■Cable Diameter (mm): 6mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/24.0mm, after installation/24.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
