SANWA SUPPLY

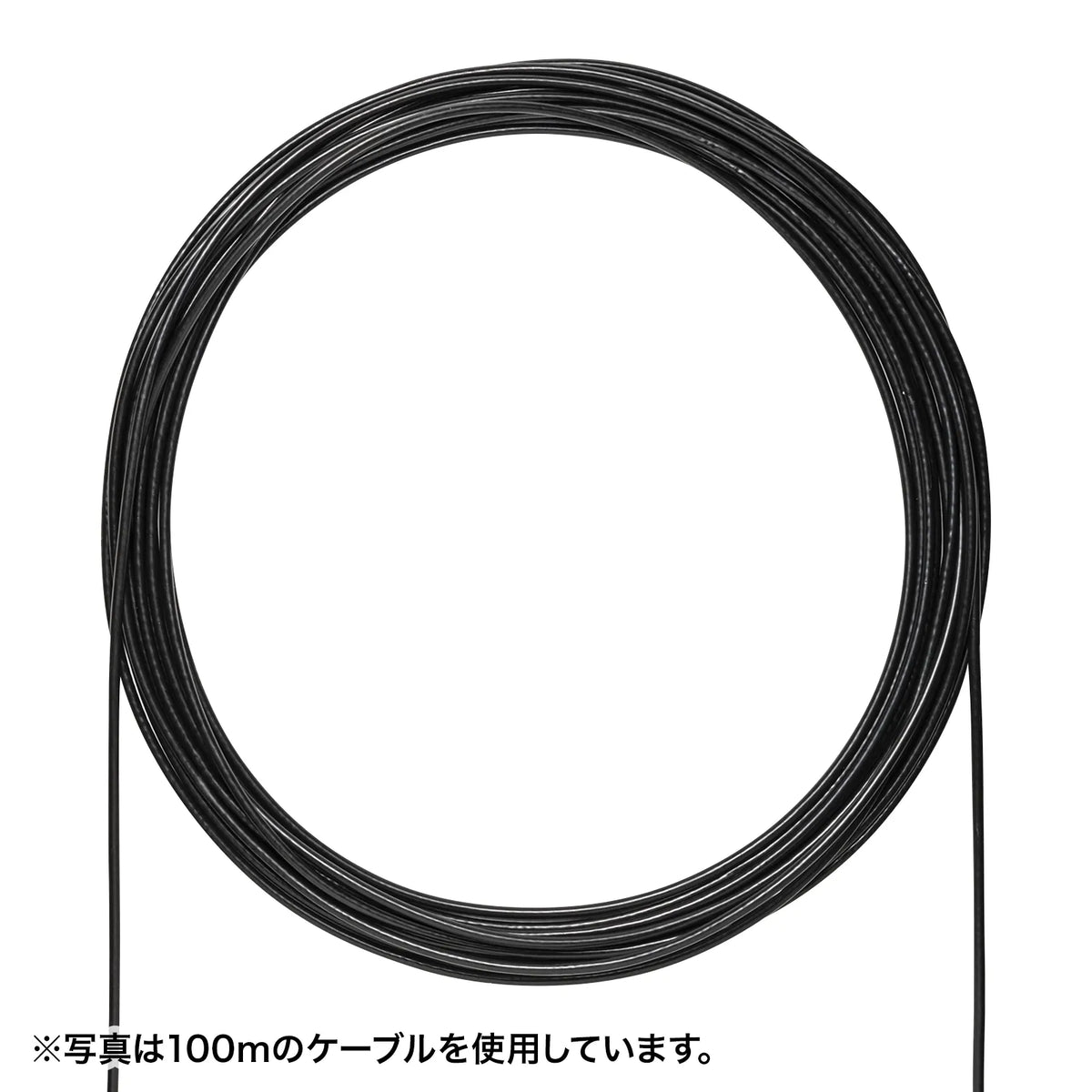

Outdoor waterproof Category 6A LAN cable only KB-T6AWP-CB300BK
Outdoor waterproof Category 6A LAN cable only KB-T6AWP-CB300BK
GTIN（JAN）：4969887757963
SKU：KB-T6AWP-CB300BK
Regular price
¥110,352 JPY
Regular price
Sale price
¥110,352 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

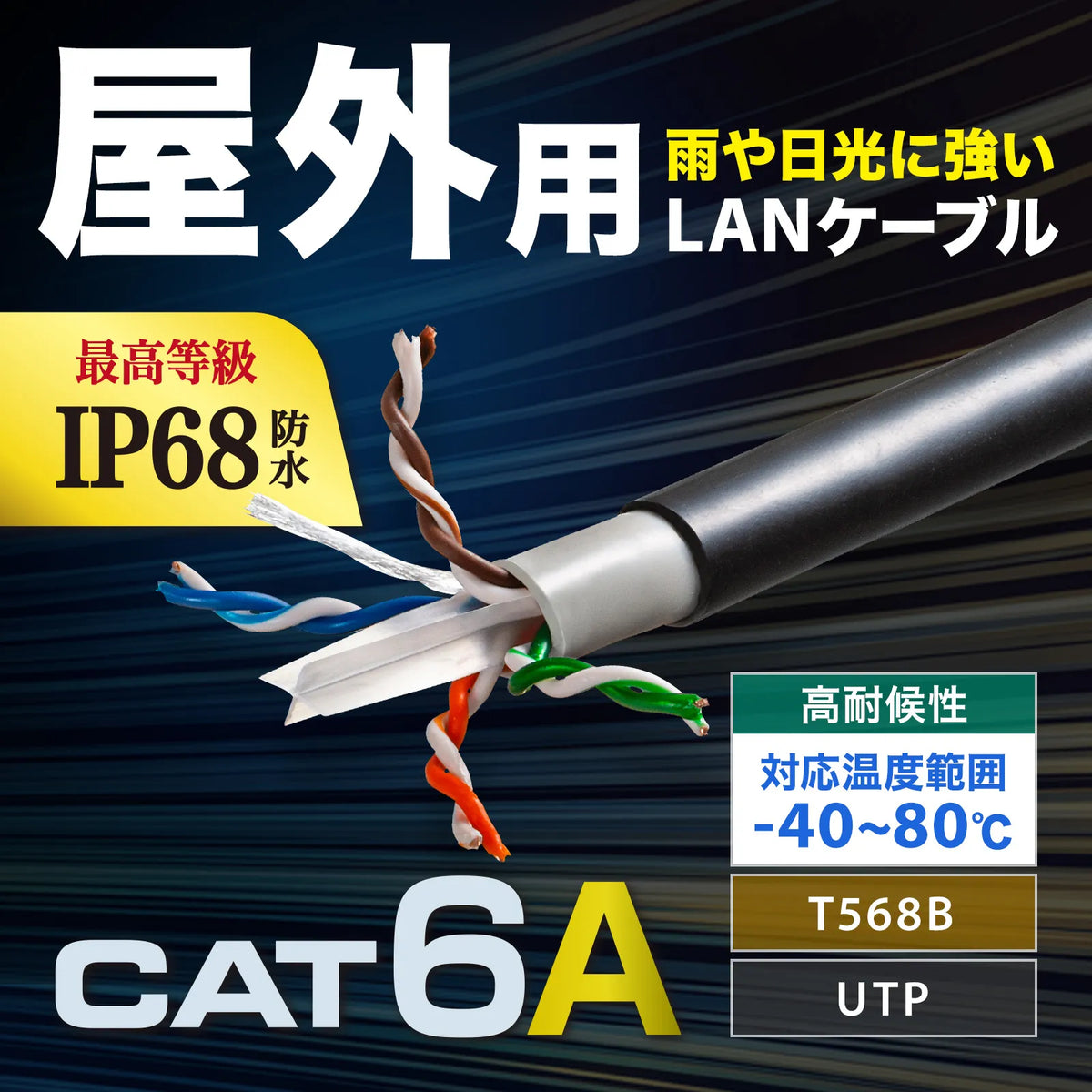

[Weatherproof and water-resistant double-layered IP68 waterproof Category 6A LAN cable for DIY outdoor use]
●This is a Category 6A outdoor LAN cable for DIY use. (Connectors are not included)

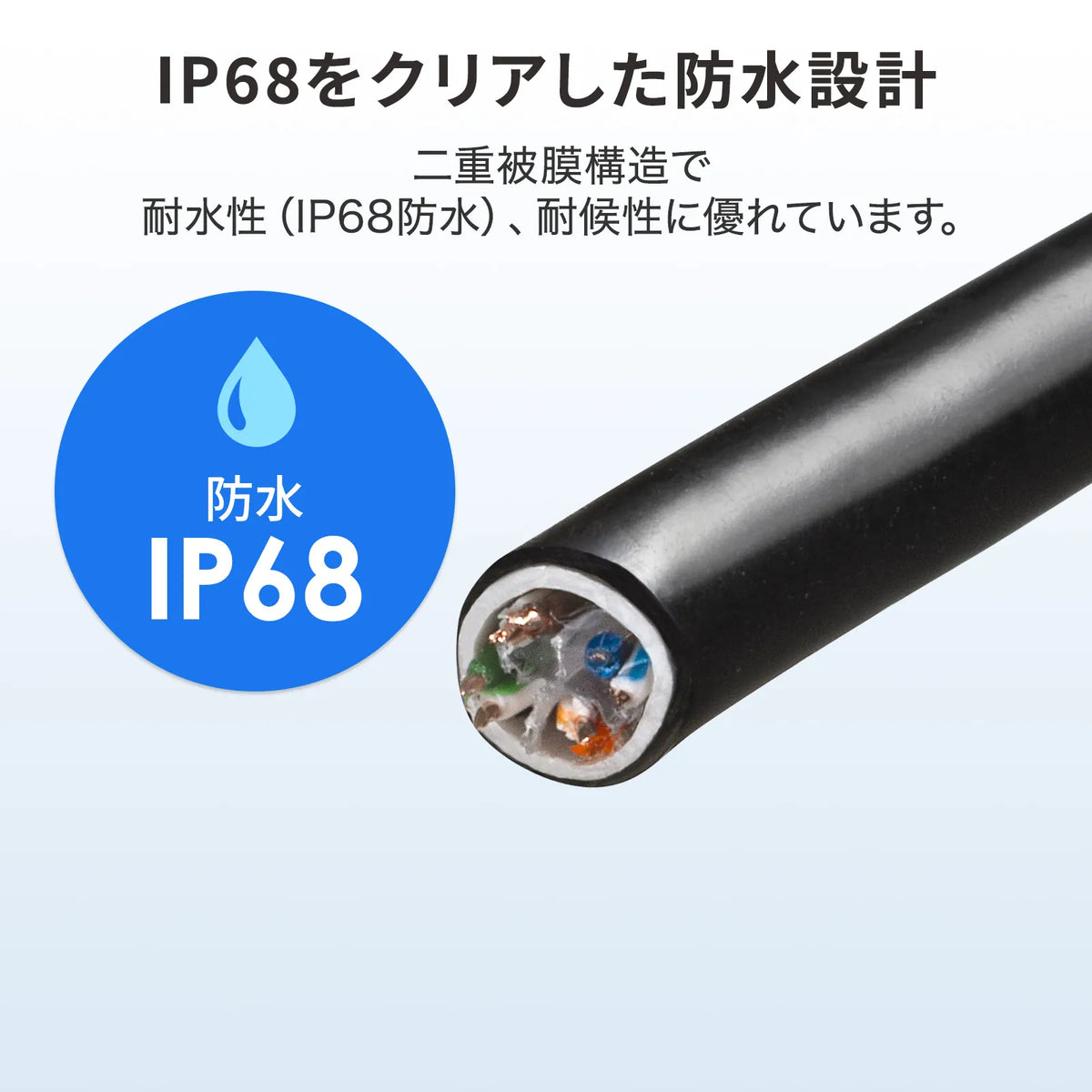

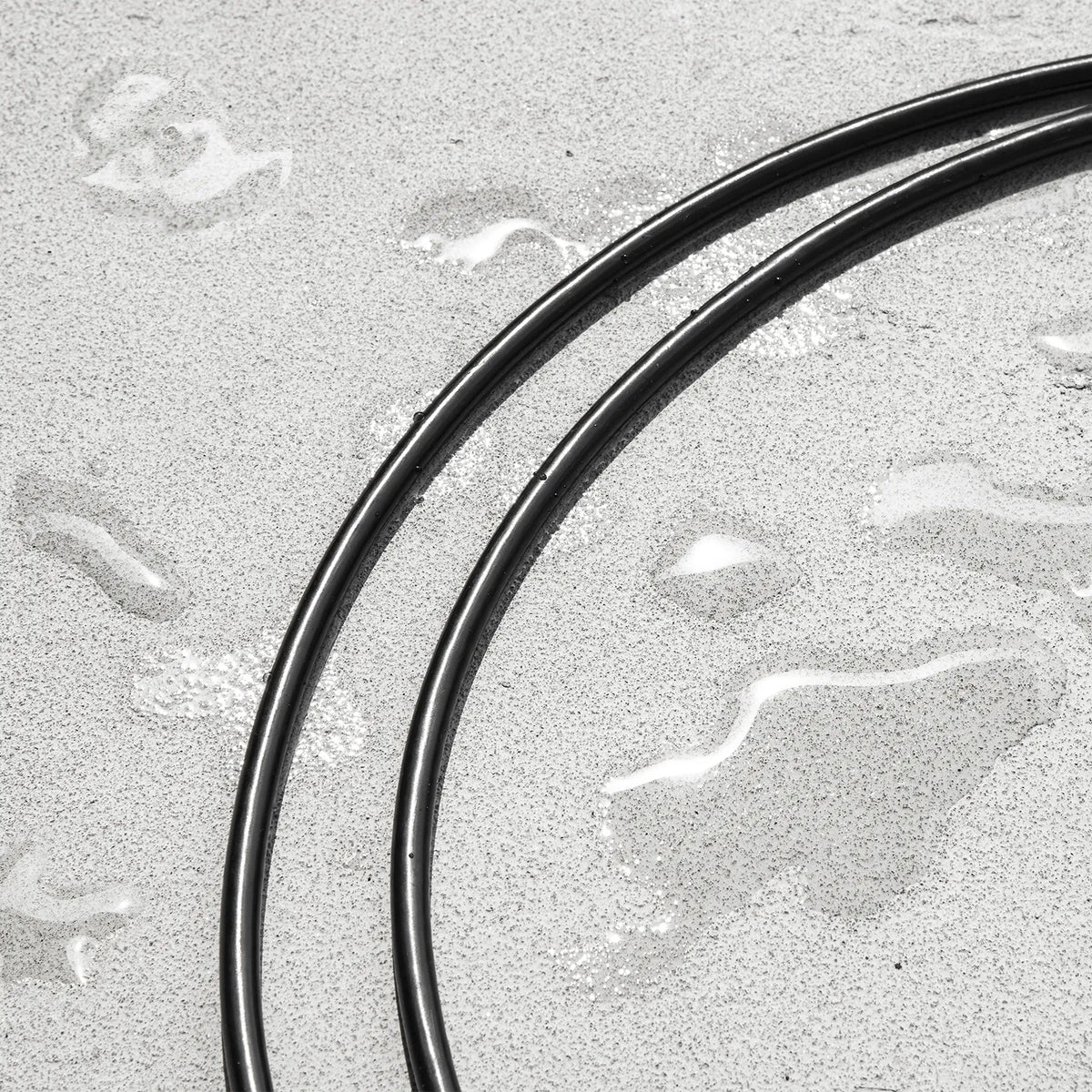

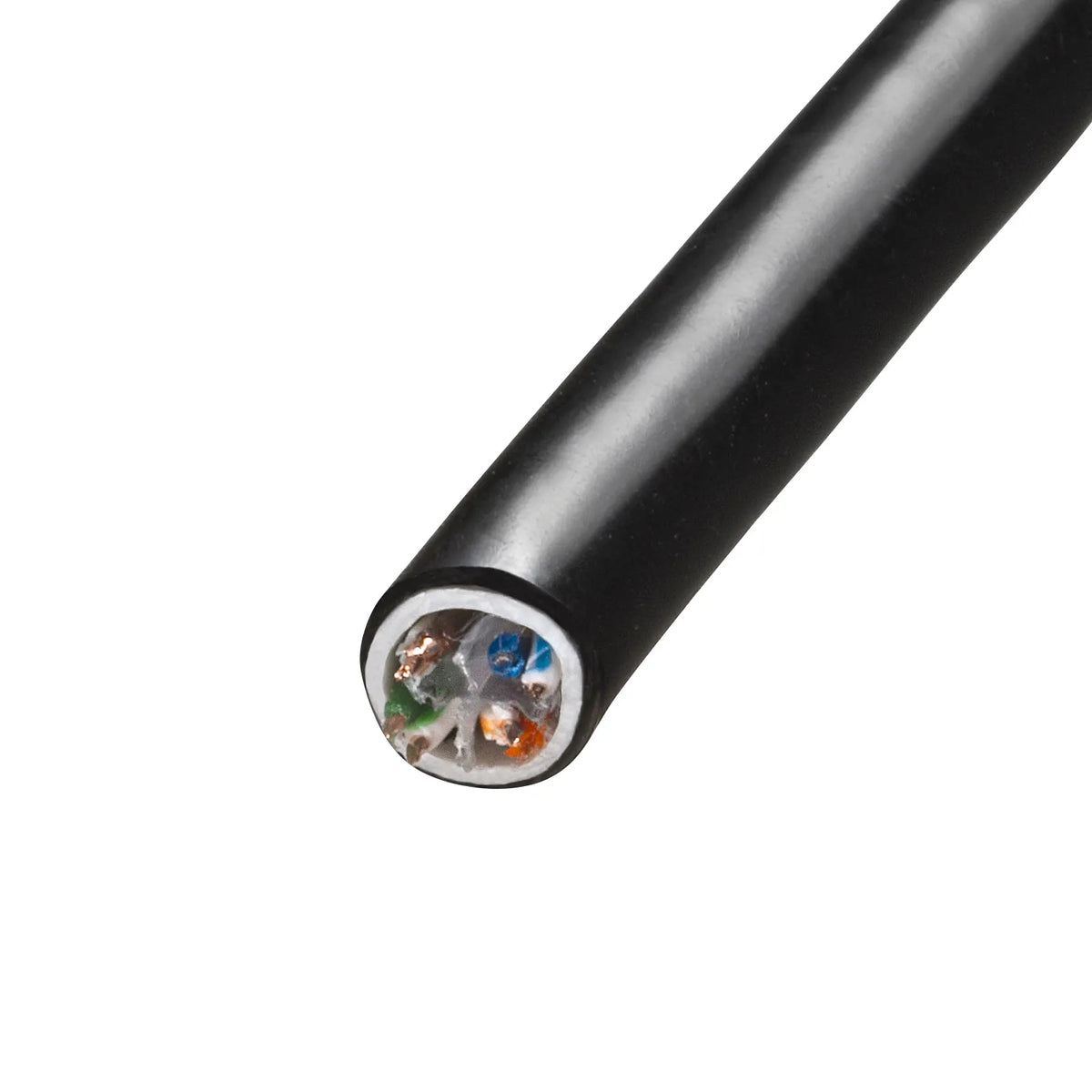

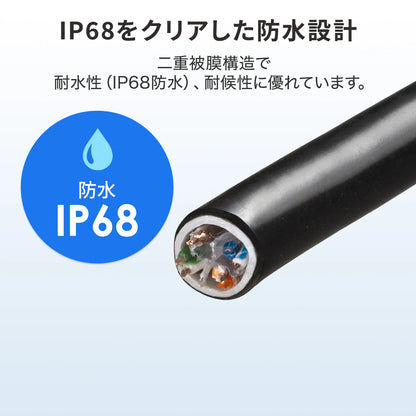

●The cable structure has a double-layered structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance (IP68 waterproof) and weather resistance.

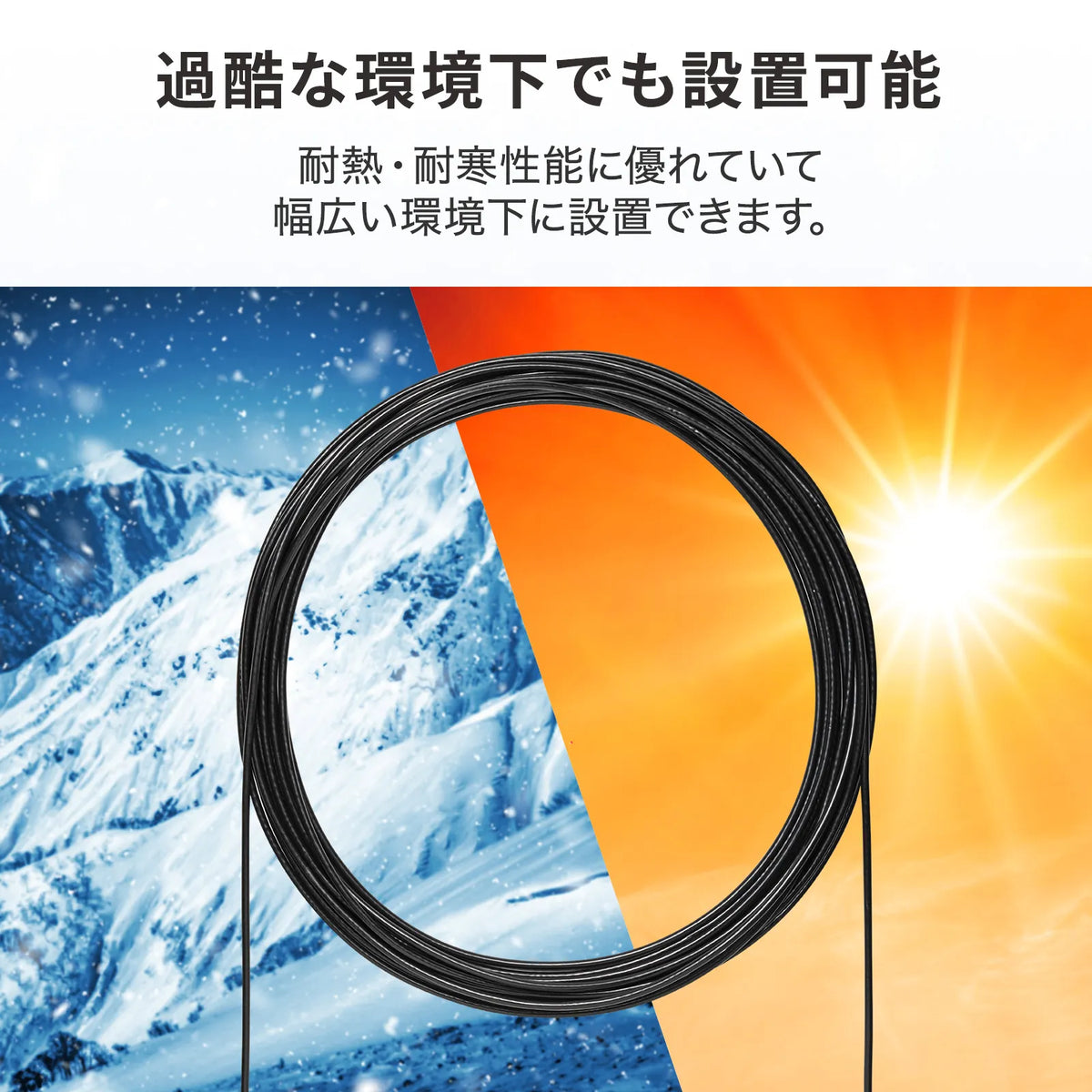

●With an operating temperature range of -40 to 80 degrees Celsius, it can be used outdoors.
●It is fully compatible with 10 Gigabit Ethernet, so it can handle the high-speed networks of the future.

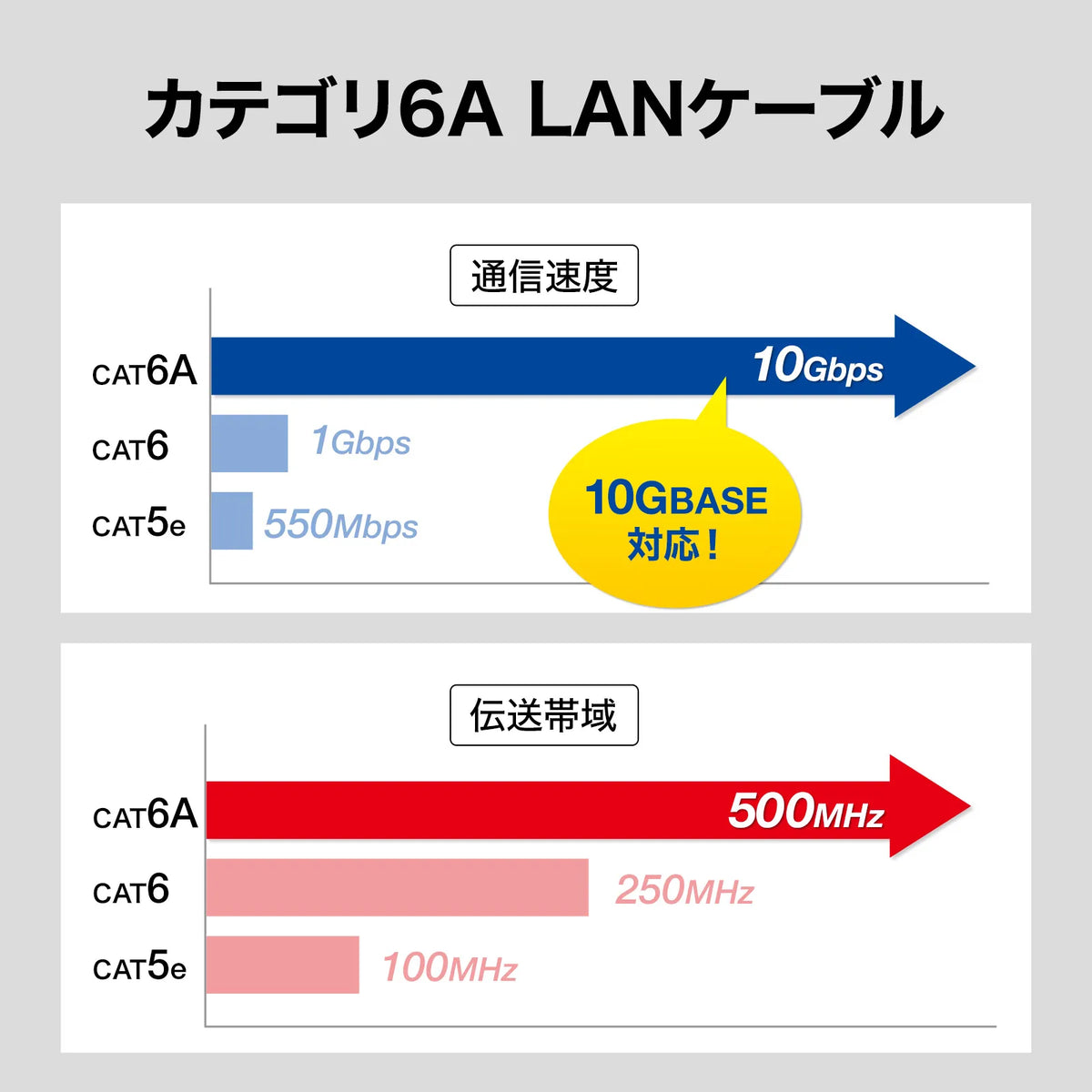

●It achieves a transmission bandwidth of 500MHz, which is 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6.This Category 6A LAN cable prevents errors with its ample transmission characteristics.

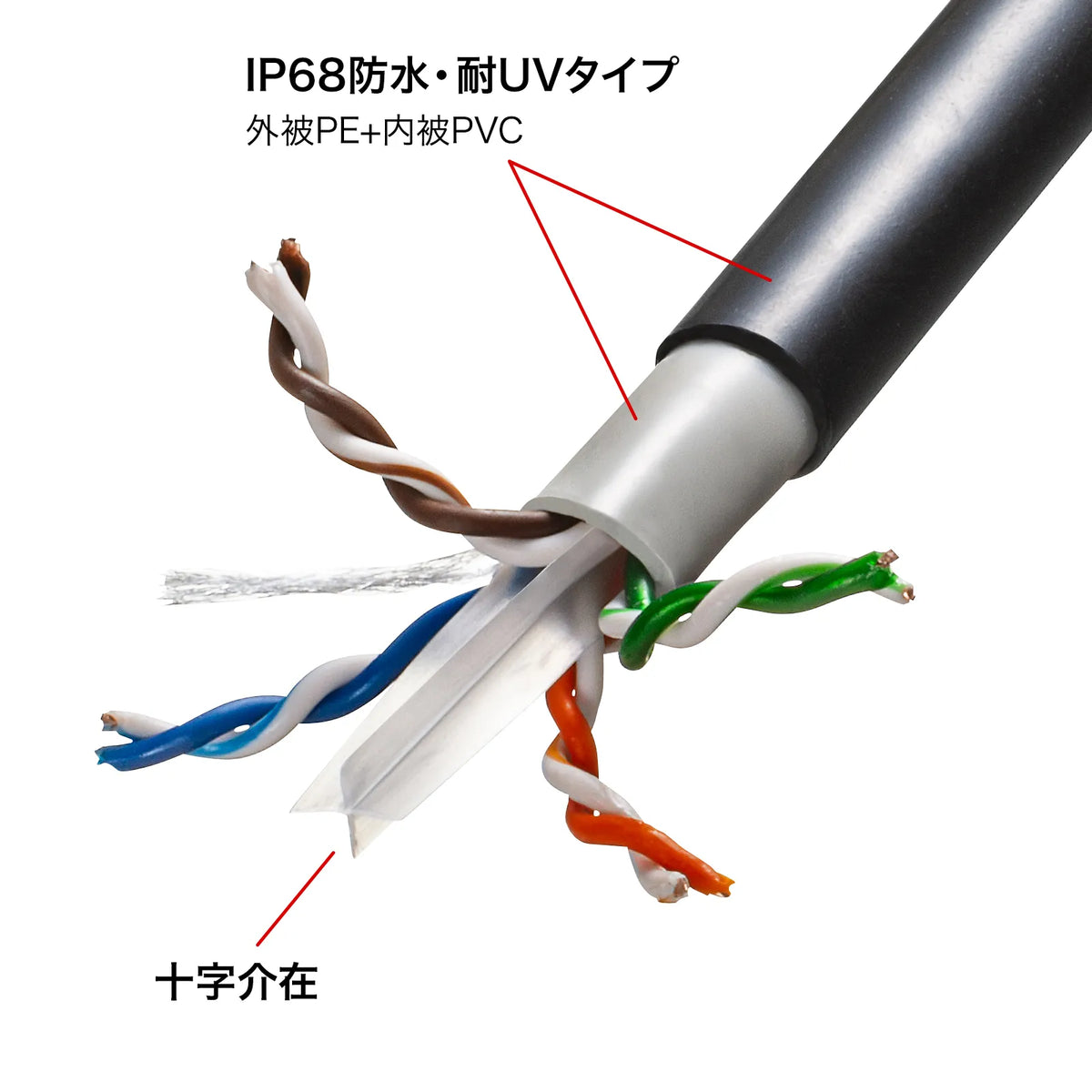

●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
■Color: Black
■Size: Wooden reel/W320×D320×H300mm
■Cable length: 300m
■Cable structure: UTP (4 pairs 8 cores), solid wire (23AWG), straight connection
■PoE: Supported
■Cable diameter: 7mm
■Supported transmission bandwidth: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE- TX), Category 3 (10BASE-T) compliant
■Shape type: Standard type, for outdoor use
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Characteristic impedance: 100Ω
■Number of cable cores: 8 cores (4P)
■Wiring type: TIA/EIA-568B compliant
■Sheath material: PE (outer sheath), PVC (inner)
■Compatible connector: ADT-6ARJFS
■Other: Cross separator, with length markings
●This is a Category 6A outdoor LAN cable for DIY use. (Connectors are not included)
●The cable structure has a double-layered structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance (IP68 waterproof) and weather resistance.
●With an operating temperature range of -40 to 80 degrees Celsius, it can be used outdoors.
●It is fully compatible with 10 Gigabit Ethernet, so it can handle the high-speed networks of the future.
●It achieves a transmission bandwidth of 500MHz, which is 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6.This Category 6A LAN cable prevents errors with its ample transmission characteristics.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
■Color: Black
■Size: Wooden reel/W320×D320×H300mm
■Cable length: 300m
■Cable structure: UTP (4 pairs 8 cores), solid wire (23AWG), straight connection
■PoE: Supported
■Cable diameter: 7mm
■Supported transmission bandwidth: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE- TX), Category 3 (10BASE-T) compliant
■Shape type: Standard type, for outdoor use
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Characteristic impedance: 100Ω
■Number of cable cores: 8 cores (4P)
■Wiring type: TIA/EIA-568B compliant
■Sheath material: PE (outer sheath), PVC (inner)
■Compatible connector: ADT-6ARJFS
■Other: Cross separator, with length markings
