SANWA SUPPLY

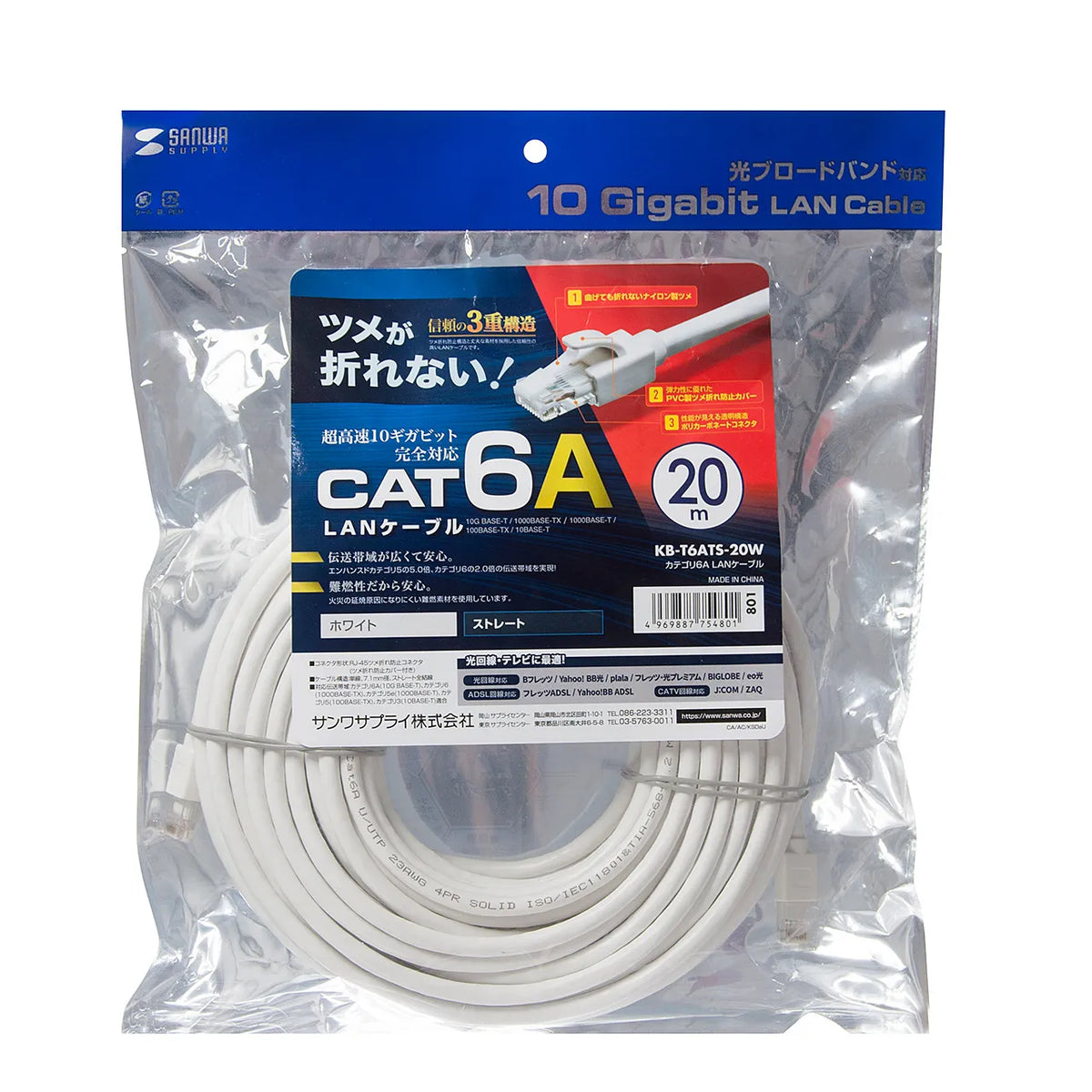

Category 6A LAN Cable KB-T6ATS-20W
Category 6A LAN Cable KB-T6ATS-20W
GTIN（JAN）：4969887754801
SKU：KB-T6ATS-20W
Regular price
¥6,316 JPY
Regular price
Sale price
¥6,316 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-high-speed 10 Gigabit Ethernet fully compatible, CAT6A LAN cable]
●Reliable triple structure with a nylon claw that won't break even when bent, a highly elastic PVC (polyvinyl chloride) claw break prevention cover, and a transparent polycarbonate connector that allows you to see the performance.
●Achieves a transmission bandwidth 5.0 times that of Category 5e and 2.0 times that of Category 6. Ample transmission characteristics prevent errors.
●Fully compatible with 10 Gigabit Ethernet, so it can handle the ultra-high-speed networks of the future.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines, achieving significantly stable electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT6A
■Standard name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 20m
■Color: White
■Cable Diameter (mm): 7.1mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/56.8mm, after installation/28.4mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: No
■Latch-break prevention connector: Yes
■Latch-break prevention cover: Yes
■Operating temperature range: -10 to 50 degrees
■Inspection: 100% continuity test
≪Notes≫
As per the product specifications, the white claw is made of a soft material that is resistant to breaking, so the claw may not fully retract when removed in the usual way (pinching and crushing the cover).
In that case, you can remove it by firmly pressing the base of the white tab where the cable is inserted with your fingernail.
If you try to force it out before the tab has fully retracted, the white tab will catch on the cover of the main unit, creating a burr and making it even harder to remove.
If it is difficult with your fingers, please understand the structure of the tab and press a flathead screwdriver or similar tool against it.
●Reliable triple structure with a nylon claw that won't break even when bent, a highly elastic PVC (polyvinyl chloride) claw break prevention cover, and a transparent polycarbonate connector that allows you to see the performance.
●Achieves a transmission bandwidth 5.0 times that of Category 5e and 2.0 times that of Category 6. Ample transmission characteristics prevent errors.
●Fully compatible with 10 Gigabit Ethernet, so it can handle the ultra-high-speed networks of the future.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines, achieving significantly stable electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT6A
■Standard name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 20m
■Color: White
■Cable Diameter (mm): 7.1mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Rate connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/56.8mm, after installation/28.4mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: No
■Latch-break prevention connector: Yes
■Latch-break prevention cover: Yes
■Operating temperature range: -10 to 50 degrees
■Inspection: 100% continuity test
≪Notes≫
As per the product specifications, the white claw is made of a soft material that is resistant to breaking, so the claw may not fully retract when removed in the usual way (pinching and crushing the cover).
In that case, you can remove it by firmly pressing the base of the white tab where the cable is inserted with your fingernail.
If you try to force it out before the tab has fully retracted, the white tab will catch on the cover of the main unit, creating a burr and making it even harder to remove.
If it is difficult with your fingers, please understand the structure of the tab and press a flathead screwdriver or similar tool against it.
