Category 6A Outdoor LAN Cable Only KB-T6AAD-CB300BKN
Category 6A Outdoor LAN Cable Only KB-T6AAD-CB300BKN
GTIN（JAN）：4969887757086
SKU：KB-T6AAD-CB300BKN
Regular price
¥94,380 JPY
Regular price
Sale price
¥94,380 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

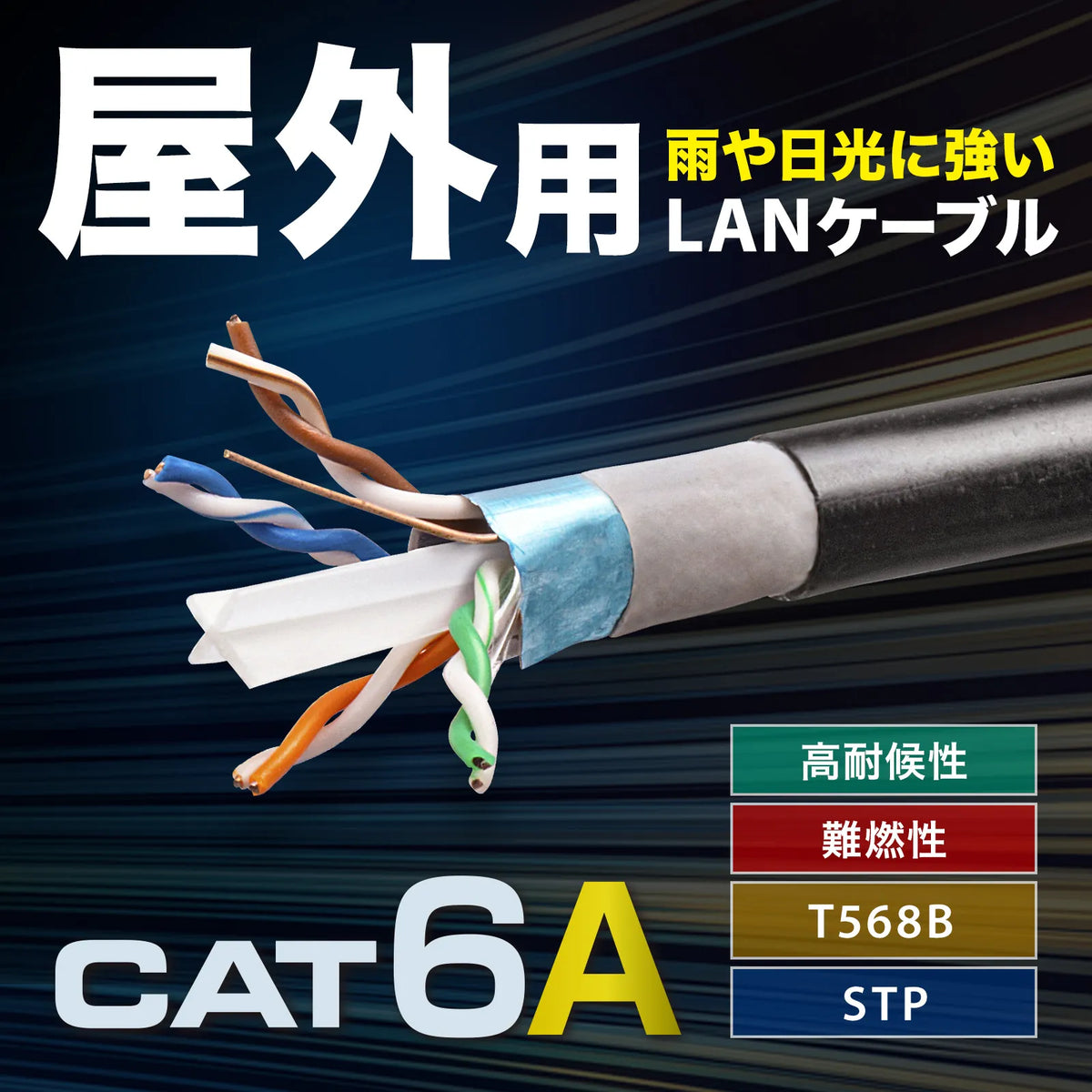

[Outdoor CAT6A LAN Cable for DIY Use, with Double Sheath for Enhanced Weather and Water Resistance, 10 Gigabit Ethernet Compatible]
●This is a Category 6A outdoor LAN cable for DIY use. (Connectors are not included)

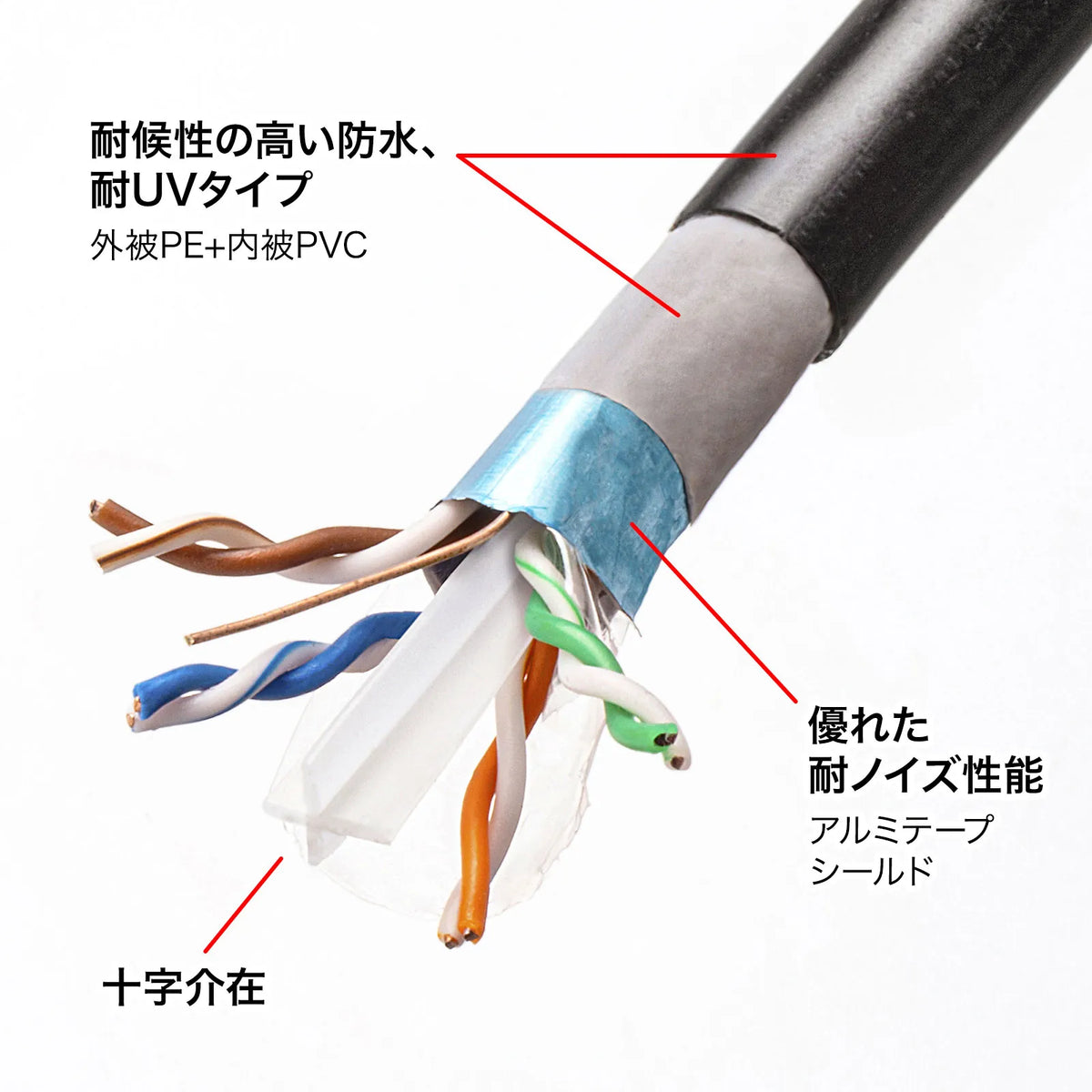

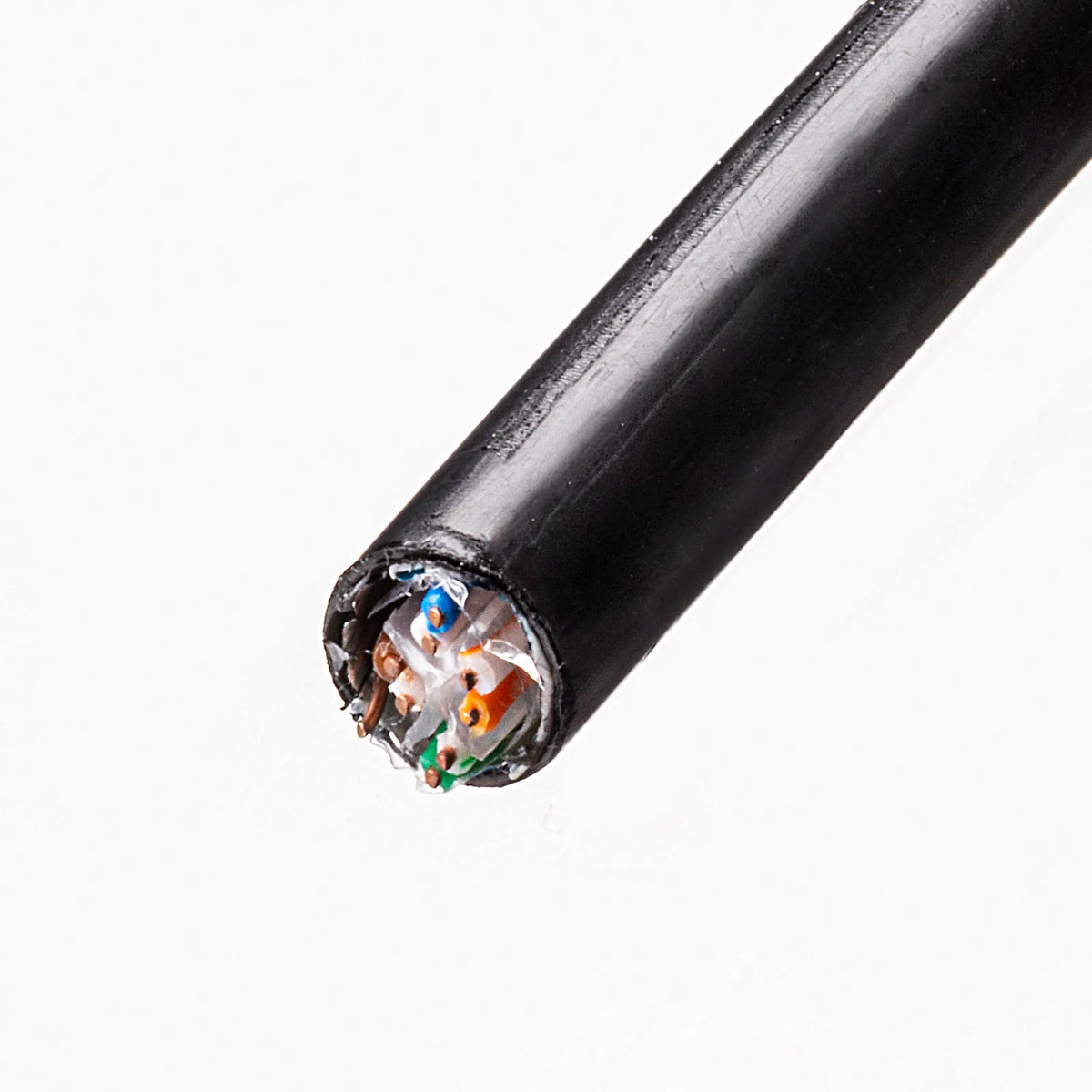

●The cable structure has a double sheath structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance, UV resistance, and weather resistance.
●It is fully compatible with 10 Gigabit Ethernet, so it can handle the ultra-high-speed networks of the future.

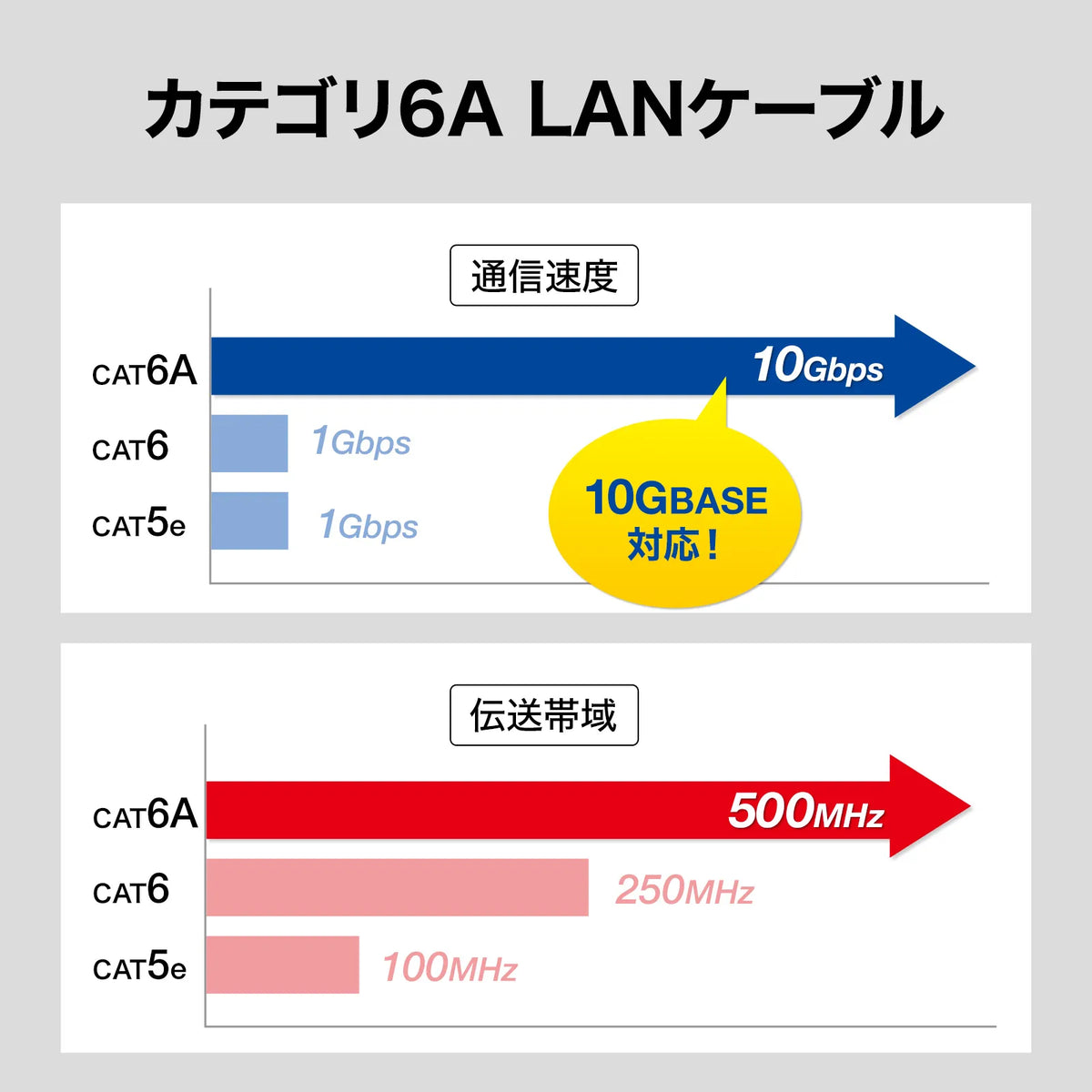

●It achieves a transmission bandwidth 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6. This is a high-performance LAN cable that prevents errors with ample transmission characteristics.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
●The inside of the cable is aluminum shielded, and when combined with an RJ-45 shielded connector, it provides complete noise protection.
■Color: Black

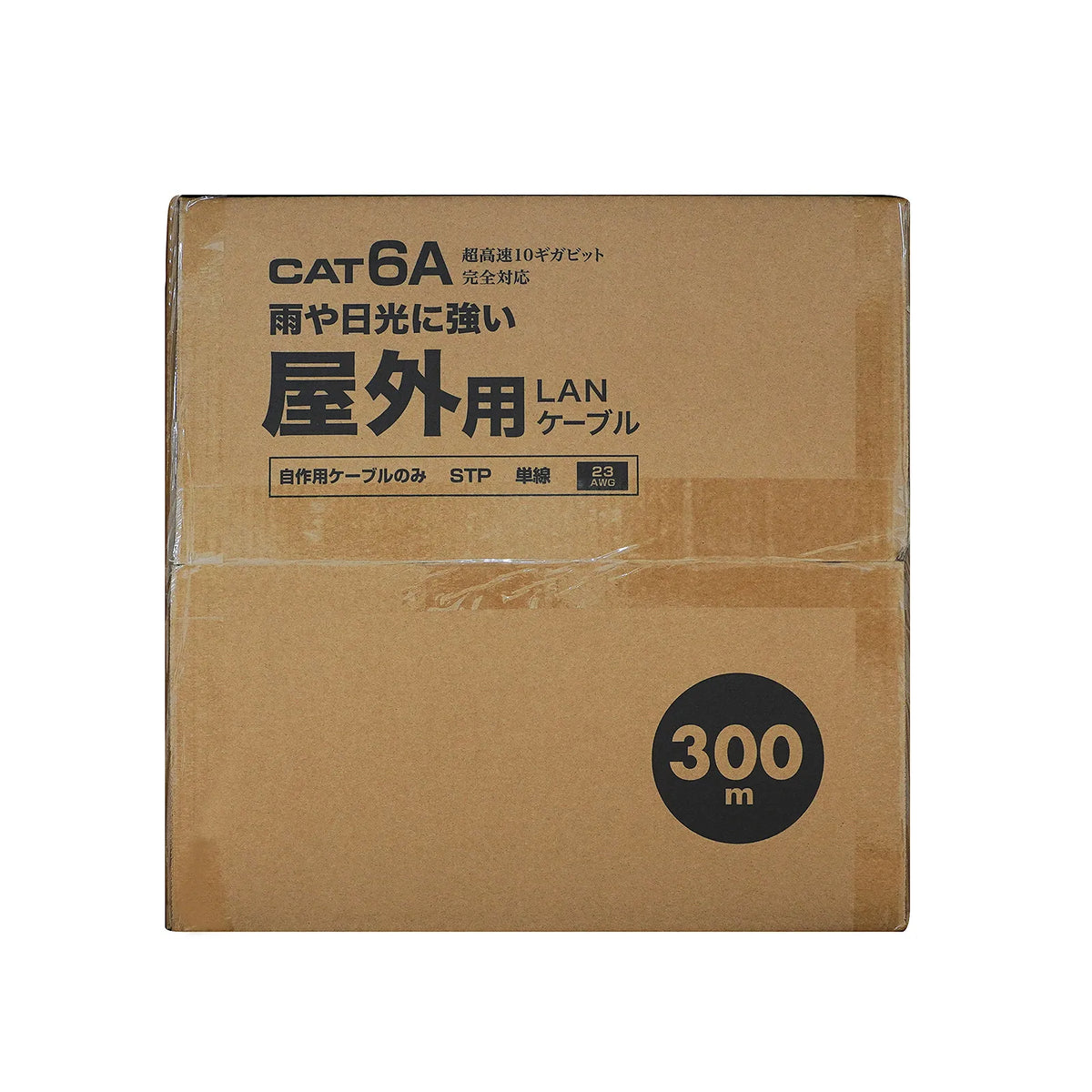

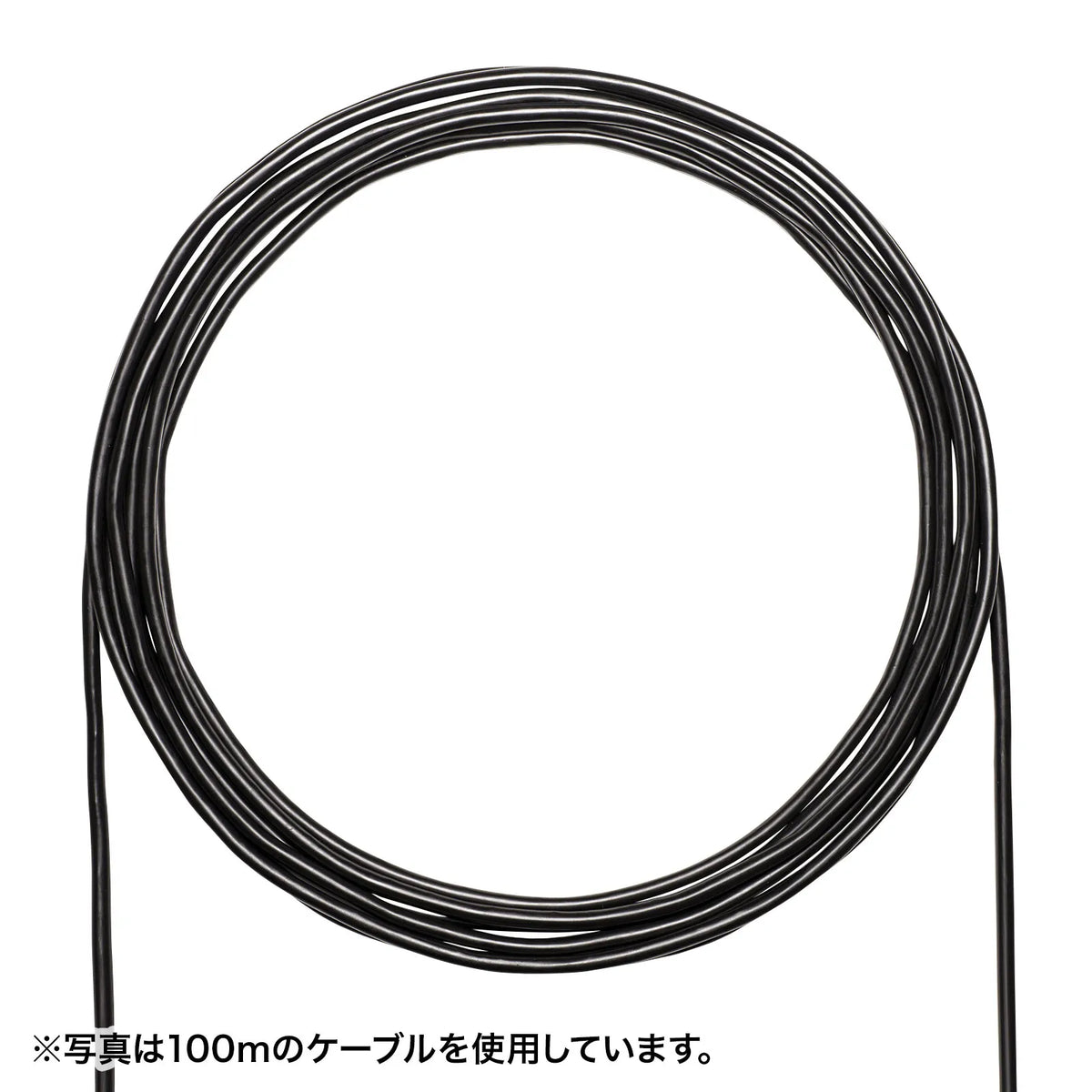

■Cable length: 300m
■Cable structure: STP (4 pairs), solid wire (23AWG)
■PoE: Supported
■Wiring specifications: Straight connection
■Cable diameter: 8.0mm (external), 6.2mm (internal)
■Supported transmission bandwidth:
Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Enhanced Category 5 (1000BASE-T), Category 5 (1 Compatible with Category 3 (10BASE-T) and Category 00BASE-TX
■Supported PoE standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), IEEE802.3bt (PoE++)
■Shape type: Standard type, for DIY use, for outdoor use
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Sheath material: PE (outer sheath), PVC (inner)
■Wiring type: TIA/EIA-568B compliant
■Compatible connector: ADT-6ARJFS
■Other: Cross separator, with length markings
●This is a Category 6A outdoor LAN cable for DIY use. (Connectors are not included)
●The cable structure has a double sheath structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance, UV resistance, and weather resistance.
●It is fully compatible with 10 Gigabit Ethernet, so it can handle the ultra-high-speed networks of the future.
●It achieves a transmission bandwidth 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6. This is a high-performance LAN cable that prevents errors with ample transmission characteristics.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve significantly stable electrical characteristics.
●The inside of the cable is aluminum shielded, and when combined with an RJ-45 shielded connector, it provides complete noise protection.
■Color: Black
■Cable length: 300m
■Cable structure: STP (4 pairs), solid wire (23AWG)
■PoE: Supported
■Wiring specifications: Straight connection
■Cable diameter: 8.0mm (external), 6.2mm (internal)
■Supported transmission bandwidth:
Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Enhanced Category 5 (1000BASE-T), Category 5 (1 Compatible with Category 3 (10BASE-T) and Category 00BASE-TX
■Supported PoE standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), IEEE802.3bt (PoE++)
■Shape type: Standard type, for DIY use, for outdoor use
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Sheath material: PE (outer sheath), PVC (inner)
■Wiring type: TIA/EIA-568B compliant
■Compatible connector: ADT-6ARJFS
■Other: Cross separator, with length markings
