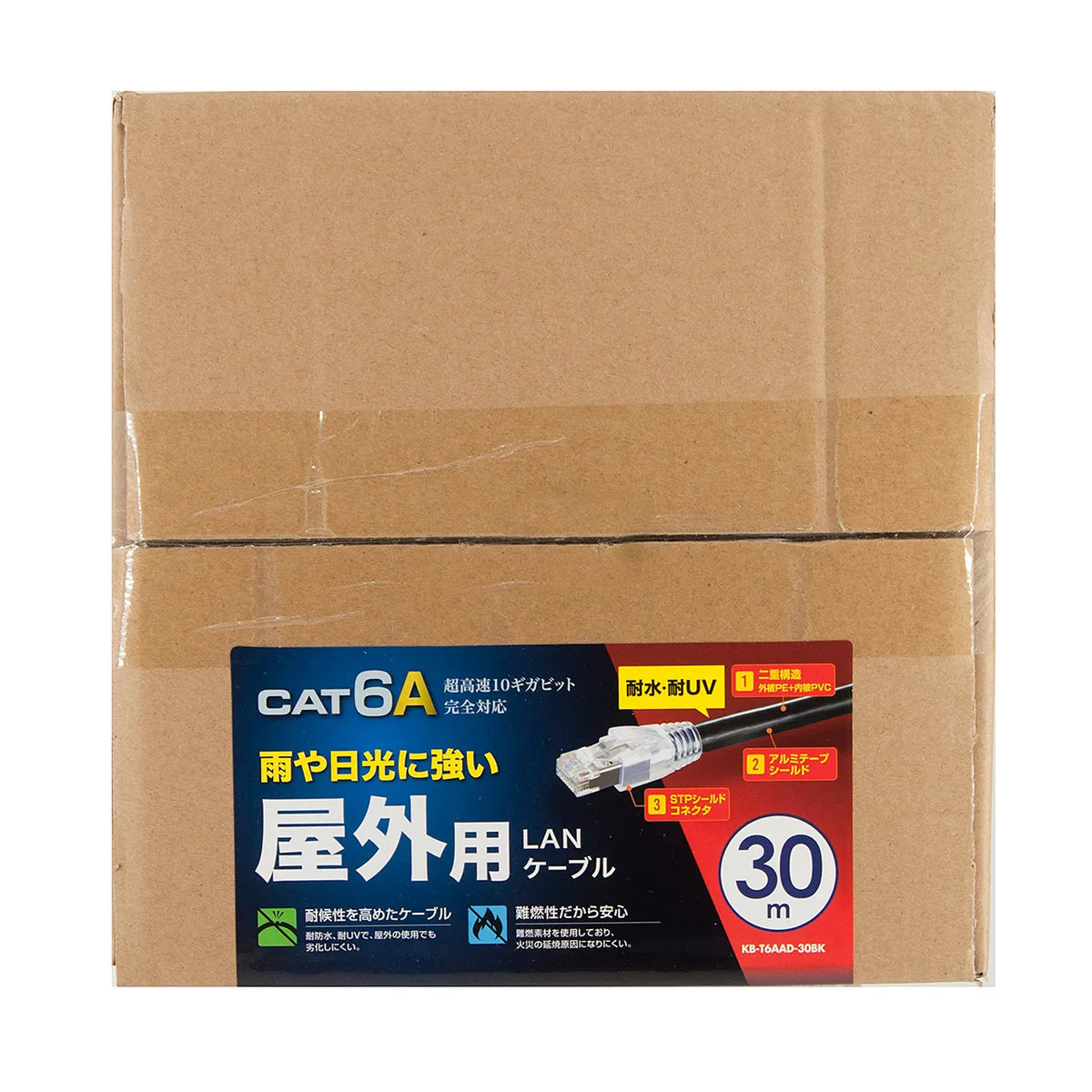

Category 6A Outdoor LAN Cable KB-T6AAD-30BK
Category 6A Outdoor LAN Cable KB-T6AAD-30BK
GTIN（JAN）：4969887755334
SKU：KB-T6AAD-30BK
Regular price
¥12,342 JPY
Regular price
Sale price
¥12,342 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Outdoor LAN Cable with Double Sheath for Enhanced Weather and Water Resistance, 10 Gigabit Ethernet Compatible, CAT6A Outdoor LAN Cable]
●The cable structure has a double sheath structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance, UV resistance, and weather resistance.
●Fully compatible with 10 Gigabit Ethernet, it can handle the ultra-high-speed networks of the future.
●Achieves a transmission bandwidth 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! This high-performance LAN cable prevents errors with its ample transmission characteristics.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines, achieving significantly stable electrical characteristics.
●The cable uses internal aluminum shielding and RJ-45 shielded connectors to combat noise.
■Category: CAT6A
■Standard Name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 30m
■Color: Black
■Cable Diameter (mm): 8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable structure: STP
■Cross separator: Yes
■Minimum bending radius: During installation/64.0mm, After installation/56.0mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheathing material: Outer sheath/PE, Inner sheath/PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: No
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 75 degrees
■Inspection: 100% continuity test
●The cable structure has a double sheath structure with a PE (polyethylene) outer layer and a PVC (polyvinyl chloride) inner layer, providing excellent water resistance, UV resistance, and weather resistance.
●Fully compatible with 10 Gigabit Ethernet, it can handle the ultra-high-speed networks of the future.
●Achieves a transmission bandwidth 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! This high-performance LAN cable prevents errors with its ample transmission characteristics.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines, achieving significantly stable electrical characteristics.
●The cable uses internal aluminum shielding and RJ-45 shielded connectors to combat noise.
■Category: CAT6A
■Standard Name: 10G BASE-T
■Supported Categories and Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 30m
■Color: Black
■Cable Diameter (mm): 8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable structure: STP
■Cross separator: Yes
■Minimum bending radius: During installation/64.0mm, After installation/56.0mm
■Cable conductor: 23AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheathing material: Outer sheath/PE, Inner sheath/PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: No
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 75 degrees
■Inspection: 100% continuity test
