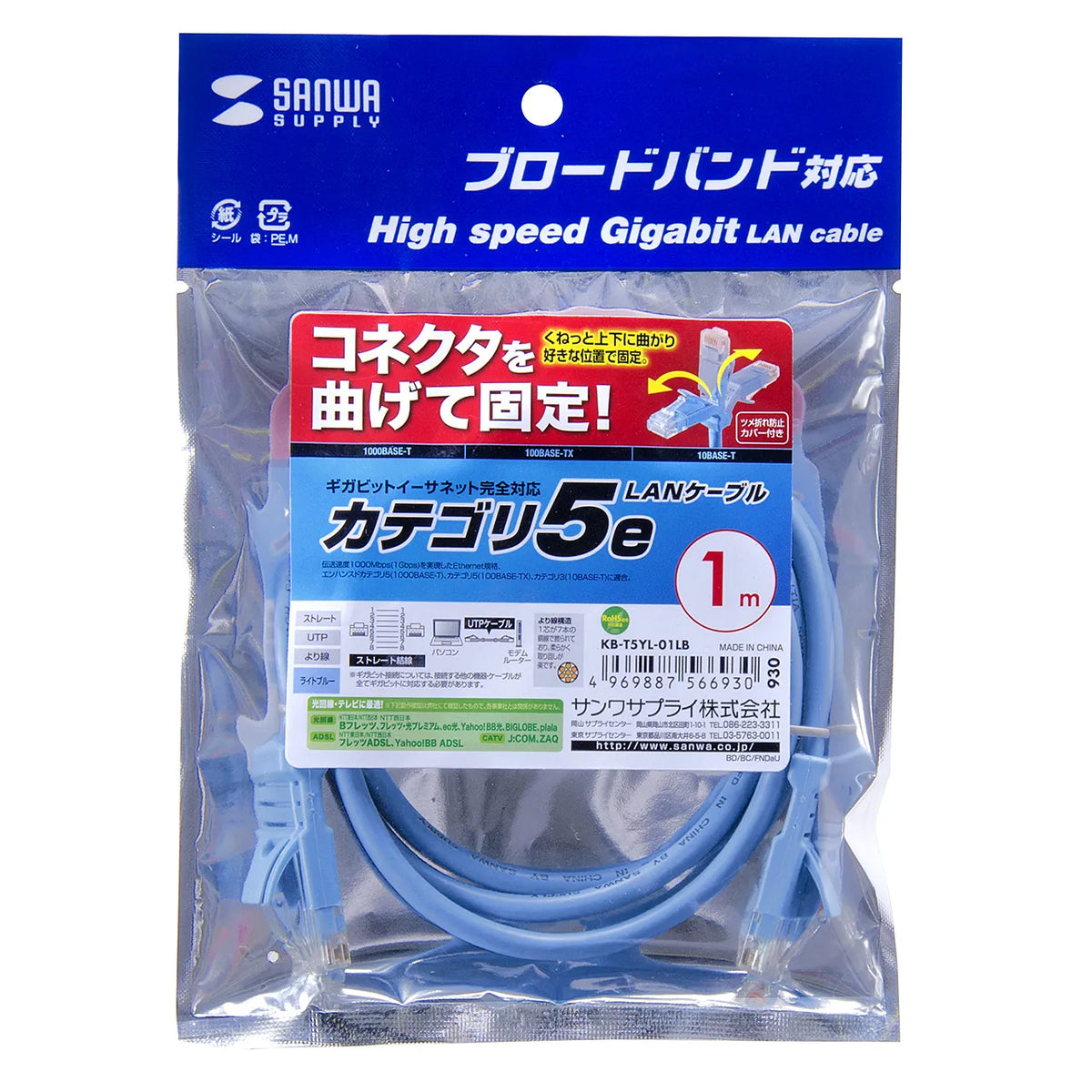

L-shaped Category 5e stranded LAN cable KB-T5YL-01LB

[Enhanced Category 5 LAN Cable with L-shaped Connector that can be bent up and down and fixed in your desired position]

●A high-quality Category 5e LAN cable with a soft, easy-to-handle stranded wire specification.
●The L-shaped connector can be bent up and down and fixed in your desired position.
The connector is equipped with a claw-break prevention cover to prevent the claw from breaking easily.
●Ideal for connecting to patch panels on servers and for use in places where you want to minimize cable protrusion.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.

■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length: 1m
■Color: Light Blue
■Cable Diameter: 5.5mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: UT P
■Cross separator: None
■Minimum bending radius:
During installation/44.0mm
After installation/33.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheathing material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch-break prevention connector: No
■Latch-break prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
