SANWA SUPPLY

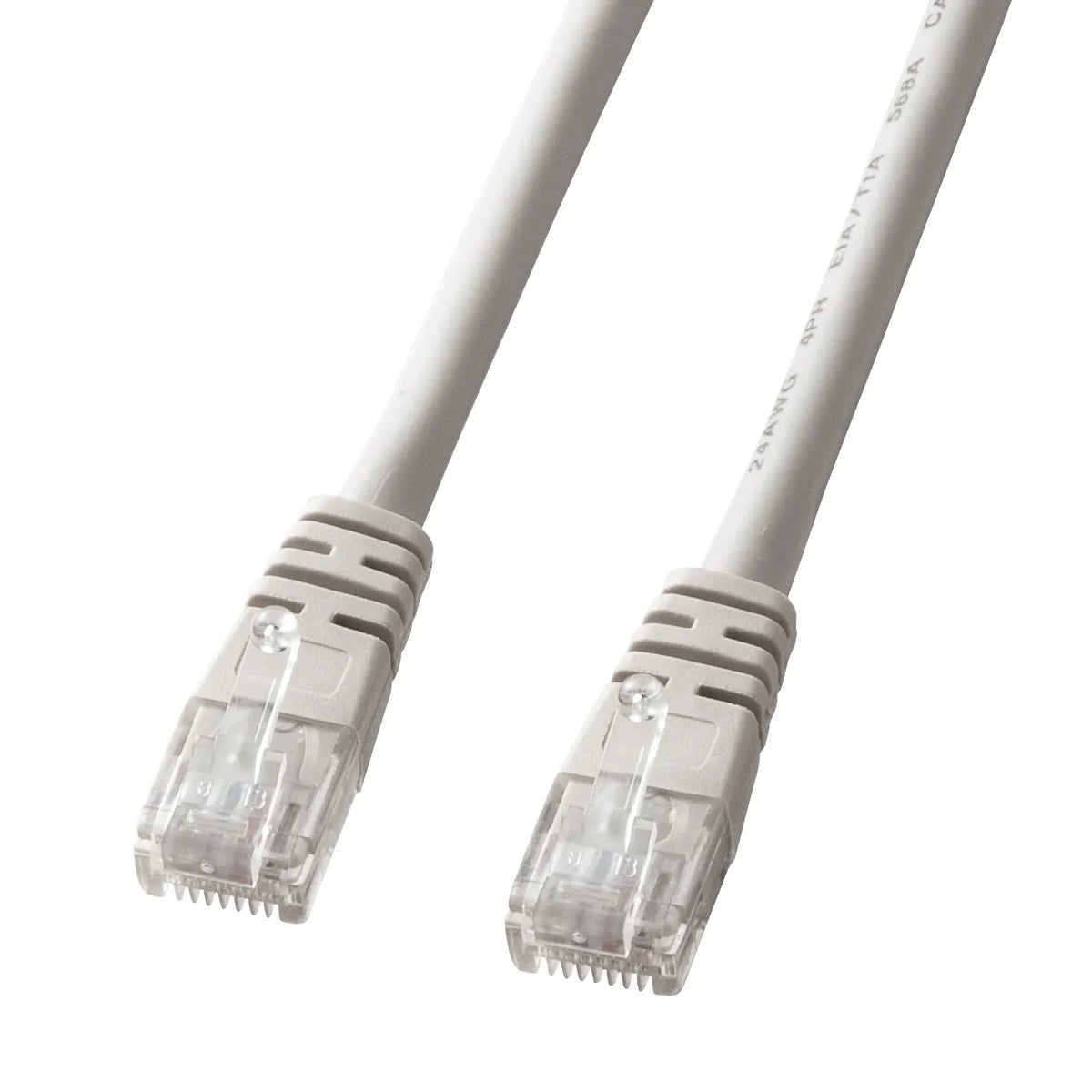

Enhanced Category 5 Stranded LAN Cable KB-T5Y-20N
Enhanced Category 5 Stranded LAN Cable KB-T5Y-20N
GTIN（JAN）：4969887569320
SKU：KB-T5Y-20N
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-quality enhanced Category 5 LAN cable using soft, easy-to-handle stranded wire]
●Stranded wire specification that is softer and easier to handle than solid wire.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
■Category: CAT5e
■Standard name: 1000BASE-T
■Supported categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 20m
■Color: Light gray
■Cable diameter: 5.5mm
■Number of cable cores: 8 cores (4P)

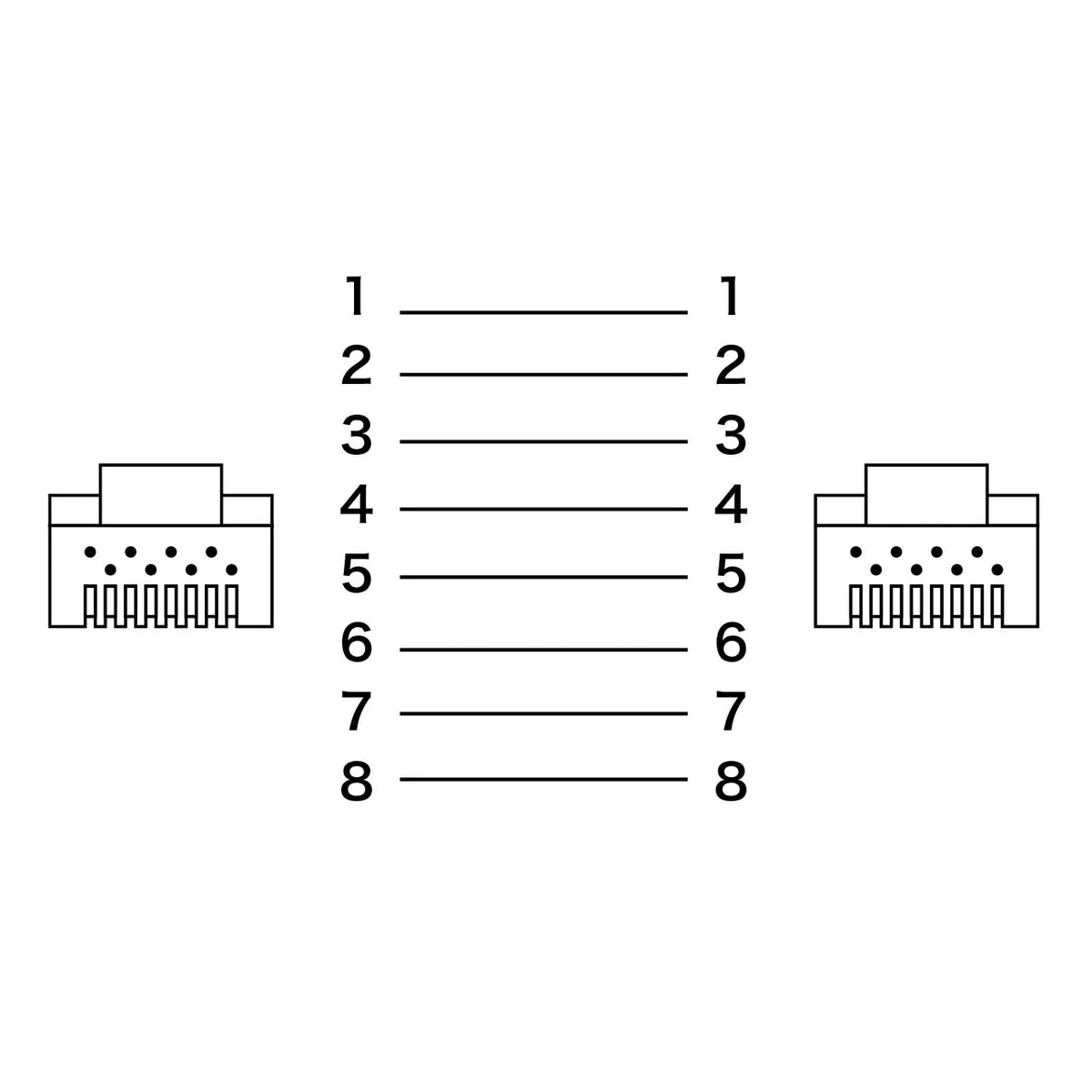

■Wiring specification: Straight connection
■Cable structure: UT P
■Cross separator: None
■Minimum bending radius:
During installation/44.0mm
After installation/22.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheathing material: PVC
■Color wiring: TIA/EIA-568A

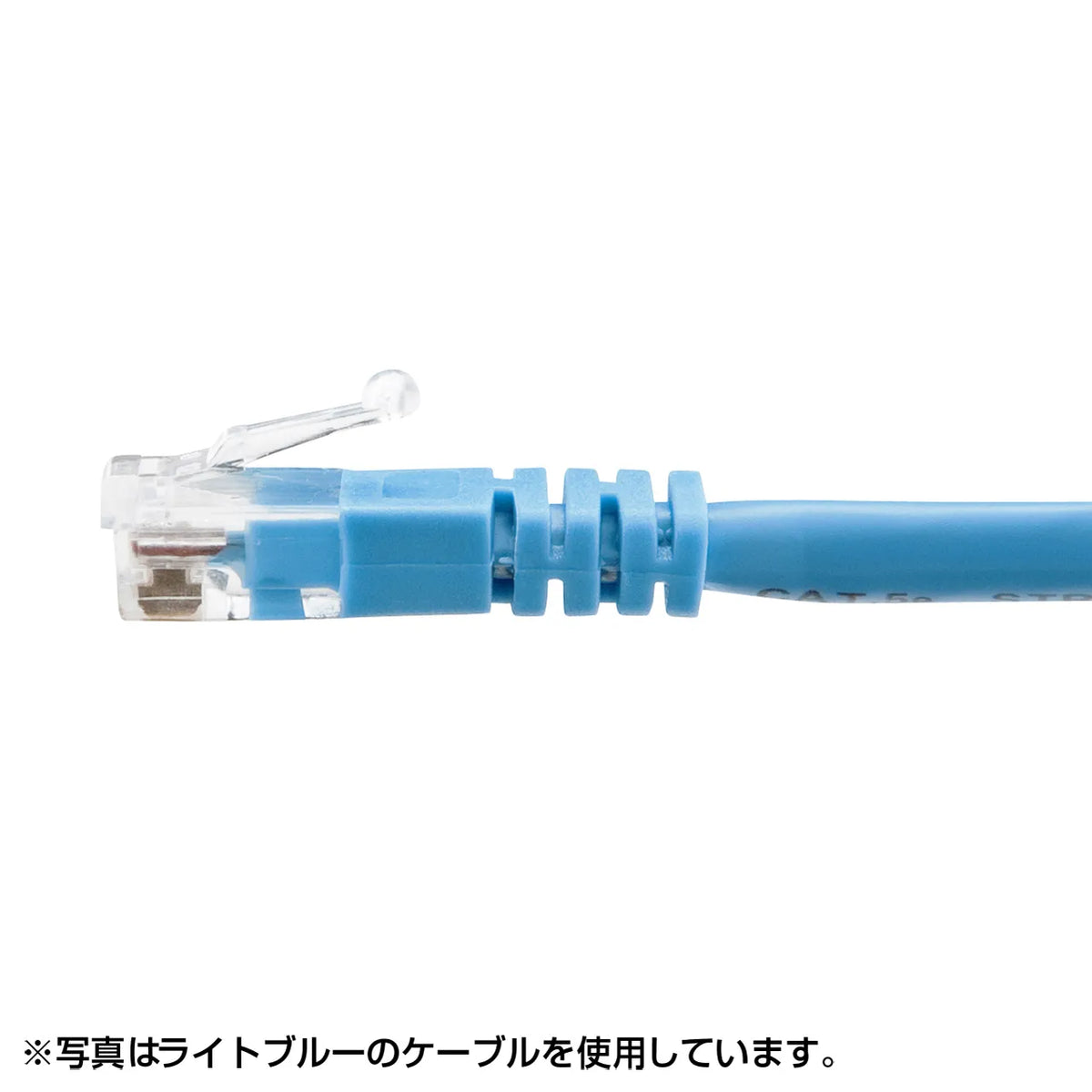

■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●Stranded wire specification that is softer and easier to handle than solid wire.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
■Category: CAT5e
■Standard name: 1000BASE-T
■Supported categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 20m
■Color: Light gray
■Cable diameter: 5.5mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable structure: UT P
■Cross separator: None
■Minimum bending radius:
During installation/44.0mm
After installation/22.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheathing material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
