SANWA SUPPLY

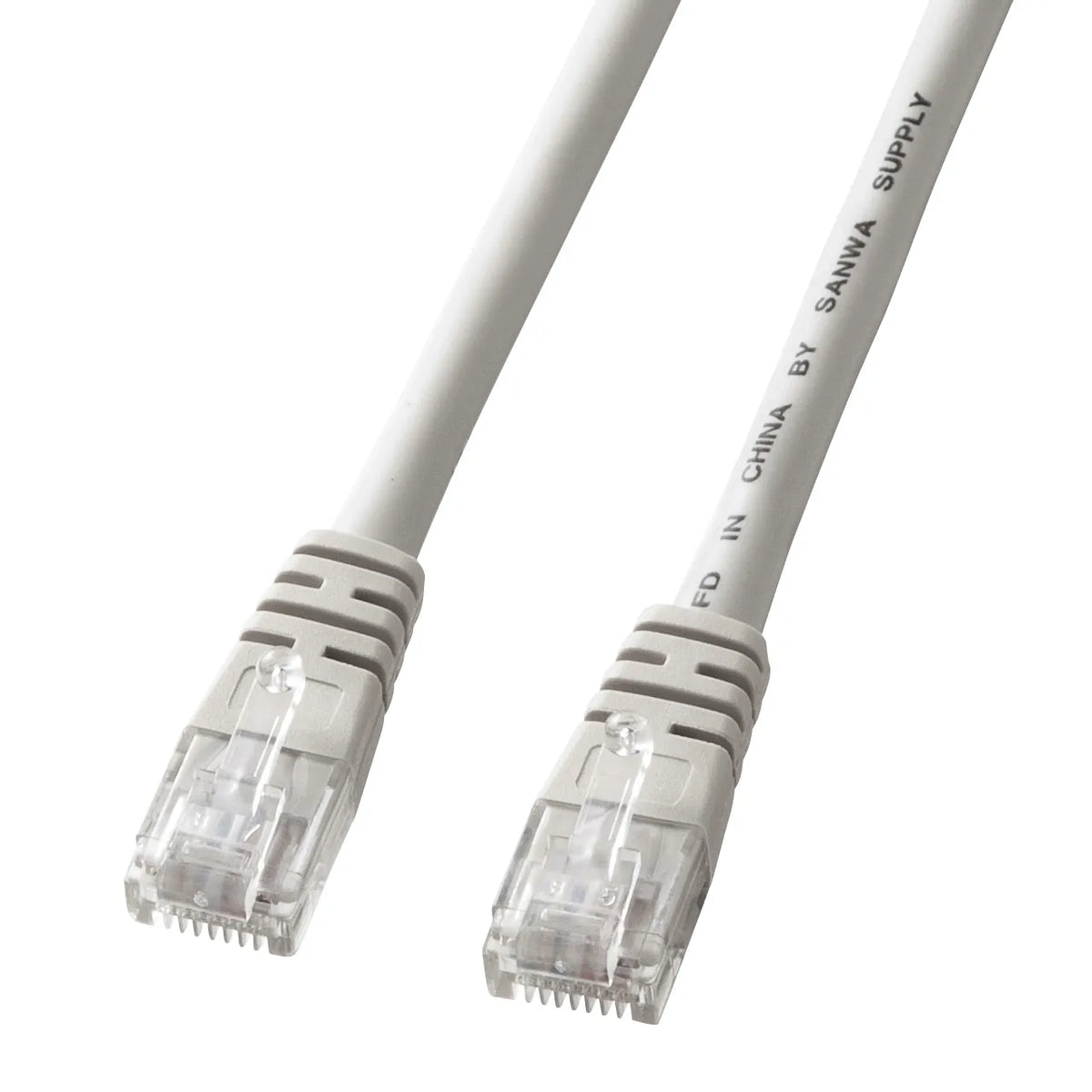

Enhanced Category 5 Stranded Crossover Cable KB-T5Y-20CN
Enhanced Category 5 Stranded Crossover Cable KB-T5Y-20CN
GTIN（JAN）：4969887569337
SKU：KB-T5Y-20CN
Regular price
¥3,108 JPY
Regular price
Sale price
¥3,108 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-quality enhanced Category 5 LAN cable using soft, easy-to-handle stranded wire]
●A Category 5e compliant crossover LAN cable with a soft, easy-to-handle stranded wire specification.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
*Not compatible with 1000BASE-TX crossover connections.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 20m
■Color: Light gray
■Cable diameter: 5.5mm
■Number of cable cores: 8 cores (4P)

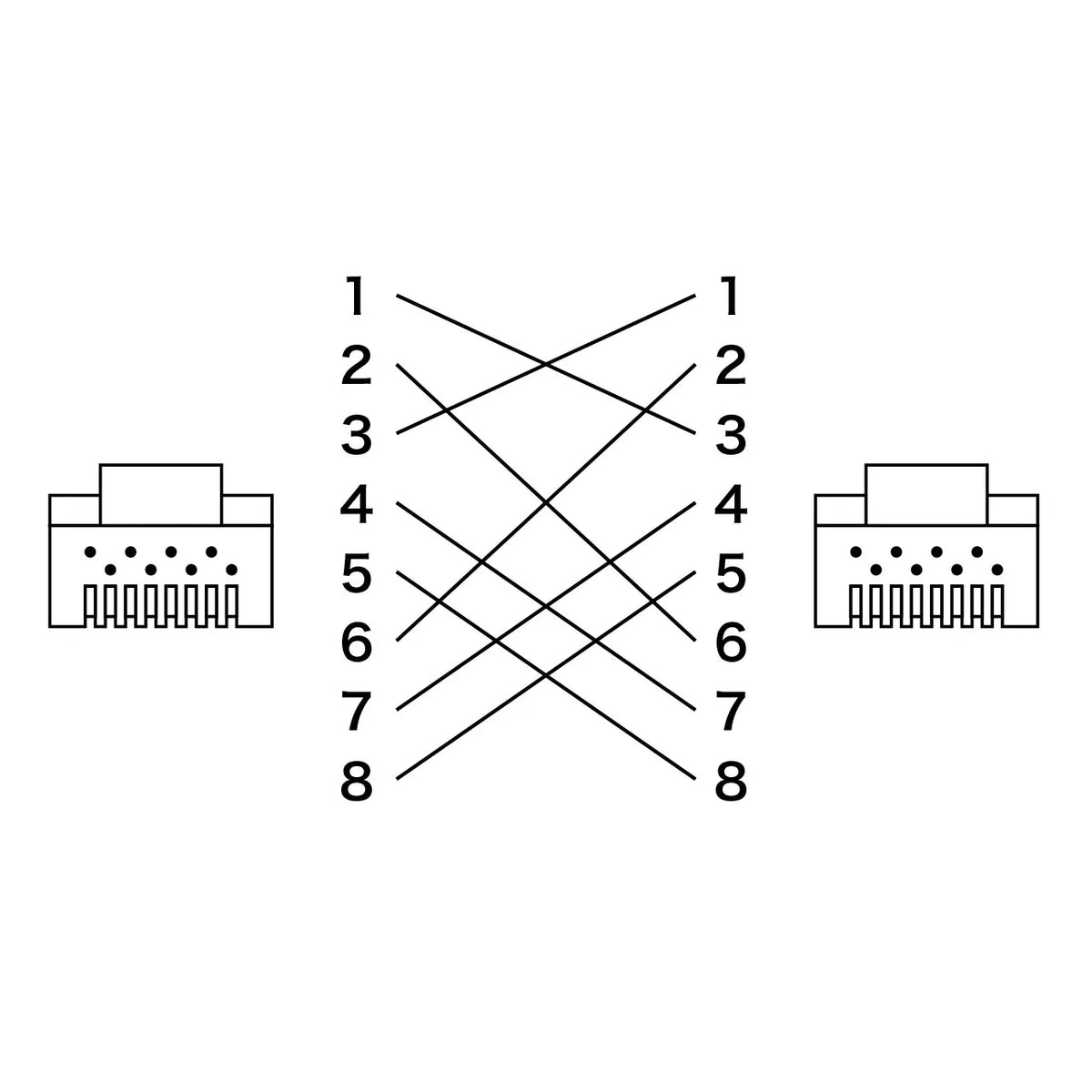

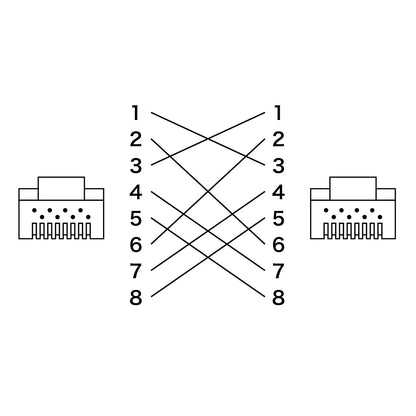

■Wiring Specification: Crossover Wiring
■Cable Structure: UTP
■Cross-shaped Filler: None
■Minimum Bending Radius:
During Installation/44.0mm
After Installation/22.0mm
■Cable Conductor: 24AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Supported
Up to 35m in length, supports IEEE802.3bt
(PoE++)
*The temperature inside the cable will rise due to power supply, so please do not exceed the operating temperature.
■Sheathing Material: PVC
■Color Wiring: TIA/EIA-568A
■Connector Shape: RJ-45 Connector
■Slim Connector: Yes
■Latch-Break Prevention Connector: No
■Latch-Break Prevention Cover: No
■Operating Temperature Range: -10 to 80℃
■Inspection: 100% Continuity Test
●A Category 5e compliant crossover LAN cable with a soft, easy-to-handle stranded wire specification.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
*Not compatible with 1000BASE-TX crossover connections.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length: 20m
■Color: Light gray
■Cable diameter: 5.5mm
■Number of cable cores: 8 cores (4P)
■Wiring Specification: Crossover Wiring
■Cable Structure: UTP
■Cross-shaped Filler: None
■Minimum Bending Radius:
During Installation/44.0mm
After Installation/22.0mm
■Cable Conductor: 24AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Supported
Up to 35m in length, supports IEEE802.3bt
(PoE++)
*The temperature inside the cable will rise due to power supply, so please do not exceed the operating temperature.
■Sheathing Material: PVC
■Color Wiring: TIA/EIA-568A
■Connector Shape: RJ-45 Connector
■Slim Connector: Yes
■Latch-Break Prevention Connector: No
■Latch-Break Prevention Cover: No
■Operating Temperature Range: -10 to 80℃
■Inspection: 100% Continuity Test
