SANWA SUPPLY

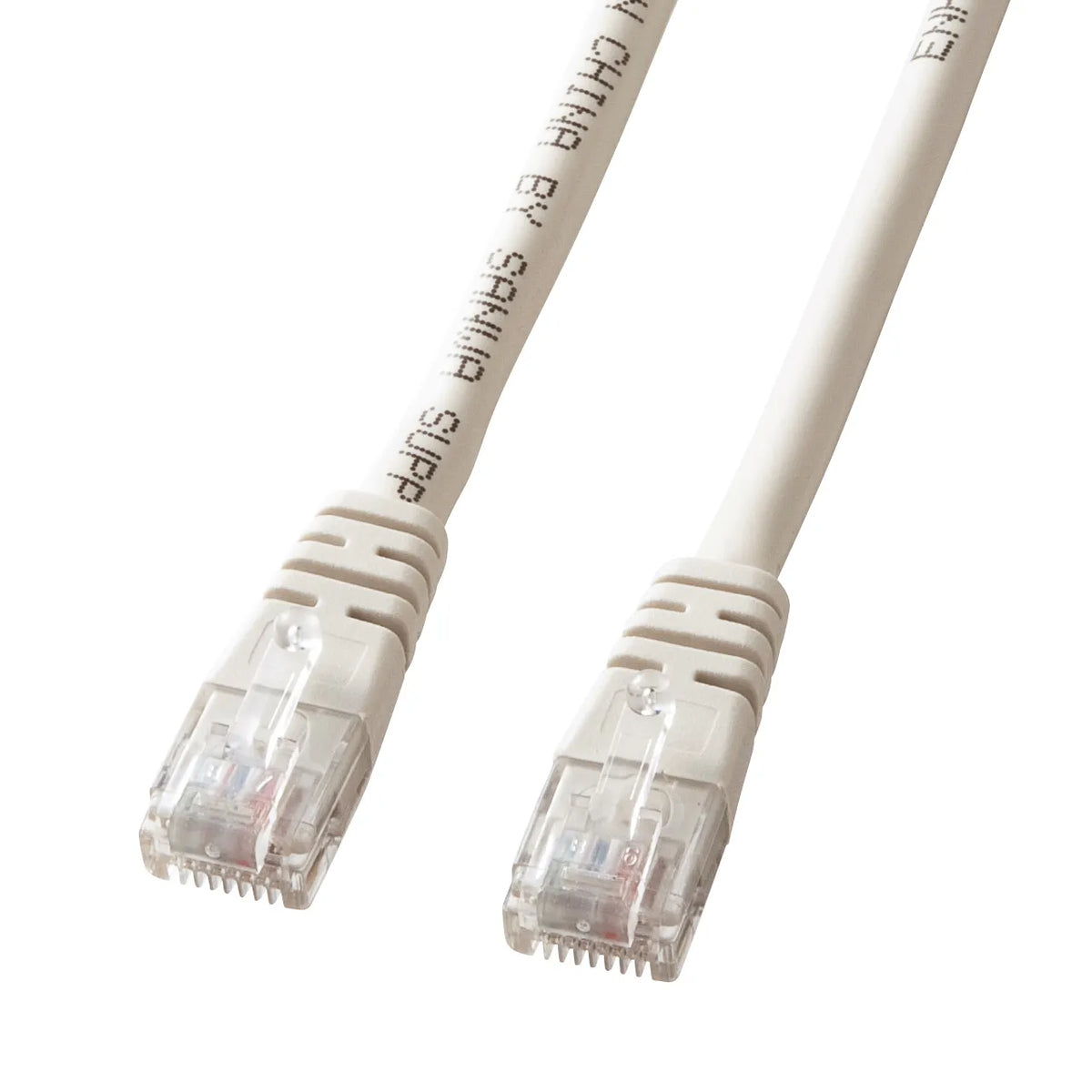

Enhanced Category 5 Solid Core LAN Cable KB-T5T-10N
Enhanced Category 5 Solid Core LAN Cable KB-T5T-10N
GTIN（JAN）：4969887568521
SKU：KB-T5T-10N
Regular price
¥2,759 JPY
Regular price
Sale price
¥2,759 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-quality enhanced Category 5 LAN cable with "solid wire" specification that fully utilizes performance]
●This is a high-quality Category 5e LAN cable with a "solid wire" specification that fully utilizes performance.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency characteristics: 100MHz
■Cable length (m): 10m
■Color: Light gray
■Cable diameter (mm): 5.5mm
■Number of cable cores: 8 cores (4P)

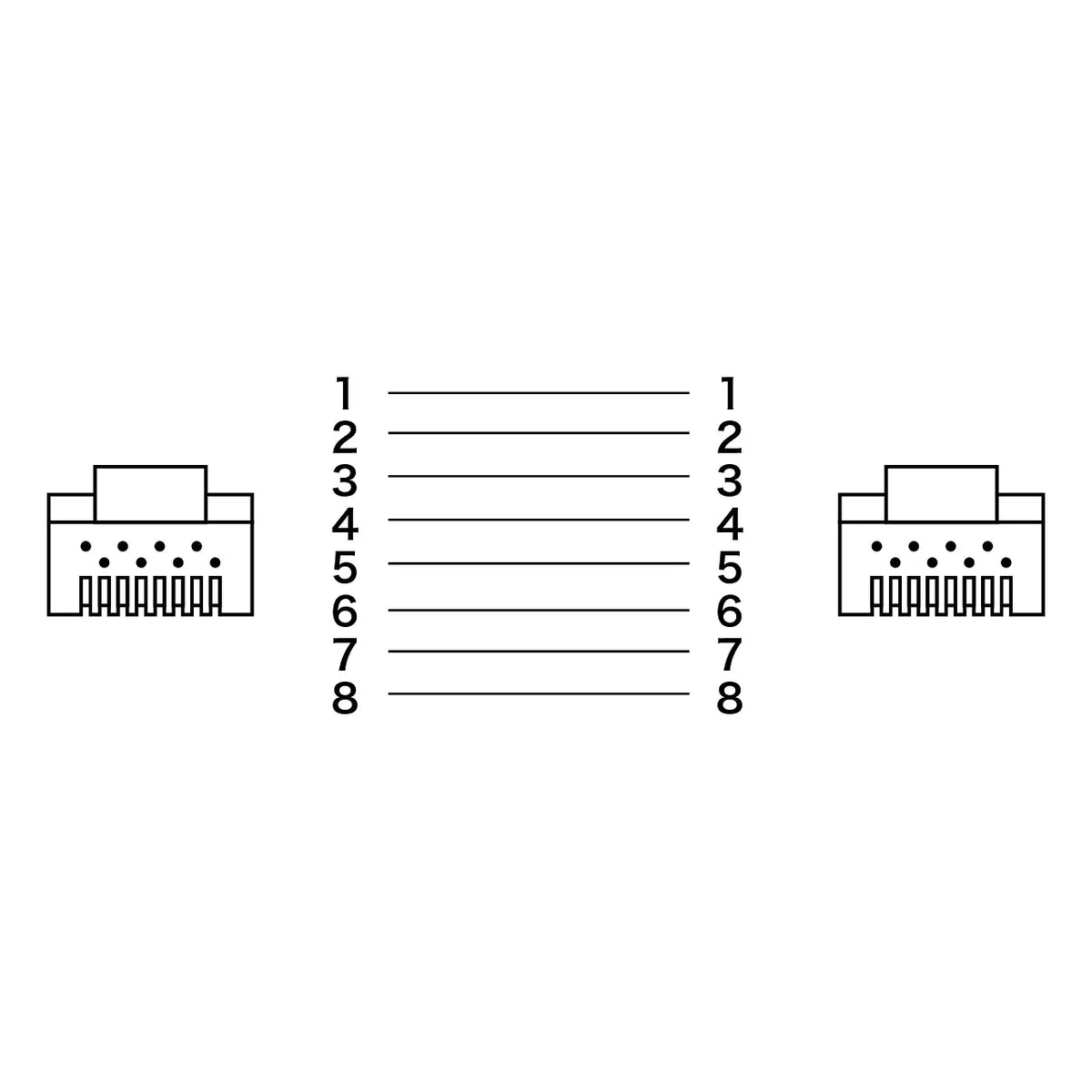

■Wiring specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/55.0mm, after installation/44.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●This is a high-quality Category 5e LAN cable with a "solid wire" specification that fully utilizes performance.
●Achieves a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency characteristics: 100MHz
■Cable length (m): 10m
■Color: Light gray
■Cable diameter (mm): 5.5mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/55.0mm, after installation/44.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: No
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
