SANWA SUPPLY
Category 6 STP Extension LAN Cable KB-STP6EX-02BL

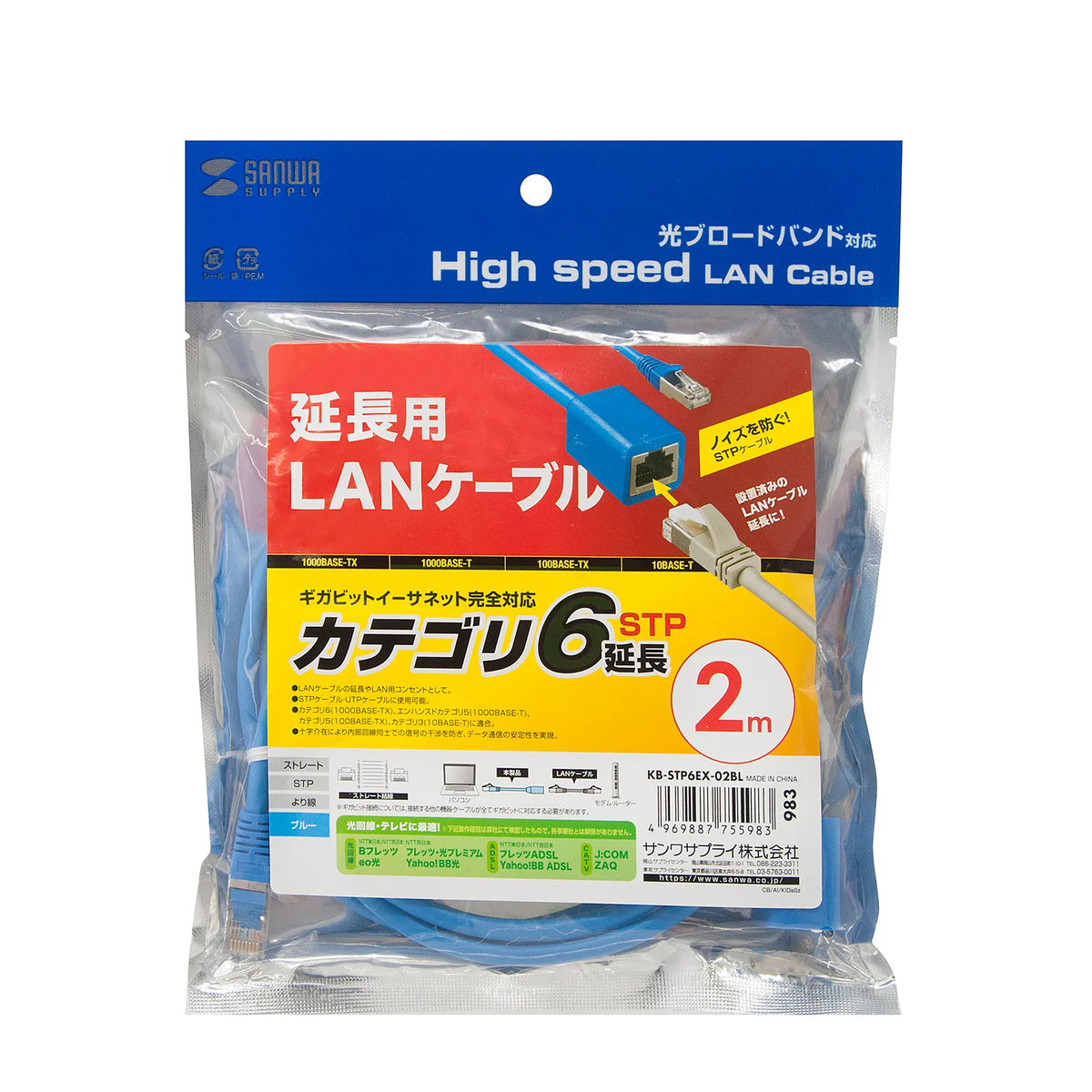

Category 6 STP Extension LAN Cable KB-STP6EX-02BL
GTIN（JAN）：4969887755983
SKU：KB-STP6EX-02BL
Regular price
¥1,379 JPY
Regular price
Sale price
¥1,379 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[LAN Cable Extension Cable, Noise-Resistant Shielded Type, 1000BASE-TX Compatible Category 6 STP Extension LAN Cable]
●Can be used to extend LAN cables.
●Can be placed around your desk as a LAN outlet for laptops.
●Noise-resistant STP shielded type.
●Can be used to extend UTP cables and STP cables.
●Complies with 1000BASE-TX Gigabit Ethernet, Category 6.
●Achieves 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 2m
■Color: Blue
■Cable Diameter: 6.1mm
■Number of Cable Cores: 8 cores (4P)
■Connection Wire specifications: Straight connection
■Cable structure: STP
■Cross separator: Yes
■Minimum bending radius:
During installation/36.0mm
After installation/24.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch breakage prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
●Can be used to extend LAN cables.
●Can be placed around your desk as a LAN outlet for laptops.
●Noise-resistant STP shielded type.
●Can be used to extend UTP cables and STP cables.
●Complies with 1000BASE-TX Gigabit Ethernet, Category 6.
●Achieves 1000Mbps (1Gbps) and a transmission bandwidth of 250MHz.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length: 2m
■Color: Blue
■Cable Diameter: 6.1mm
■Number of Cable Cores: 8 cores (4P)
■Connection Wire specifications: Straight connection
■Cable structure: STP
■Cross separator: Yes
■Minimum bending radius:
During installation/36.0mm
After installation/24.0mm
■Cable conductor: 26AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch breakage prevention cover: Yes
■Operating temperature range: -20 to 60 degrees Celsius
■Inspection: 100% continuity test
