SANWA SUPPLY

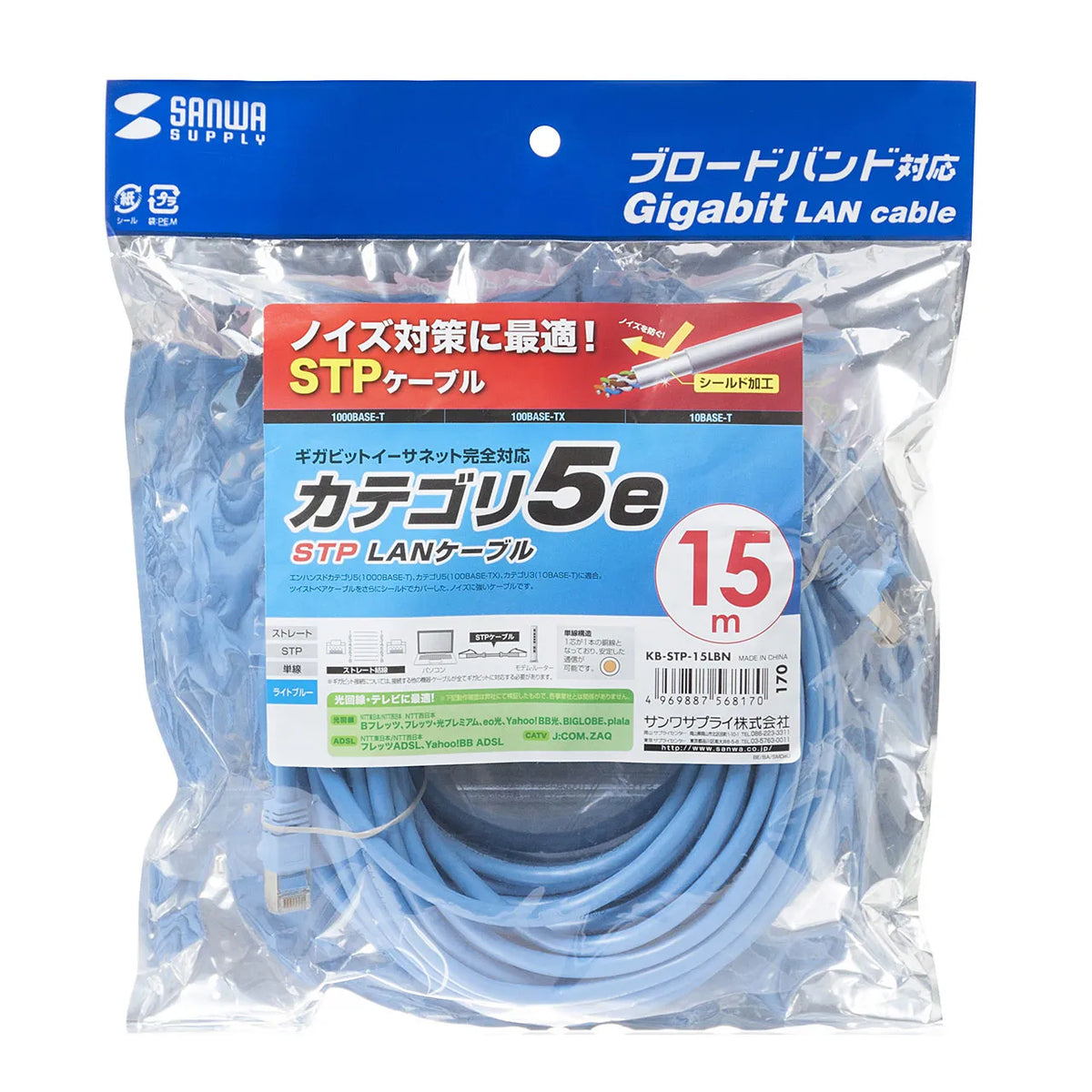

STP Enhanced Category 5 Cable KB-STP-15LBN
STP Enhanced Category 5 Cable KB-STP-15LBN
GTIN（JAN）：4969887568170
SKU：KB-STP-15LBN
Regular price
¥4,646 JPY
Regular price
Sale price
¥4,646 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Noise-resistant shielded STP LAN cable compatible with 1000BASE-T]
●This cable is highly resistant to noise, with twisted pair cables further covered by shielding.
●Fully compatible with Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
●A high-quality Category 5e LAN cable with a "solid wire" specification that allows you to fully utilize its performance.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length (m): 15m
■Color: Light blue
■Cable diameter (mm): 6mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable Bull structure: STP
■Cross separator: None
■Minimum bending radius: During installation/60.0mm, after installation/48.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●This cable is highly resistant to noise, with twisted pair cables further covered by shielding.
●Fully compatible with Gigabit Ethernet, achieving a transmission speed of 1000Mbps (1Gbps) and a transmission bandwidth of 100MHz.
●A high-quality Category 5e LAN cable with a "solid wire" specification that allows you to fully utilize its performance.
■Category: CAT5e
■Standard name: 1000BASE-T
■Compatible categories and standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 100MHz
■Cable length (m): 15m
■Color: Light blue
■Cable diameter (mm): 6mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable Bull structure: STP
■Cross separator: None
■Minimum bending radius: During installation/60.0mm, after installation/48.0mm
■Cable conductor: 24AWG
■Cable conductor structure: Solid wire
■PoE: Supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568A
■Connector shape: RJ-45 connector
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
