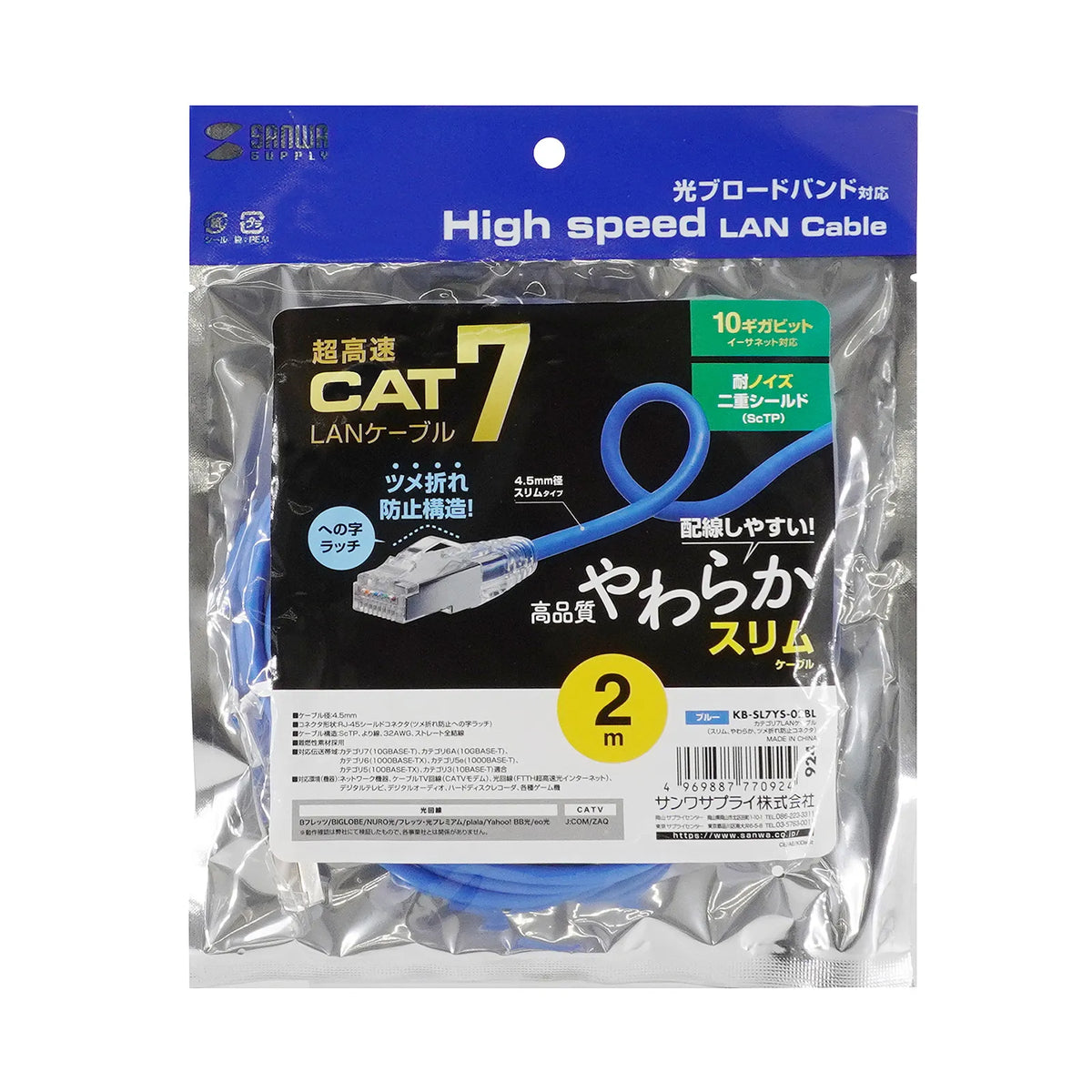

Category 7 LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL7YS-02BL
Category 7 LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL7YS-02BL
GTIN（JAN）：4969887770924
SKU：KB-SL7YS-02BL
Regular price
¥1,162 JPY
Regular price
Sale price
¥1,162 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 7 LAN cable achieving a transmission speed of 10Gbps and a transmission bandwidth of 600MHz. Slim design with a cable diameter of 4.5mm. Features a "V-shaped latch" connector with a claw break prevention structure. Blue, 2m.]
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 600MHz.
●A double-shielded cable with a shielded twisted pair and an additional shielded 4 pairs to combat alien crosstalk noise.
●Slim design with a cable diameter of 4.5mm for easy handling and neat wiring.
●Uses a polycarbonate connector with a V-shaped latch structure to prevent claw breakage.
●No latch cover allows for smooth operation when inserting and removing the connector.
●Integrated boot protects the cable core when the cable is bent.
■Category: CAT7
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps, 1Gbps, 100Mbps, 10Mbps
■Frequency Response: 600MHz
■Cable Length: 2m
■Color: Blue
■Cable Diameter: 4.5mm ■ Number of cable cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■ Cable structure: ScTP
■ Cross separator: None
■ Minimum bending radius: During installation/36.0mm, After installation/36.0mm
■ Cable conductor: 32AWG
■ Cable conductor structure: Stranded wire
■ PoE: Not supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568B
■ Connector shape: RJ-45 connector
■ Slim connector: None
■ Latch prevention connector: Yes
■ Latch prevention cover: None
■ Operating temperature range: -20 to 60 degrees Celsius
■ Inspection: 100% continuity test
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 600MHz.
●A double-shielded cable with a shielded twisted pair and an additional shielded 4 pairs to combat alien crosstalk noise.
●Slim design with a cable diameter of 4.5mm for easy handling and neat wiring.
●Uses a polycarbonate connector with a V-shaped latch structure to prevent claw breakage.
●No latch cover allows for smooth operation when inserting and removing the connector.
●Integrated boot protects the cable core when the cable is bent.
■Category: CAT7
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps, 1Gbps, 100Mbps, 10Mbps
■Frequency Response: 600MHz
■Cable Length: 2m
■Color: Blue
■Cable Diameter: 4.5mm ■ Number of cable cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■ Cable structure: ScTP
■ Cross separator: None
■ Minimum bending radius: During installation/36.0mm, After installation/36.0mm
■ Cable conductor: 32AWG
■ Cable conductor structure: Stranded wire
■ PoE: Not supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568B
■ Connector shape: RJ-45 connector
■ Slim connector: None
■ Latch prevention connector: Yes
■ Latch prevention cover: None
■ Operating temperature range: -20 to 60 degrees Celsius
■ Inspection: 100% continuity test
