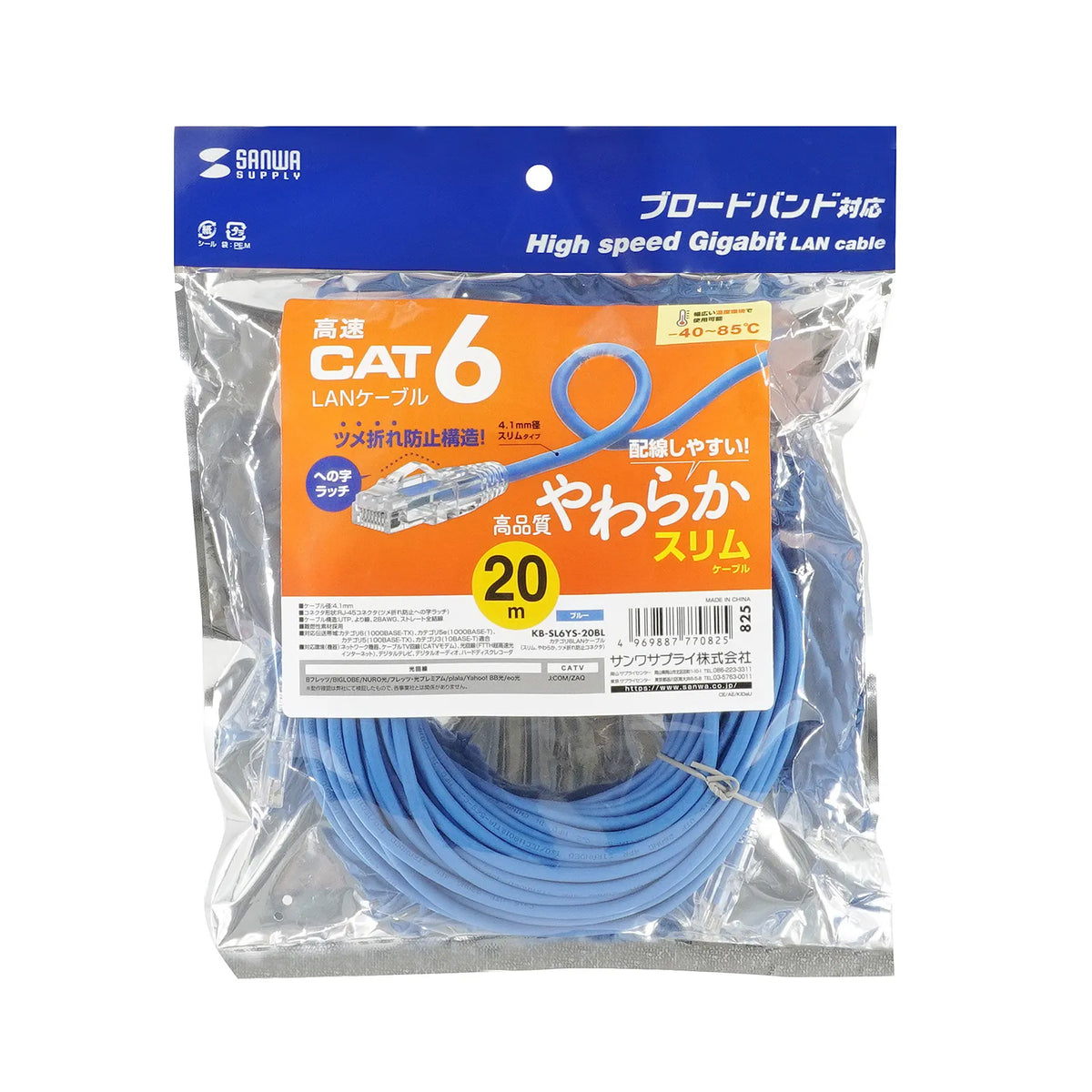

Category 6 LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6YS-20BL
Category 6 LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6YS-20BL
GTIN（JAN）：4969887770825
SKU：KB-SL6YS-20BL
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 6 LAN cable achieving a transmission speed of 1Gbps and a transmission bandwidth of 250MHz. Operating temperature range of -40 to 85 degrees Celsius, made of flexible material and slim 4.0mm cable diameter. Features a "V-shaped latch" connector with a claw break prevention structure.]
●A "flexible LAN cable" that is soft and less prone to tangling.
●A Gigabit-compatible LAN cable that achieves a transmission speed of 1Gbps and a transmission bandwidth of 250MHz.
●Slim 4.1mm cable diameter for easy handling and neat wiring.
●Uses a polycarbonate connector with a V-shaped latch structure to prevent claw breakage.
●No latch cover allows for smooth operation when inserting and removing the connector.
●Integrated boot protects the cable core when the cable is bent.
●LAN cable made of material with excellent temperature resistance, oil resistance, and UV resistance.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps, 100Mbps, 10Mbps
■Frequency response: 250MHz
■Cable length (m): Approx. 20m
■Color: Blue
■Cable diameter (mm): Approx. 4.1mm
■Number of cable cores: 8 cores (4P)
■Wiring specification: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/32.8mm, After installation/16.4mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch connector with latch protection: Yes
■Latch connector with latch protection cover: None
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test
