SANWA SUPPLY

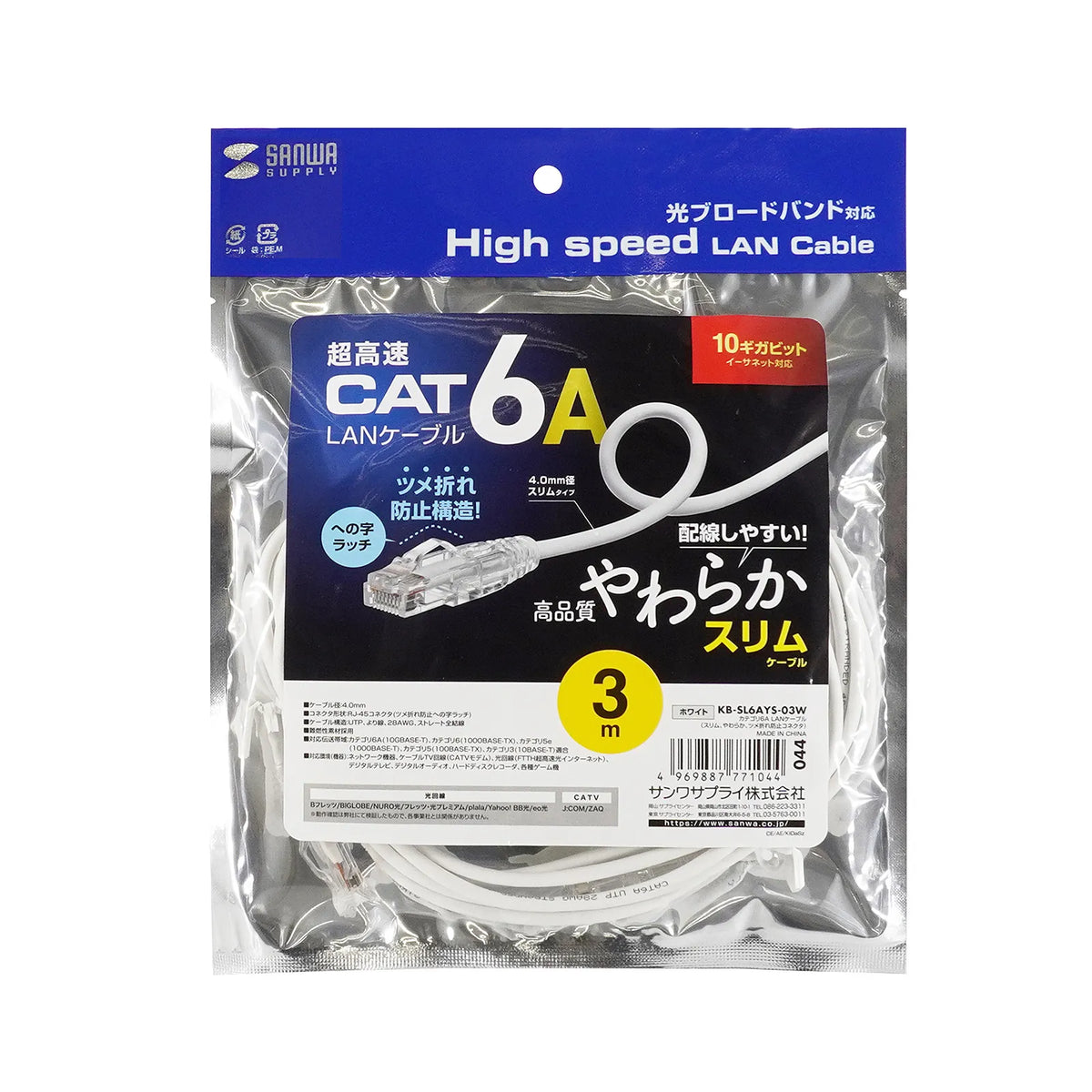

Category 6A LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6AYS-03W
Category 6A LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6AYS-03W
GTIN（JAN）：4969887771044
SKU：KB-SL6AYS-03W
Regular price
¥1,234 JPY
Regular price
Sale price
¥1,234 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 6A LAN Cable with 10Gbps Transmission Speed, 500MHz Transmission Bandwidth, Soft Material, 4.0mm Diameter Slim Cable, and Anti-Break "L-shaped Latch" Connector]
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 500MHz.
●The slim 4.0mm cable diameter makes it easy to handle and allows for neat wiring.
●Uses a polycarbonate connector with a L-shaped latch structure that prevents the connector from breaking.
●Since there is no latch cover, the connector can be inserted and removed smoothly.
●It has an integrated boot that protects the cable core when the cable is bent.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 3m
■Color: White
■Cable Diameter (mm): 4mm
■Number of Cable Cores: 8 cores (4 P)
■Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/12.0mm, After installation/12.0mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheathing material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: Yes
■Latch prevention cover: None
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 500MHz.
●The slim 4.0mm cable diameter makes it easy to handle and allows for neat wiring.
●Uses a polycarbonate connector with a L-shaped latch structure that prevents the connector from breaking.
●Since there is no latch cover, the connector can be inserted and removed smoothly.
●It has an integrated boot that protects the cable core when the cable is bent.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 3m
■Color: White
■Cable Diameter (mm): 4mm
■Number of Cable Cores: 8 cores (4 P)
■Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/12.0mm, After installation/12.0mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheathing material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: Yes
■Latch prevention cover: None
■Operating temperature range: -20 to 60 degrees
■Inspection: 100% continuity test
