SANWA SUPPLY

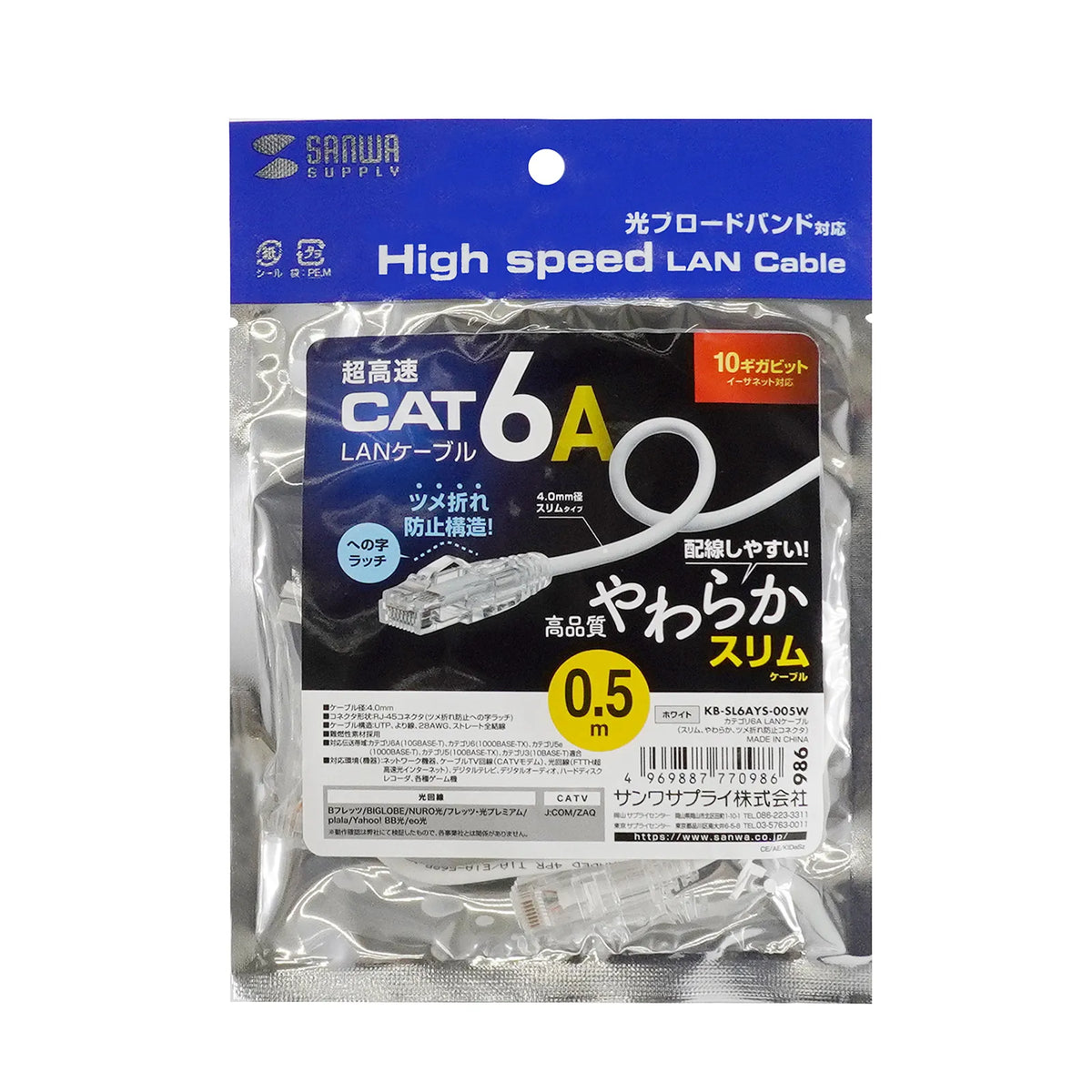

Category 6A LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6AYS-005W
Category 6A LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL6AYS-005W
GTIN（JAN）：4969887770986
SKU：KB-SL6AYS-005W
Regular price
¥653 JPY
Regular price
Sale price
¥653 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 6A LAN Cable with 10Gbps Transmission Speed, 500MHz Transmission Bandwidth, Soft Material, 4.0mm Diameter Slim Cable, and Anti-Break "L-shaped Latch" Connector]
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 500MHz.
●The slim 4.0mm cable diameter makes it easy to handle and allows for neat wiring.
●Uses a polycarbonate connector with a L-shaped latch structure that prevents the connector from breaking.
●Since there is no latch cover, the connector can be inserted and removed smoothly.
●It has an integrated boot that protects the cable core when the cable is bent.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 0.5m
■Color: White
■Cable Diameter (mm): 4mm
■Number of Cable Cores: 8 cores ( 4P)
■Wiring Specification: Straight Connection
■Cable Structure: UTP
■Cross Separator: None
■Minimum Bending Radius: During Installation/12.0mm, After Installation/12.0mm
■Cable Conductor: 28AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Not Supported
■Sheath Material: PVC
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: Yes
■Latch Protection Connector: Yes
■Latch Protection Cover: None
■Operating Temperature Range: -20 to 60 degrees Celsius
■Inspection: 100% Continuity Test
●A "soft LAN cable" that is flexible and less prone to tangling.
●A 10 Gigabit compatible LAN cable that achieves a transmission speed of 10Gbps and a transmission bandwidth of 500MHz.
●The slim 4.0mm cable diameter makes it easy to handle and allows for neat wiring.
●Uses a polycarbonate connector with a L-shaped latch structure that prevents the connector from breaking.
●Since there is no latch cover, the connector can be inserted and removed smoothly.
●It has an integrated boot that protects the cable core when the cable is bent.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 0.5m
■Color: White
■Cable Diameter (mm): 4mm
■Number of Cable Cores: 8 cores ( 4P)
■Wiring Specification: Straight Connection
■Cable Structure: UTP
■Cross Separator: None
■Minimum Bending Radius: During Installation/12.0mm, After Installation/12.0mm
■Cable Conductor: 28AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Not Supported
■Sheath Material: PVC
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: Yes
■Latch Protection Connector: Yes
■Latch Protection Cover: None
■Operating Temperature Range: -20 to 60 degrees Celsius
■Inspection: 100% Continuity Test
